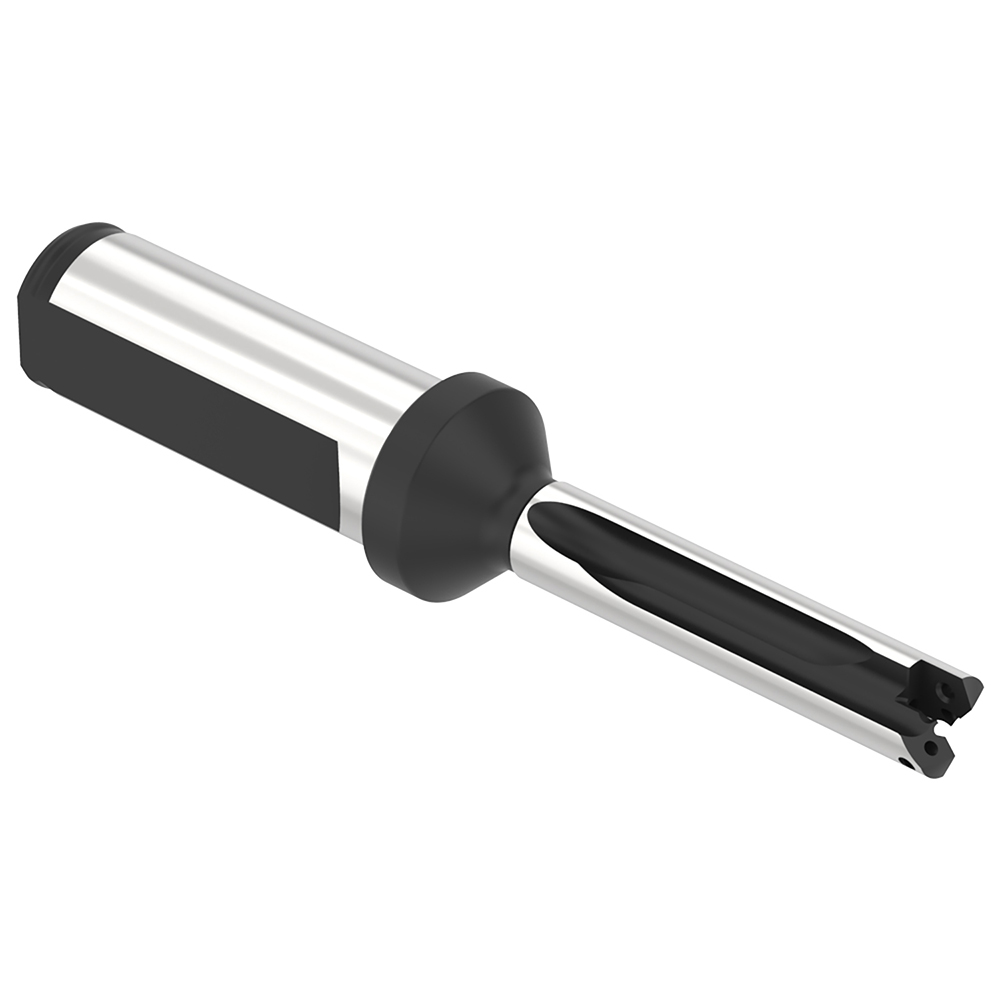

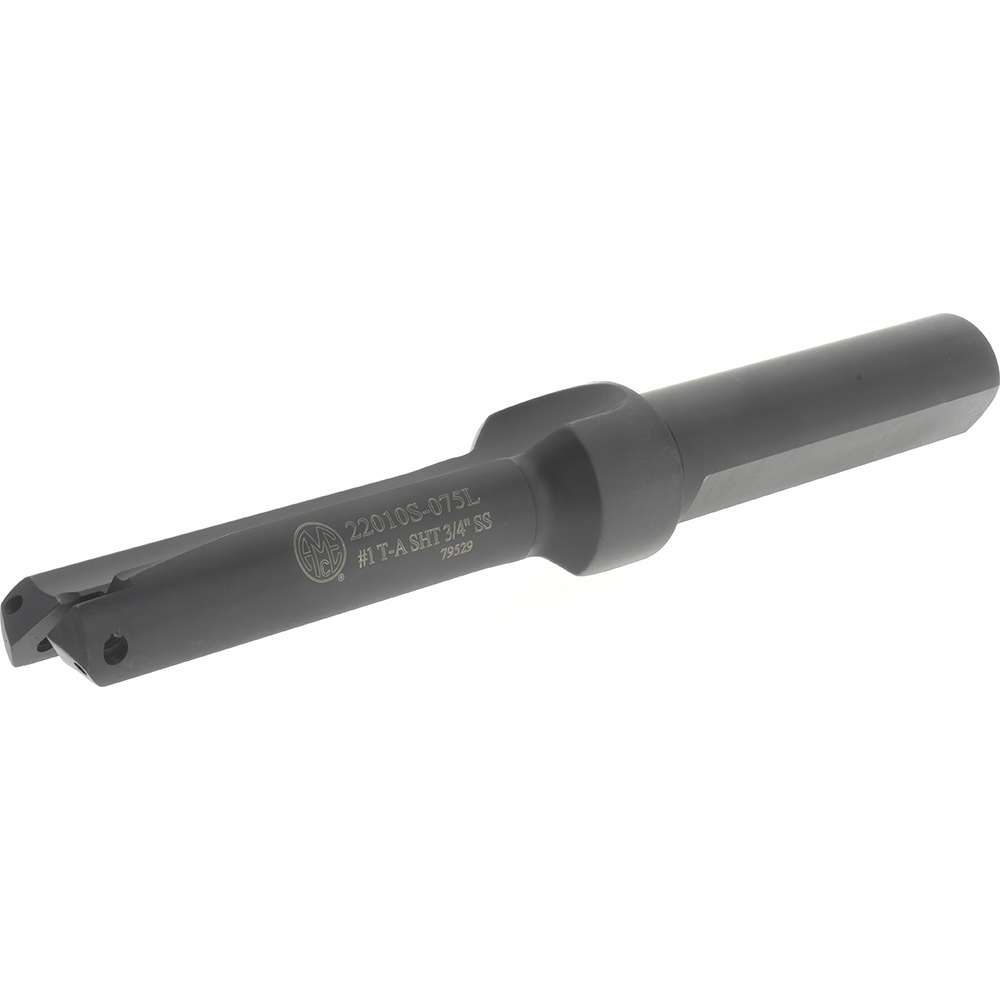

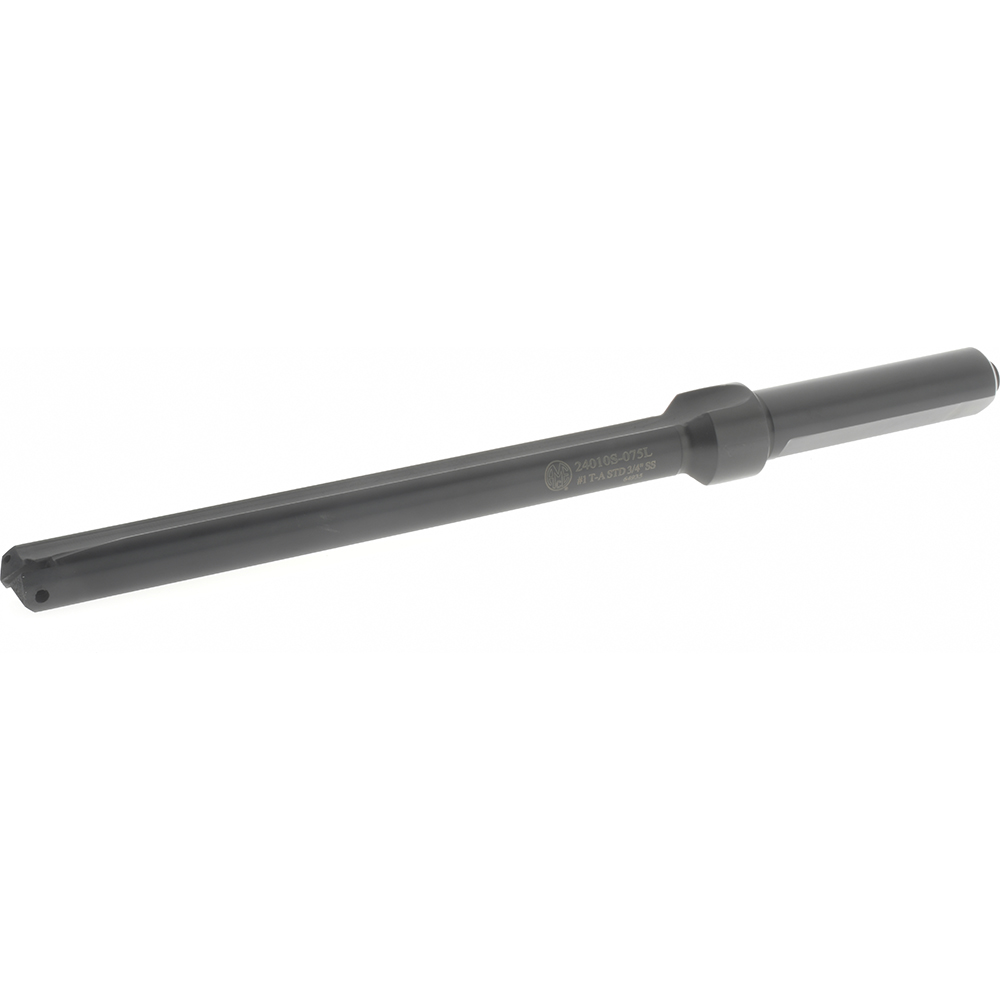

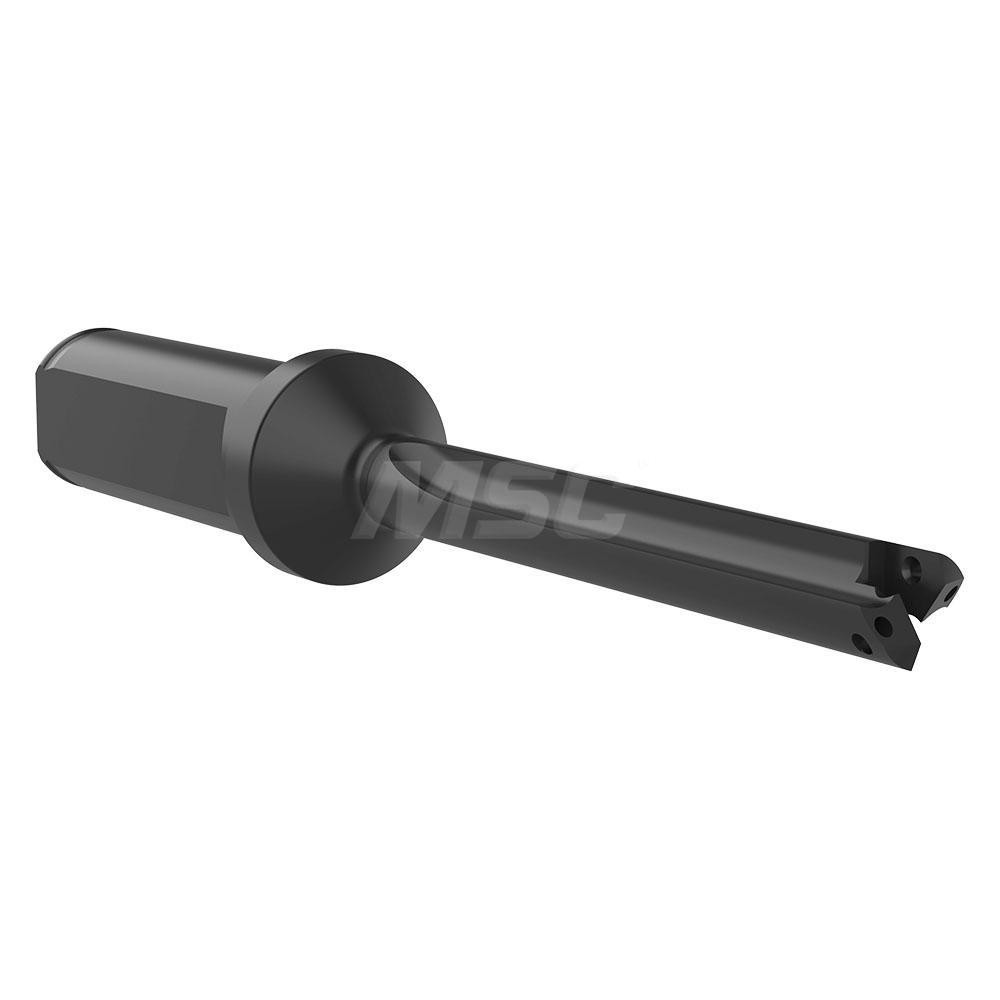

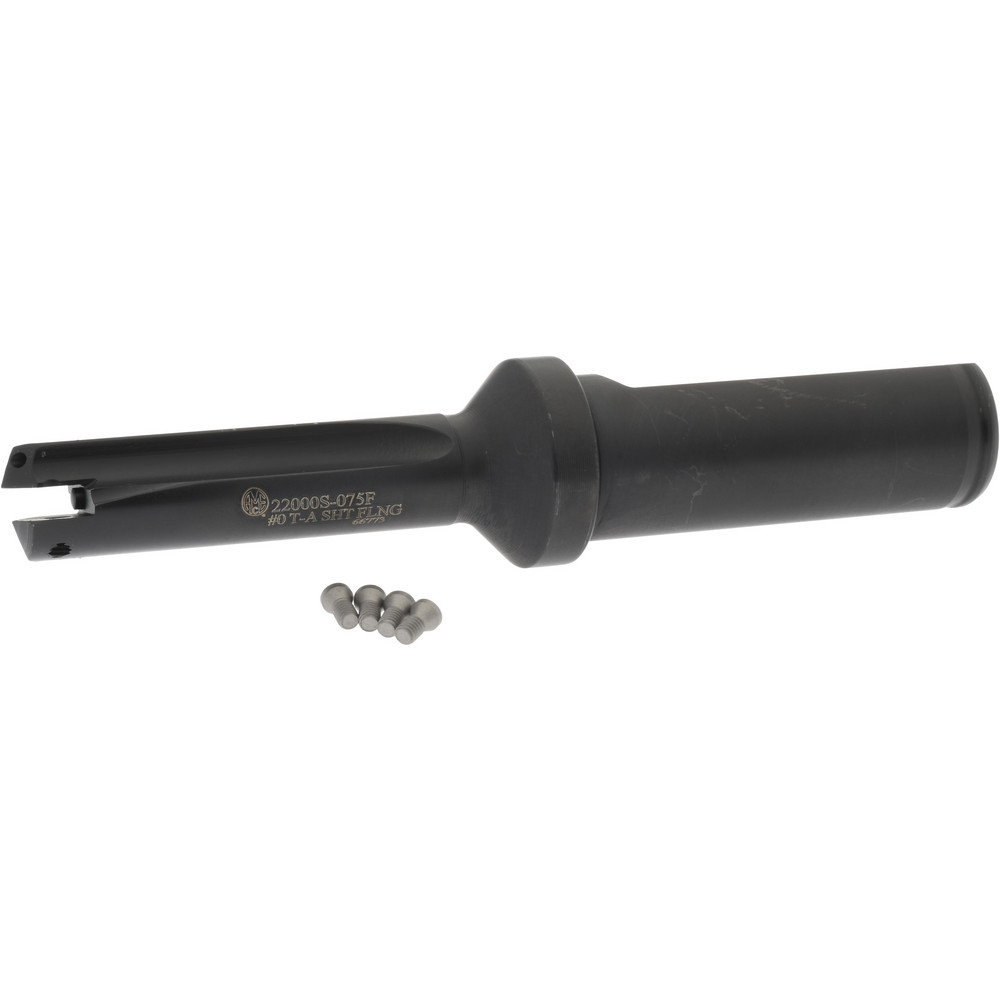

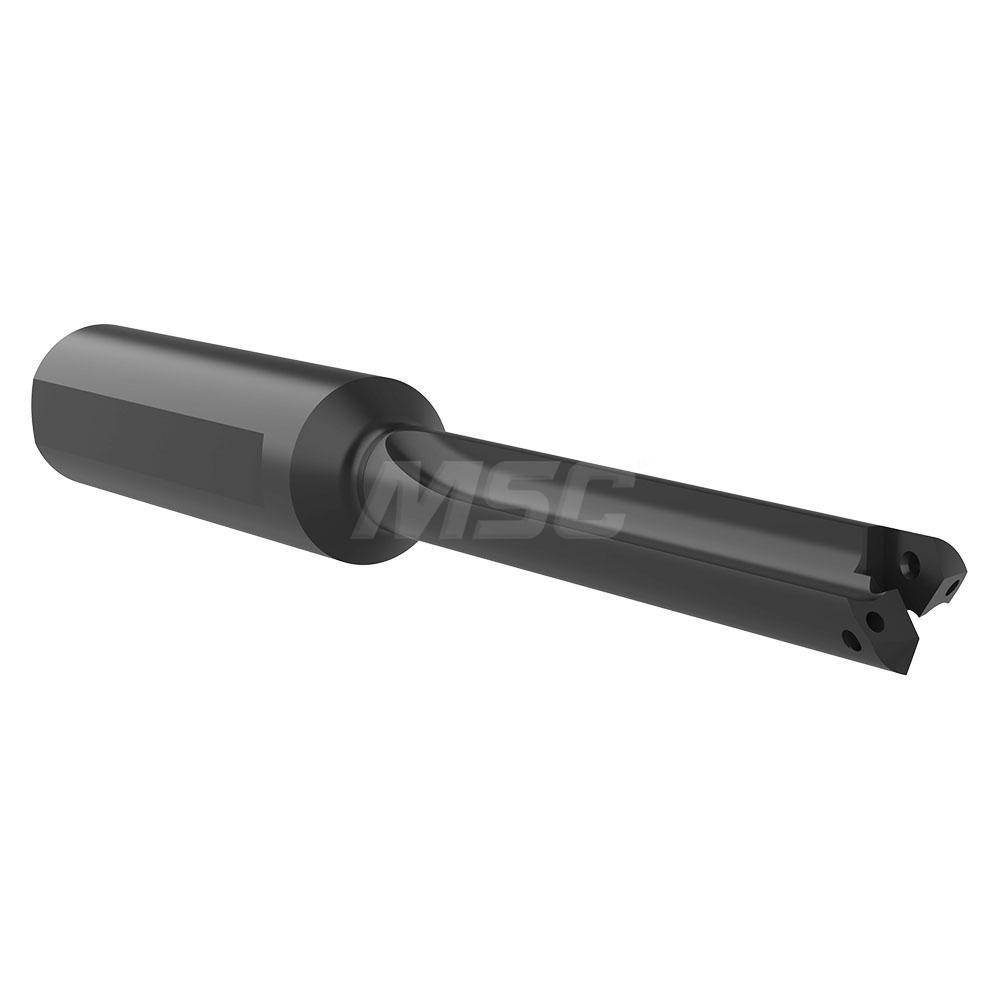

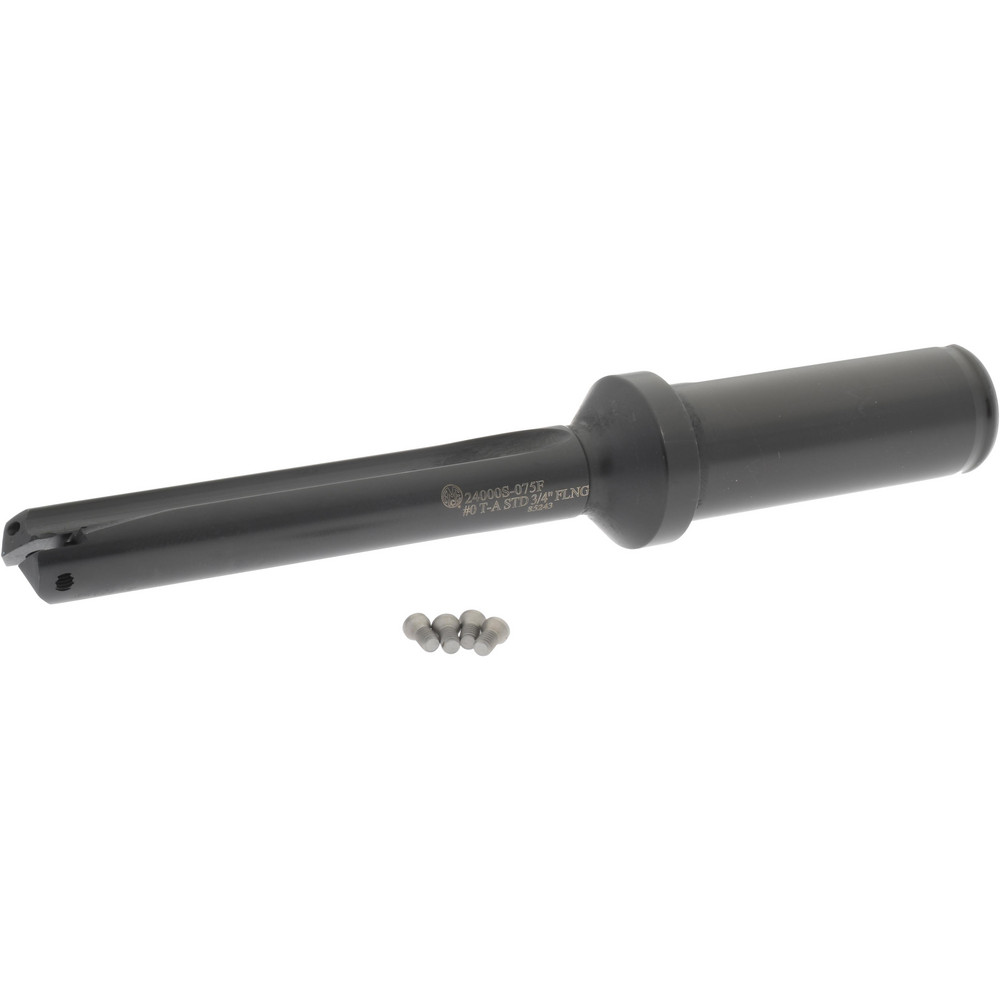

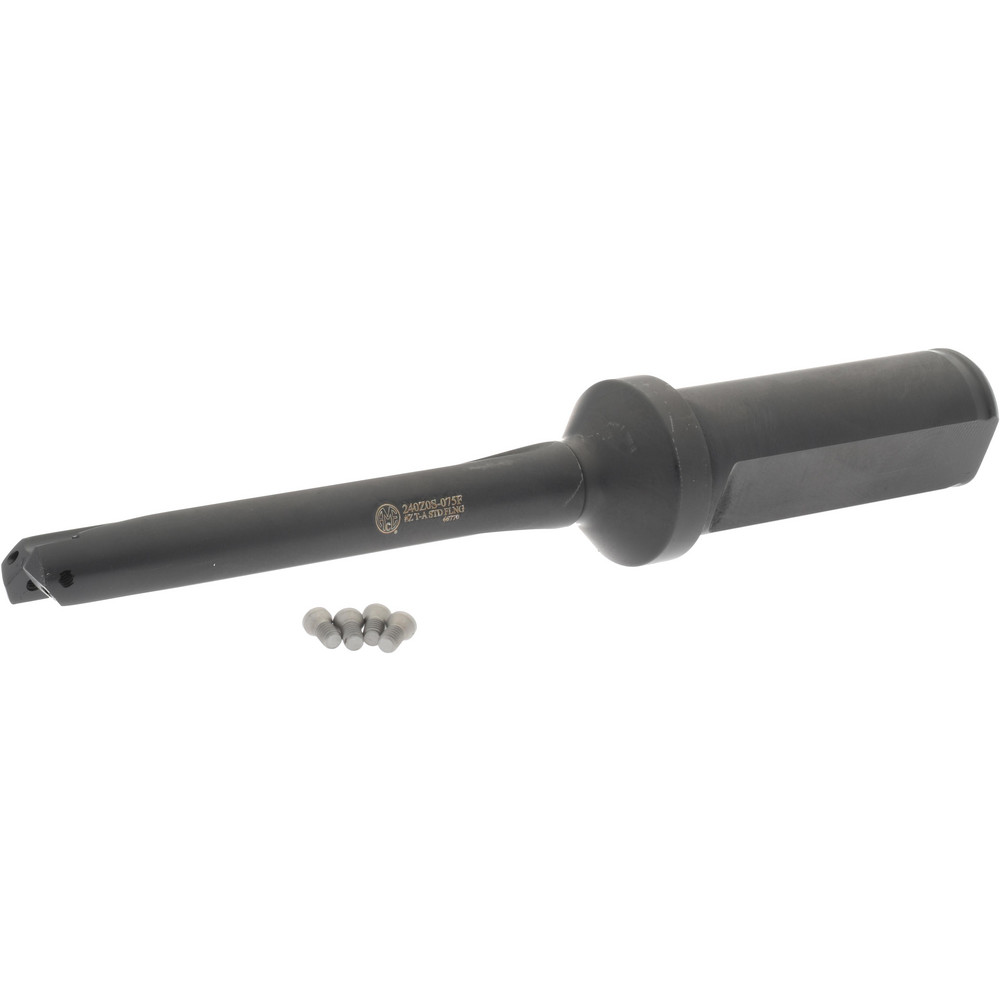

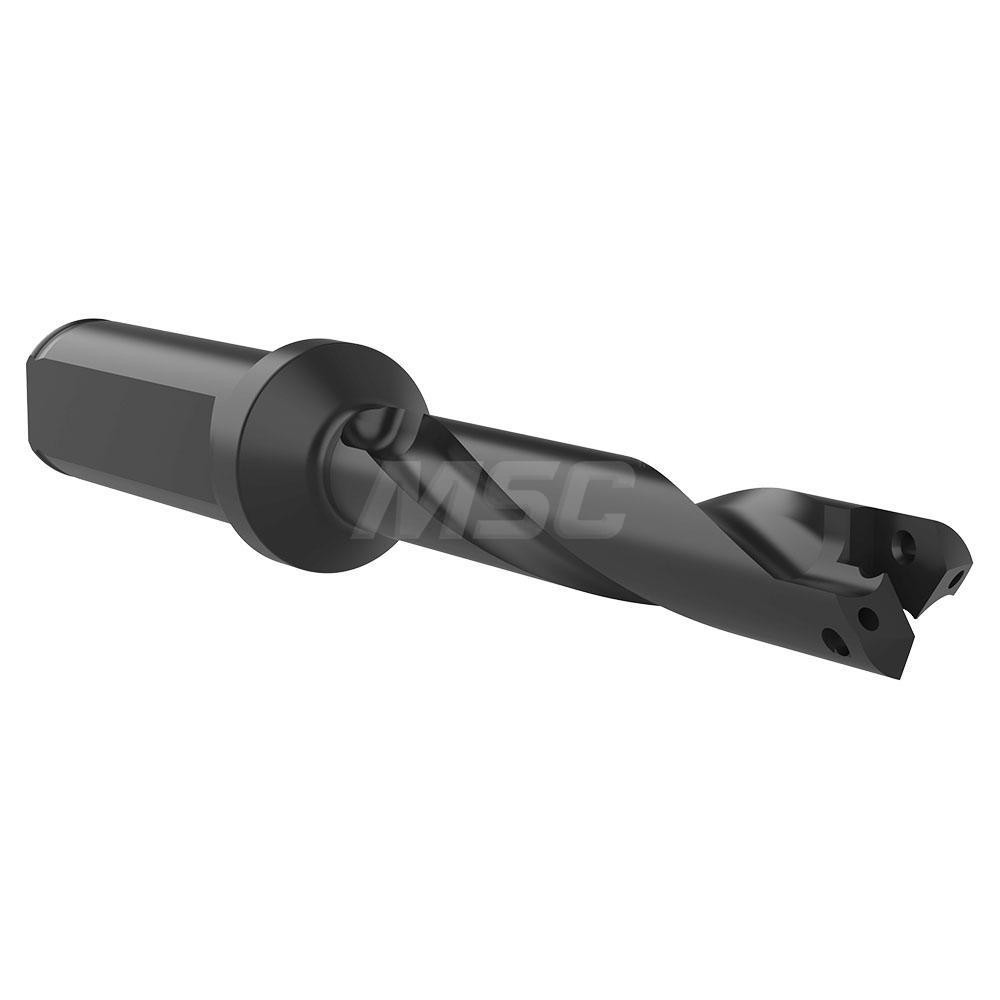

Flatted Shank, 2.6930" Body Length, 1.4520" Flute Length, 1.4520" Flute Length, Coolant Through, Series T-A Pro Z
| Minimum Drill Diameter (Decimal Inch) | 0.4800 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.4990 |
| Maximum Drill Depth (Decimal Inch) | 1.4520 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 3xD |
| Tool Material | Steel |
| Overall Length (Decimal Inch) | 4.7230 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A Pro Z |
| Flute Type | Straight |
| Flute Length (Decimal Inch) | 1.4520 |
| Body Length (Decimal Inch) | 2.6930 |
| Shank Length (Decimal Inch) | 2.0300 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 16719304 |
