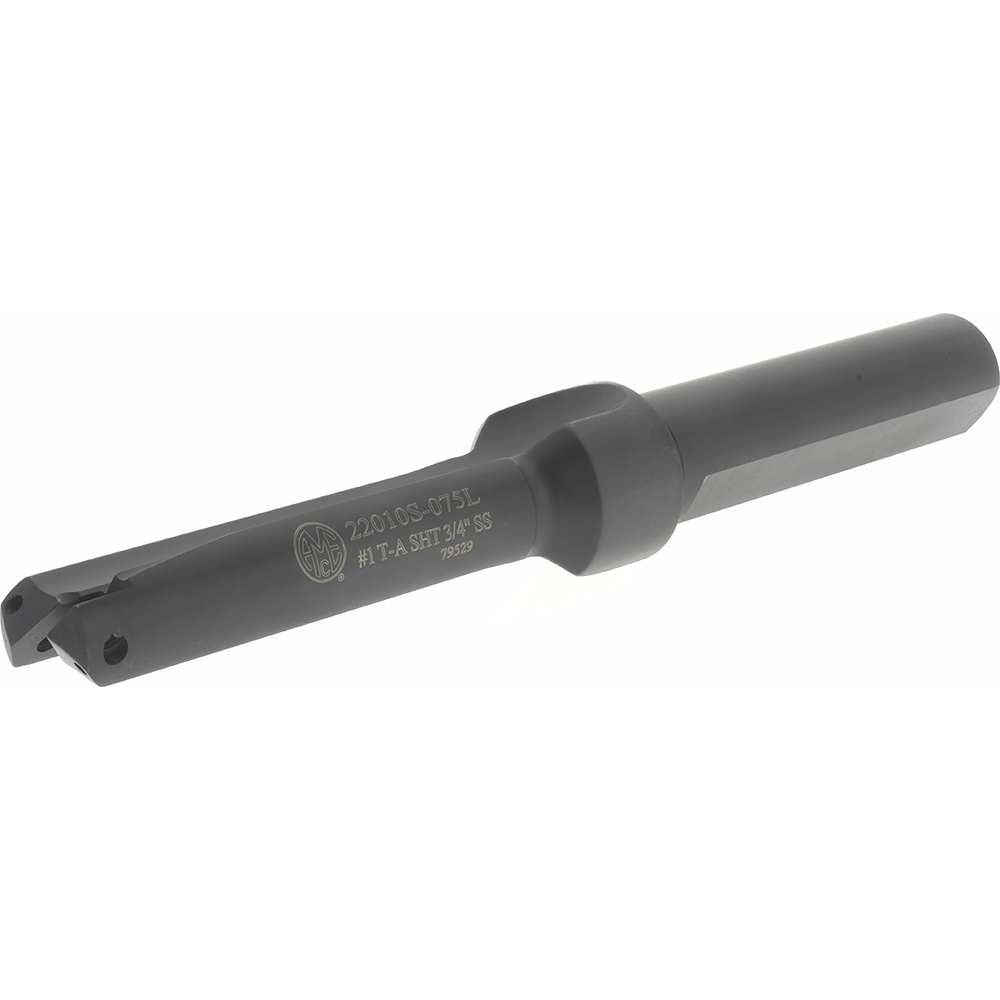

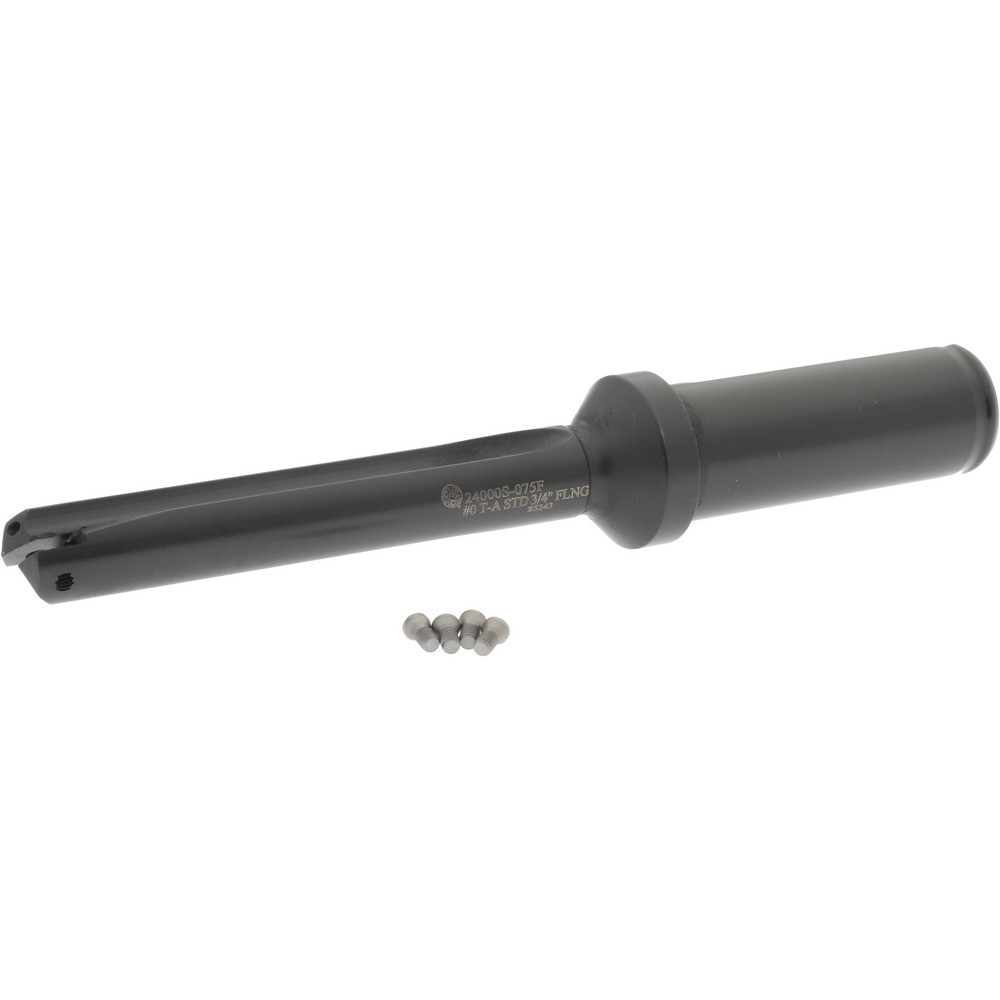

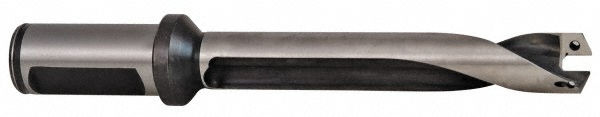

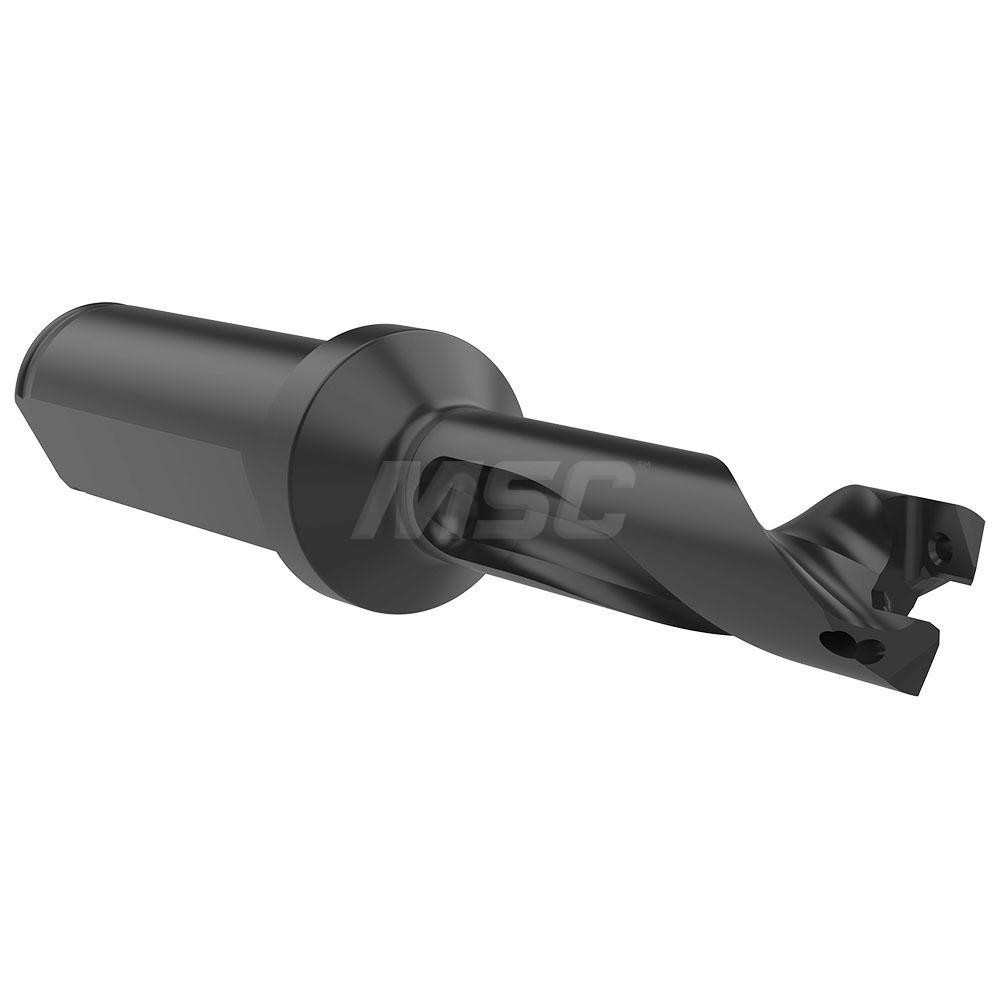

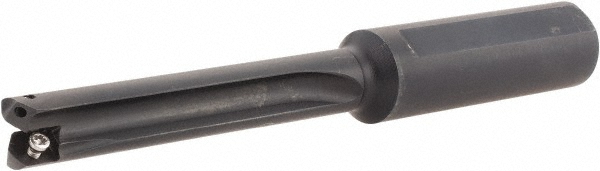

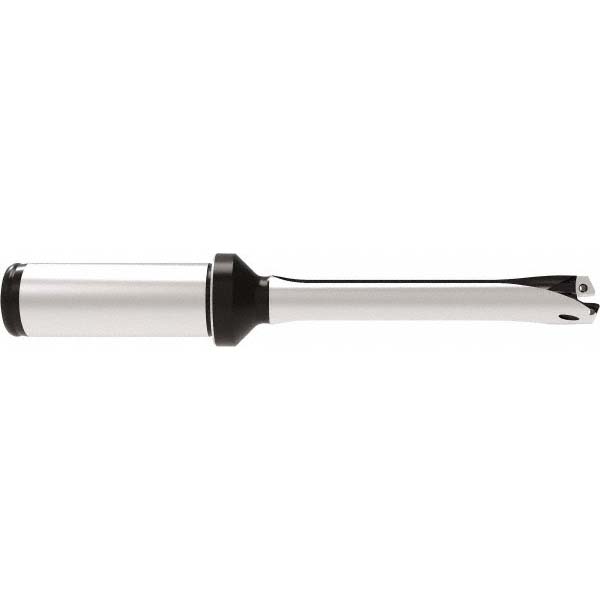

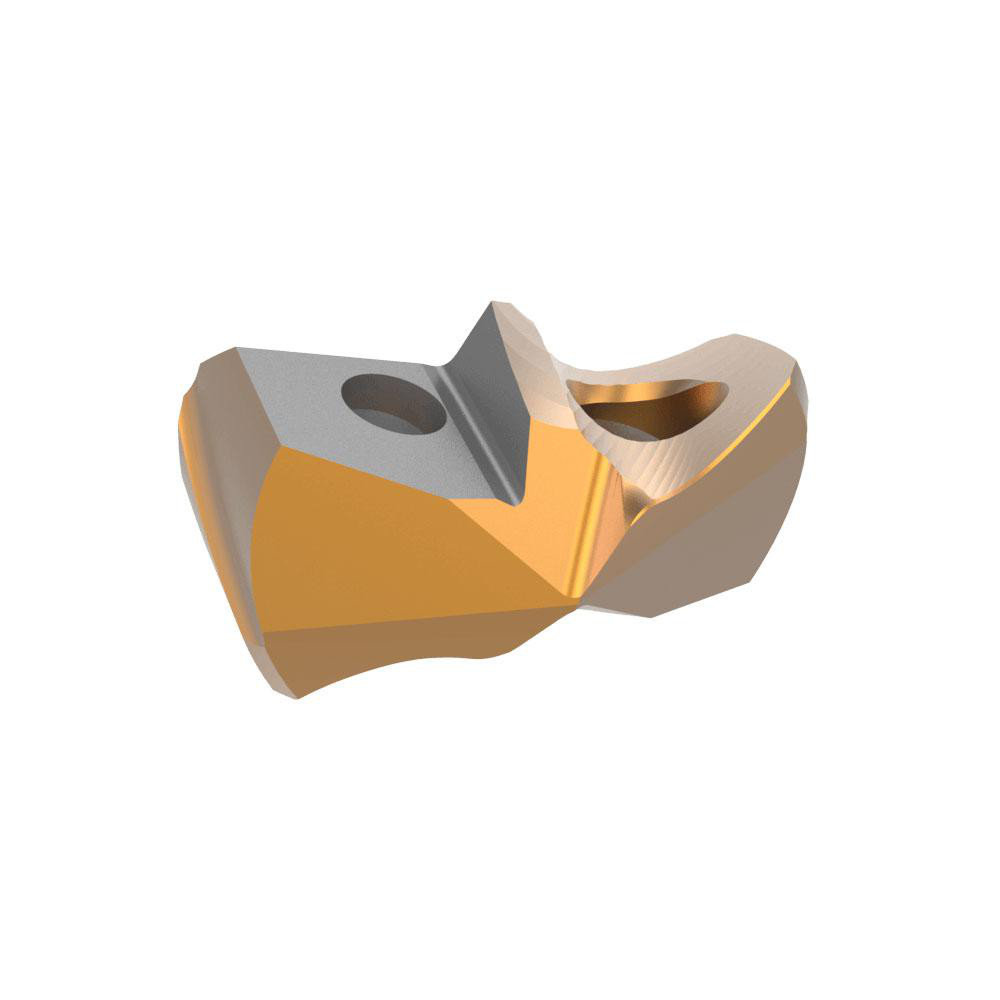

0.7500" Dia Flatted Shank, Coolant Through, Series GEN3SYS 13
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5511 |
| Maximum Drill Depth (Inch) | 1-21/32 |
| Maximum Drill Depth (Decimal Inch) | 1.6560 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 3xD |
| Tool Material | Steel |
| Overall Length (Inch) | 4-49/64 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS 13 |
| Flute Type | Helical |
| Flute Length (Inch) | 1-21/32 |
| Body Length (Inch) | 2-47/64 |
| Shank Length (Inch) | 2-1/32 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 92520402 |
