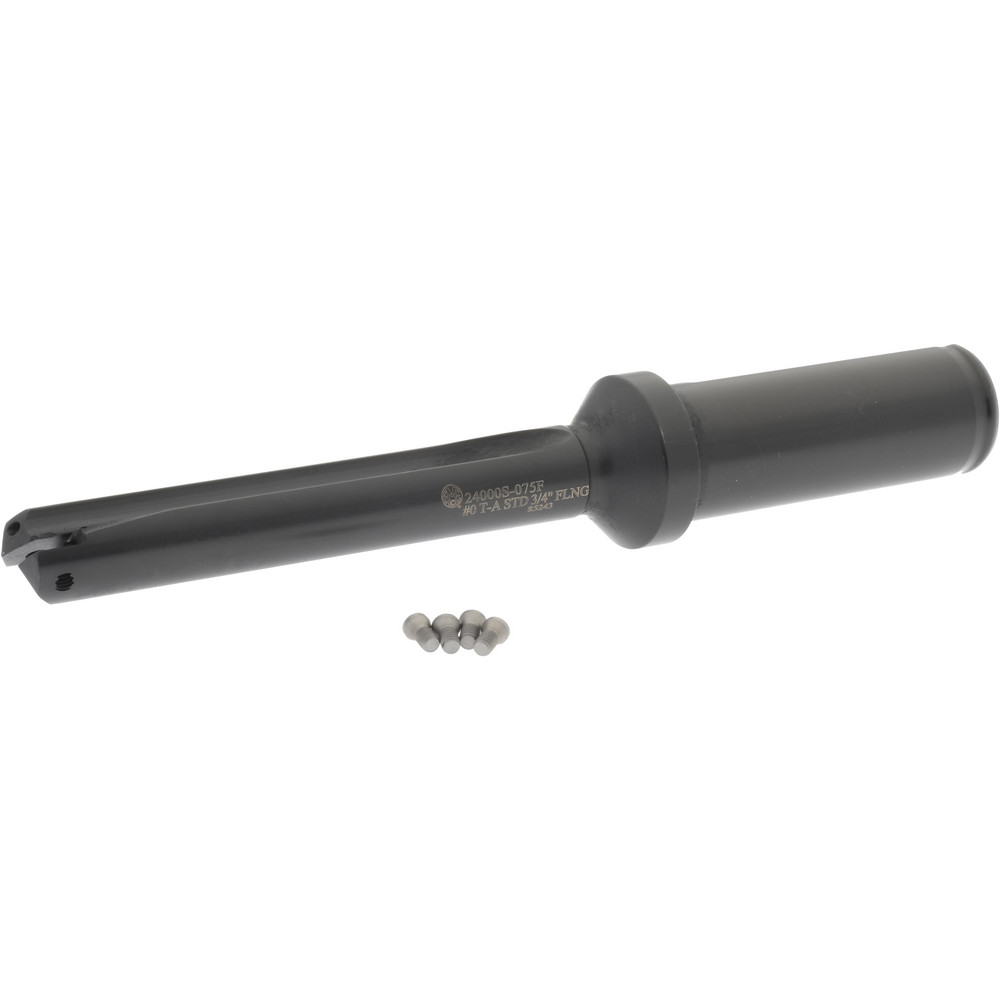

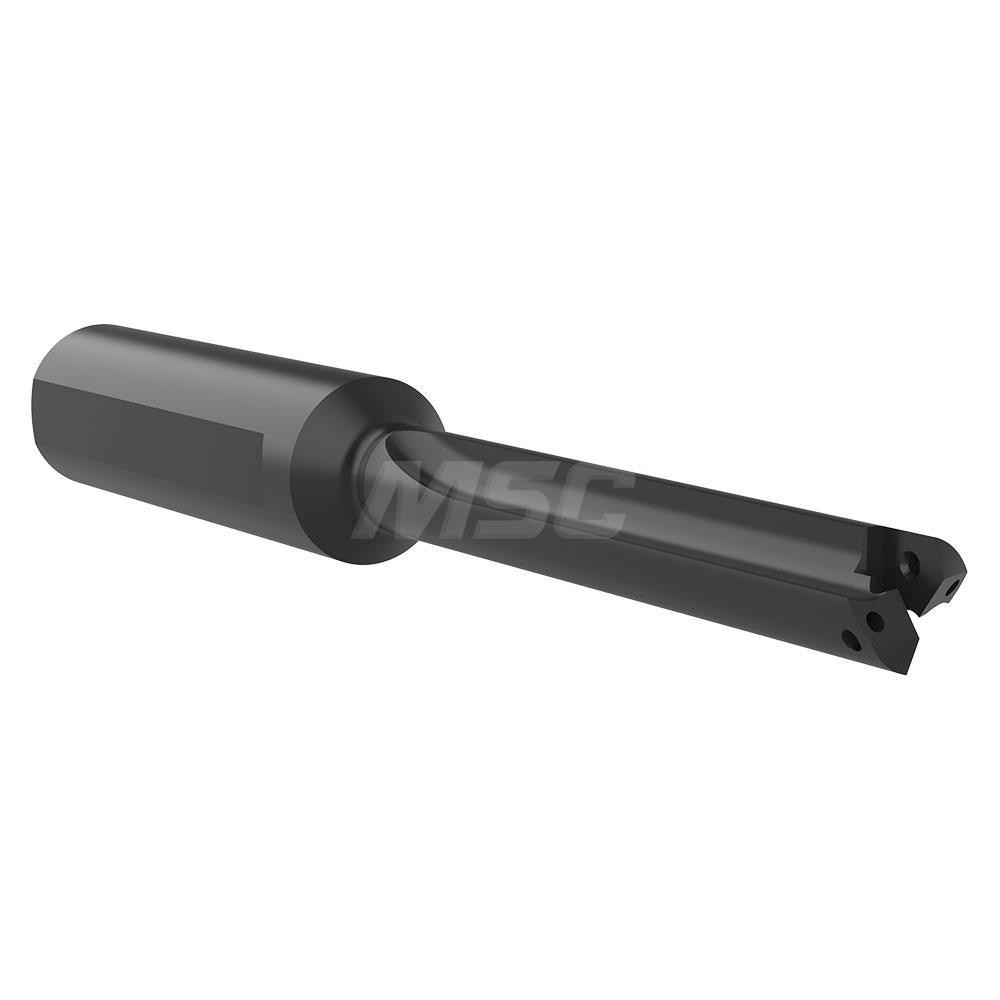

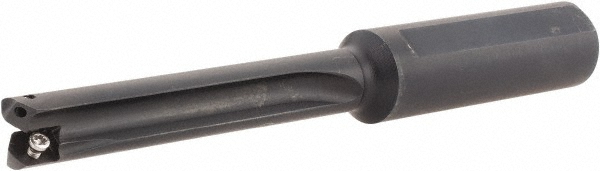

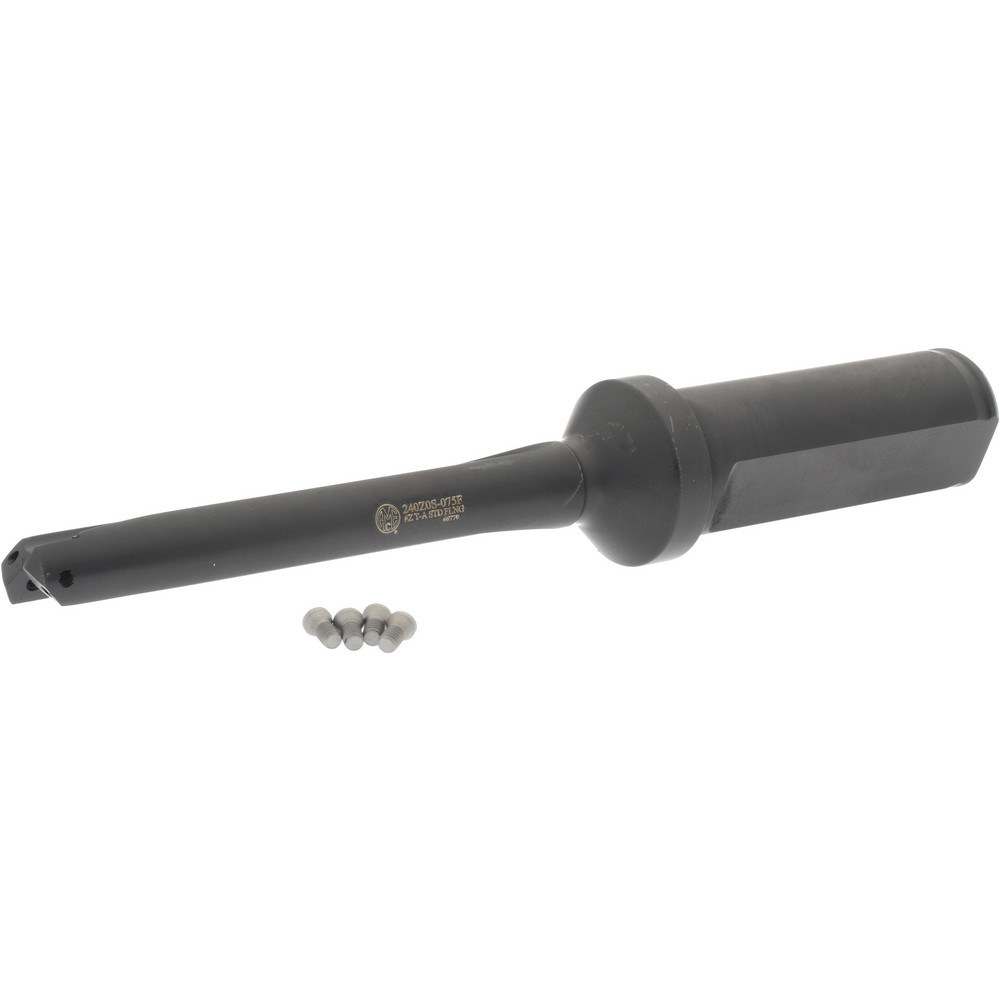

Flatted Shank, Coolant Through, Series GEN3SYS 16
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
|---|---|
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6692 |
| Maximum Drill Depth (Inch) | 2-1/64 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 3xD |
| Tool Material | Steel |
| Overall Length (Inch) | 5-15/64 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS 16 |
| Flute Type | Straight |
| Flute Length (Inch) | 2-1/64 |
| Body Length (Inch) | 3-13/64 |
| Shank Length (Inch) | 2-1/32 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 92520592 |
