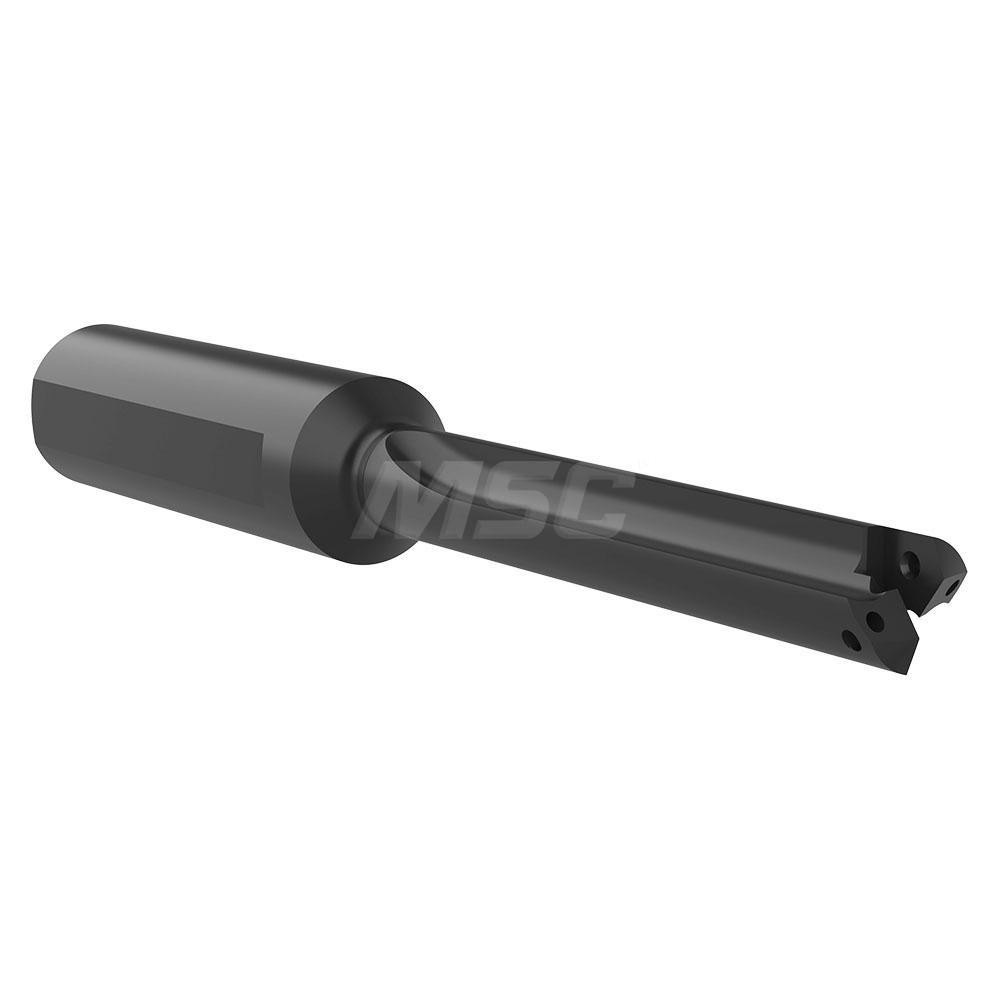

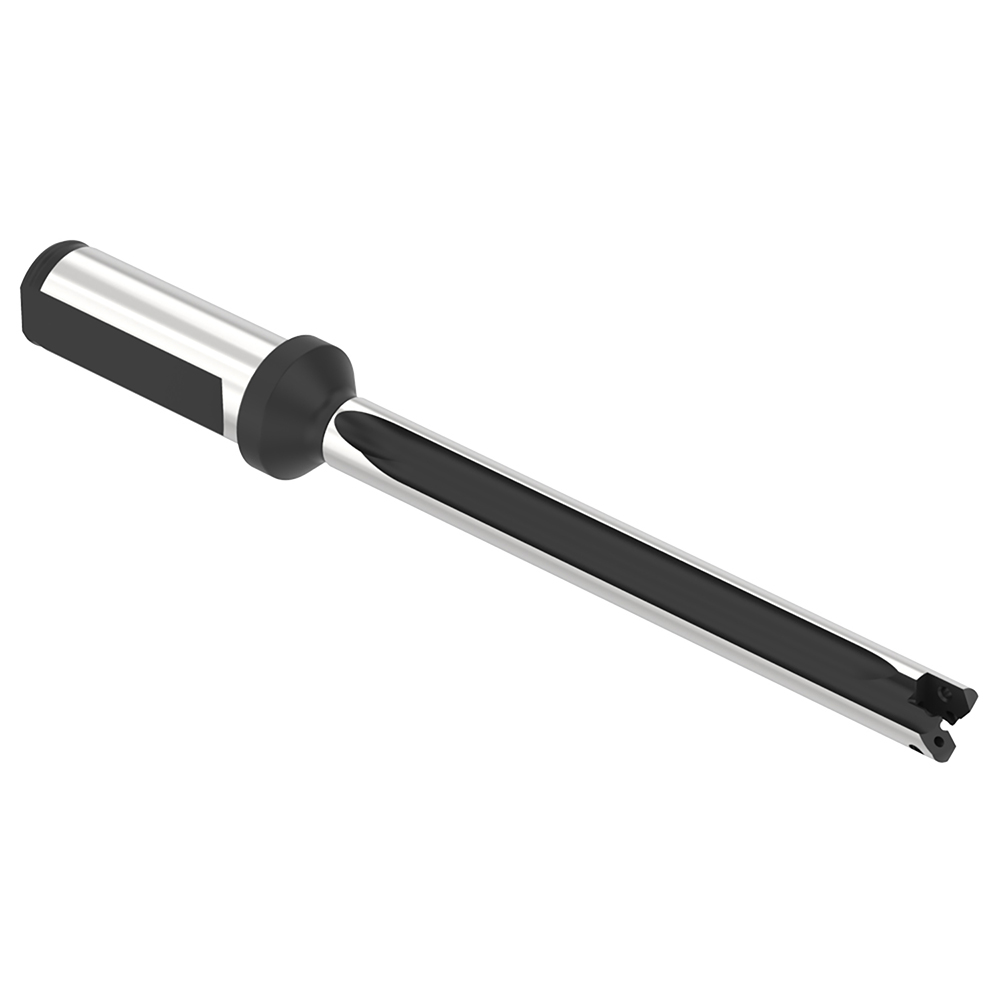

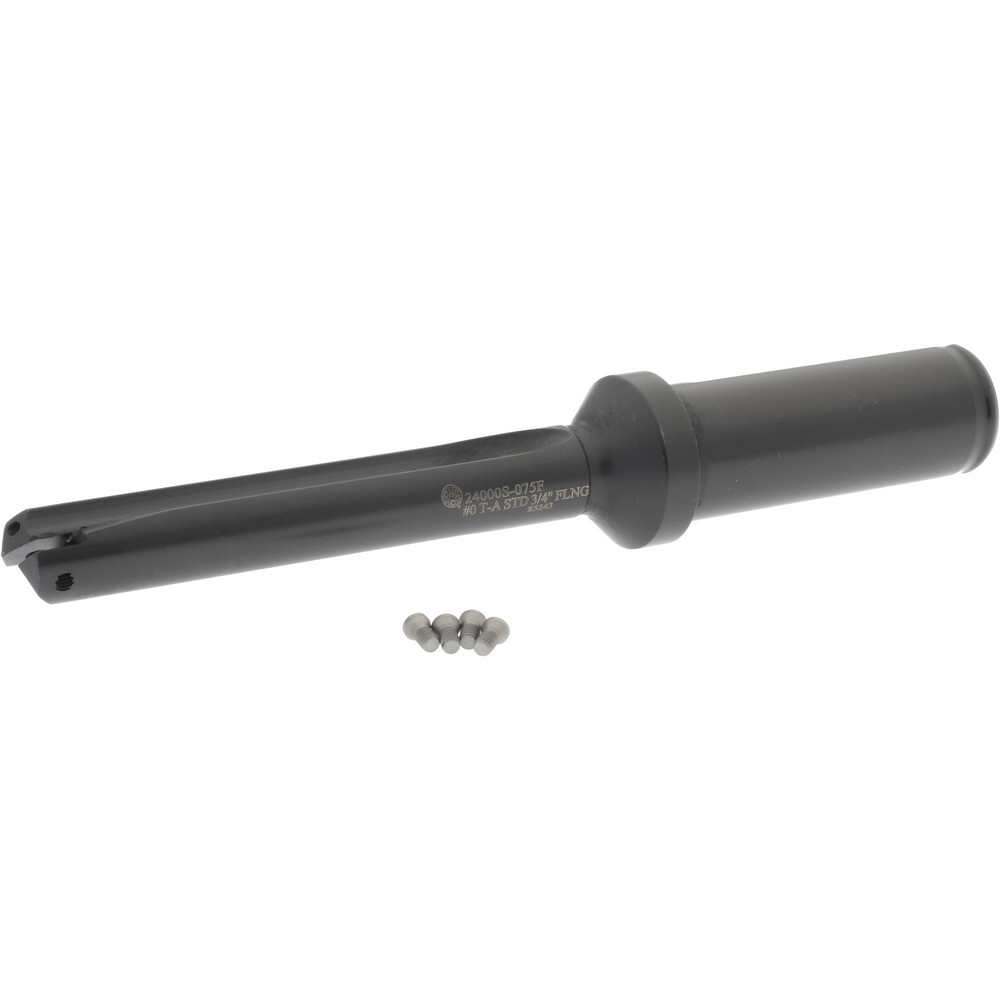

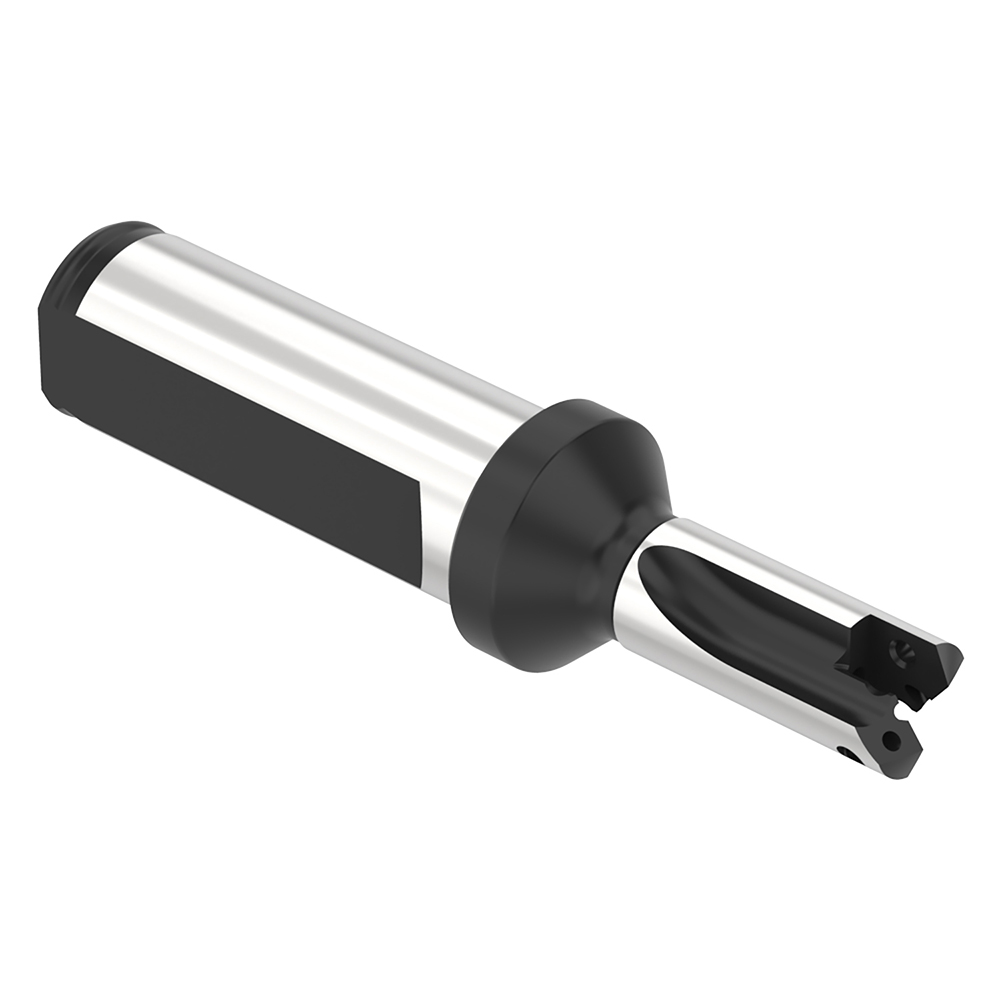

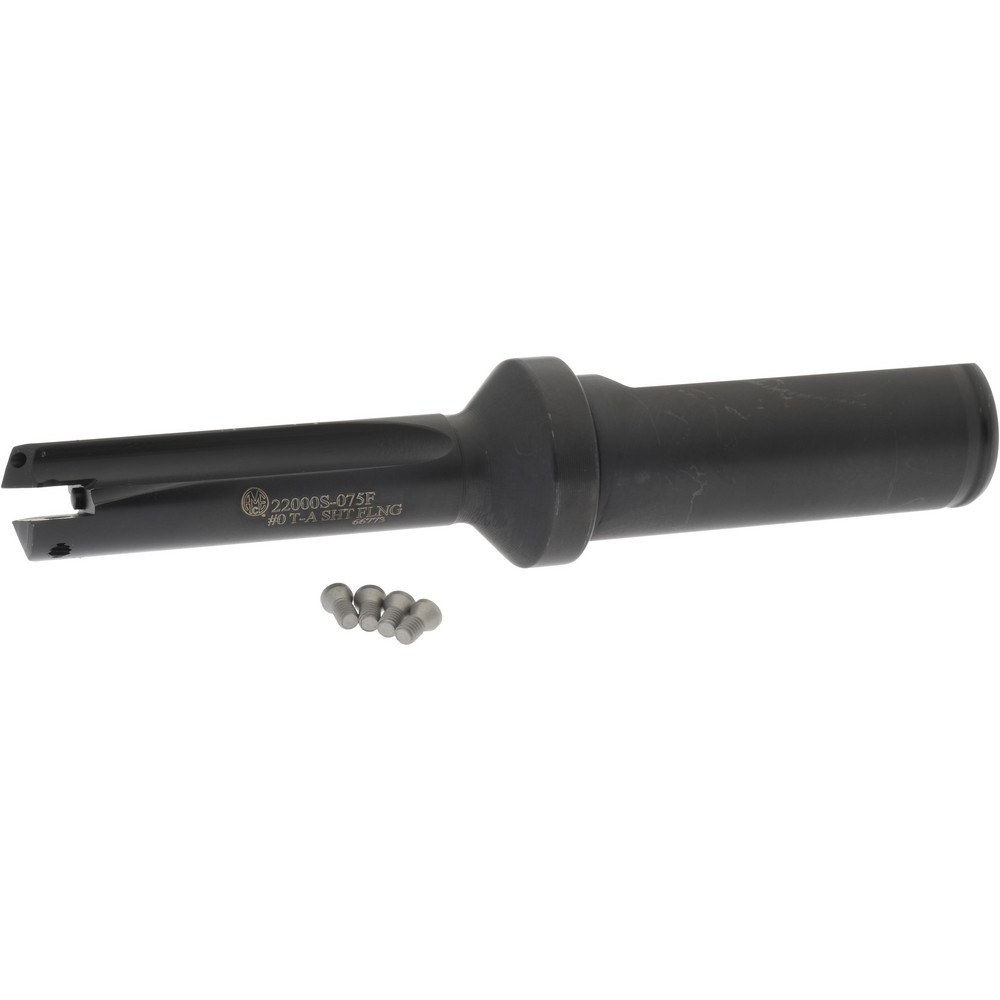

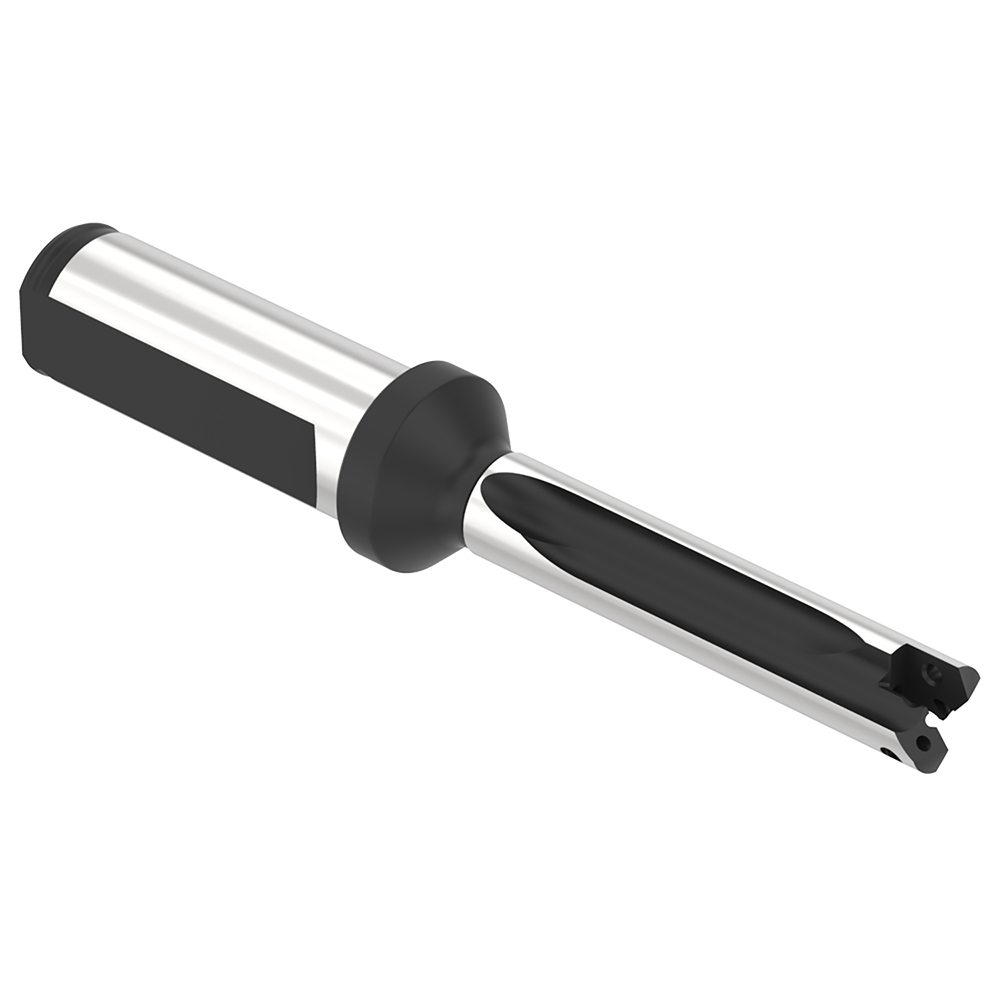

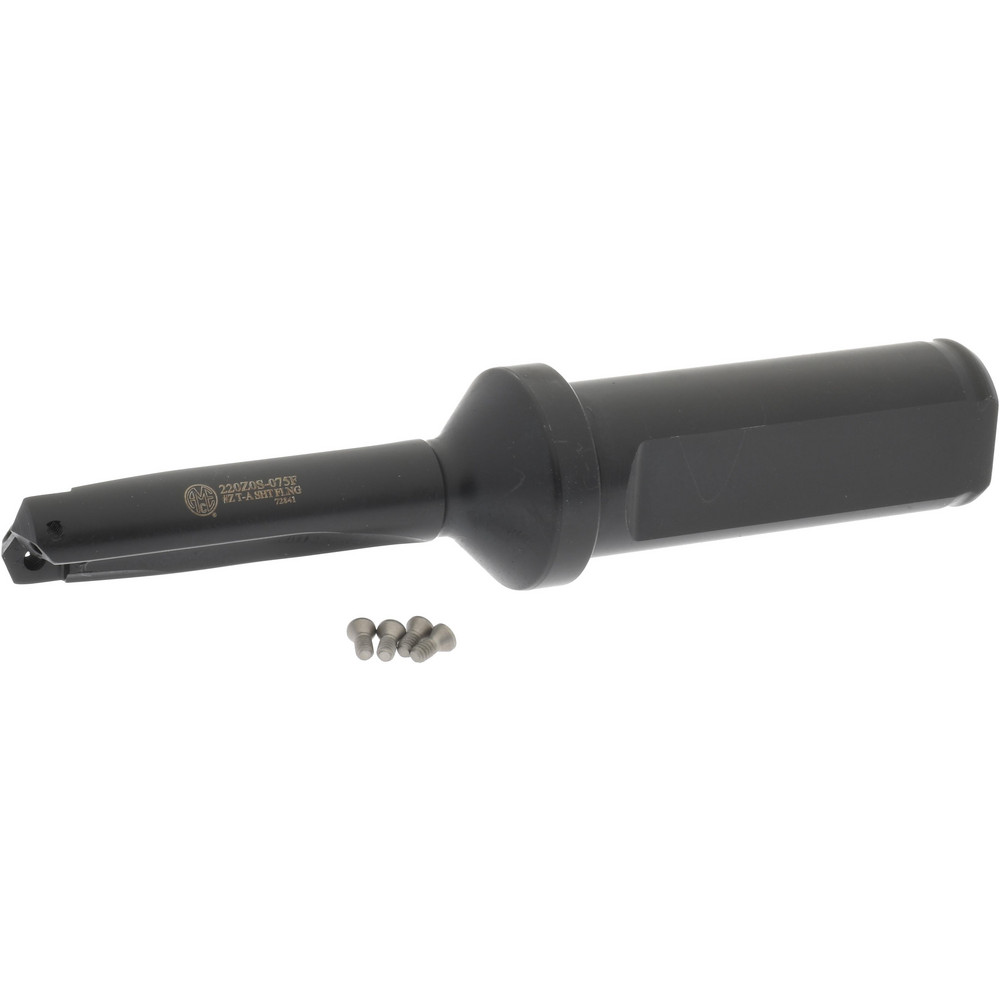

Flatted Shank, 1.7310" Body Length, 0.6030" Flute Length, 0.6030" Flute Length, Coolant Through, Series T-A Pro 0
| Minimum Drill Diameter (Inch) | 1/2 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.6950 |
| Maximum Drill Depth (Decimal Inch) | 0.6030 |
| Spade Drill Length | Short |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Length Type | Stub |
| Drill Depth by Diameter Ratio | 1xD |
| Tool Material | Steel |
| Overall Length (Decimal Inch) | 3.7610 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A Pro 0 |
| Flute Type | Straight |
| Flute Length (Decimal Inch) | 0.6030 |
| Body Length (Decimal Inch) | 1.7310 |
| Shank Length (Decimal Inch) | 2.0300 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 16711772 |
