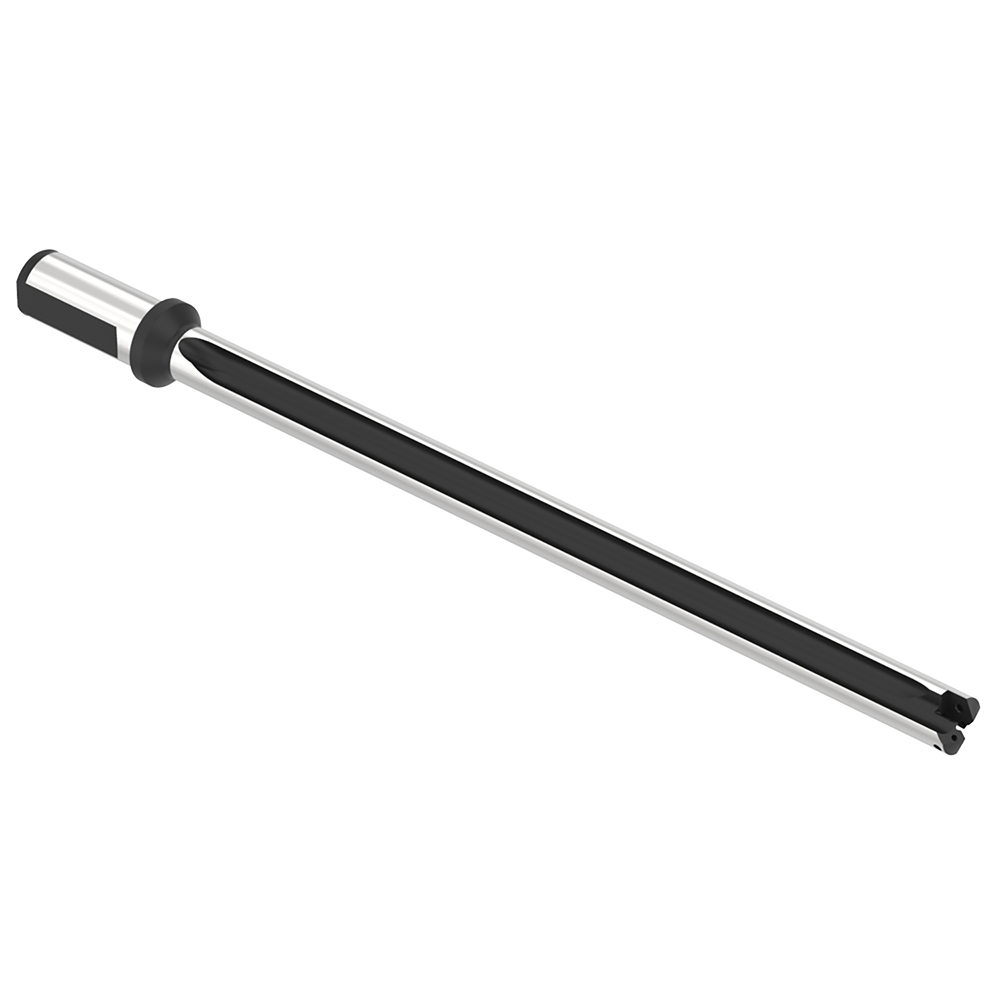

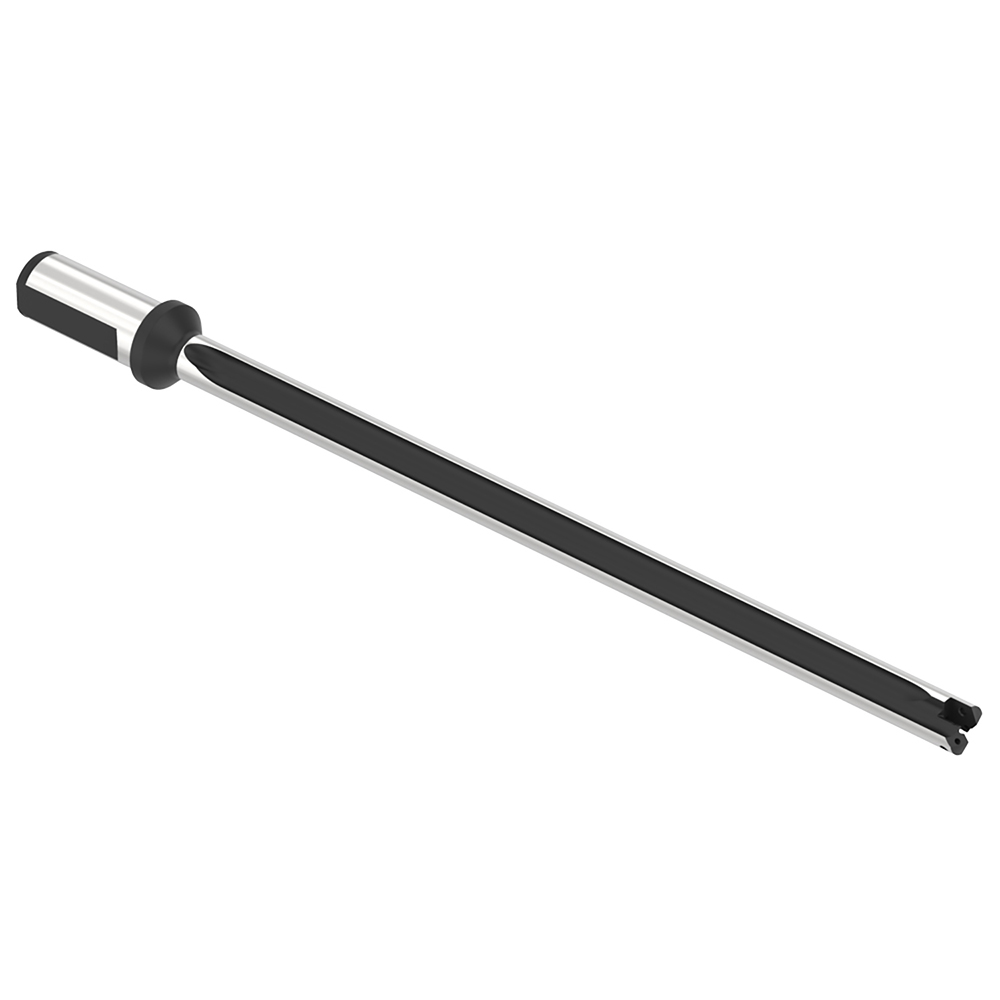

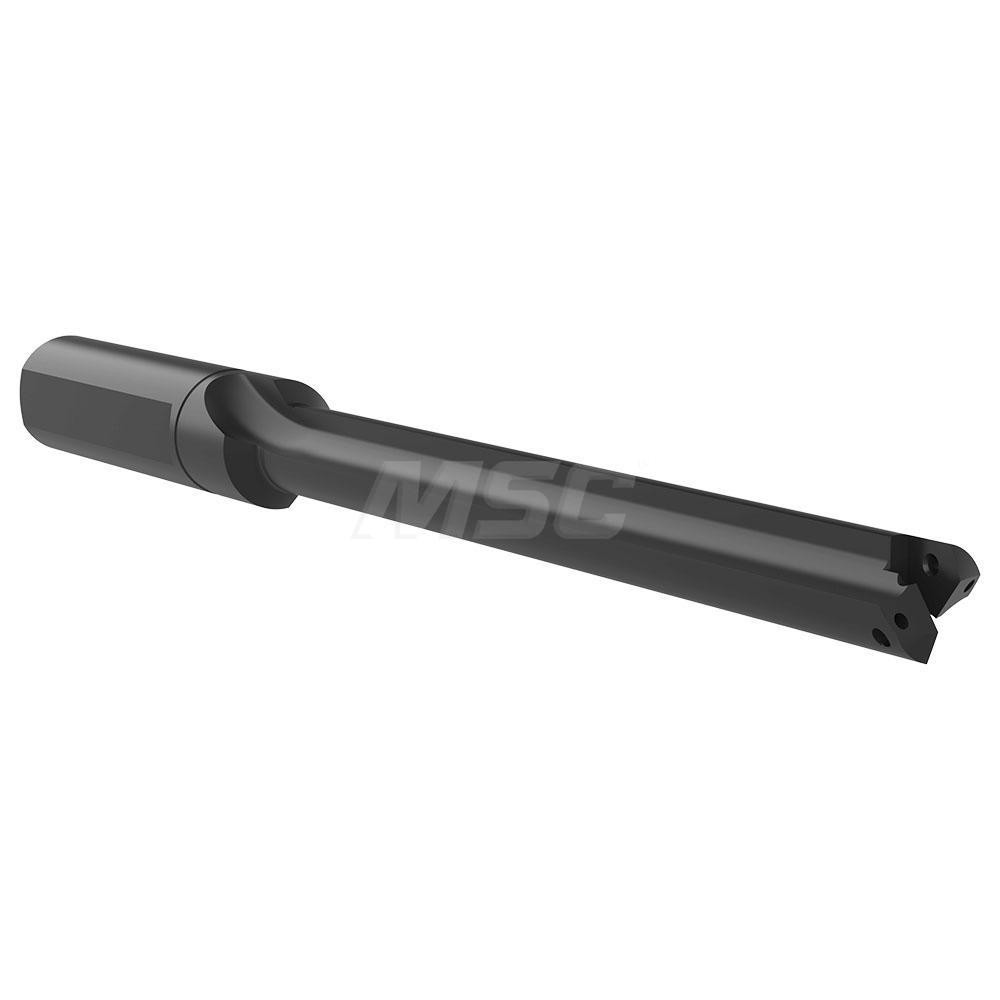

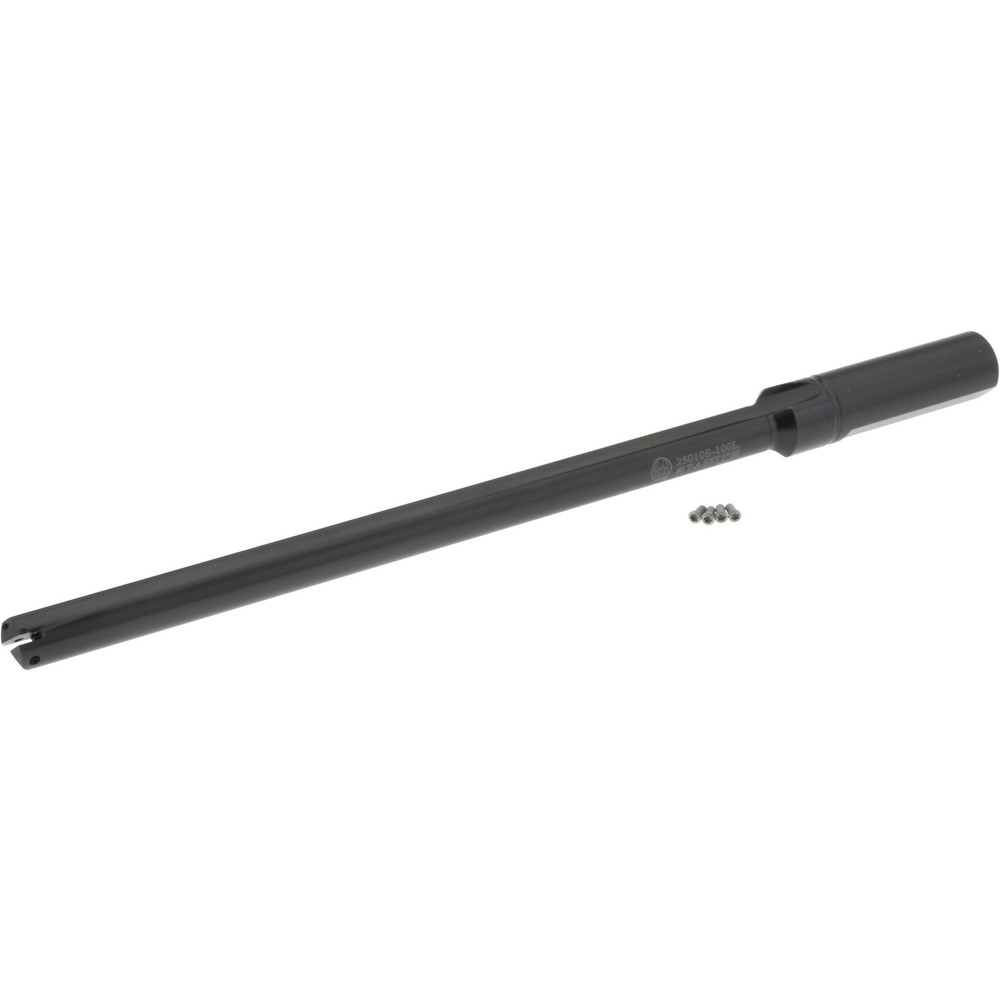

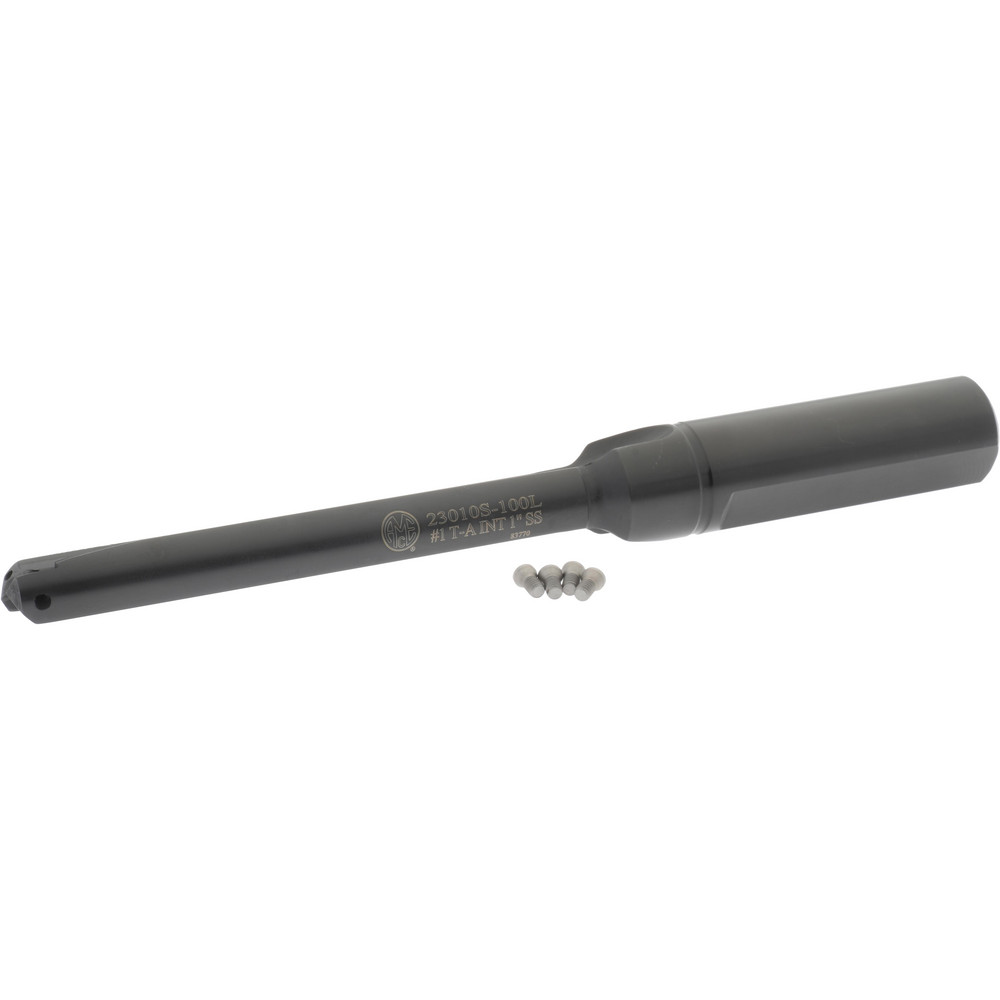

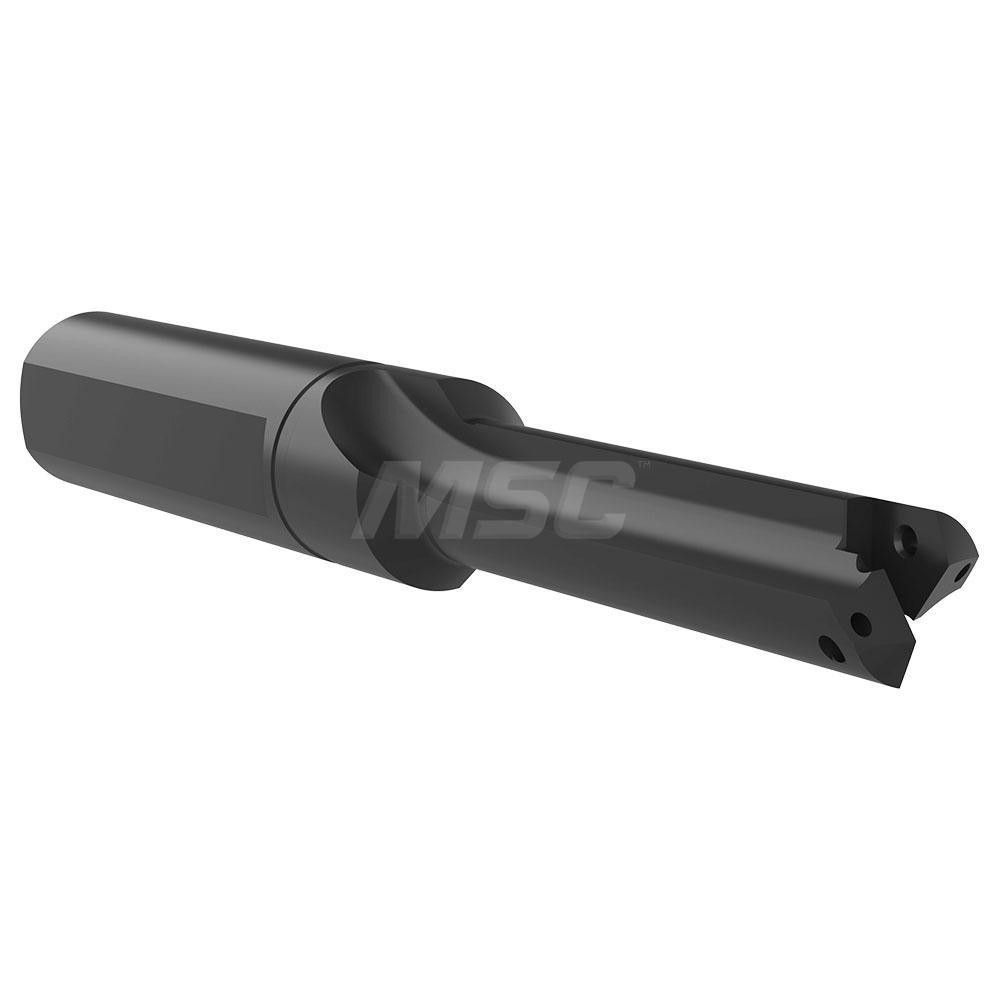

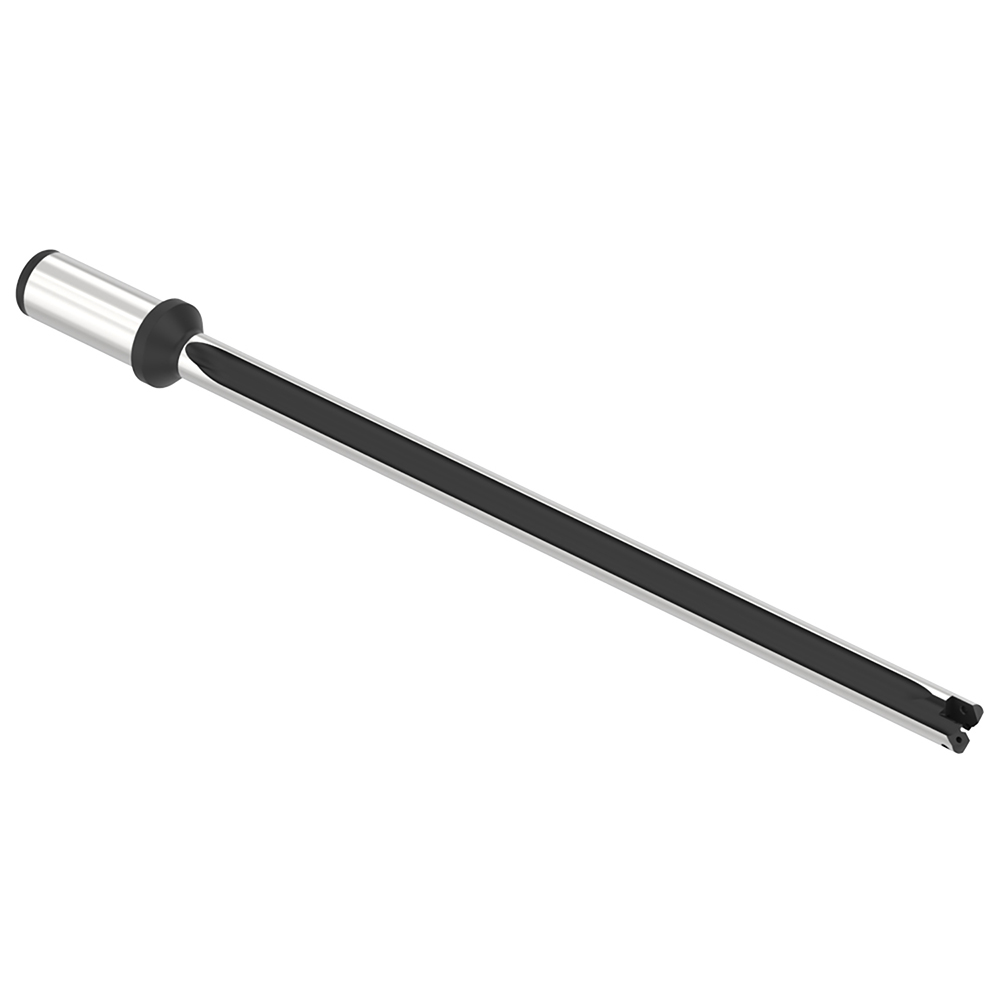

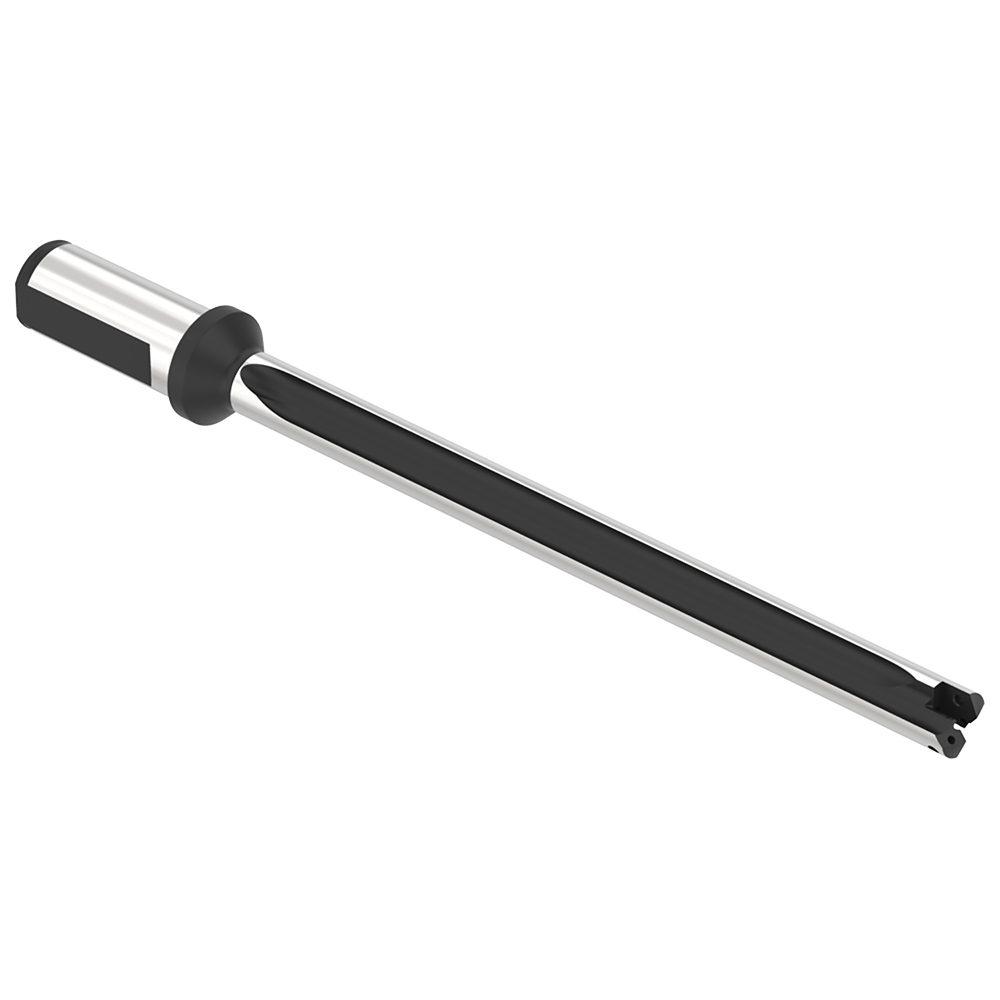

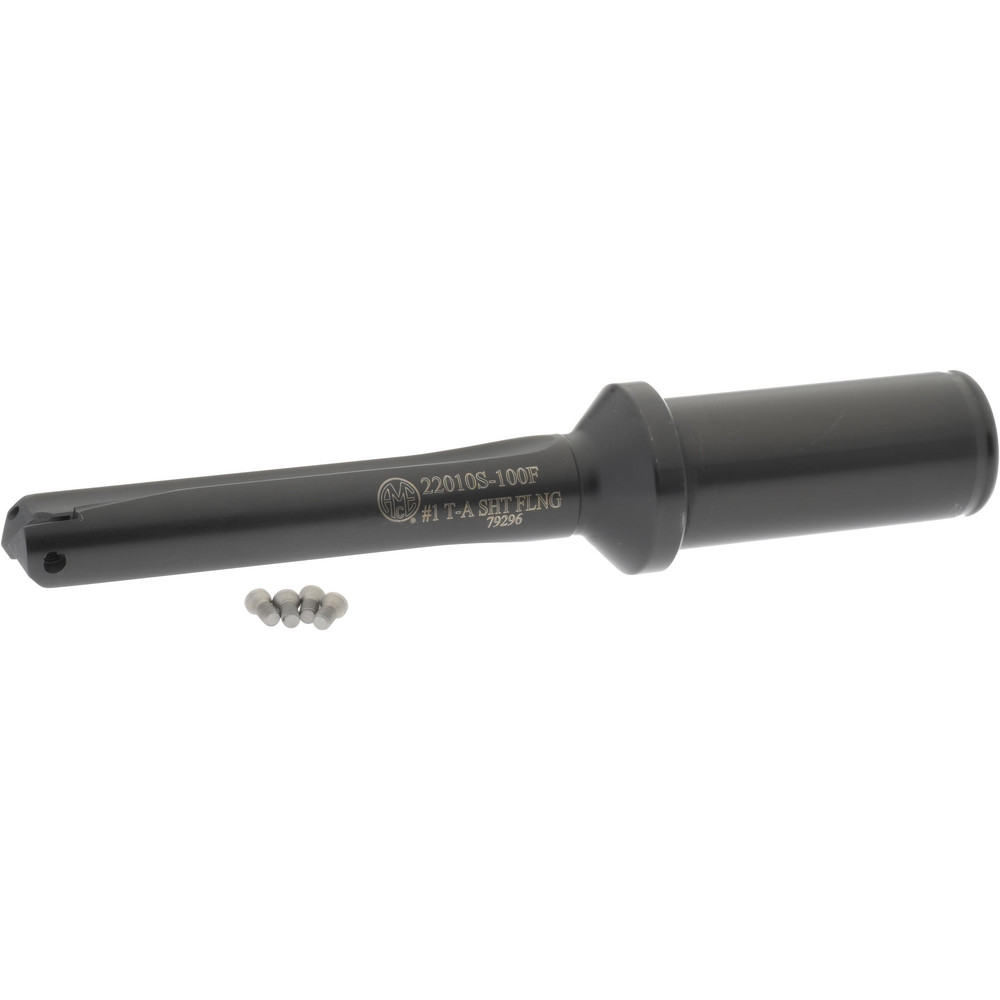

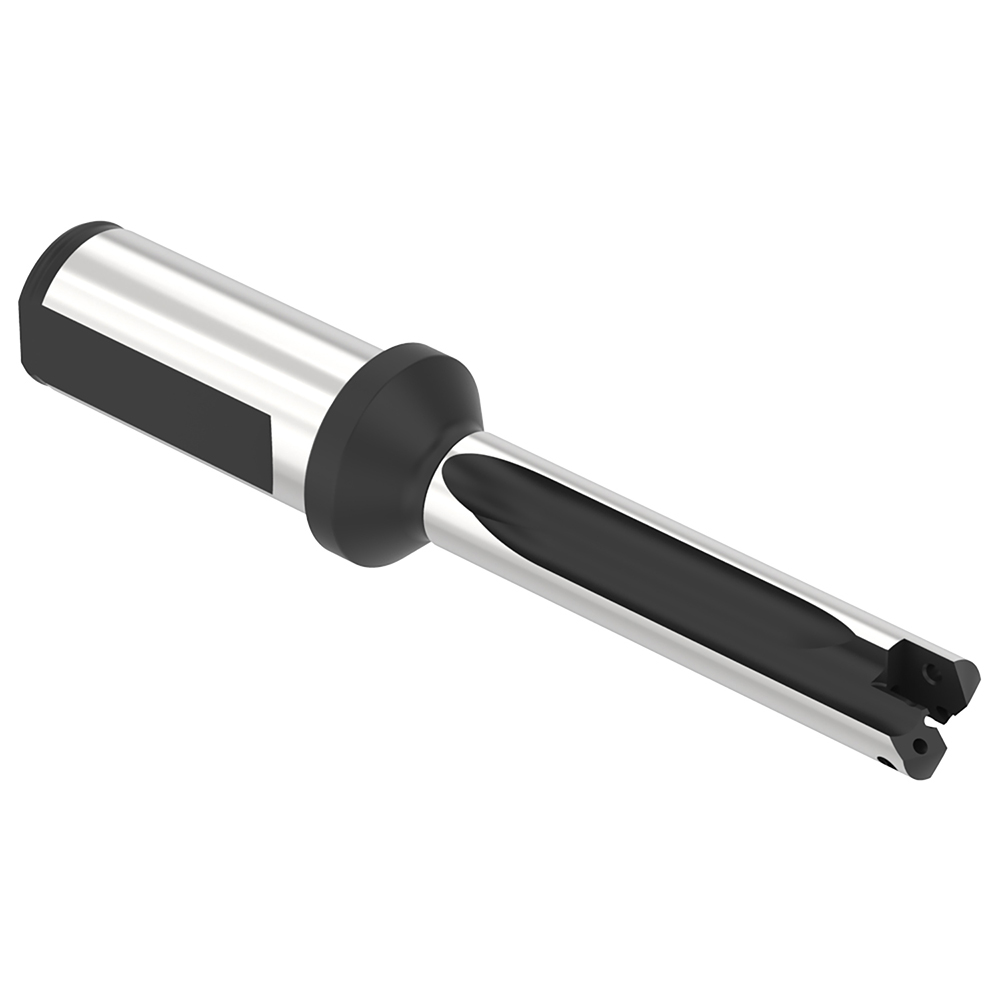

Flatted Shank, 13.8730" Body Length, 12.3750" Flute Length, 12.3750" Flute Length, Coolant Through, Series T-A Pro 1
| Minimum Drill Diameter (Decimal Inch) | 0.6960 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9600 |
| Maximum Drill Depth (Inch) | 12-3/8 |
| Maximum Drill Depth (Decimal Inch) | 12.3750 |
| Spade Drill Length | Extended |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Length Type | Extra Long |
| Drill Depth by Diameter Ratio | 15xD |
| Tool Material | Steel |
| Overall Length (Decimal Inch) | 16.1530 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A Pro 1 |
| Flute Type | Straight |
| Flute Length (Decimal Inch) | 12.3750 |
| Flute Length (Inch) | 12-3/8 |
| Body Length (Decimal Inch) | 13.8730 |
| Shank Length (Decimal Inch) | 2.2800 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 16721227 |
