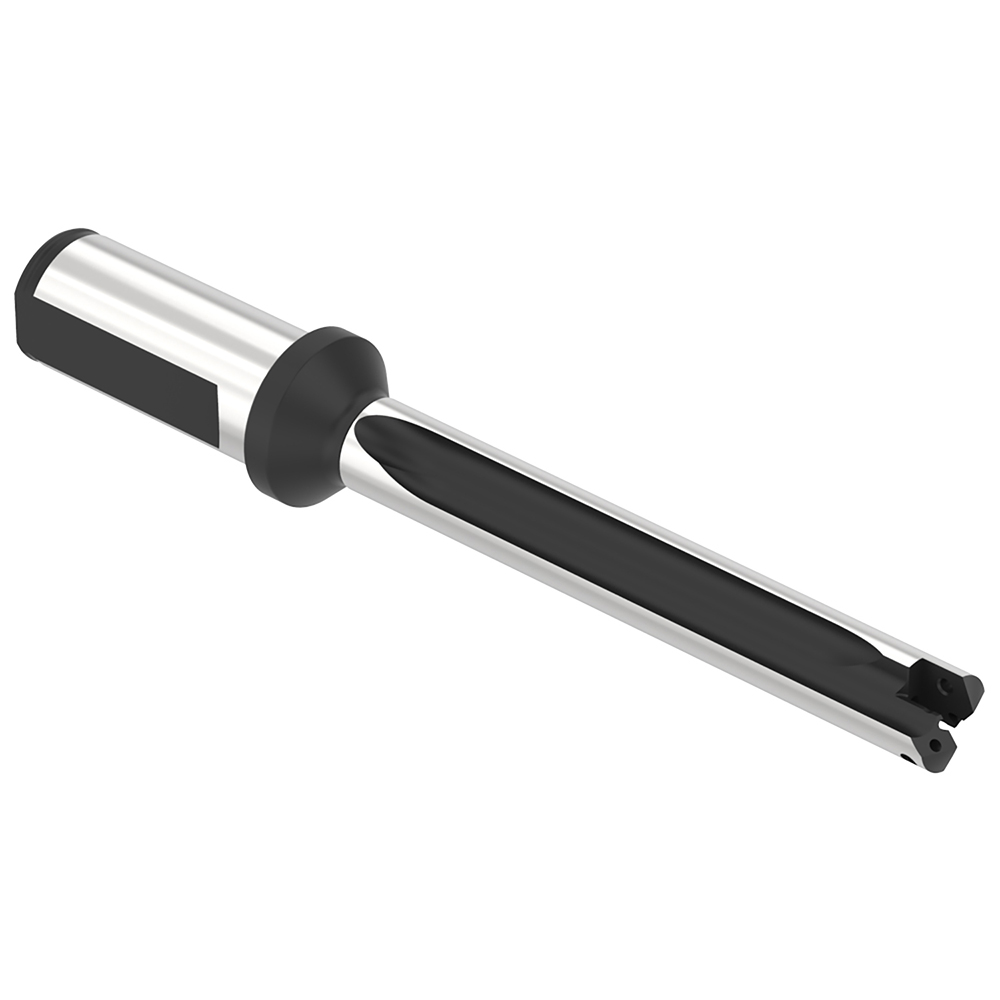

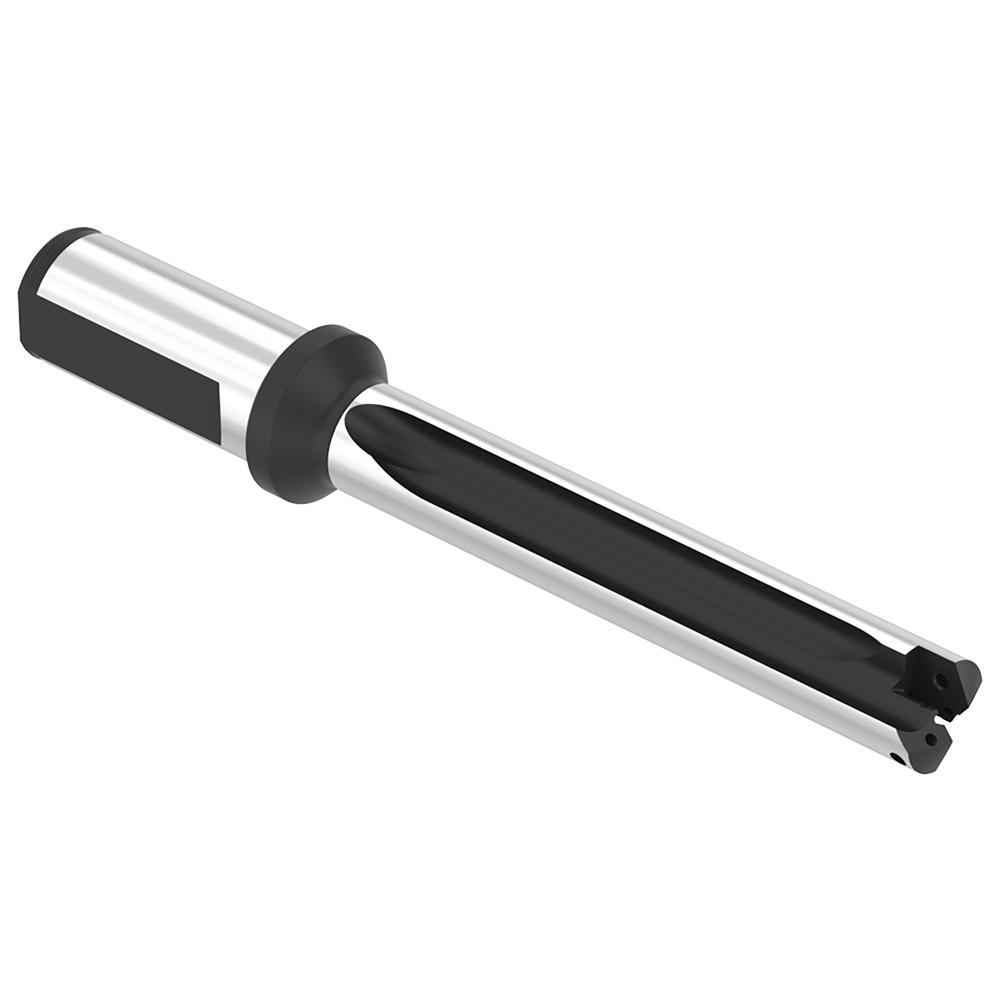

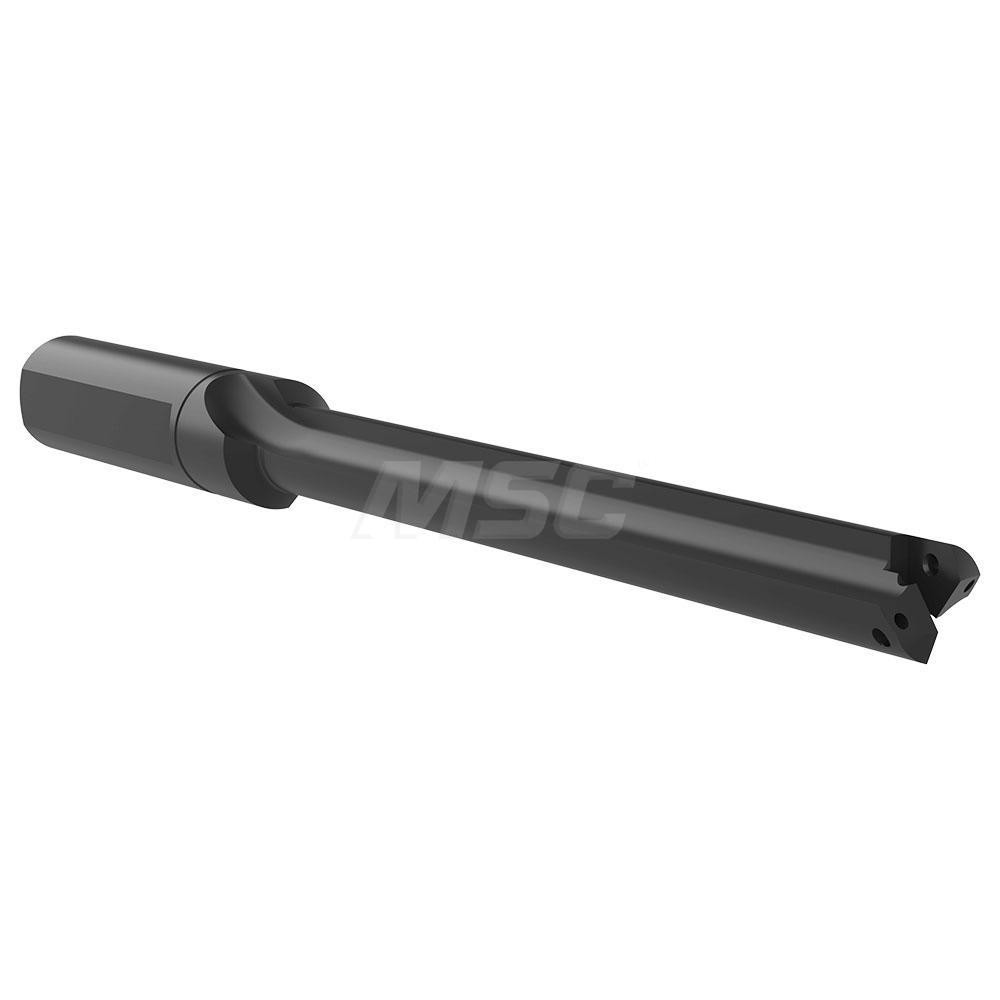

Cylindrical Shank, 5.6230" Body Length, 4.1250" Flute Length, 4.1250" Flute Length, Coolant Through, Series T-A Pro 1
| Minimum Drill Diameter (Inch) | 3/4 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9600 |
| Maximum Drill Depth (Inch) | 4-1/8 |
| Maximum Drill Depth (Decimal Inch) | 4.1250 |
| Spade Drill Length | Standard |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 5xD |
| Tool Material | Steel |
| Overall Length (Decimal Inch) | 7.9030 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A Pro 1 |
| Flute Type | Straight |
| Flute Length (Decimal Inch) | 4.1250 |
| Body Length (Decimal Inch) | 5.6230 |
| Shank Length (Decimal Inch) | 2.2800 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 16718330 |
