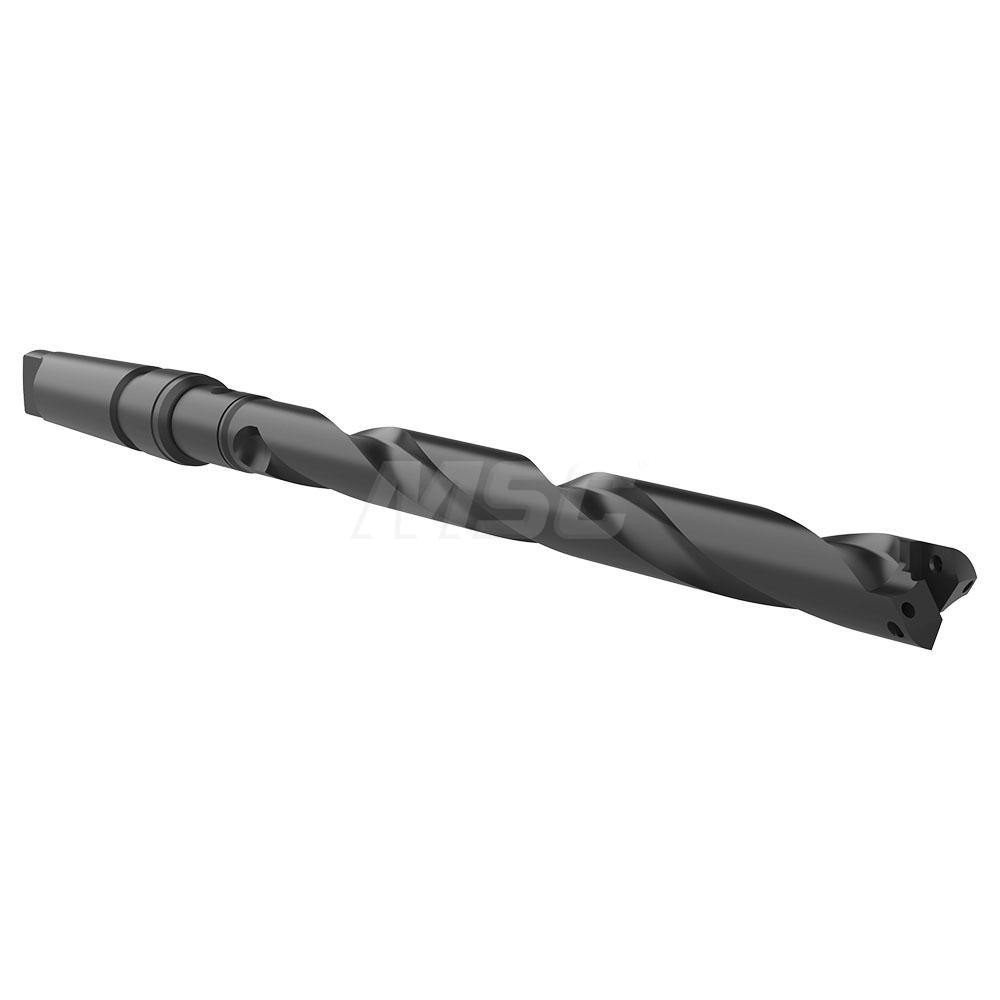

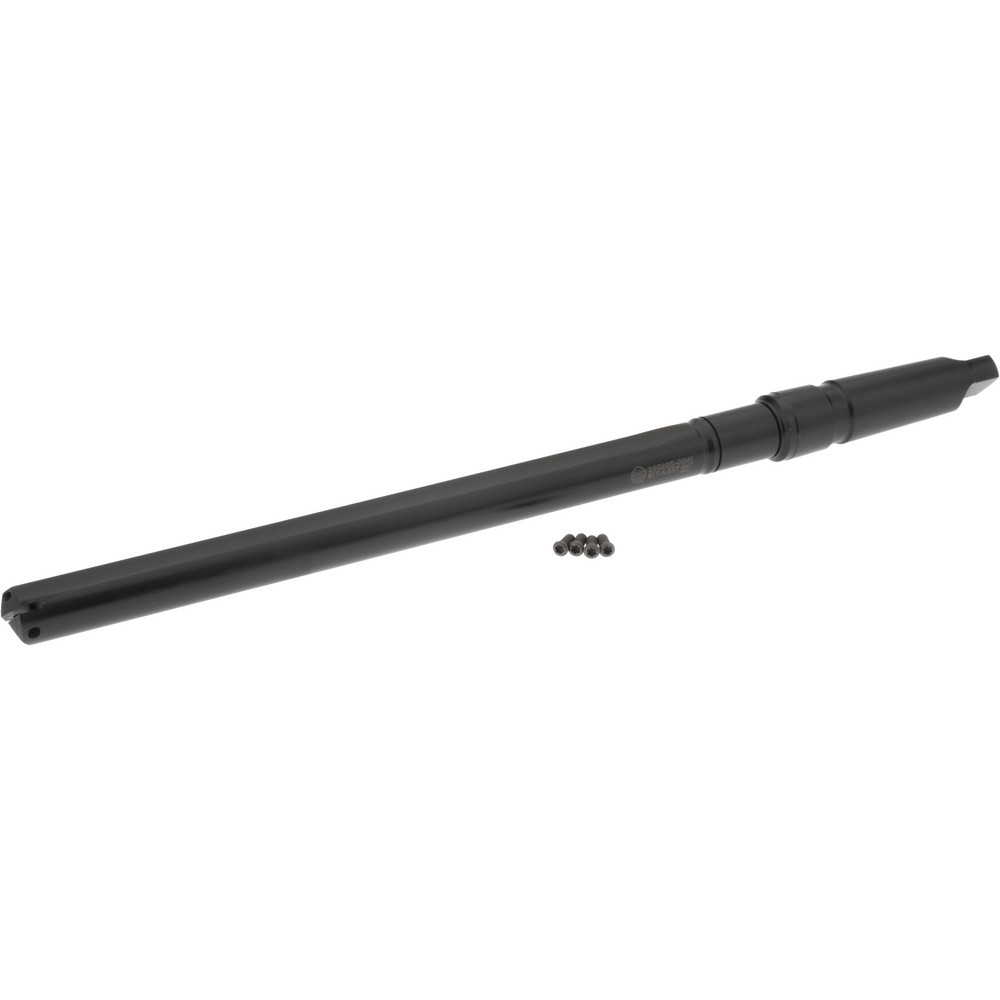

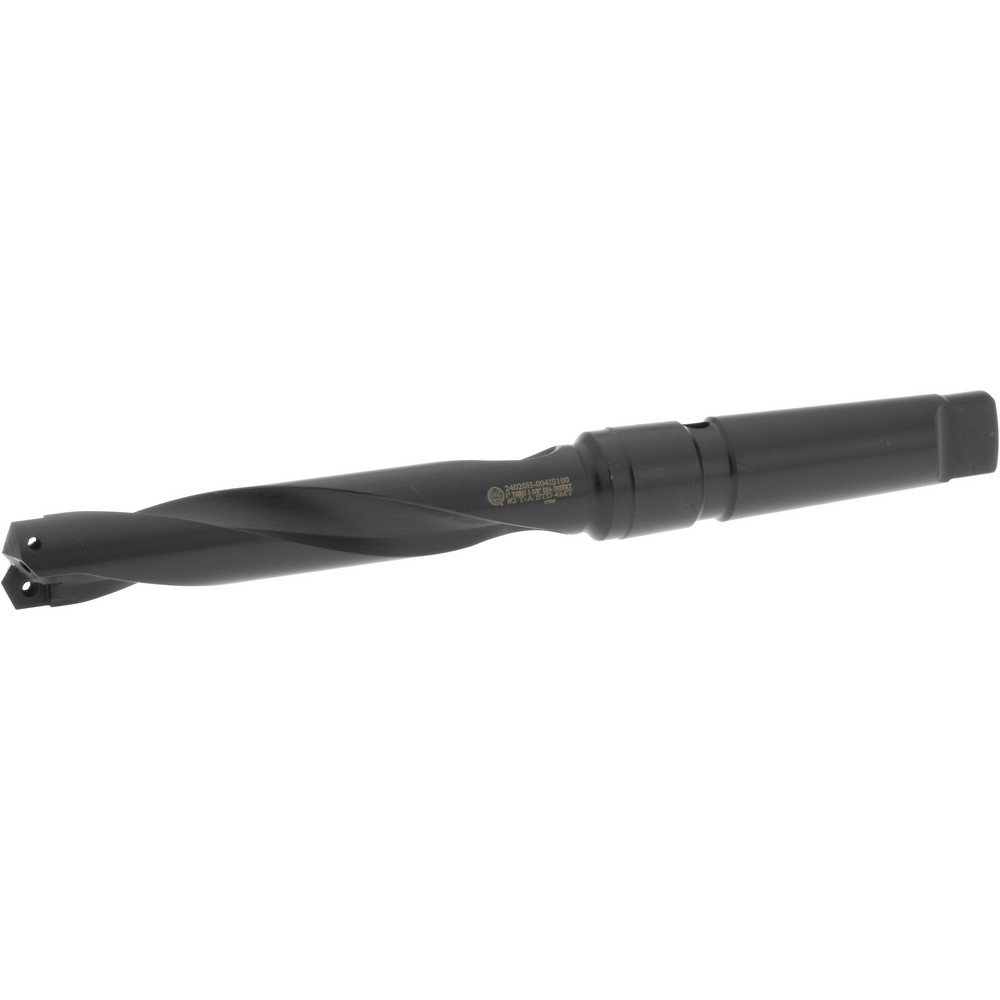

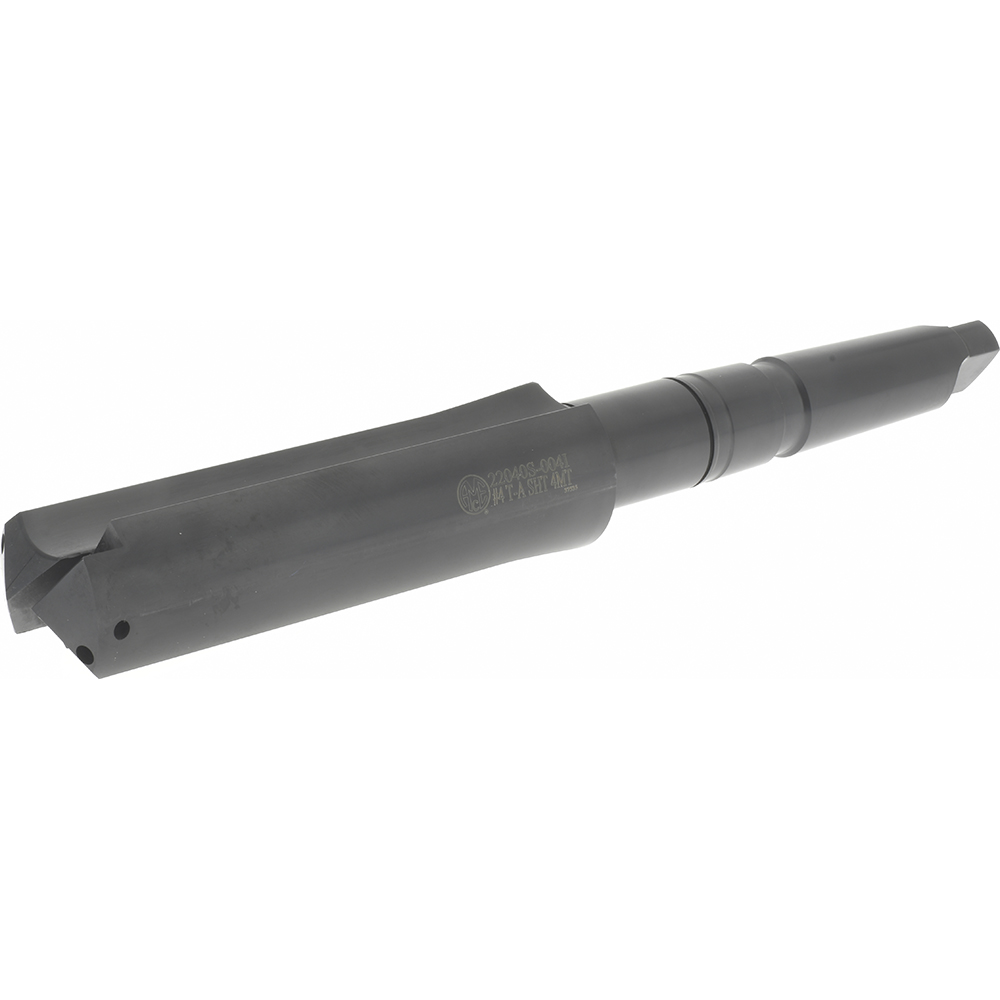

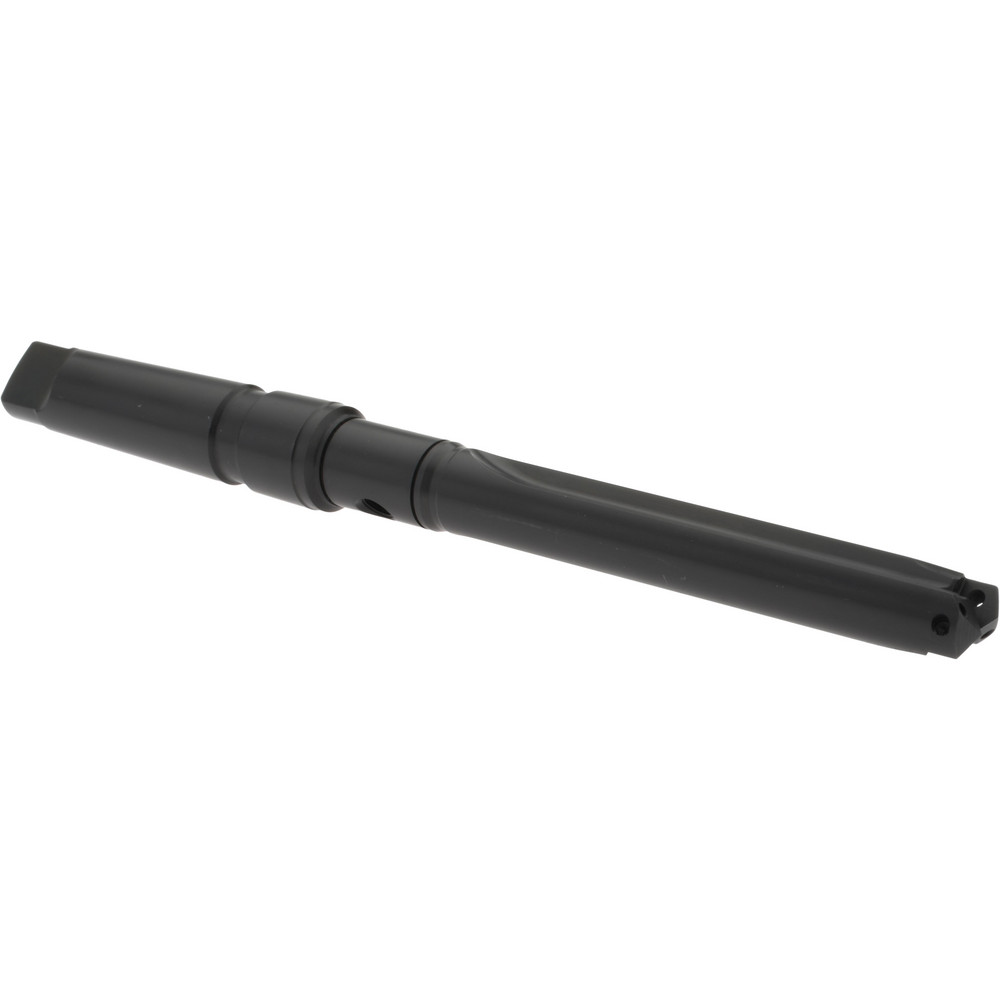

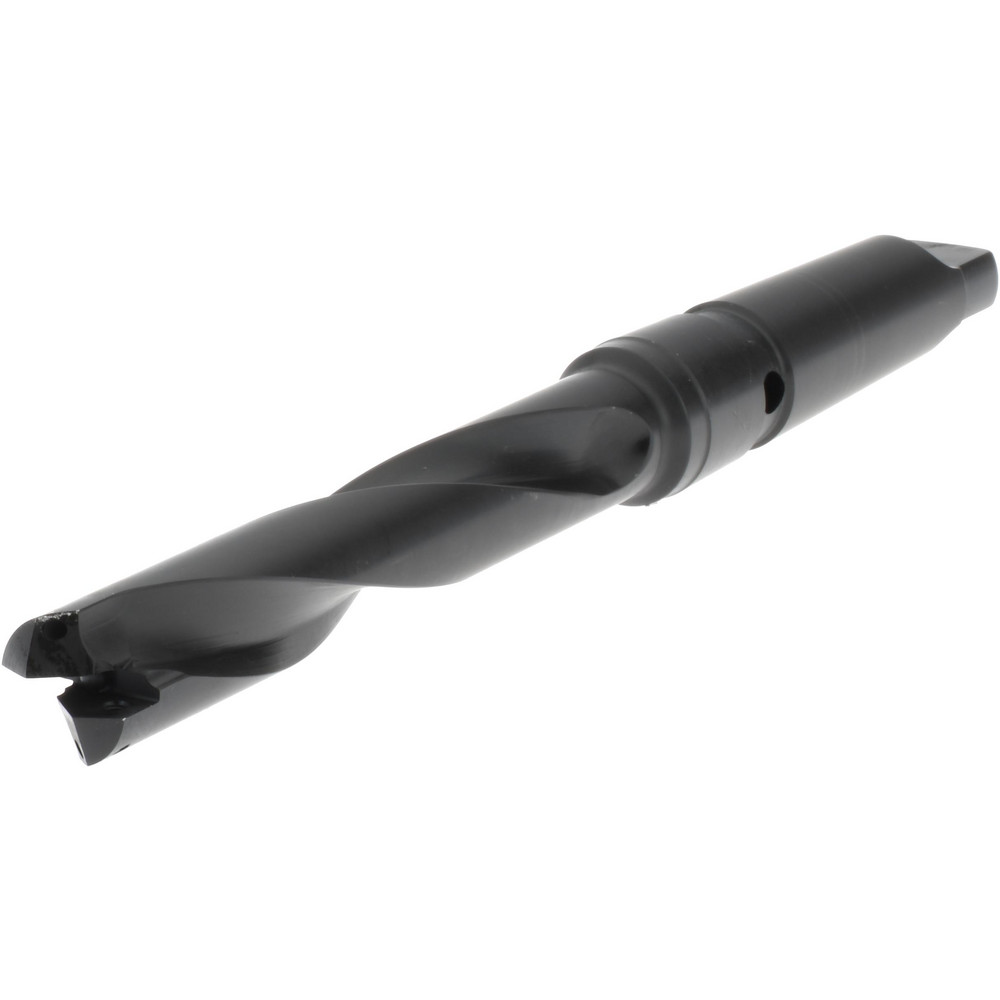

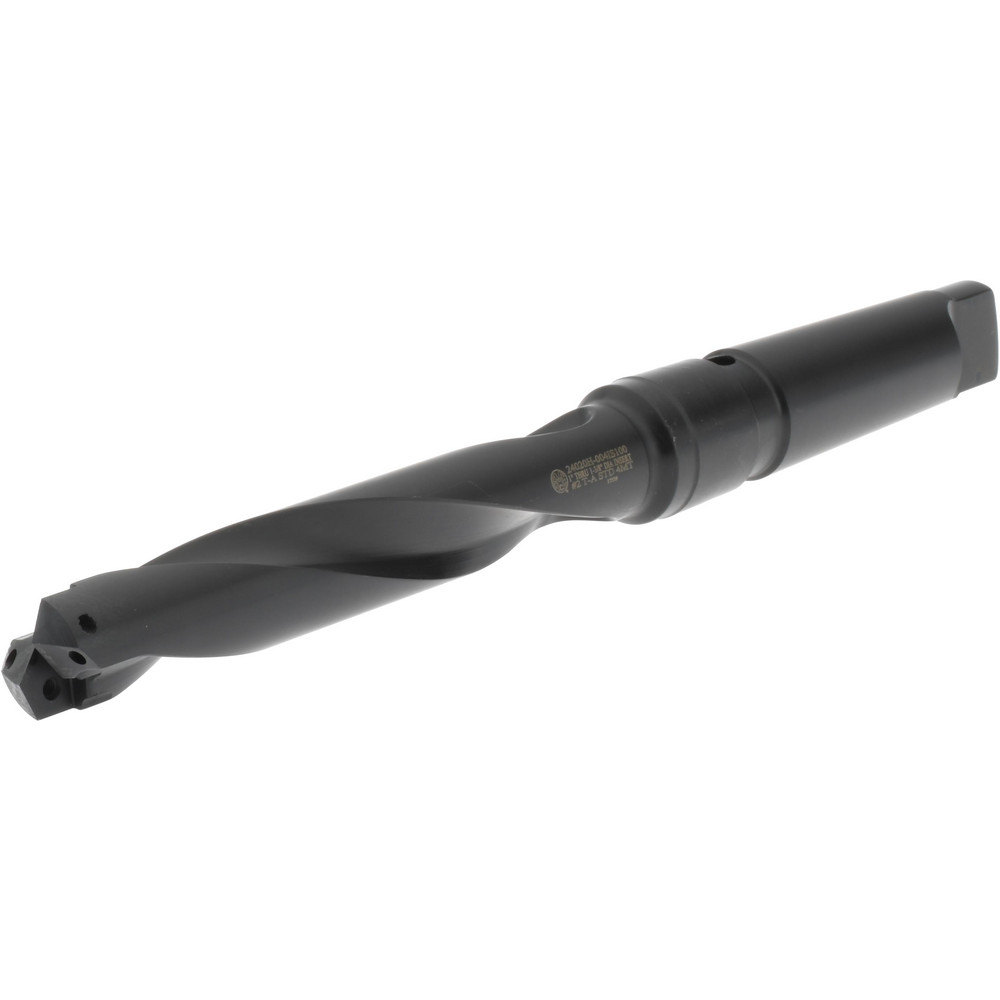

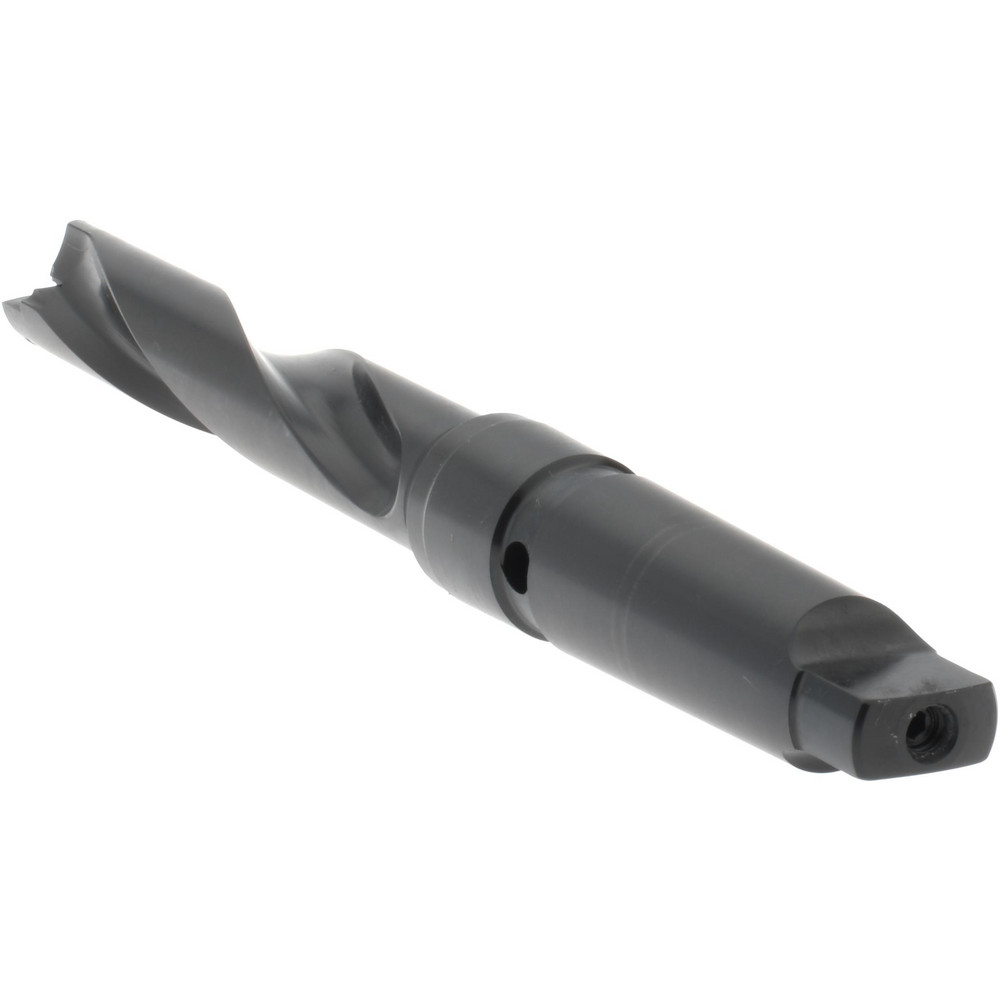

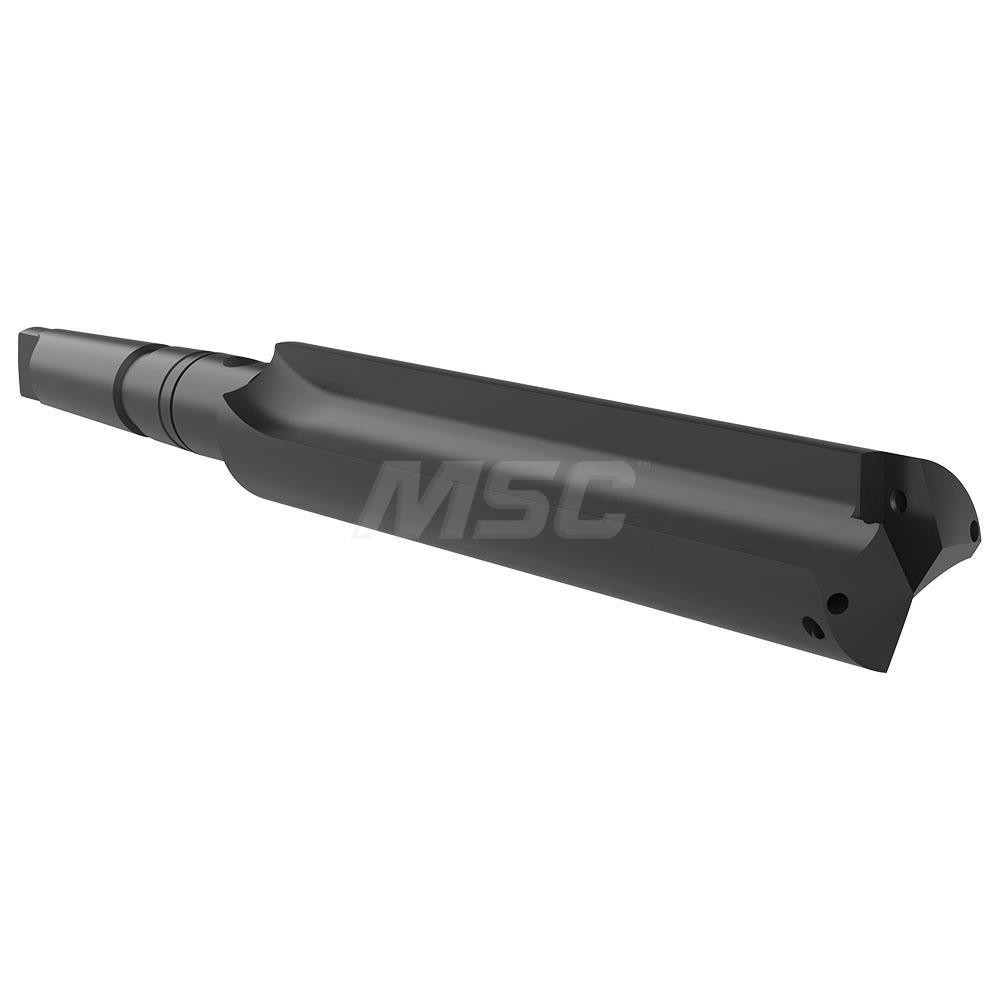

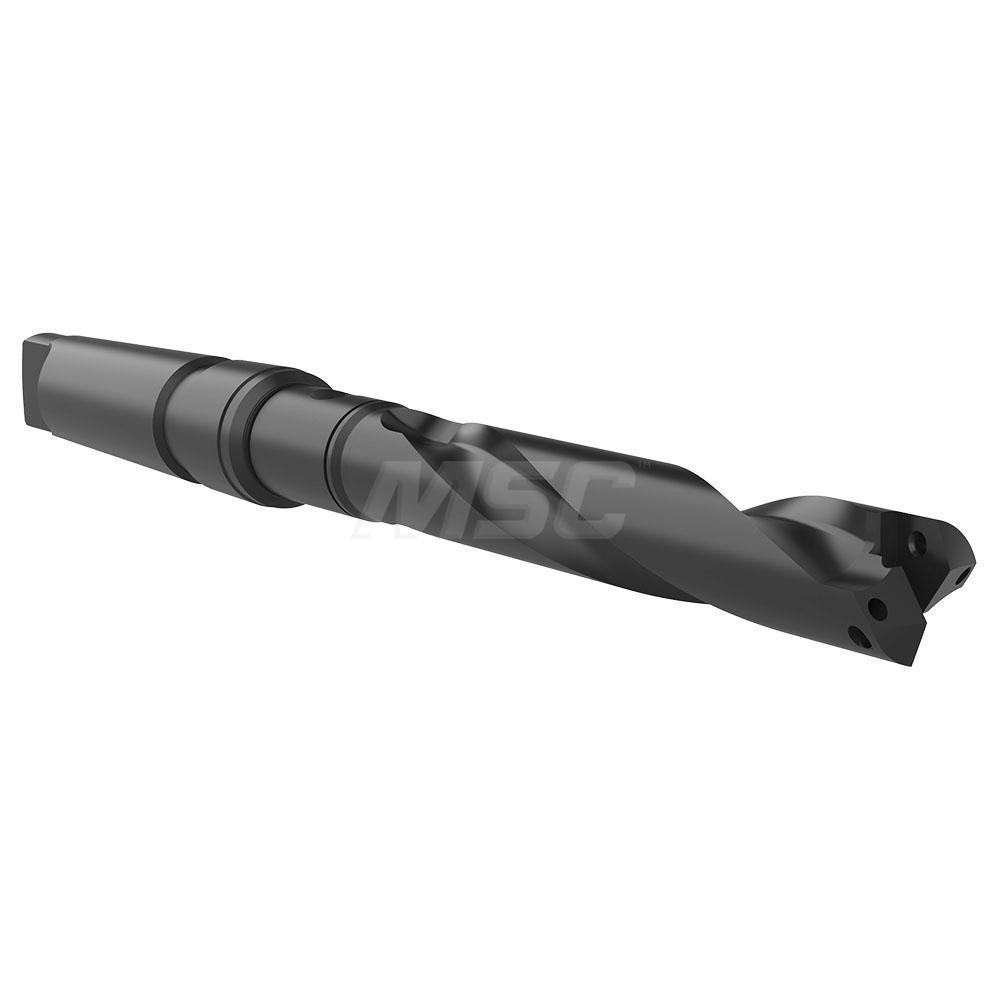

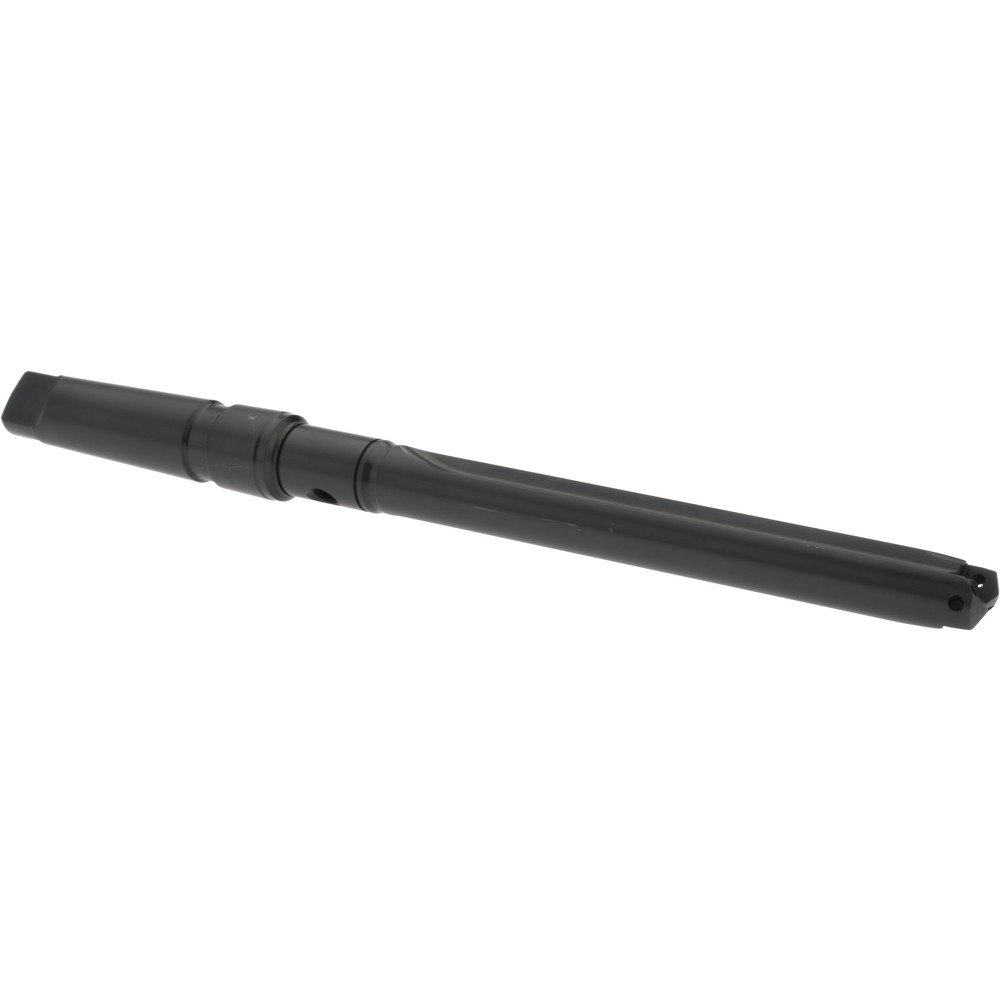

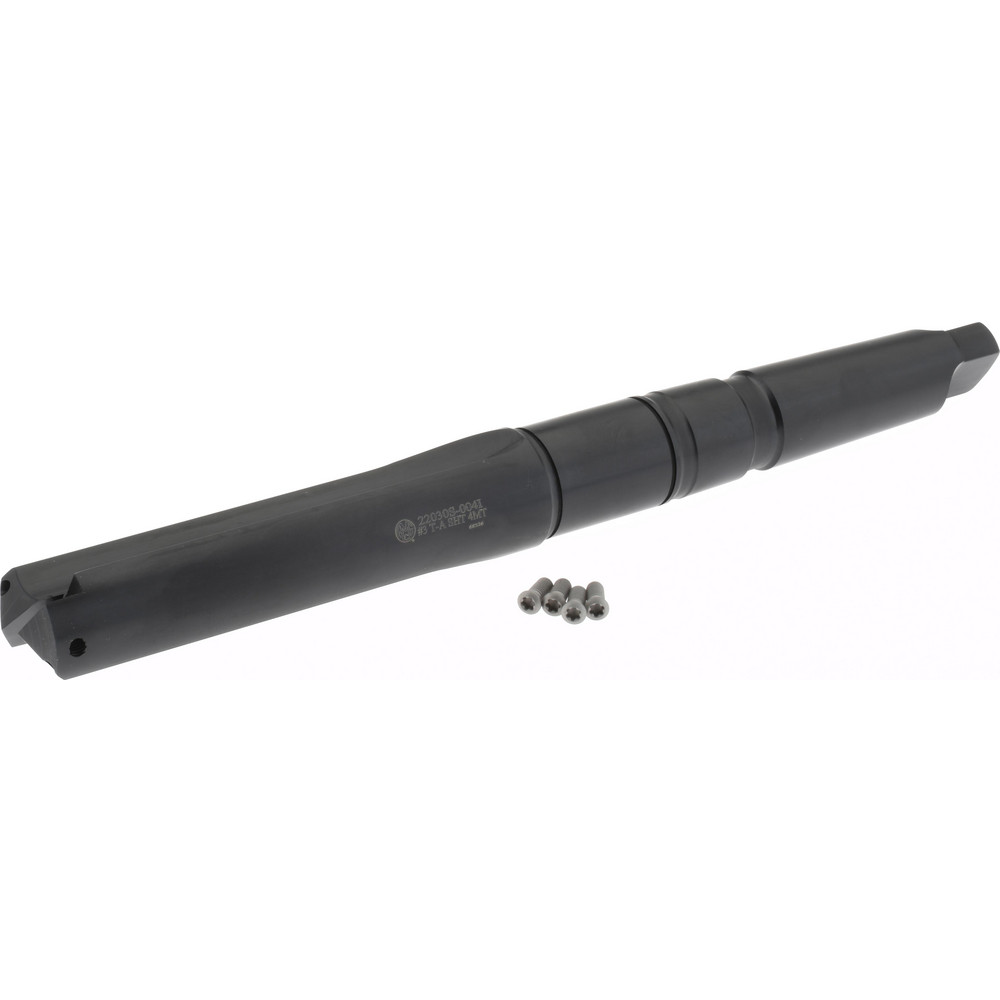

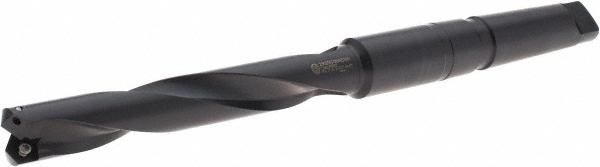

4MT Taper Shank, 6-1/2" Body Length, 5-3/8" Flute Length, 11-3/8" OAL, Coolant Through, Series T-A SS 2
| Minimum Drill Diameter (Inch) | 1 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Depth (Inch) | 5-3/8 |
| Spade Drill Length | Standard |
| Shank Type | Taper |
| Shank Taper Size | 4MT |
| Shank Diameter (Decimal Inch) | 1.2310 |
| Length Type | Standard |
| Tool Material | Steel |
| Overall Length (Inch) | 11-3/8 |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | T-A SS 2 |
| Flute Type | Helical |
| Flute Length (Inch) | 5-3/8 |
| Body Length (Inch) | 6-1/2 |
| Shank Length (Inch) | 4-7/8 |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 65146391 |
