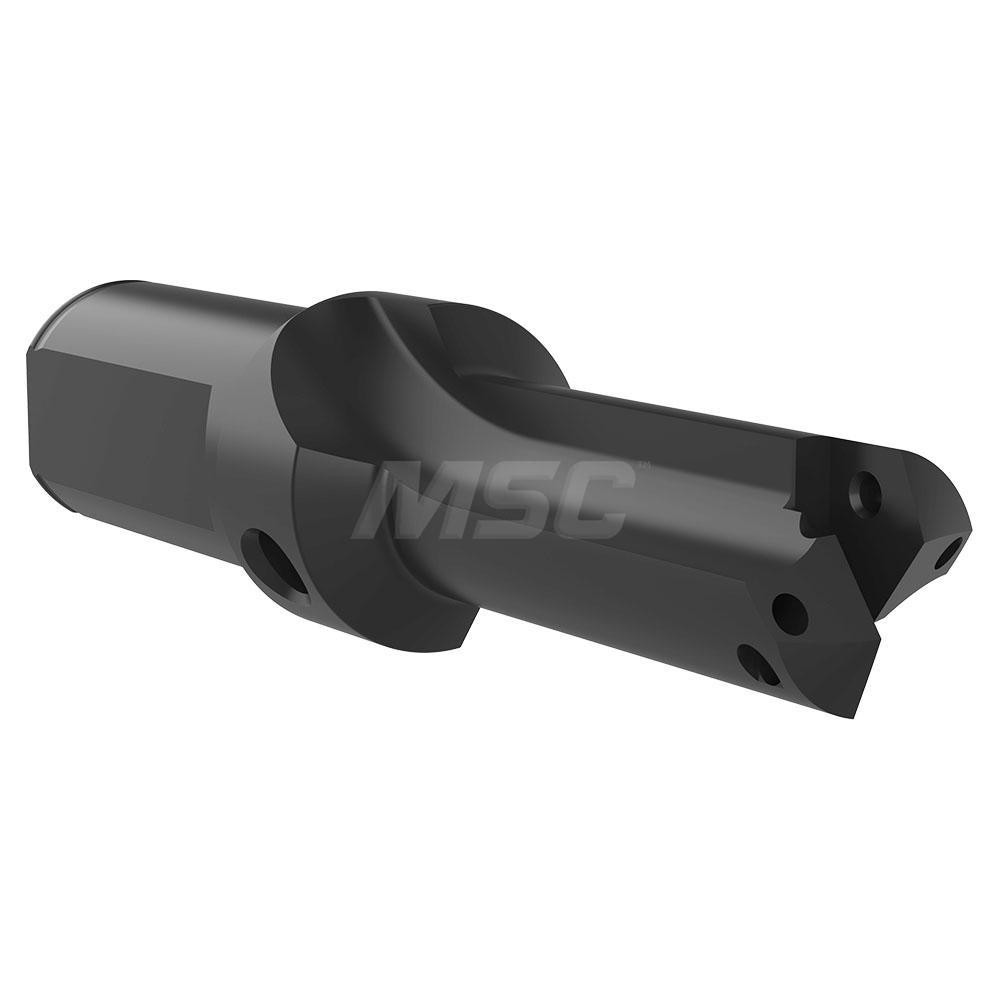

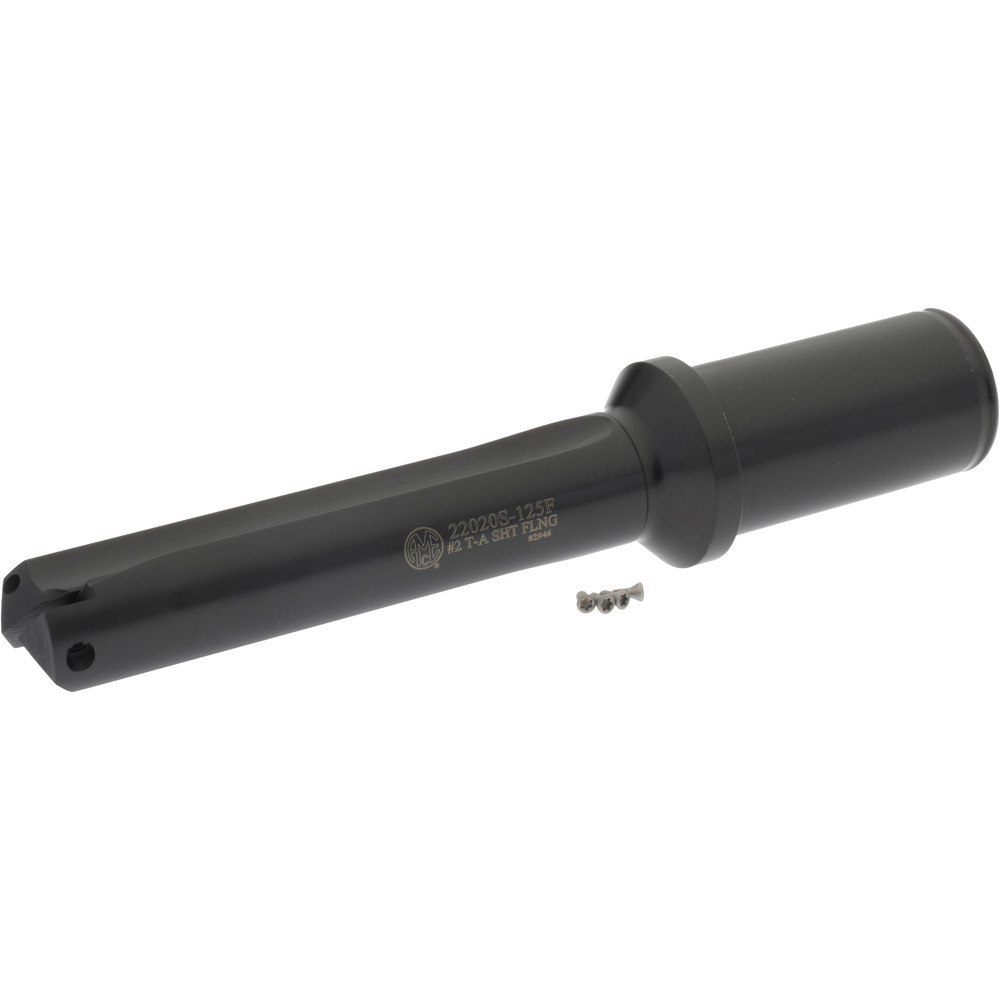

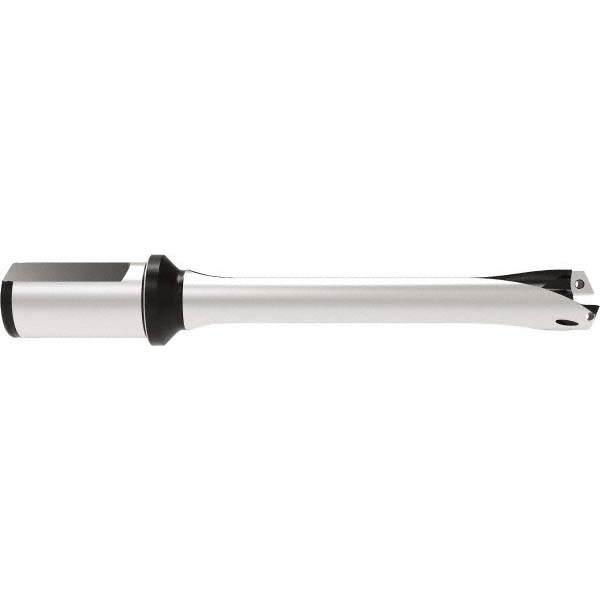

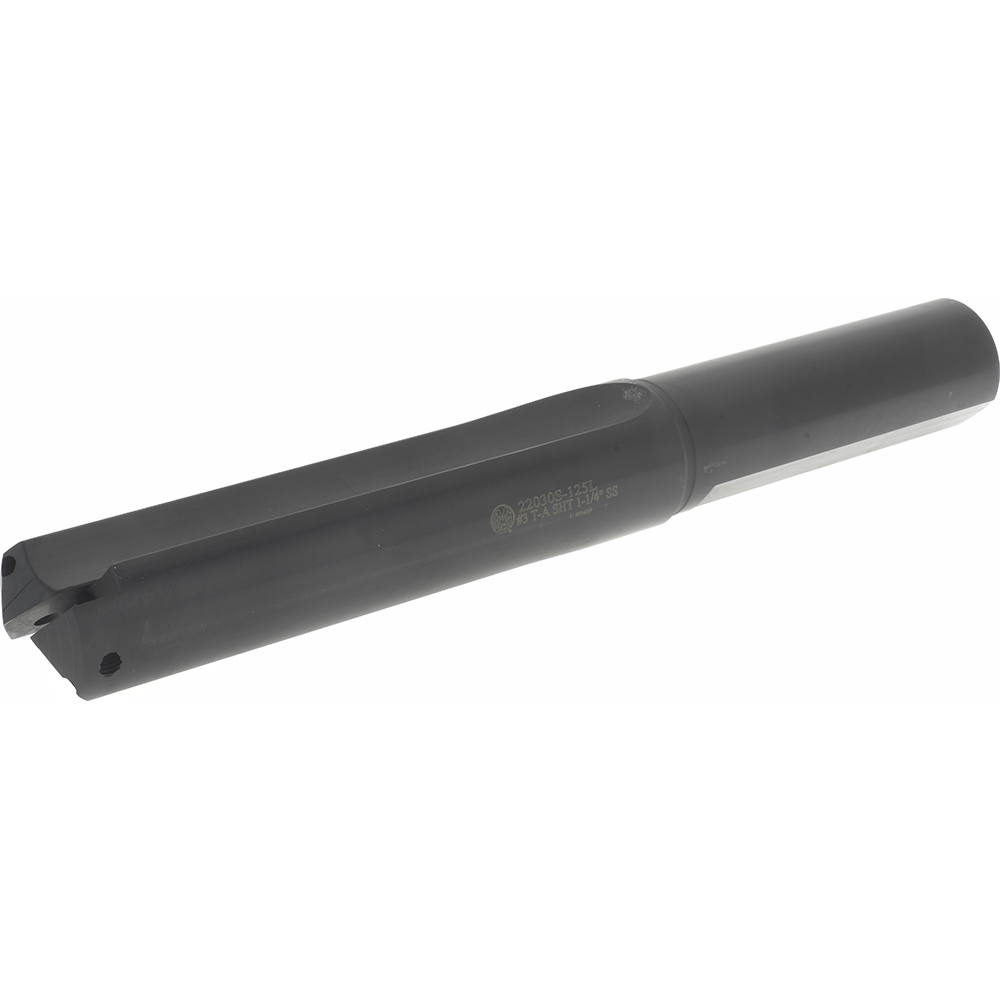

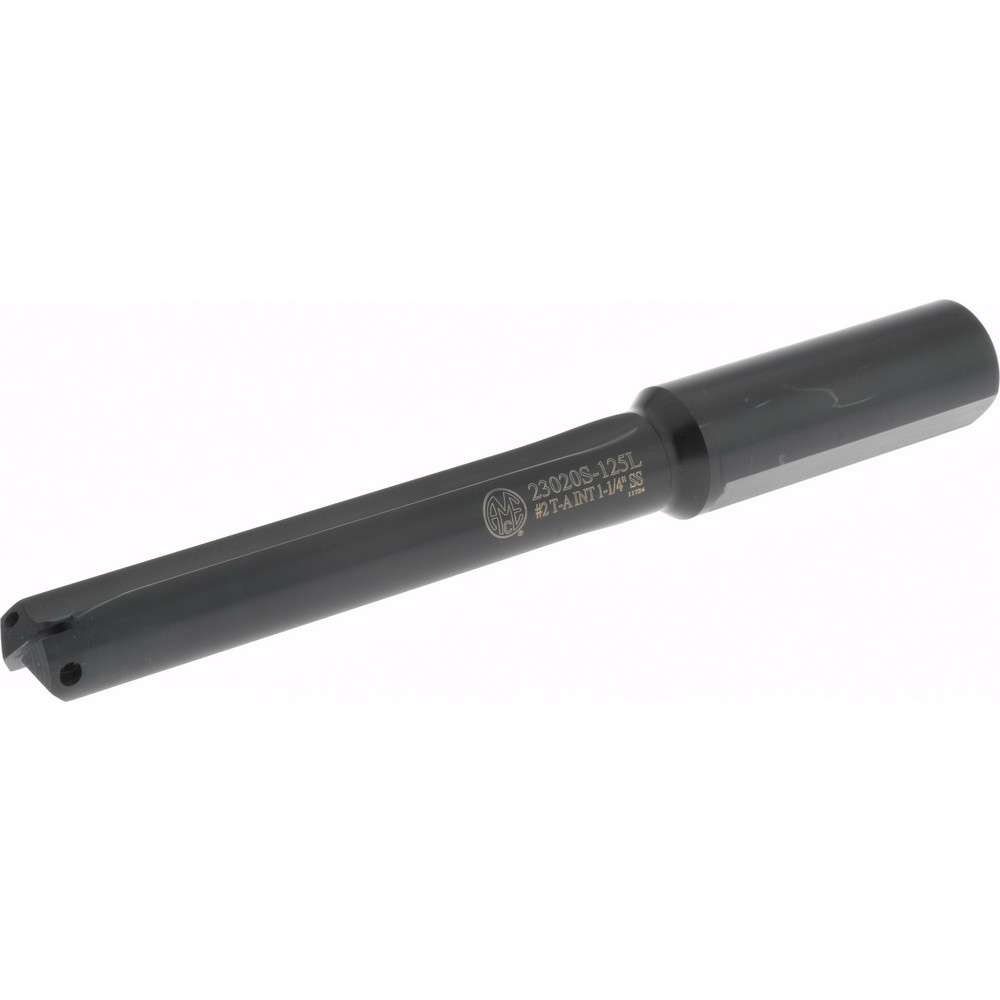

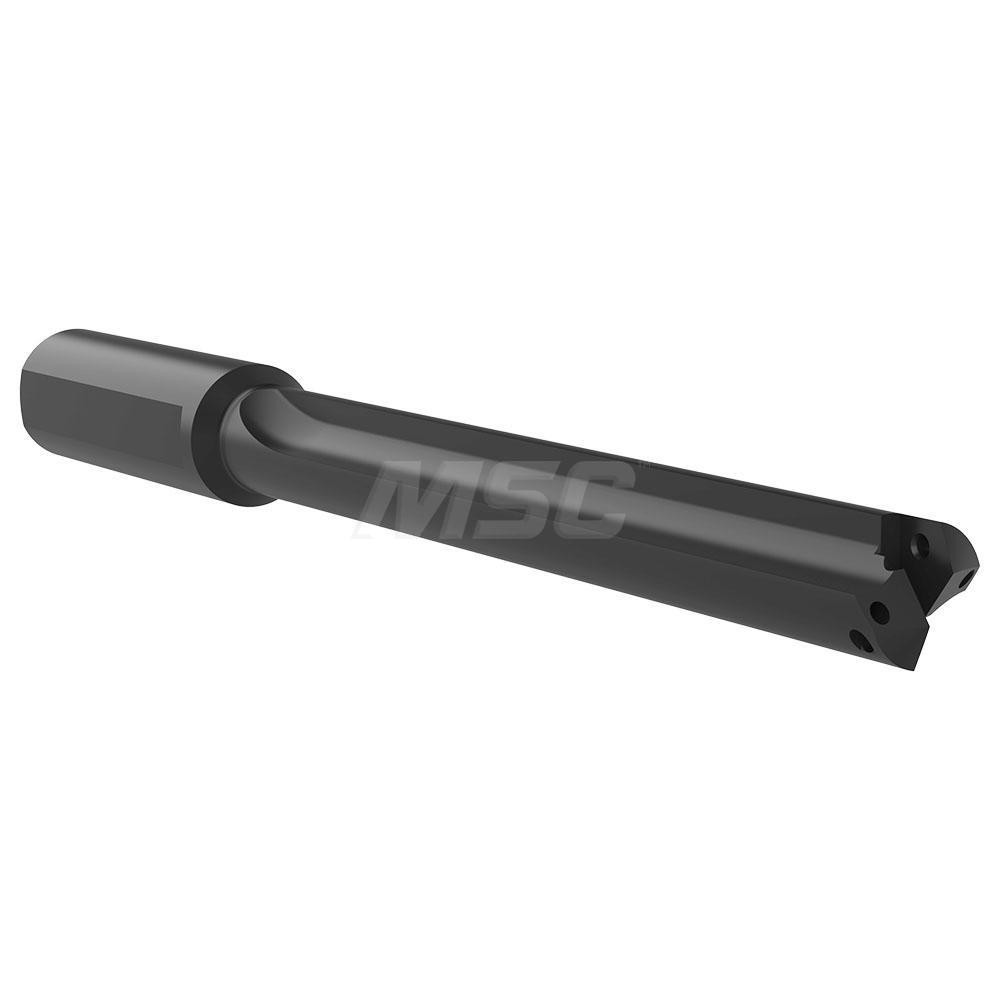

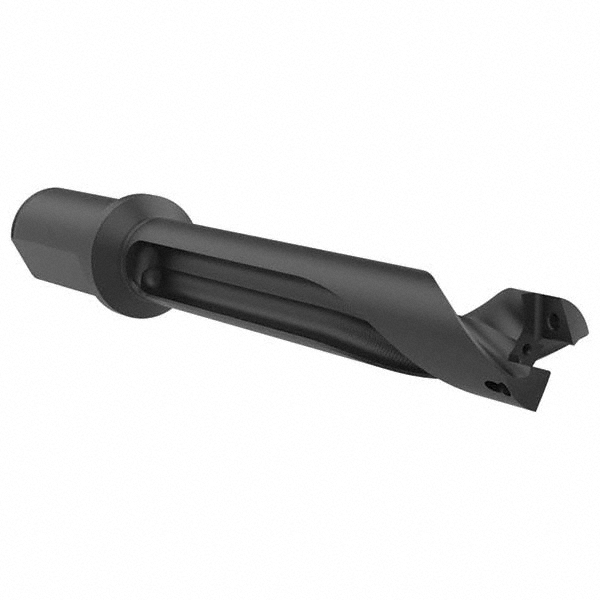

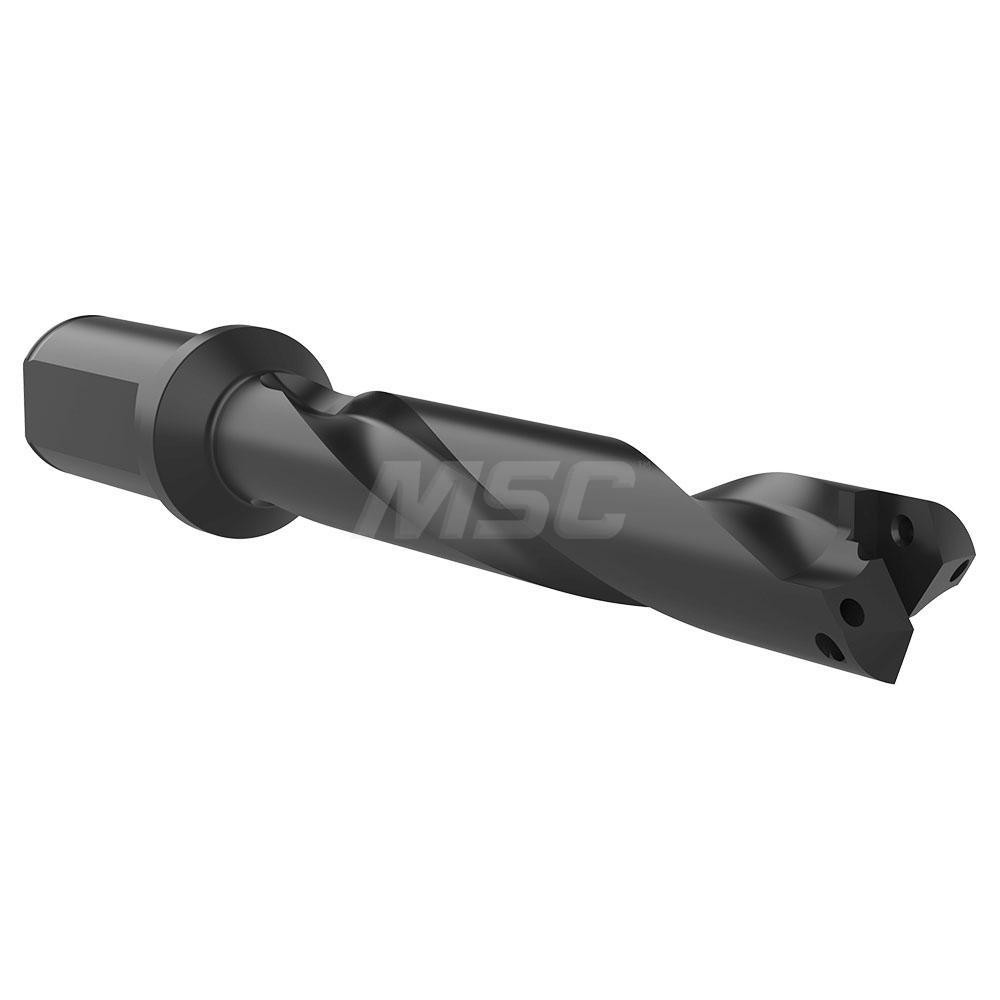

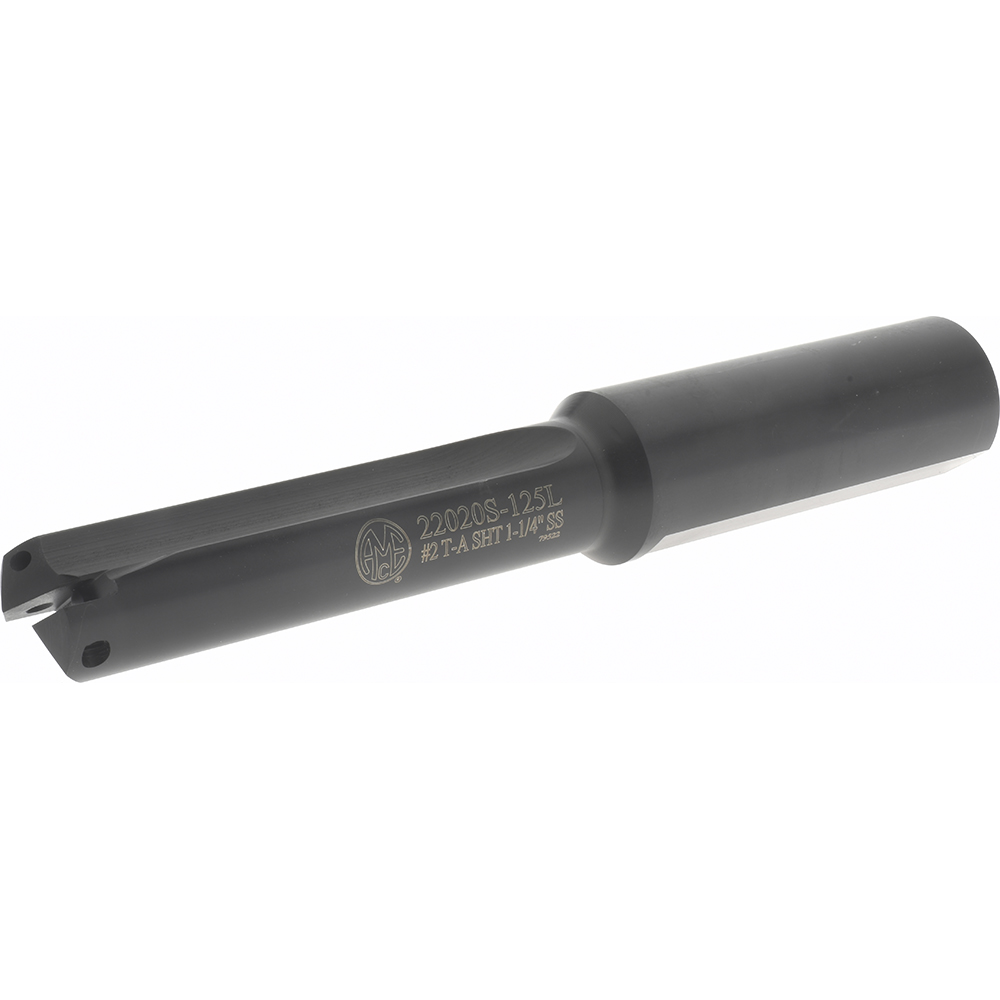

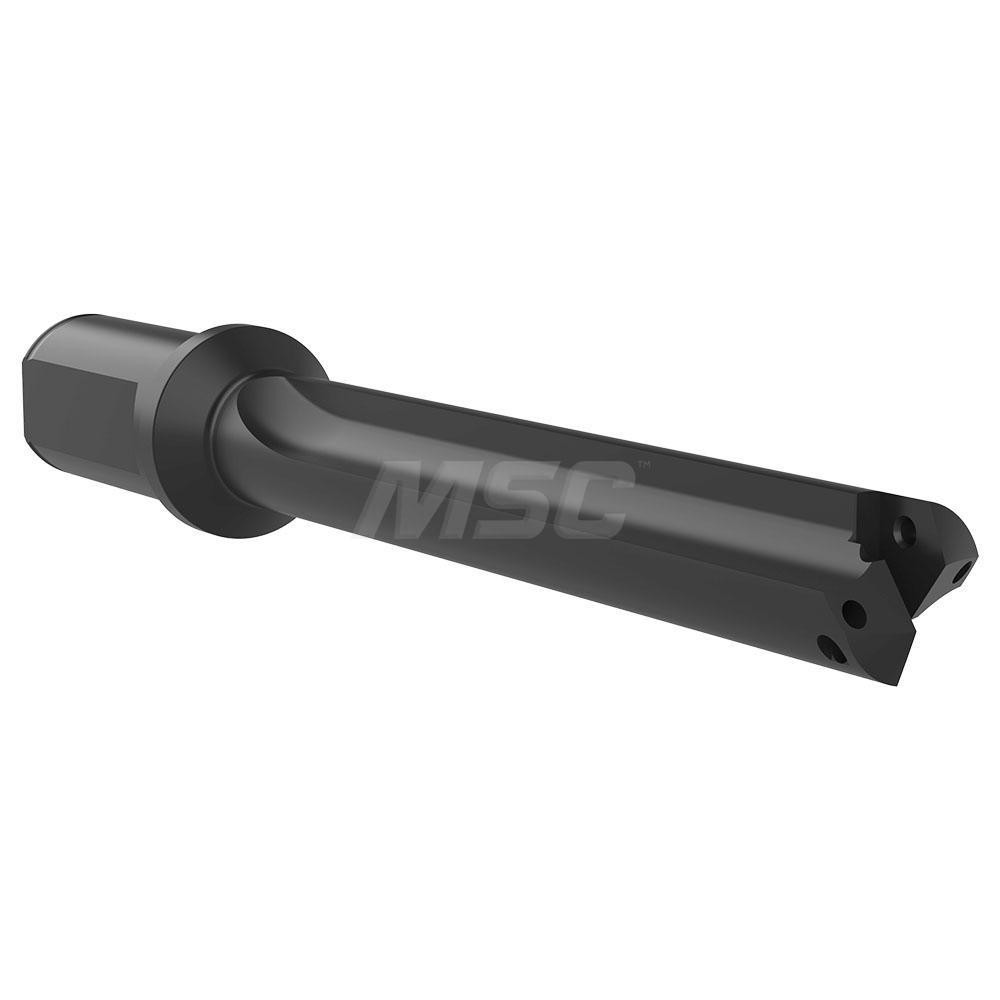

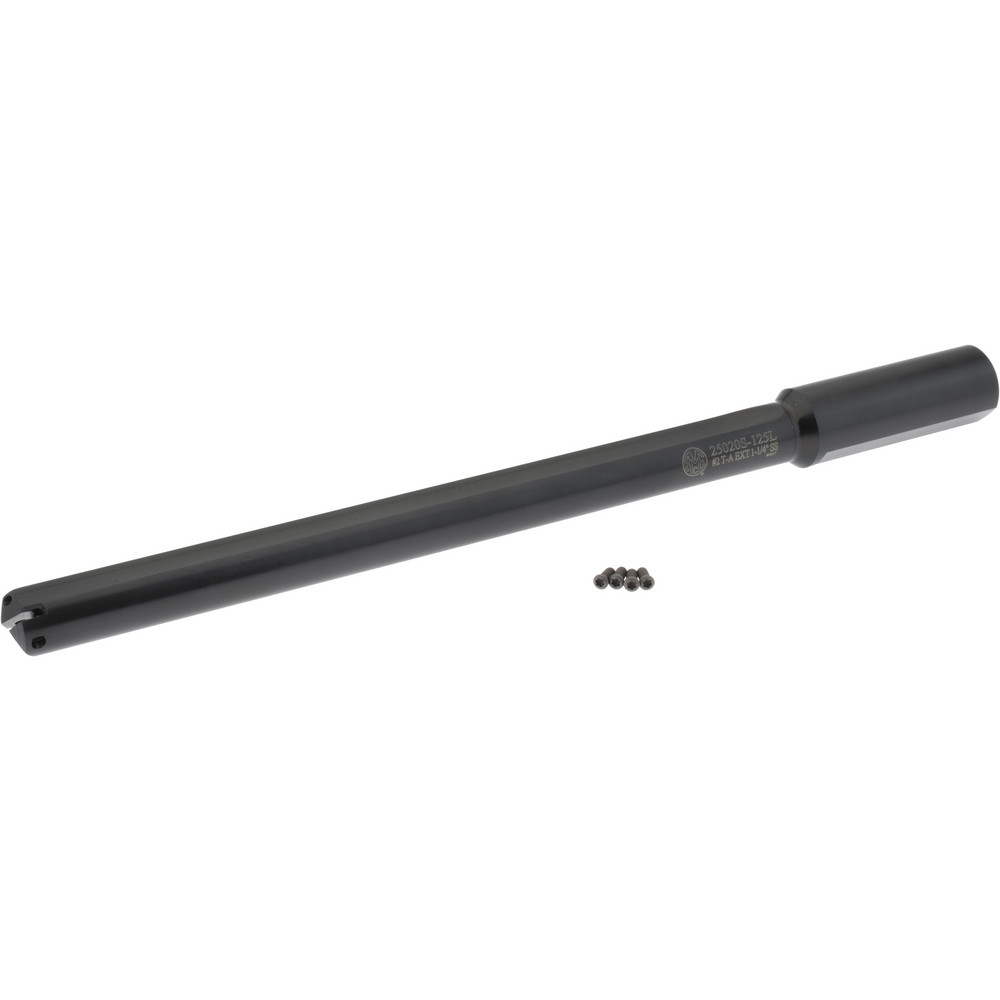

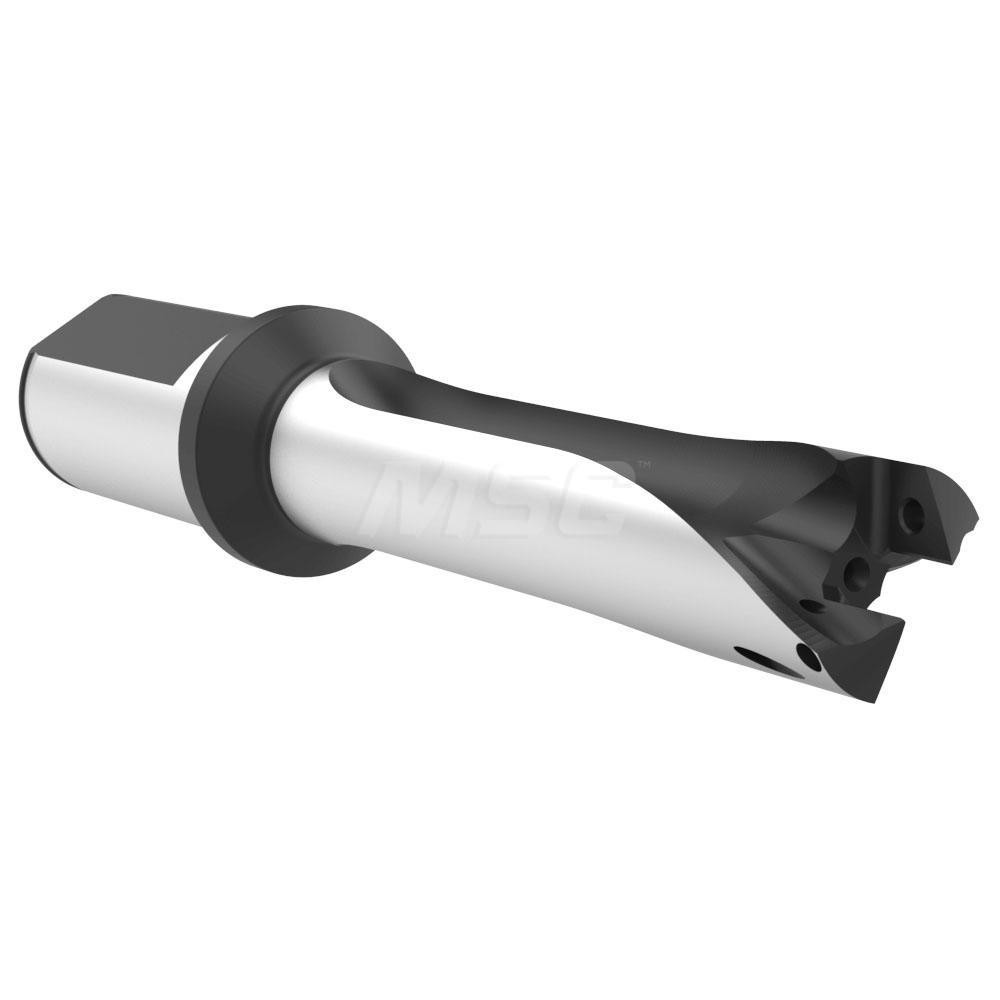

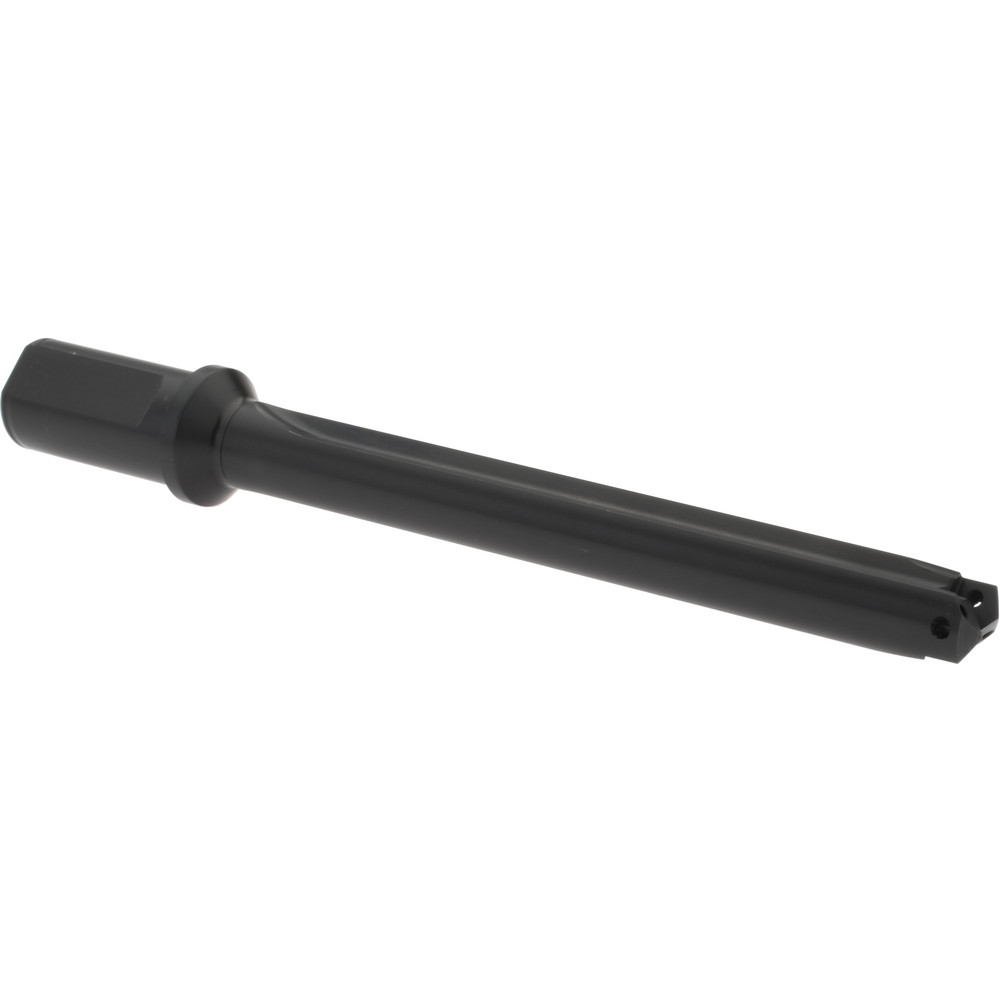

Flatted Shank, Coolant Through, Series GEN3SYS XT SS 26
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.1416 |
| Maximum Drill Depth (Inch) | 7-63/64 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Length Type | Long |
| Drill Depth by Diameter Ratio | 7xD |
| Tool Material | Steel |
| Overall Length (Inch) | 11-29/32 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS XT SS 26 |
| Flute Type | Straight |
| Flute Length (Inch) | 7-63/64 |
| Body Length (Inch) | 9-5/8 |
| Shank Length (Inch) | 2-9/32 |
| Tool Performance | High Performance |
| Coolant Hole Thread Size | 1/4 |
| Coolant Hole Thread Type | BSPT |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 32221731 |
