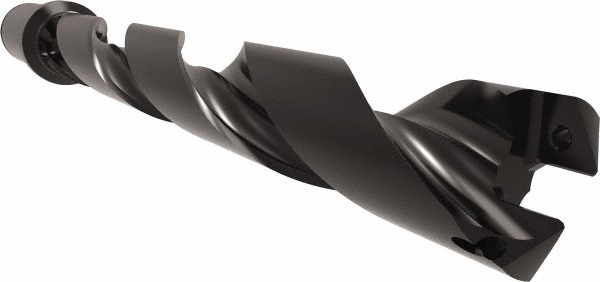

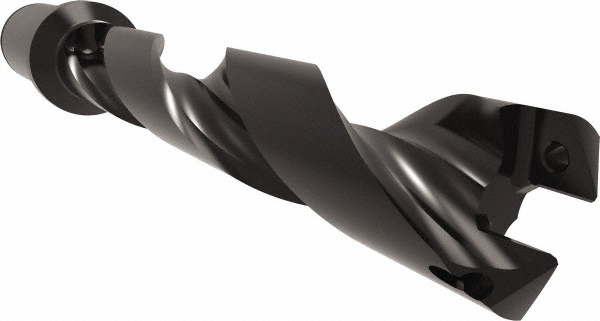

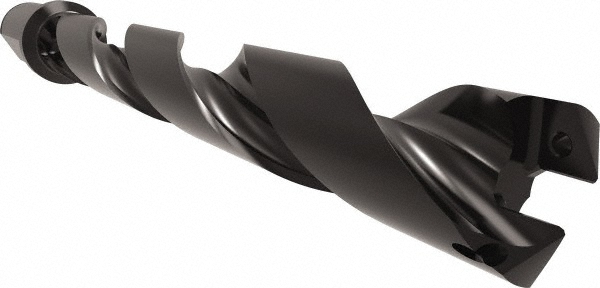

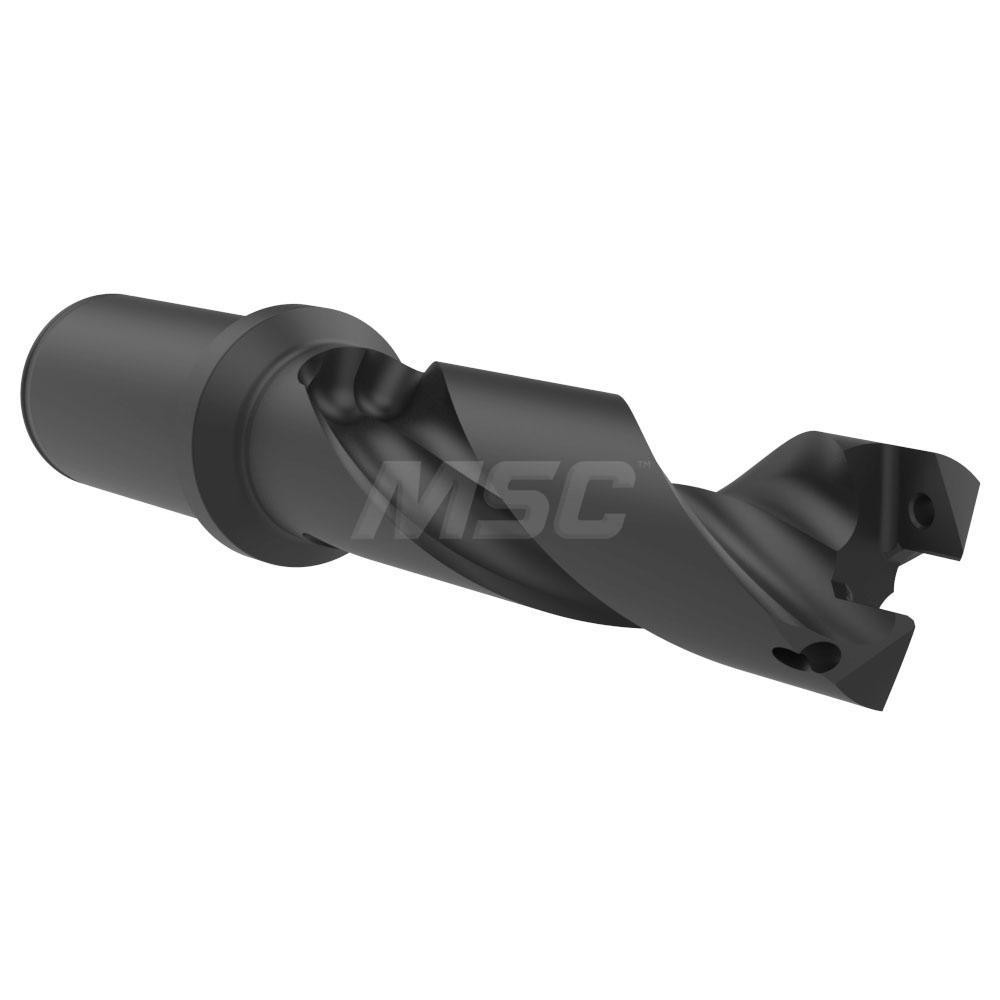

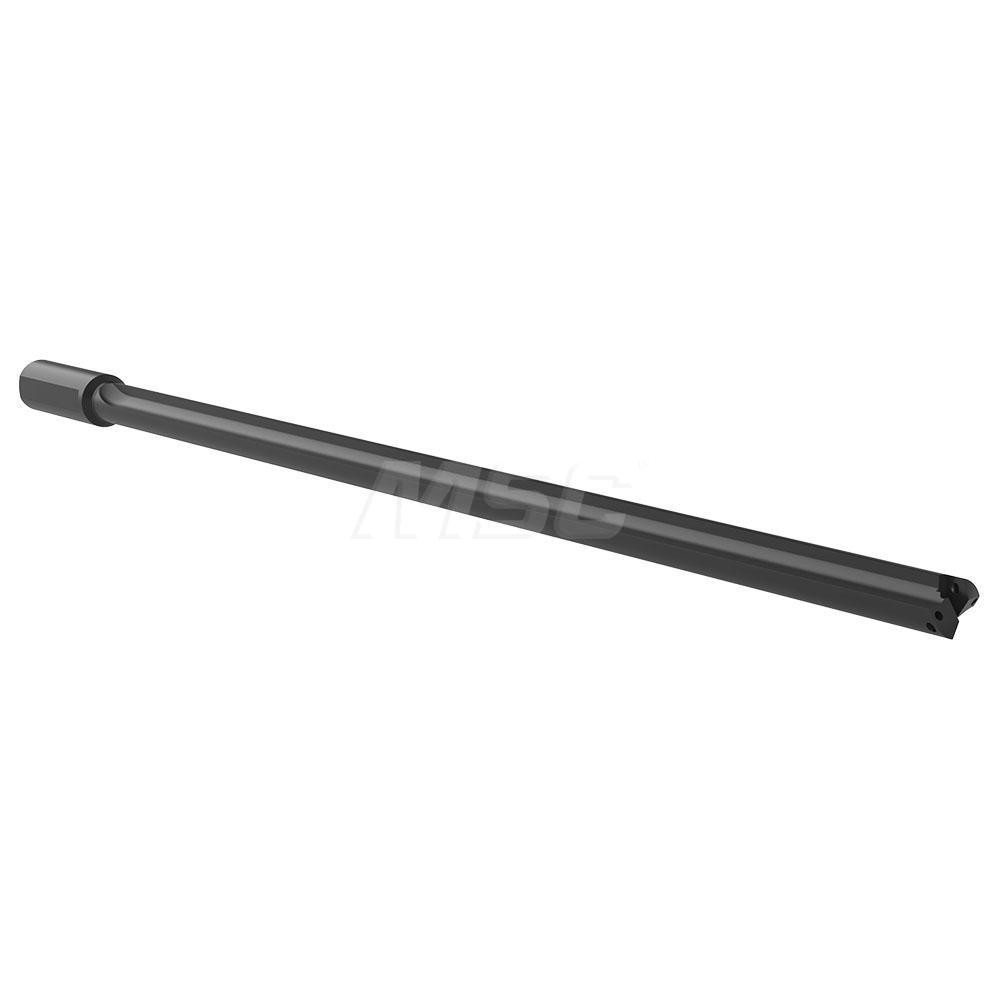

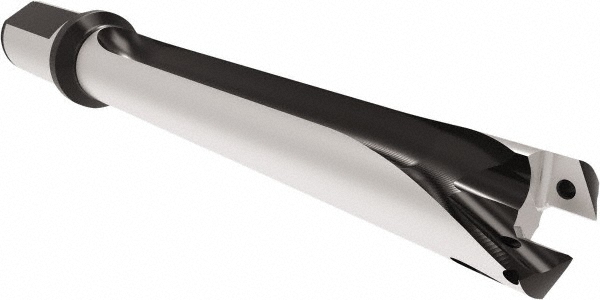

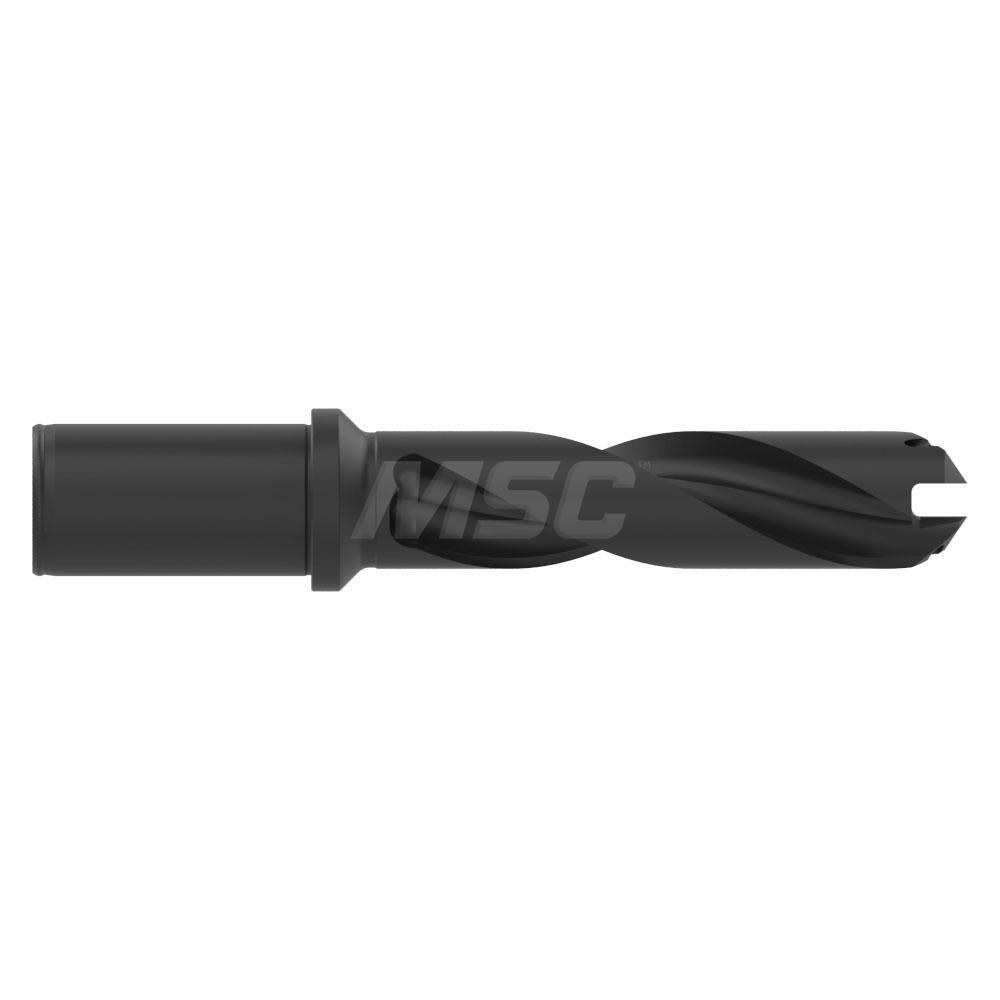

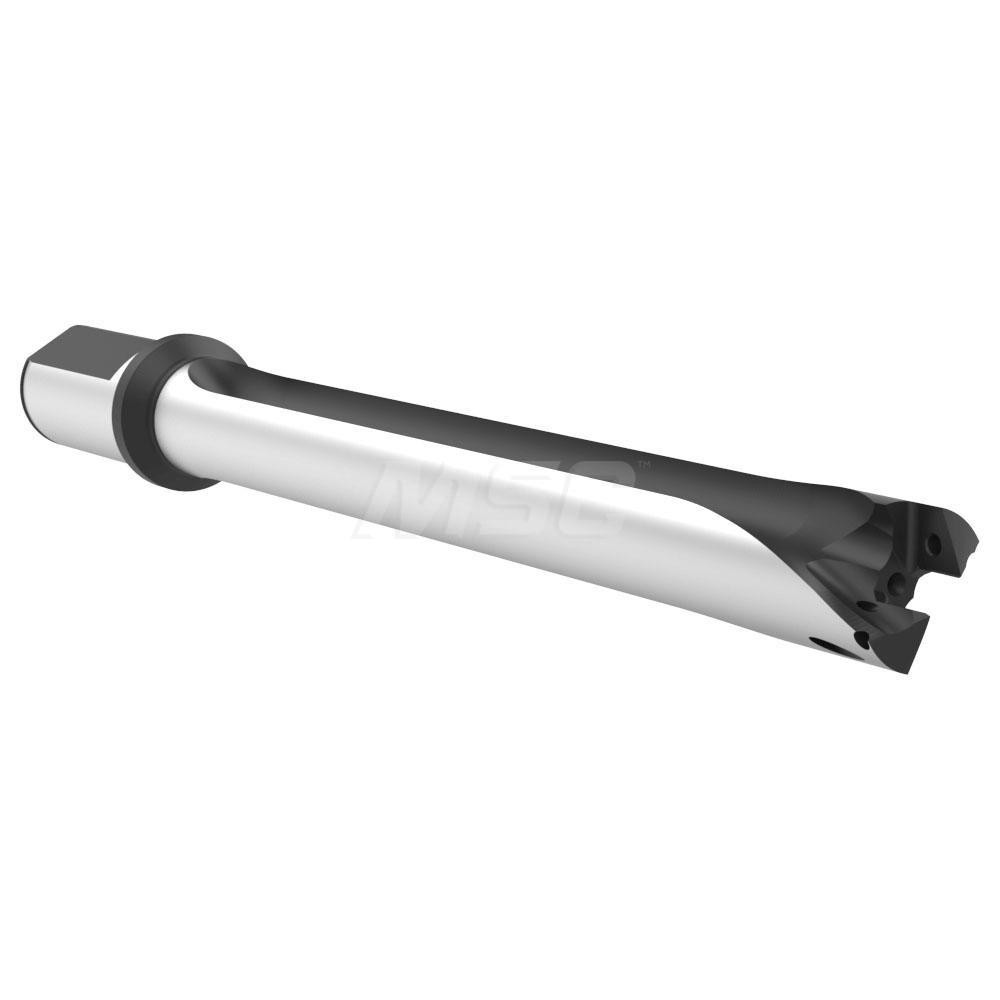

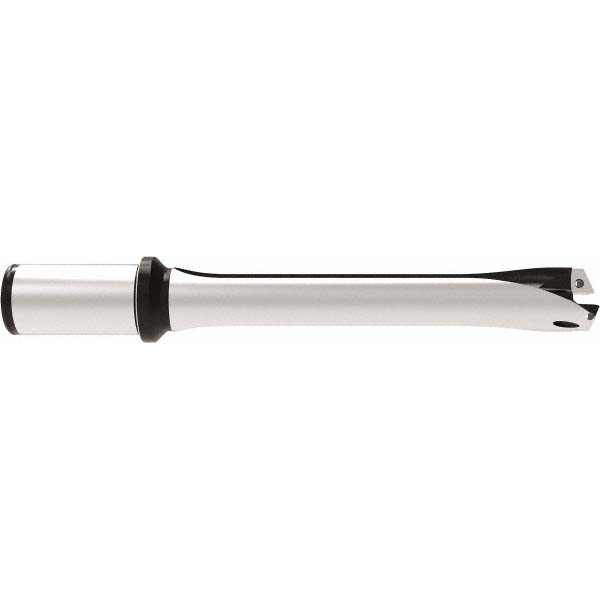

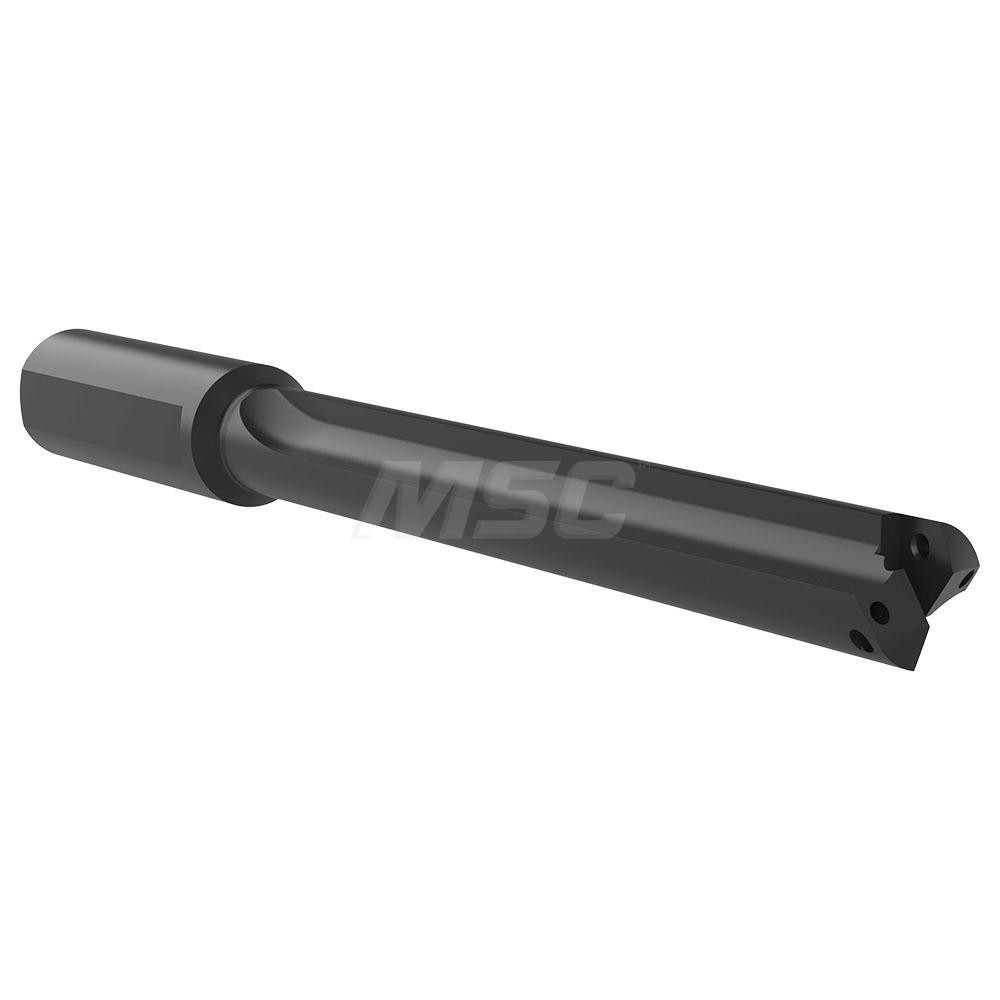

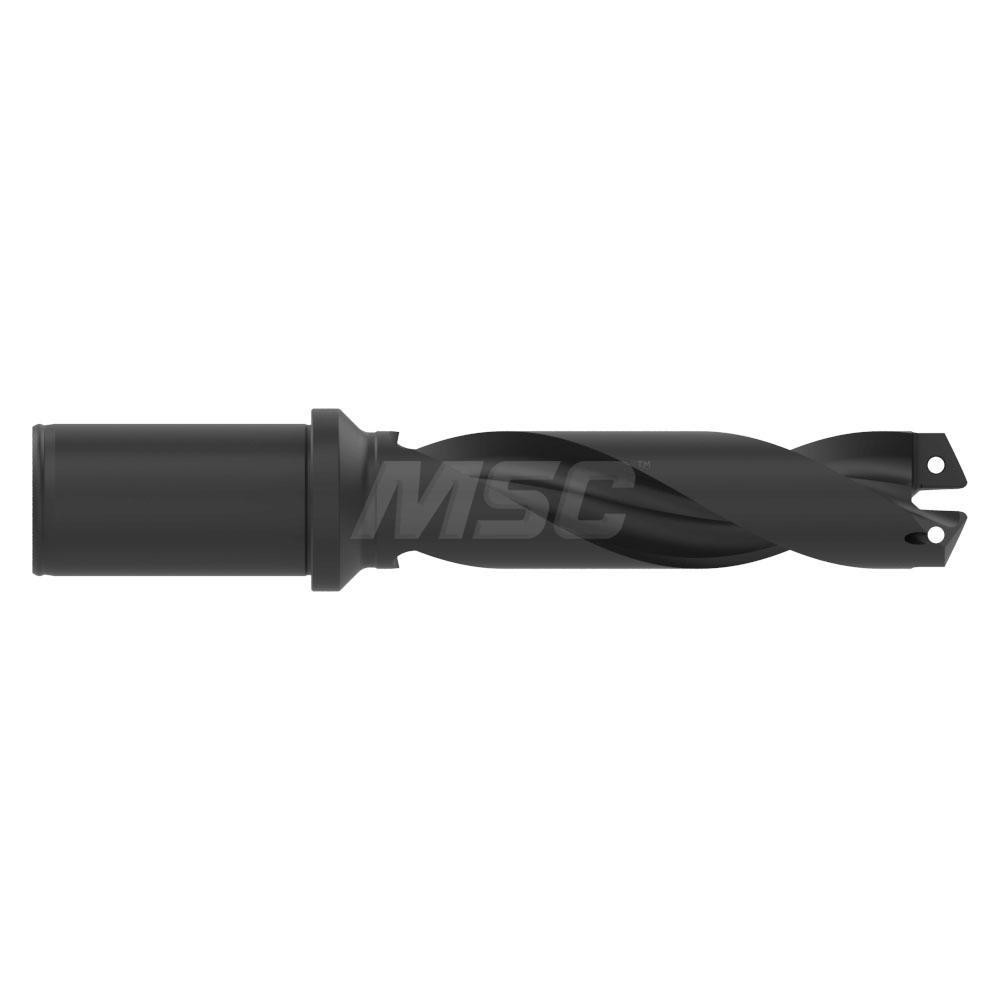

1.2500" Dia Cylindrical Shank, 5.3750" Body Length, Coolant Through, Series GEN3SYS 29
| Minimum Drill Diameter (Decimal Inch) | 1.1417 |
|---|---|
| Minimum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2597 |
| Maximum Drill Depth (Inch) | 3-25/32 |
| Maximum Drill Depth (Decimal Inch) | 3.7813 |
| Spade Drill Length | Standard |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 3xD |
| Tool Material | Steel |
| Overall Length (Inch) | 7-43/64 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS 29 |
| Flute Type | Helical |
| Flute Length (Inch) | 3-25/32 |
| Body Length (Inch) | 5-3/8 |
| Body Length (Decimal Inch) | 5.3750 |
| Shank Length (Inch) | 2-9/32 |
| Shank Length (Decimal Inch) | 2.2813 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/4 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 92085828 |
