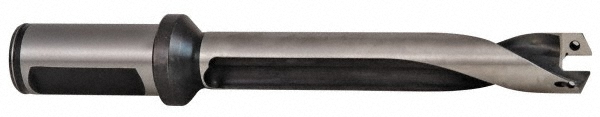

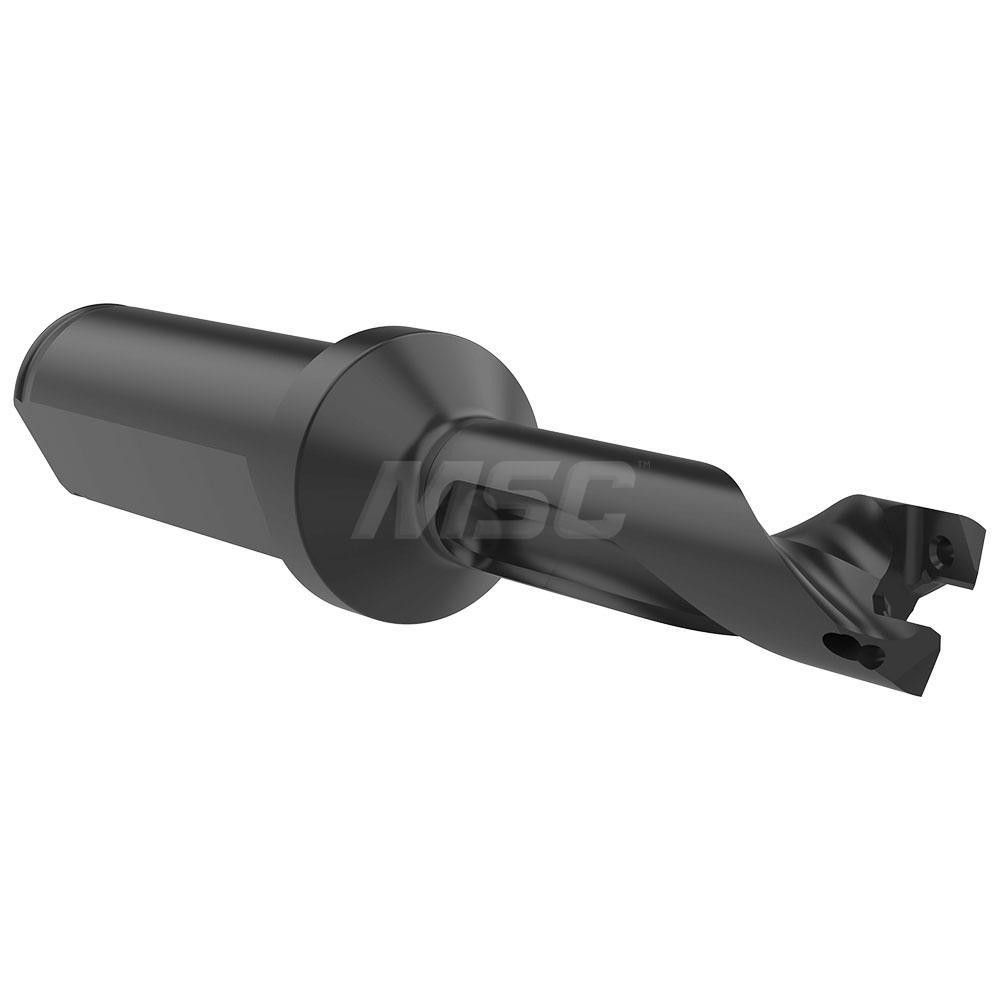

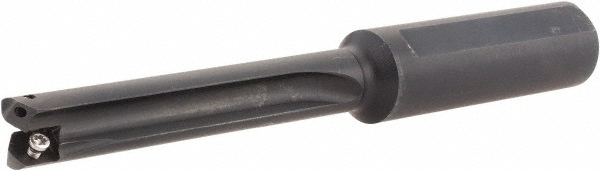

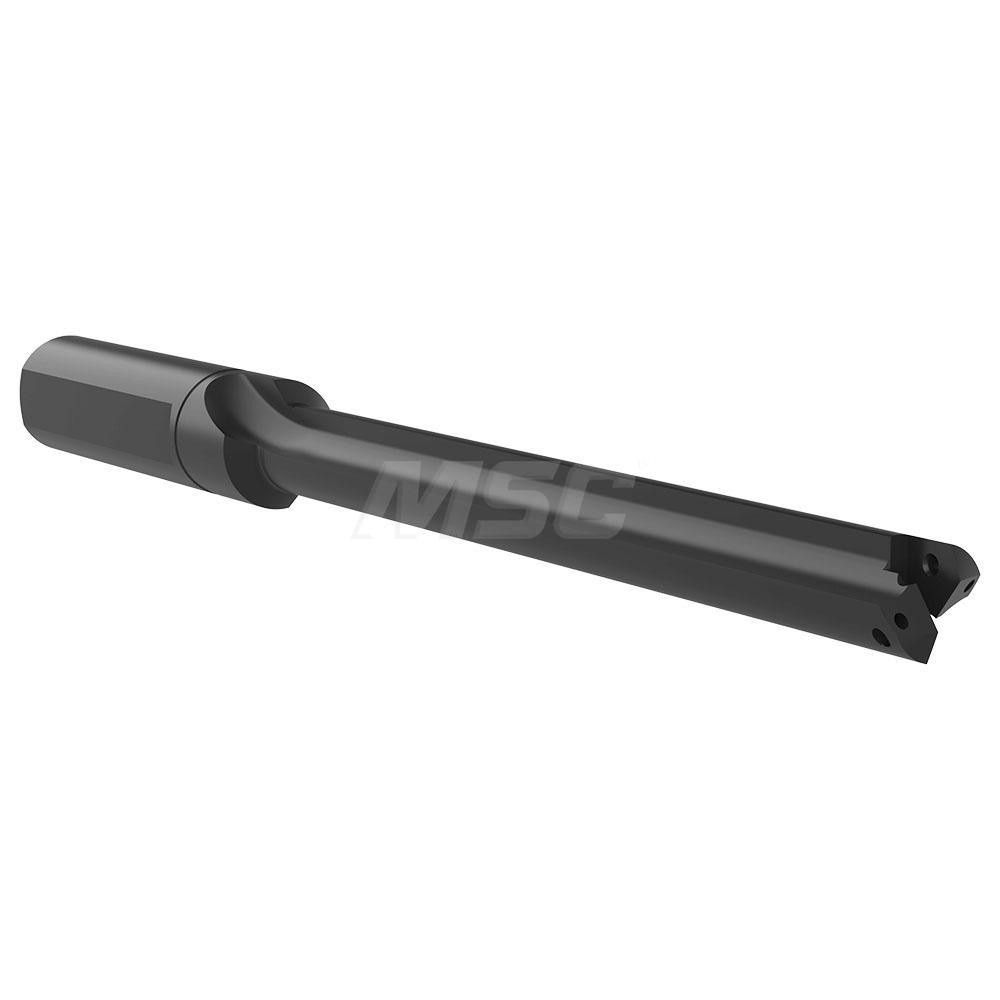

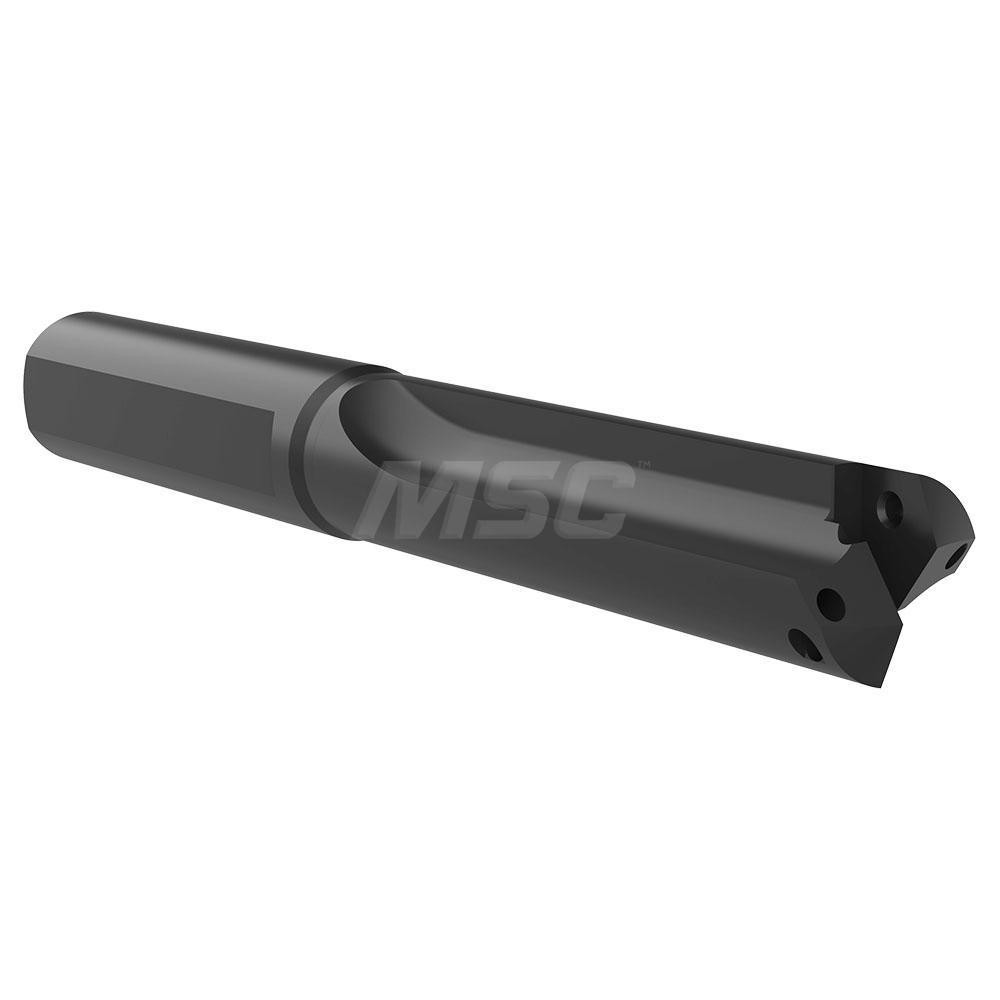

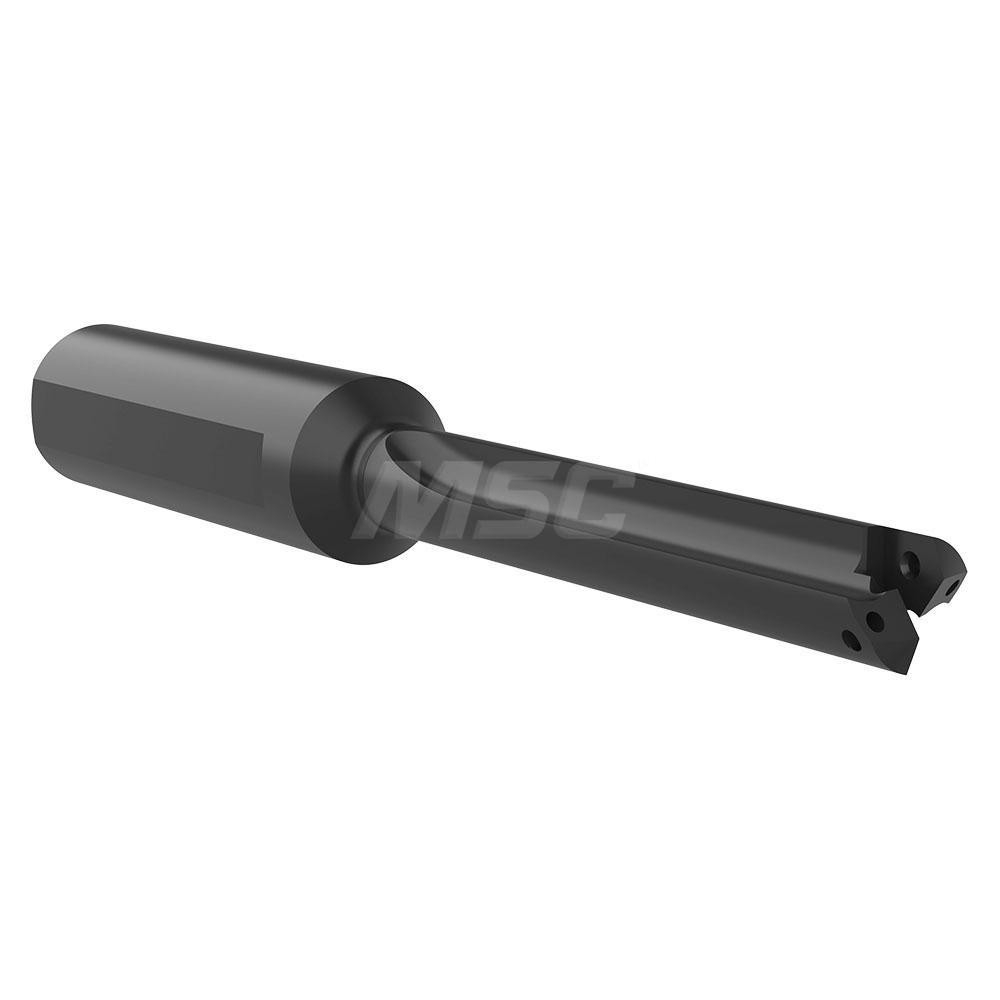

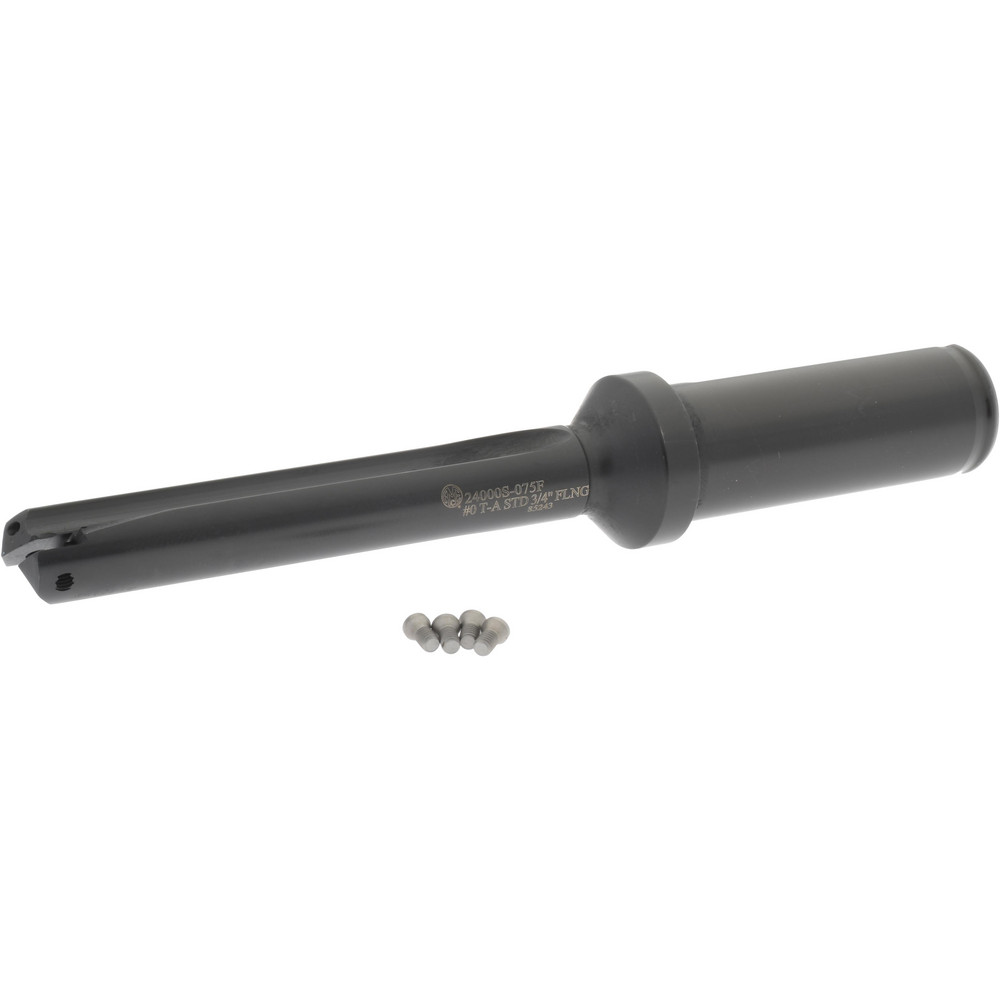

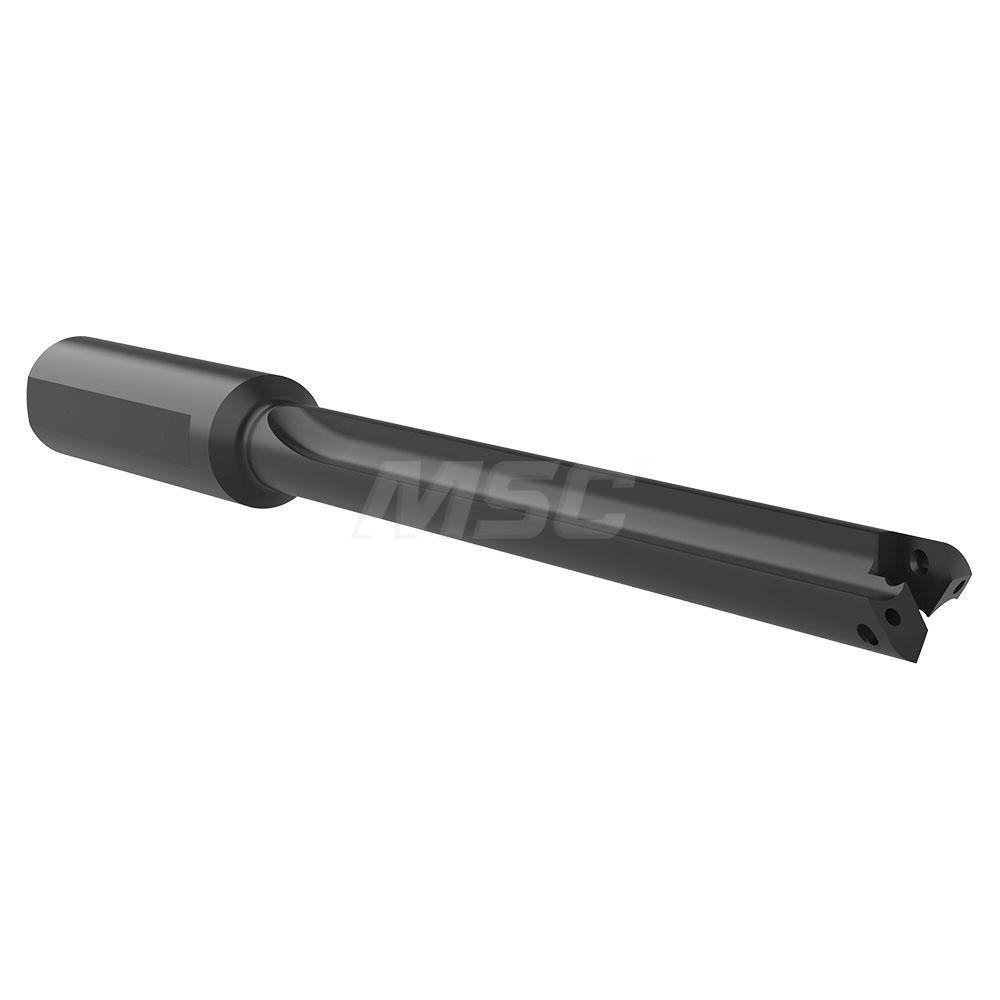

20.00 mm Dia Flatted Shank, 118.50 mm Body Length, 90.90 mm Flute Length, 168.60 mm OAL, Coolant Through, Series GEN3SYS 12
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
|---|---|
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Maximum Drill Depth (mm) | 90.90 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (mm) | 20.00 |
| Length Type | Long |
| Drill Depth by Diameter Ratio | 7xD |
| Tool Material | Steel |
| Overall Length (mm) | 168.60 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS 12 |
| Flute Type | Straight |
| Flute Length (mm) | 90.90 |
| Body Length (mm) | 118.50 |
| Shank Length (mm) | 50.00 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 92521194 |
