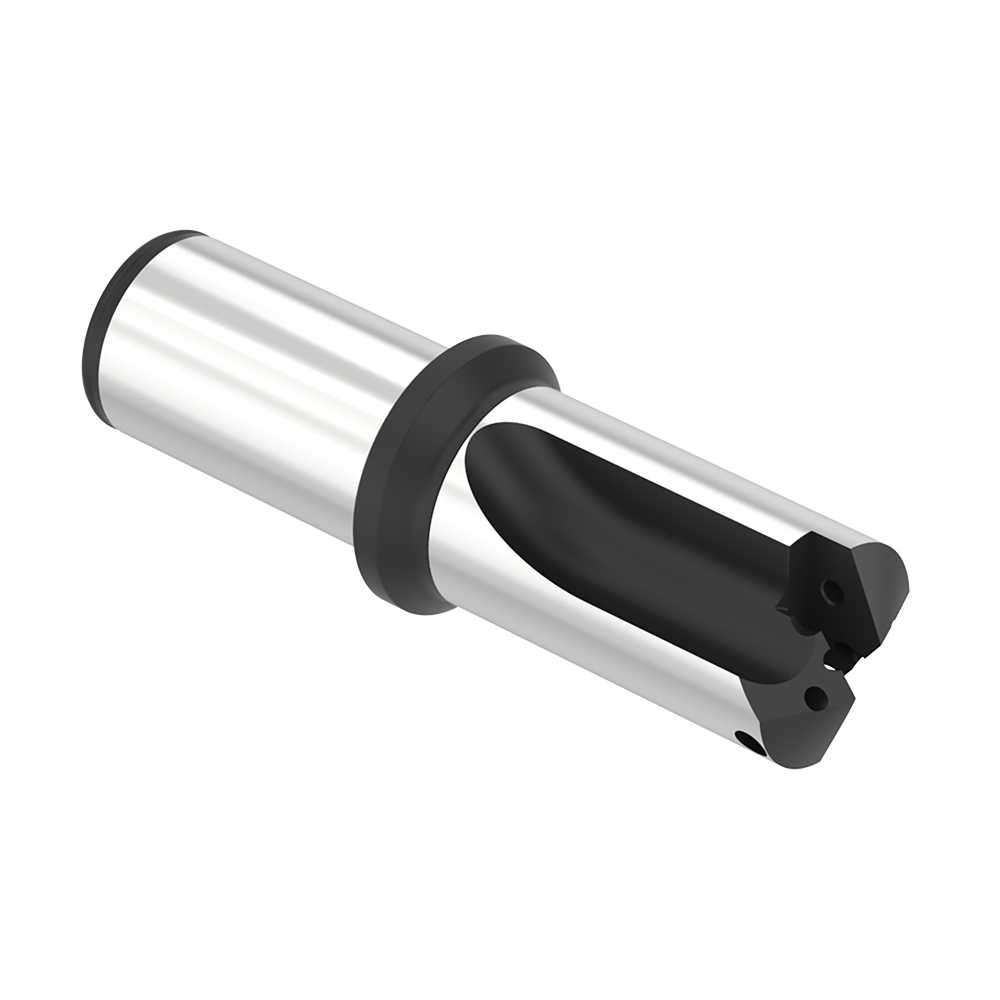

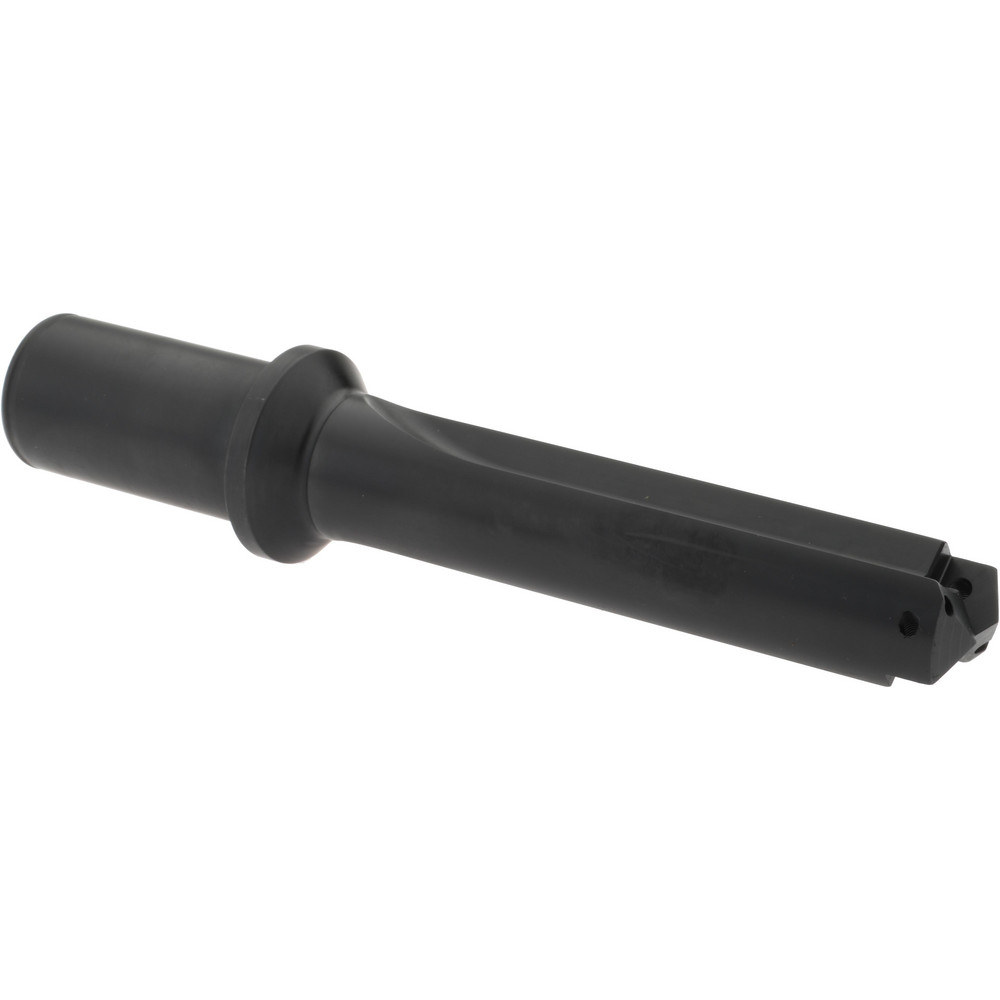

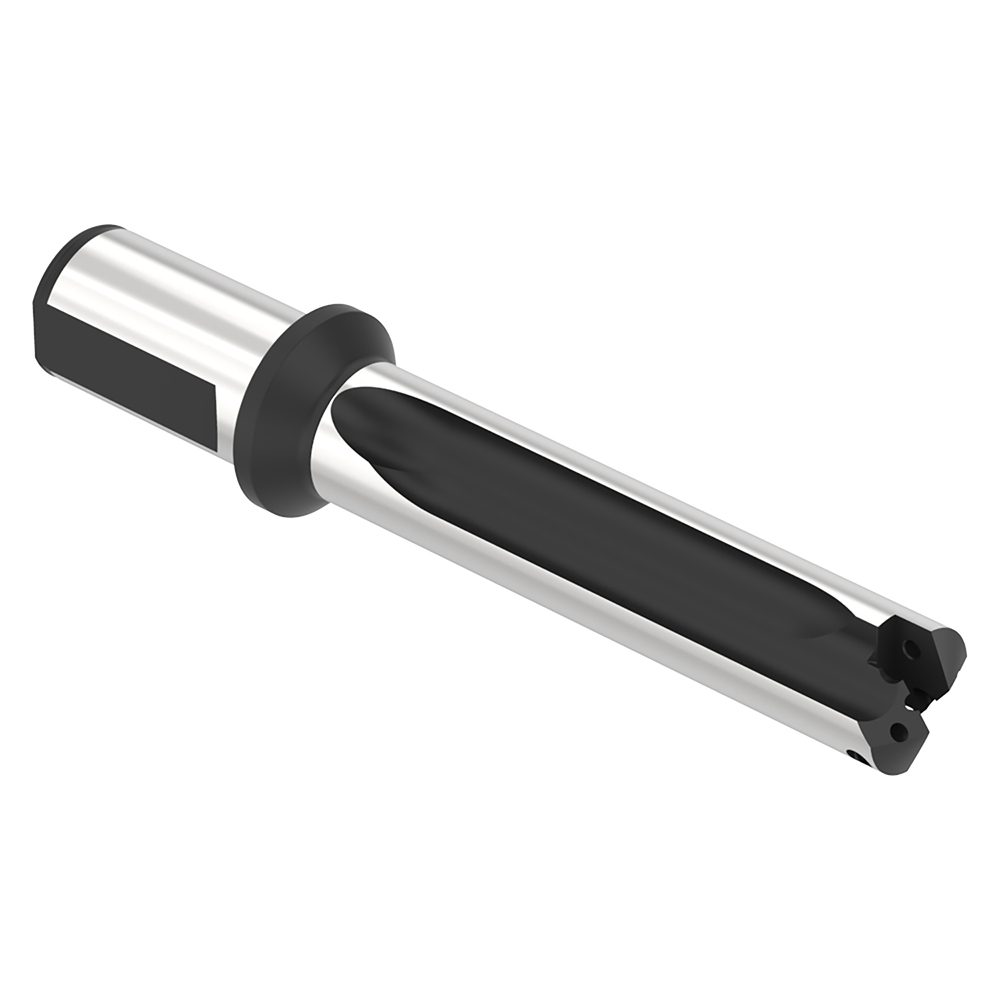

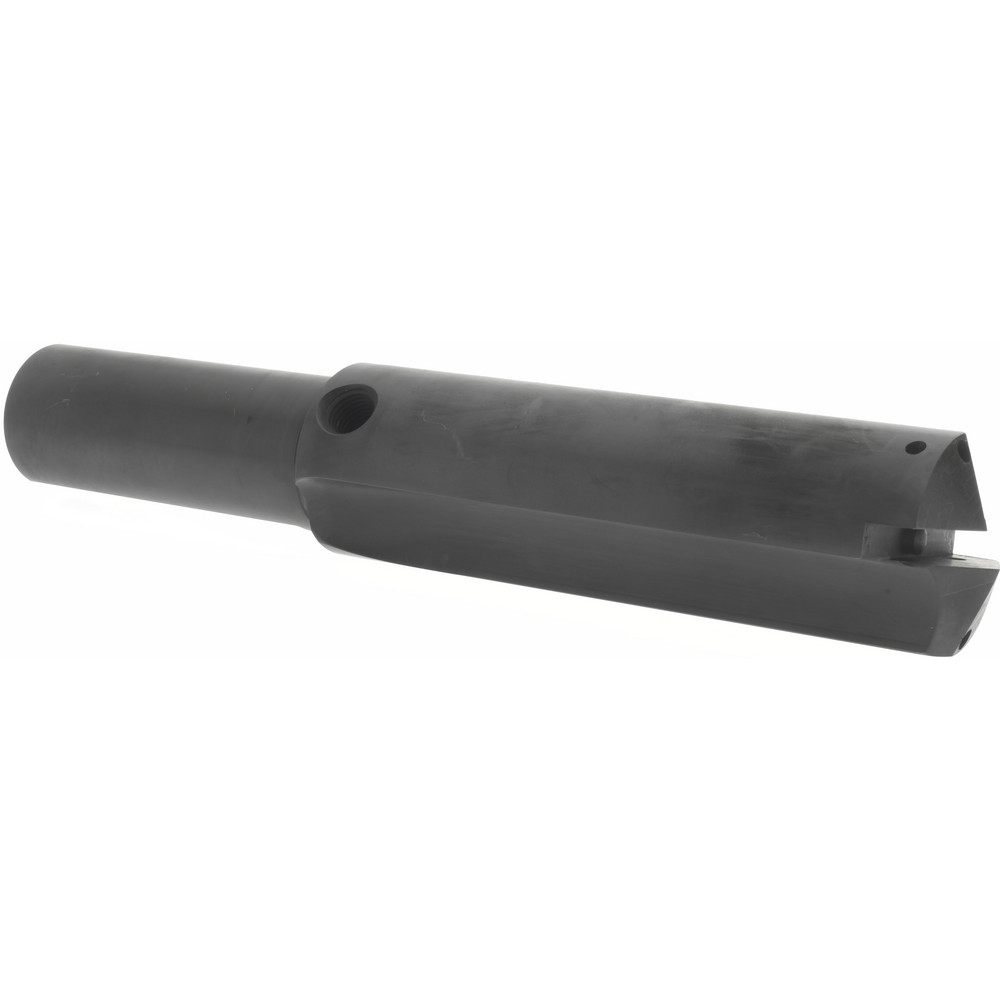

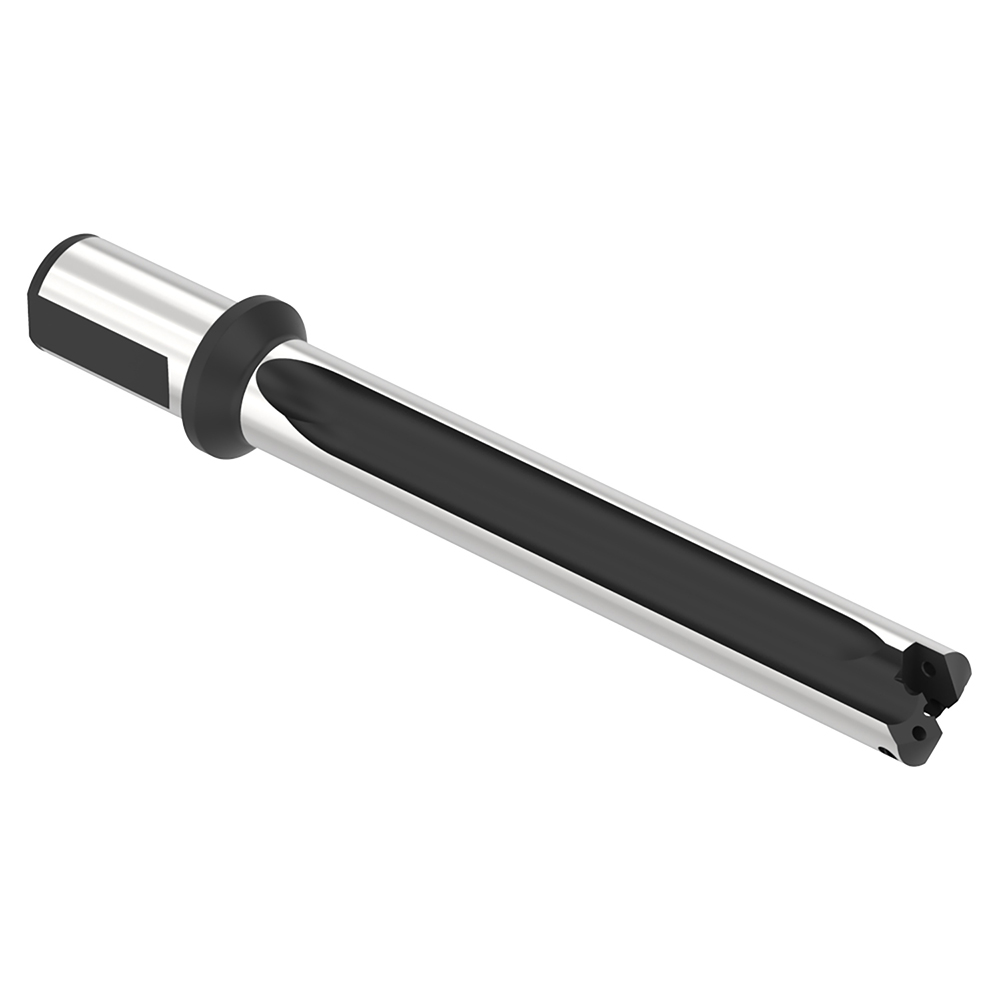

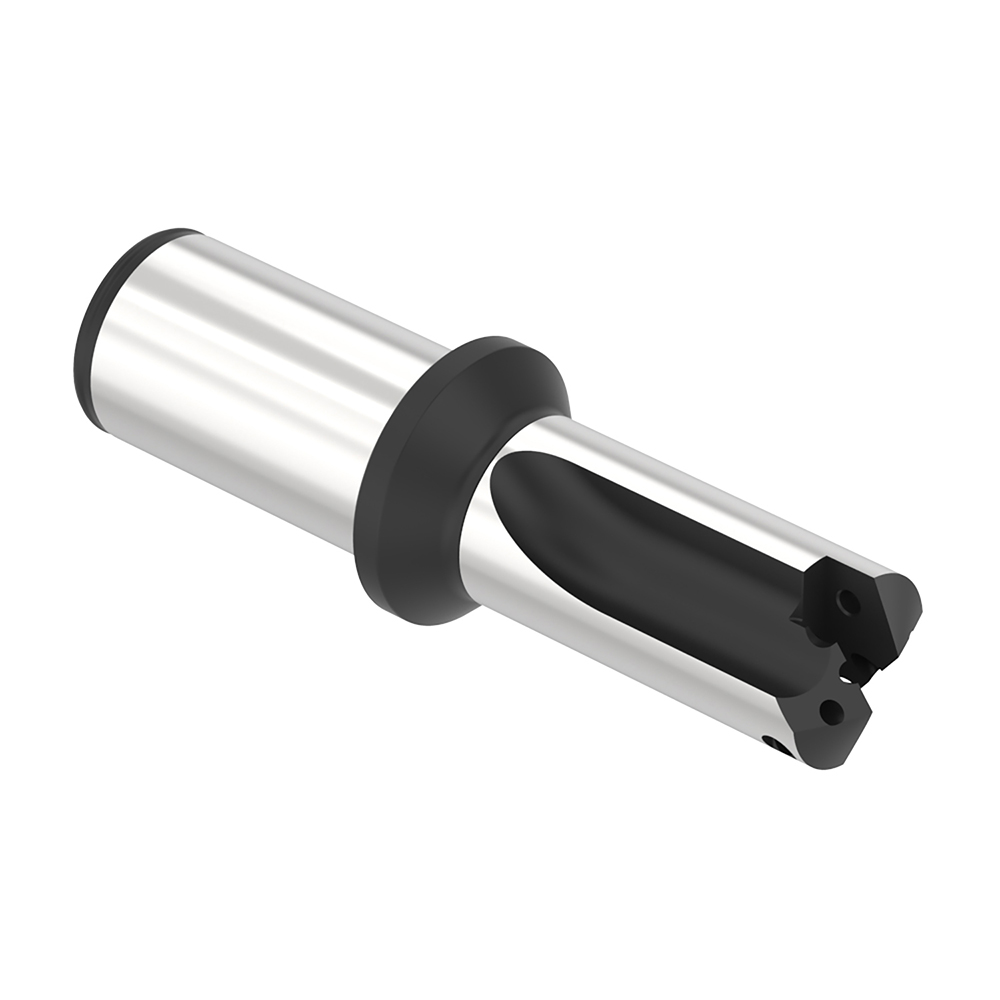

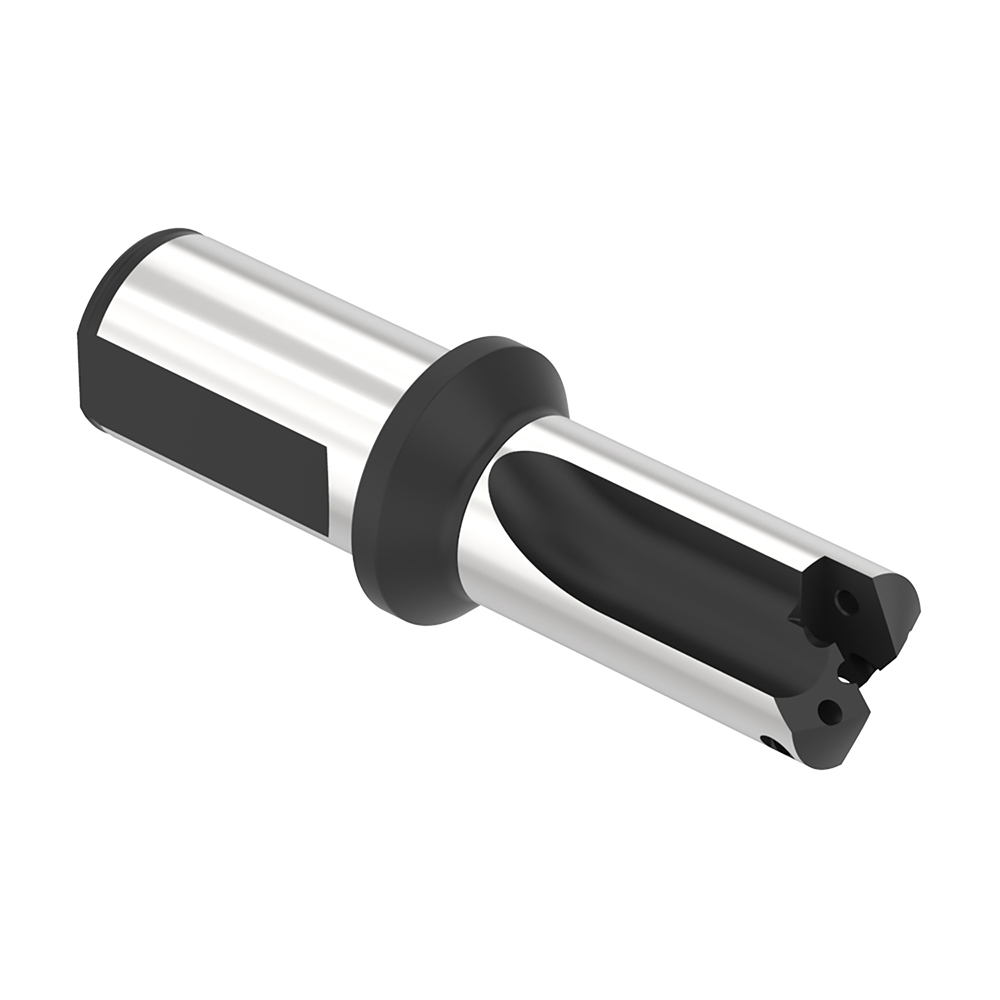

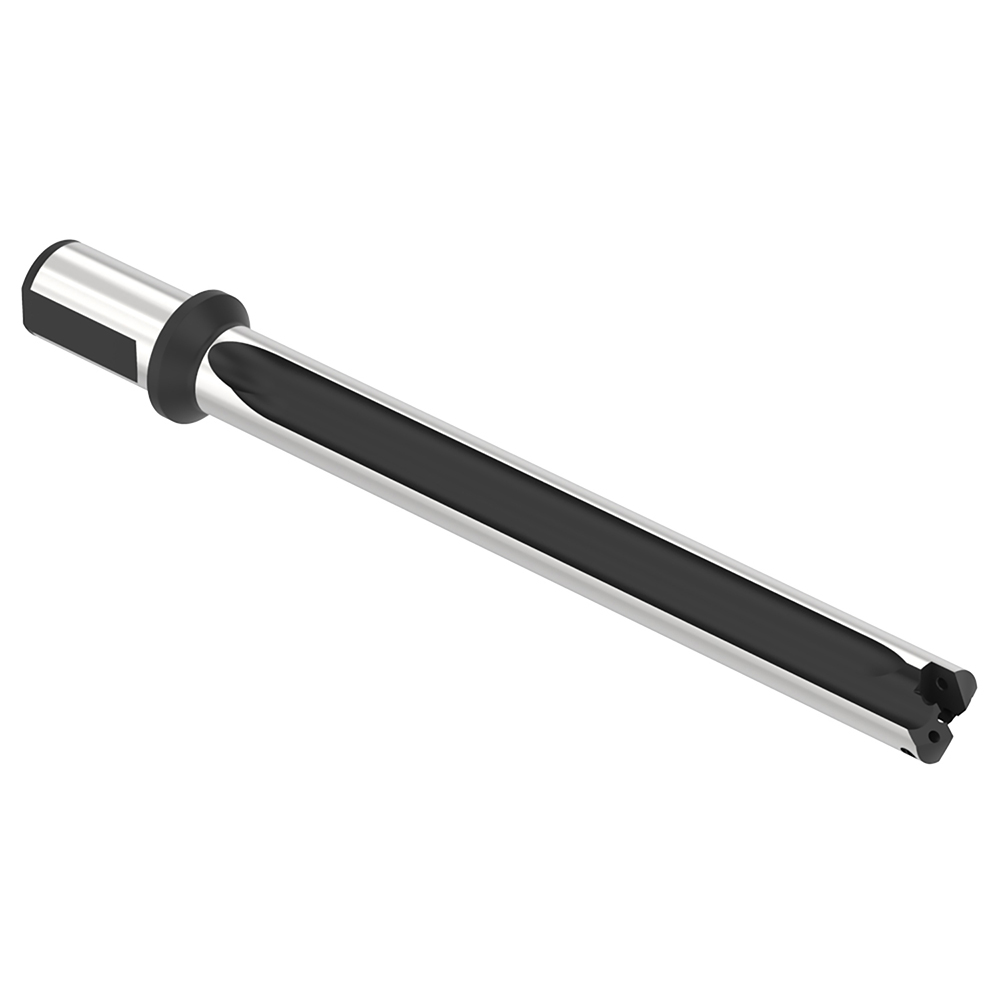

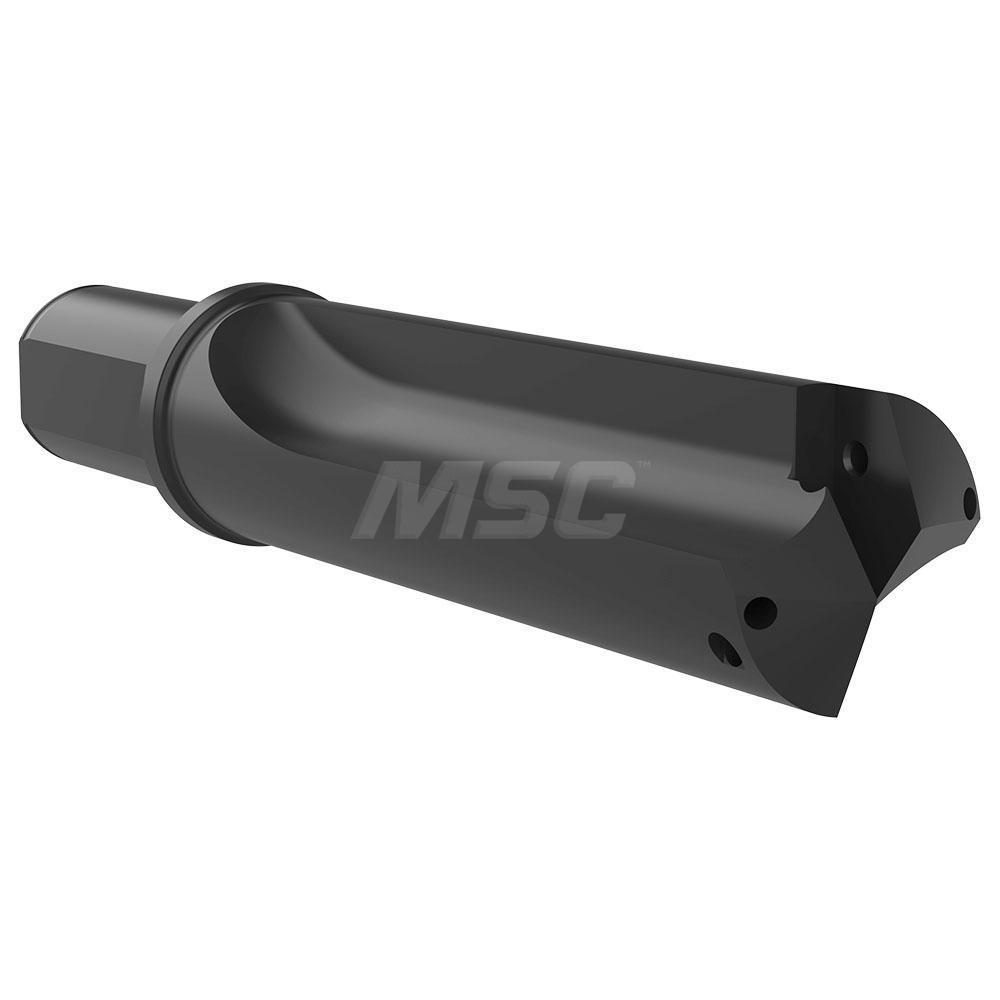

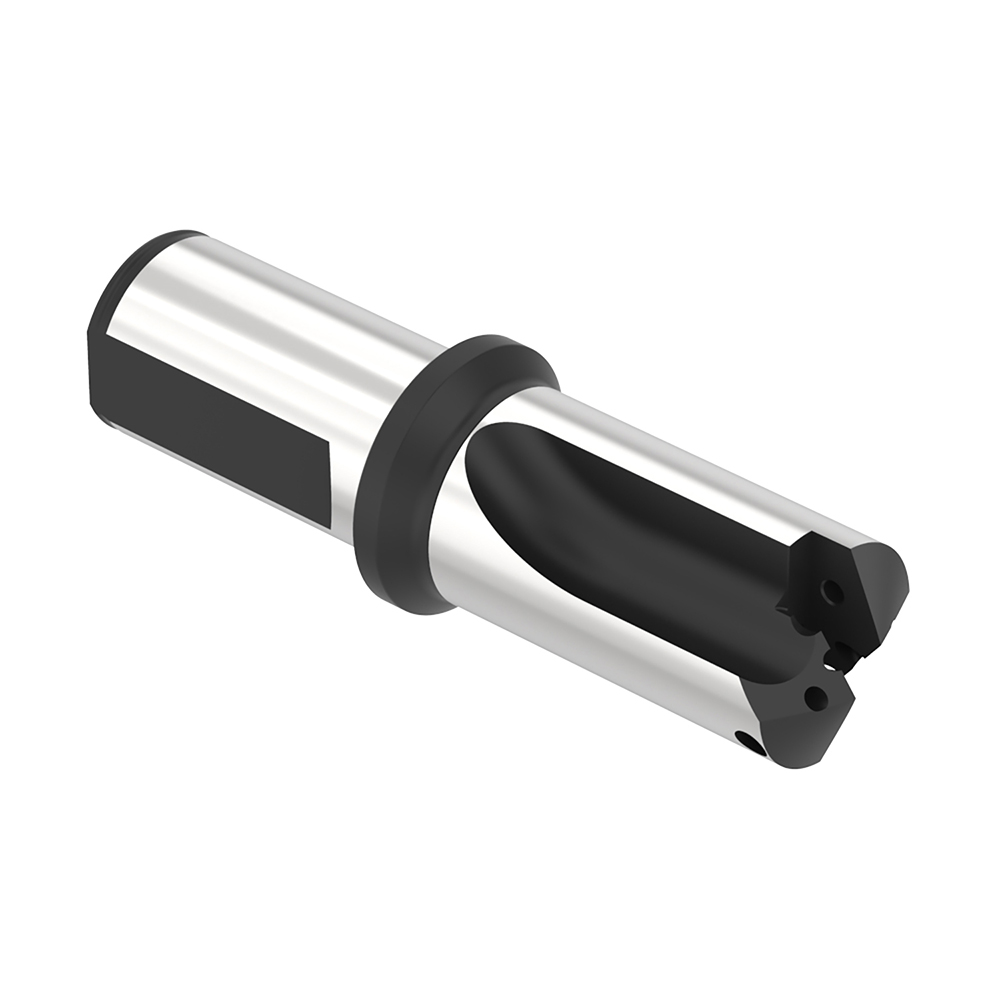

Cylindrical Shank, 3.6340" Body Length, 1.6180" Flute Length, 1.6180" Flute Length, Coolant Through, Series T-A Pro 3
| Minimum Drill Diameter (Decimal Inch) | 1.4880 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.8820 |
| Maximum Drill Depth (Decimal Inch) | 1.6180 |
| Spade Drill Length | Short |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Length Type | Stub |
| Drill Depth by Diameter Ratio | 1xD |
| Tool Material | Steel |
| Overall Length (Decimal Inch) | 6.3220 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A Pro 3 |
| Flute Type | Straight |
| Flute Length (Decimal Inch) | 1.6180 |
| Body Length (Decimal Inch) | 3.6340 |
| Shank Length (Decimal Inch) | 2.6880 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 16718322 |
