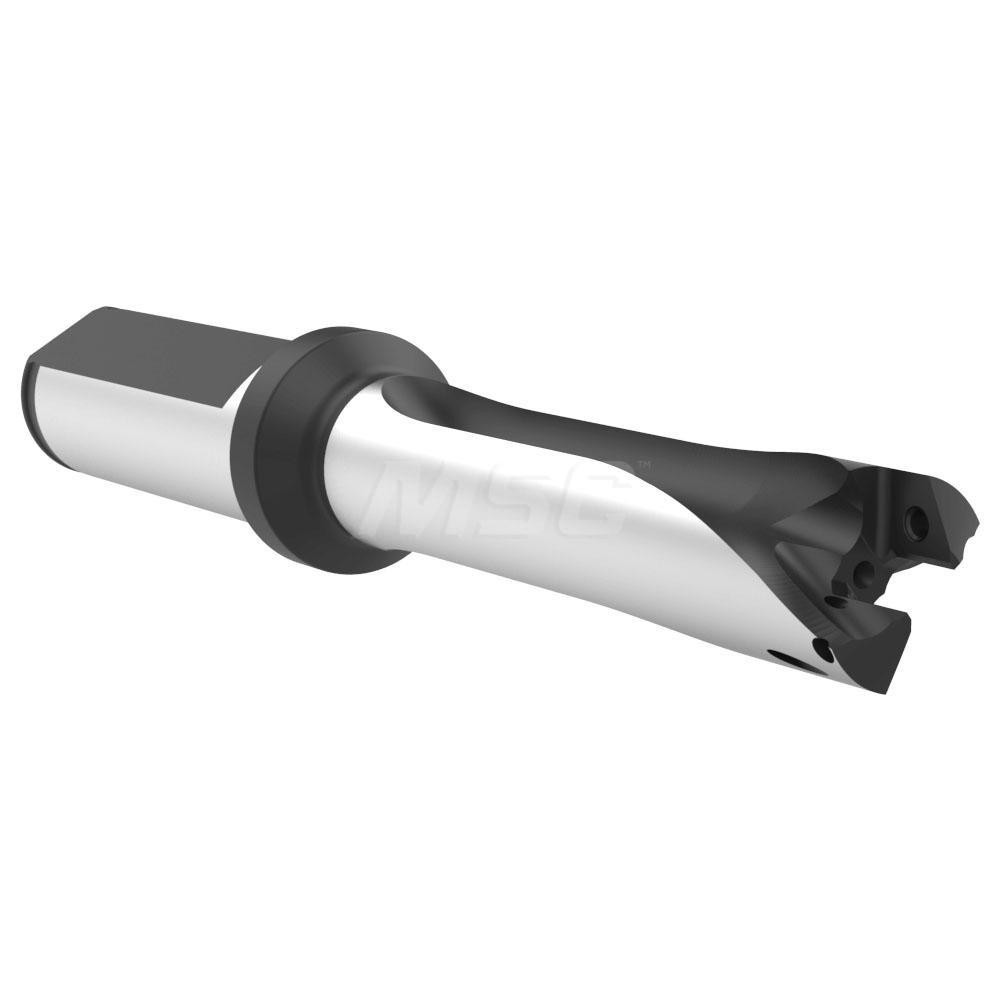

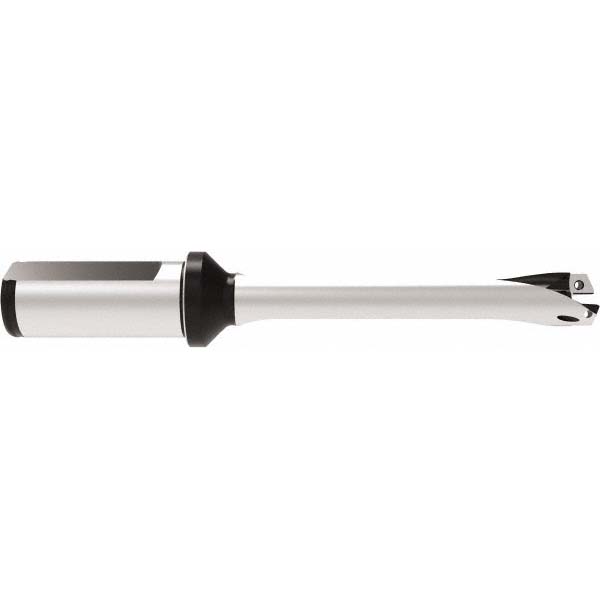

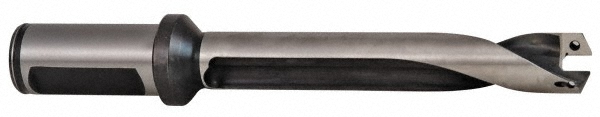

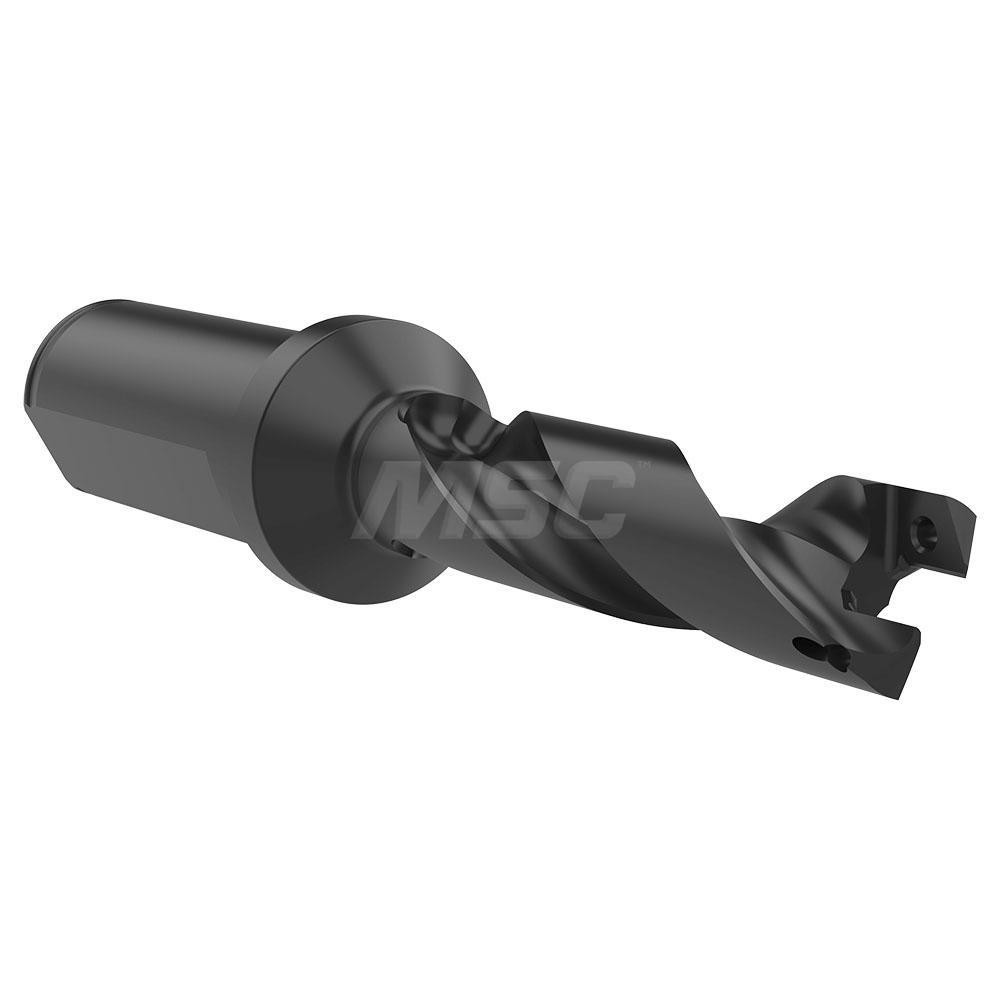

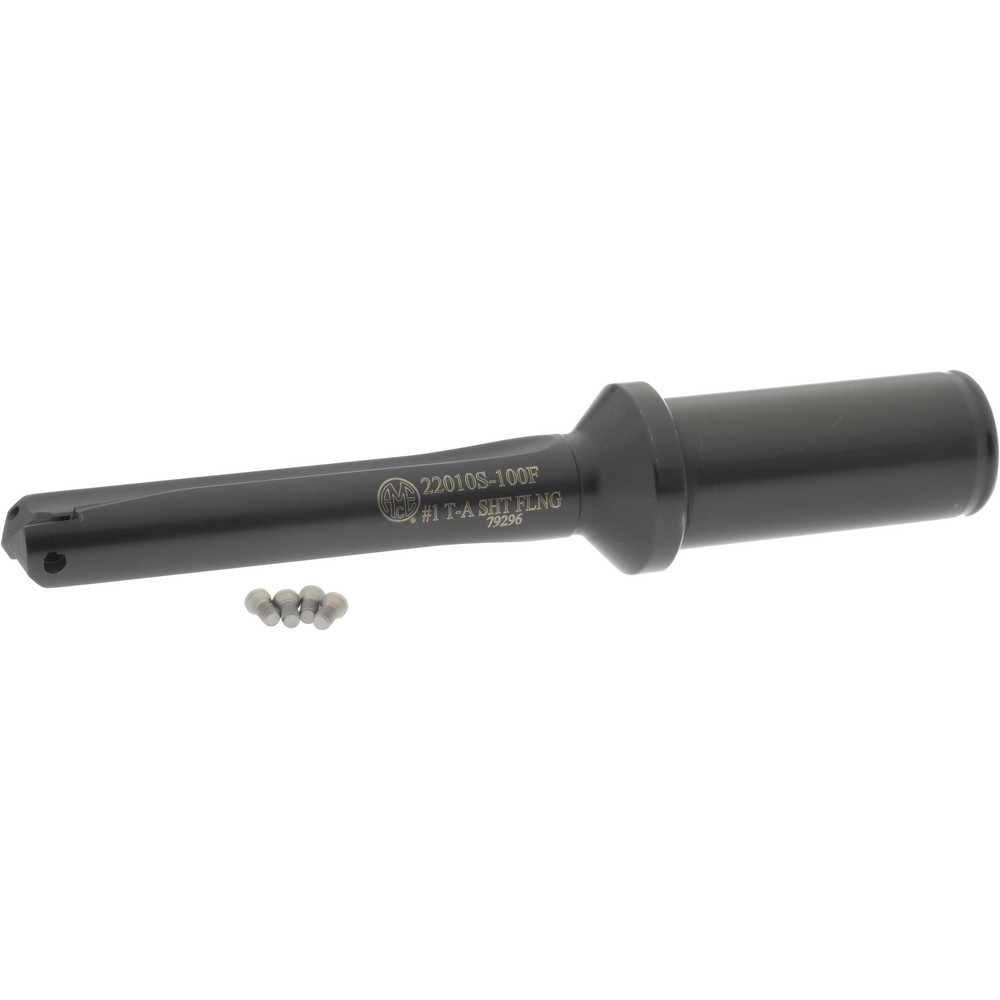

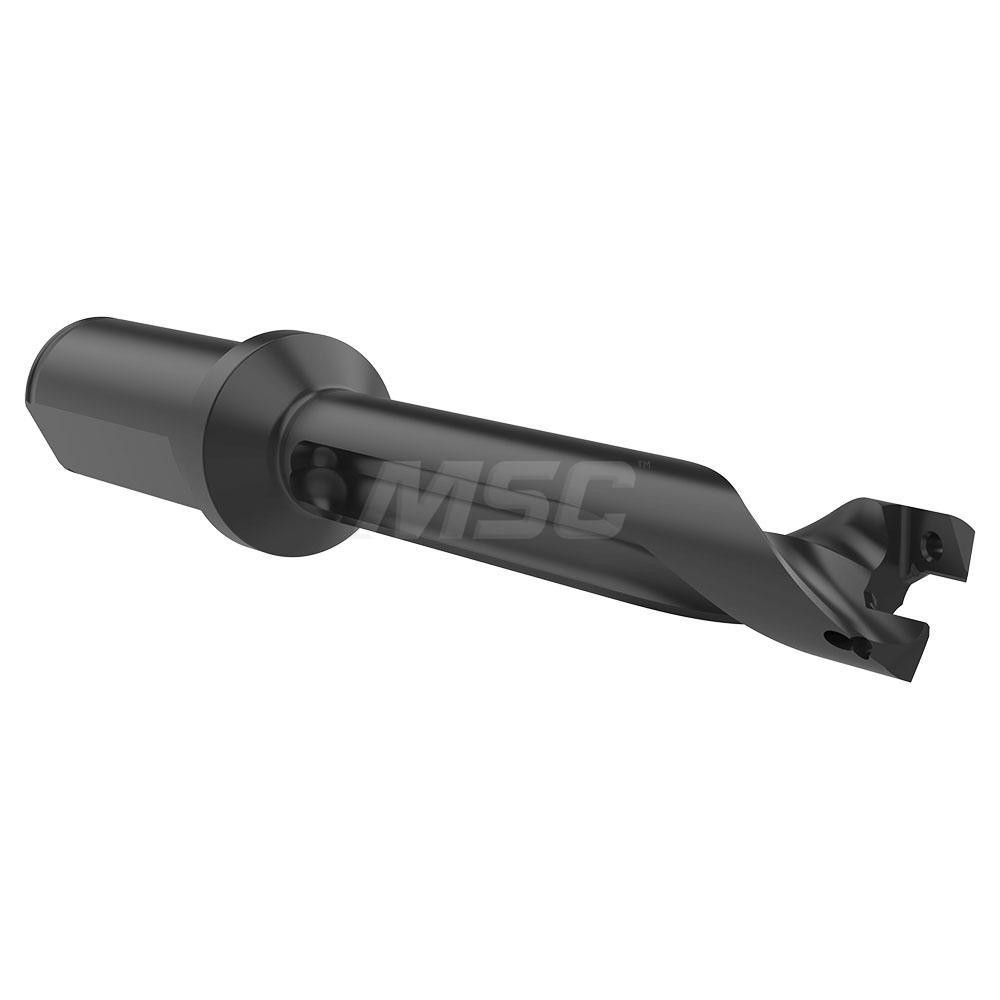

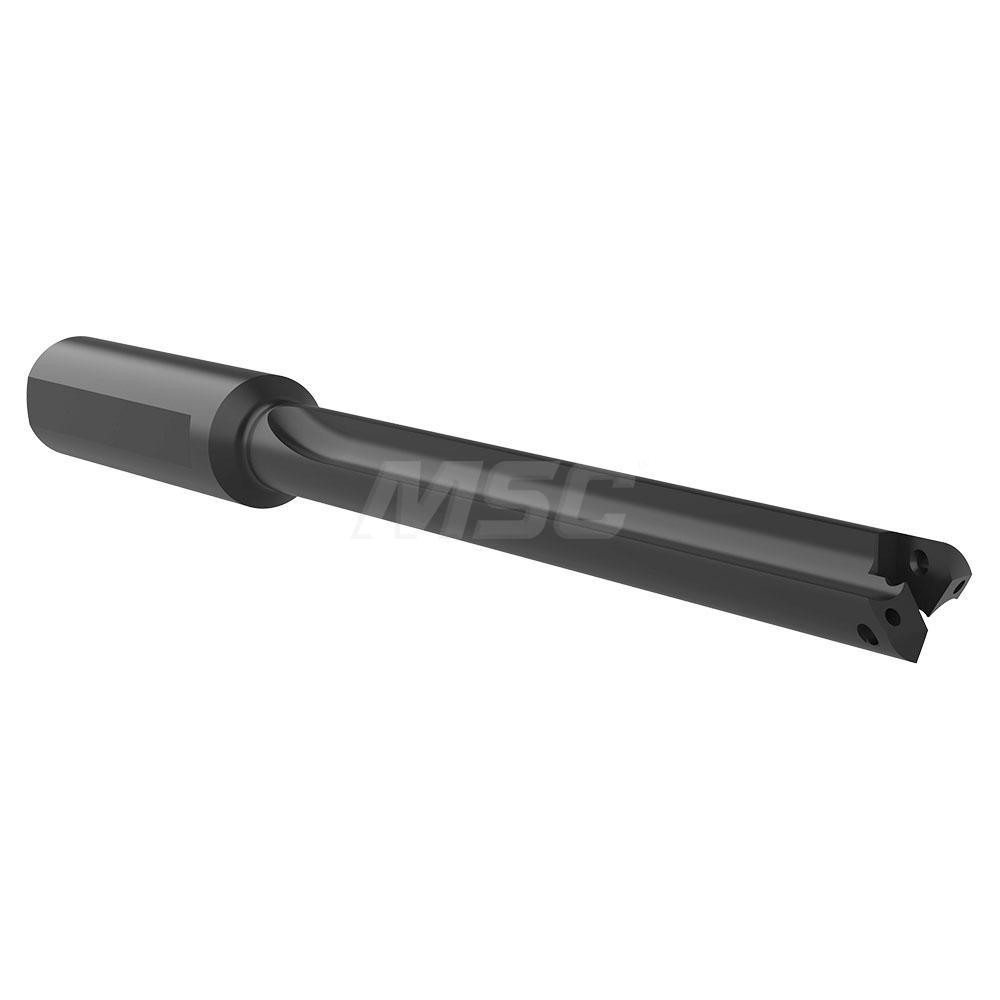

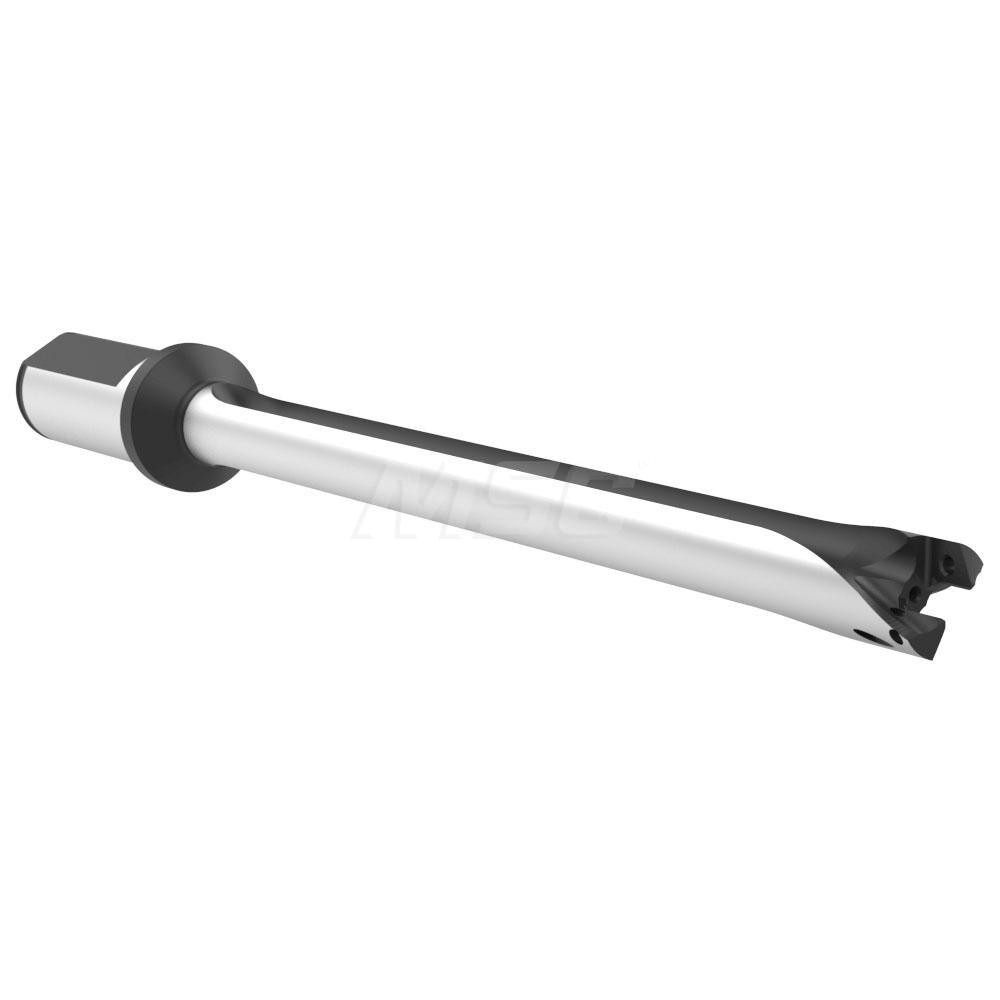

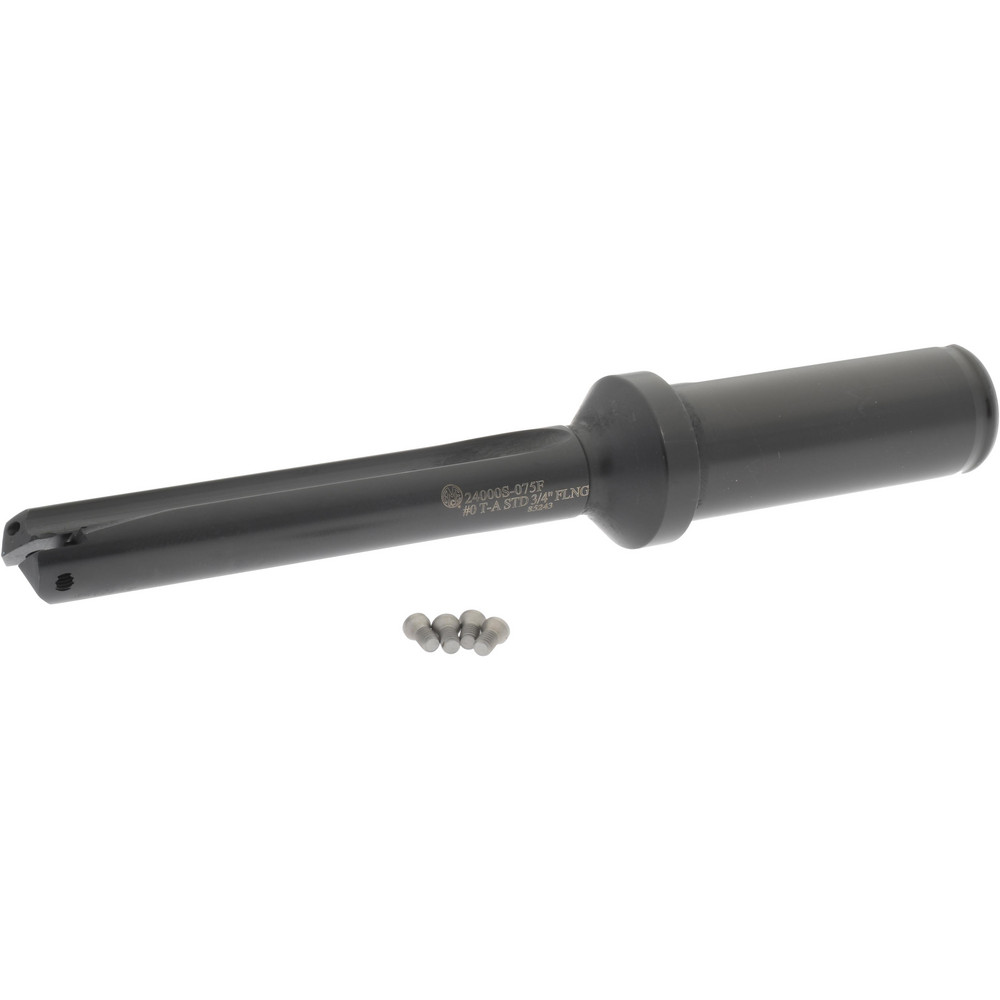

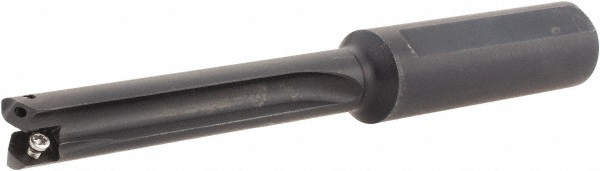

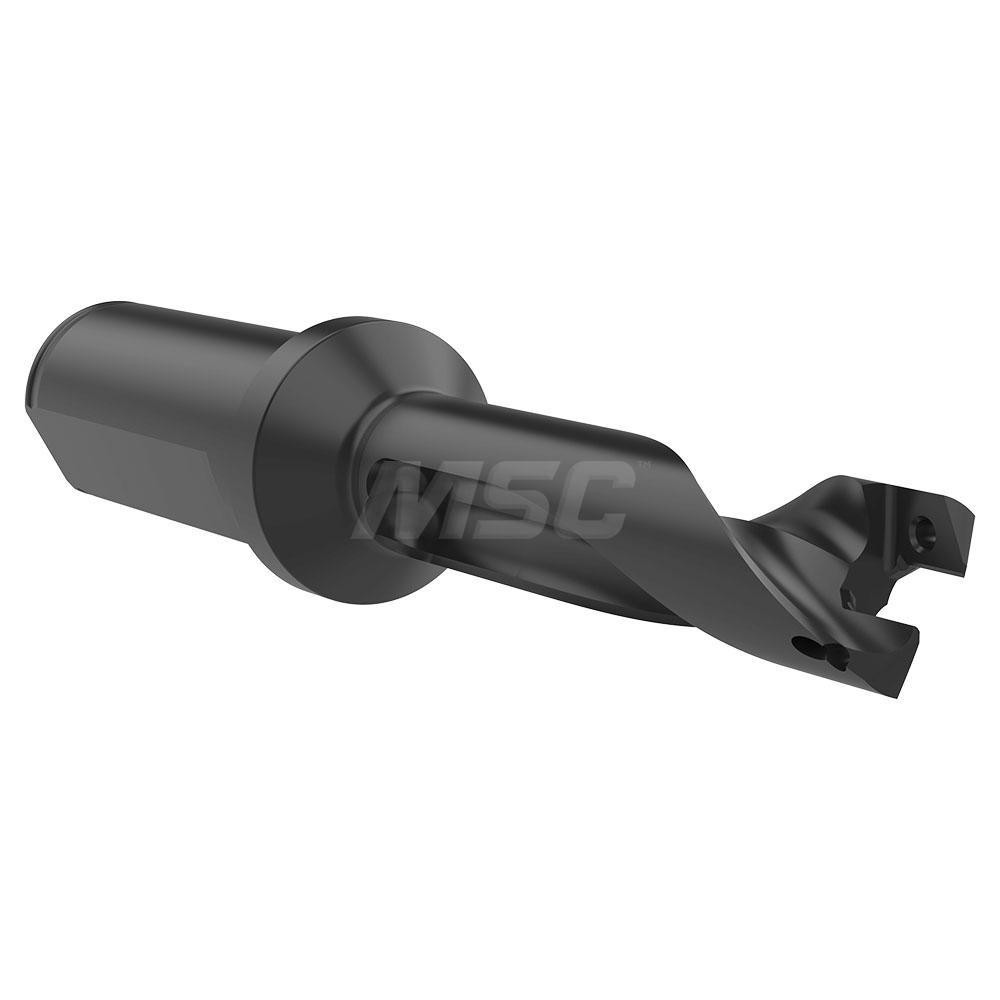

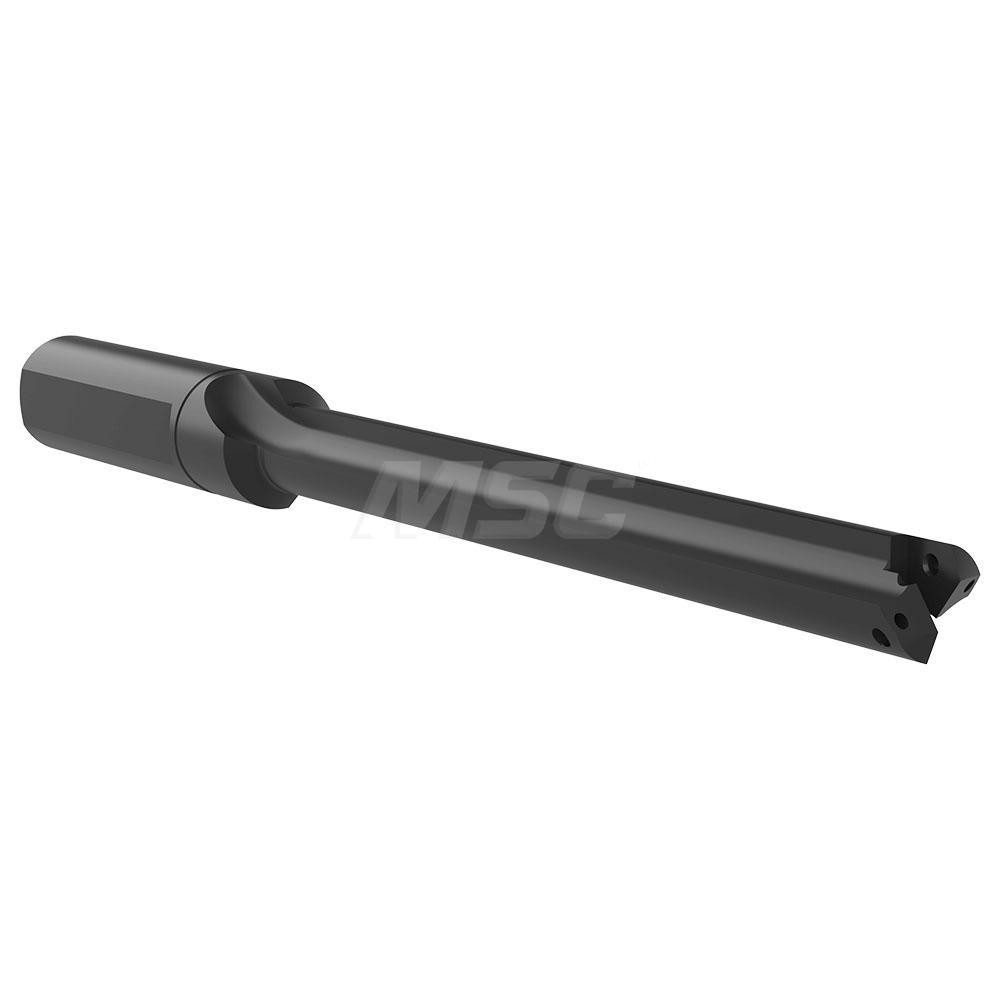

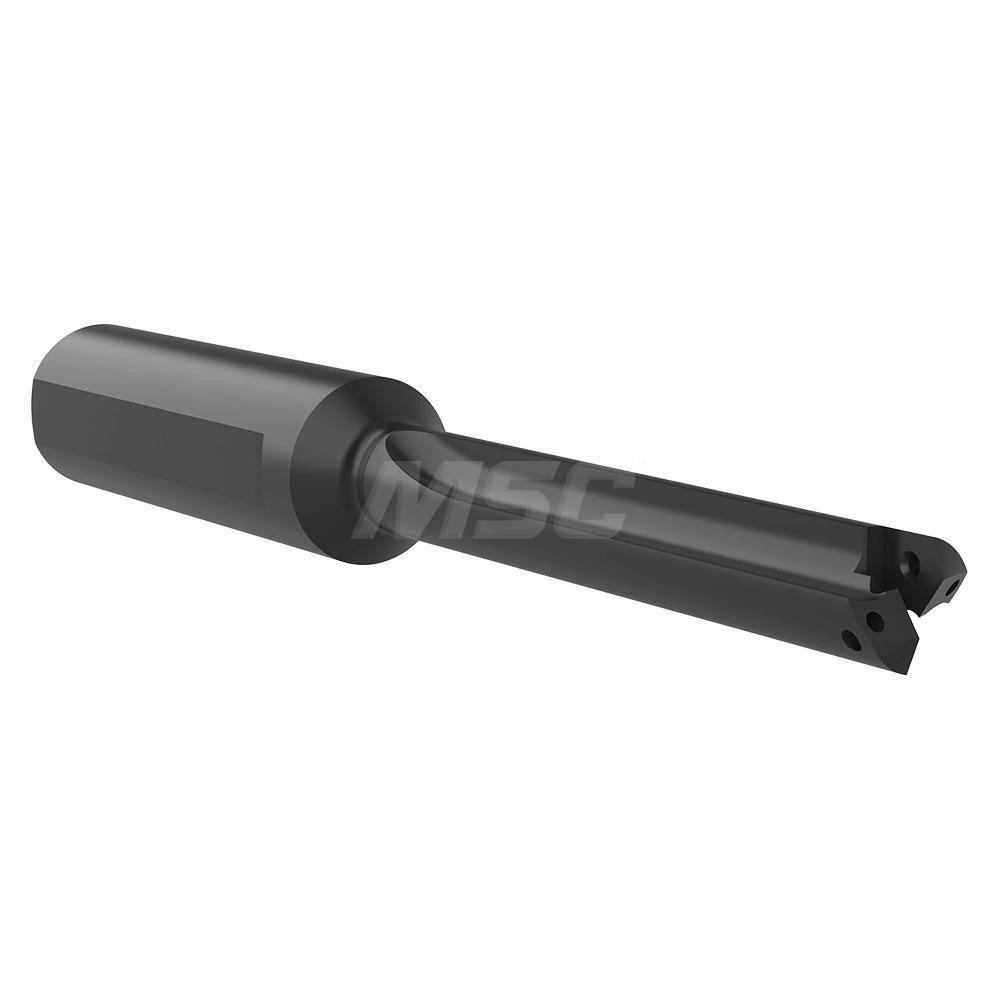

25.00 mm Dia Flatted Shank, 134.00 mm Body Length, 99.90 mm Flute Length, 190.00 mm OAL, Coolant Through, Series GEN3SYS 18
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
|---|---|
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Depth (mm) | 99.90 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (mm) | 25.00 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 5xD |
| Tool Material | Steel |
| Overall Length (mm) | 190.00 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | GEN3SYS 18 |
| Flute Type | Straight |
| Flute Length (mm) | 99.90 |
| Body Length (mm) | 134.00 |
| Shank Length (mm) | 56.00 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 92521095 |
