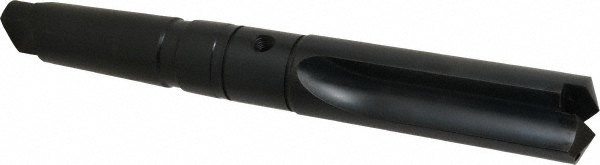

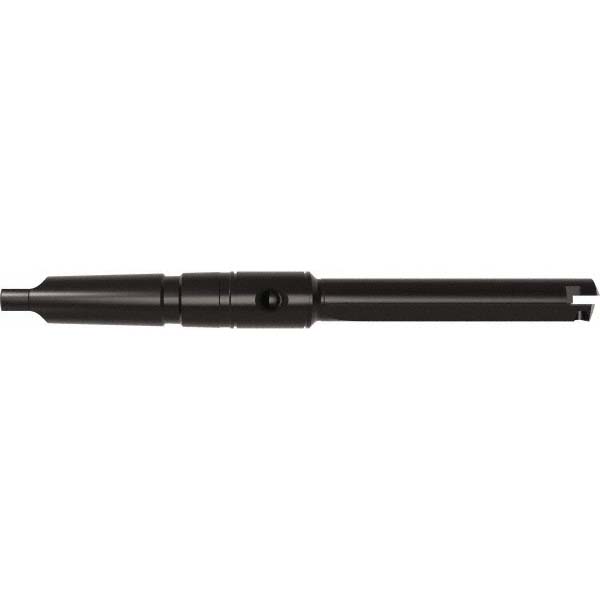

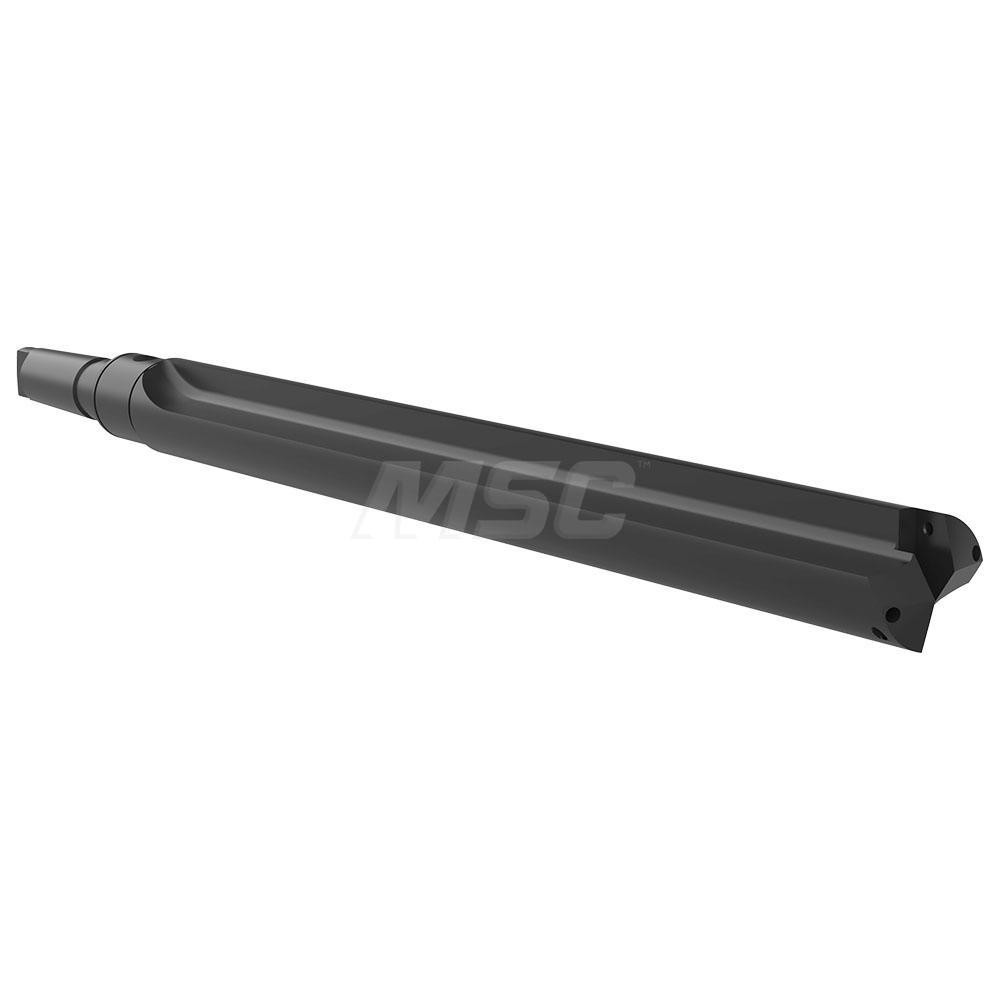

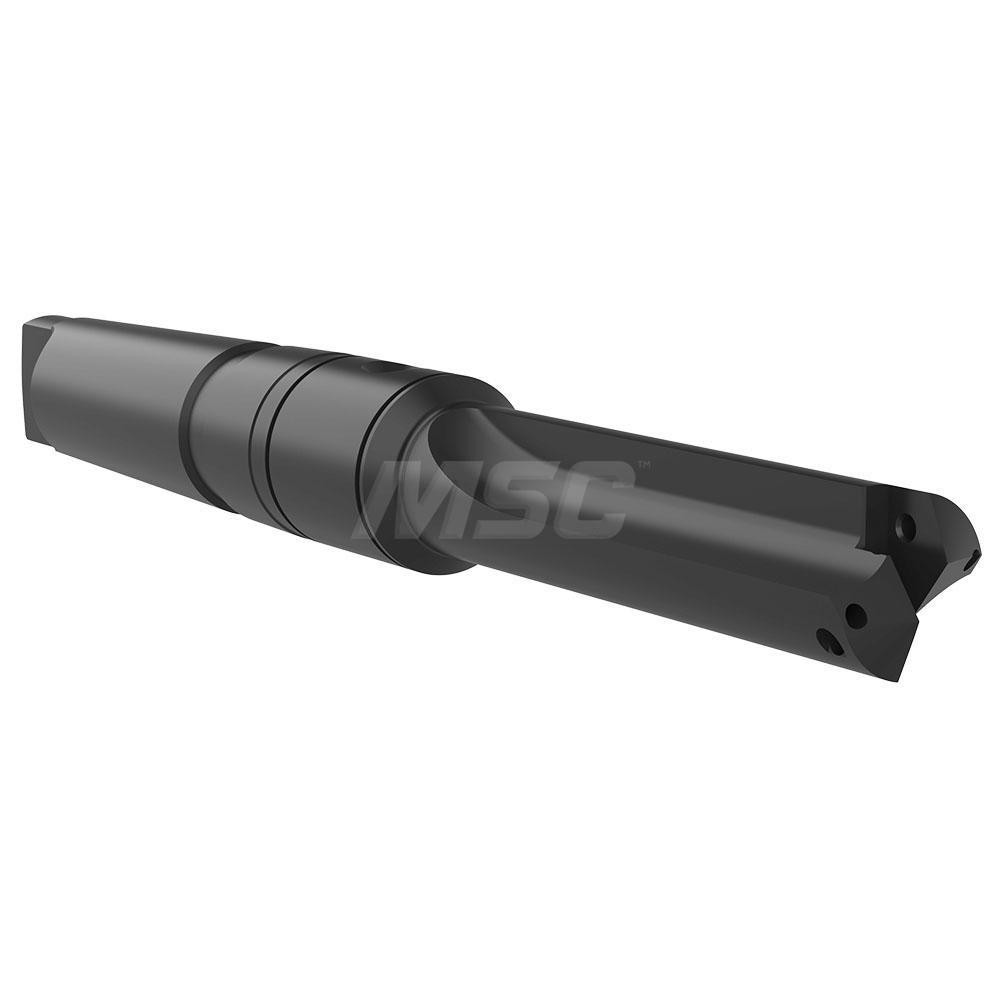

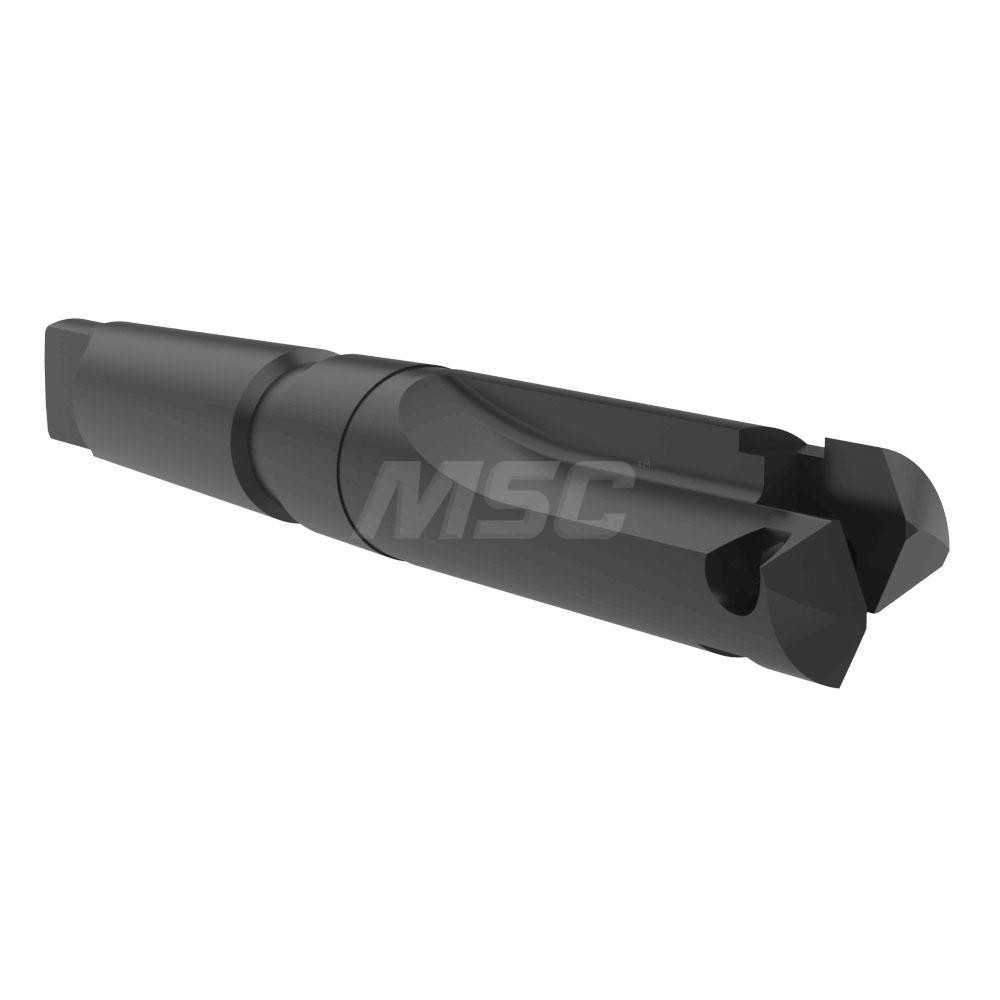

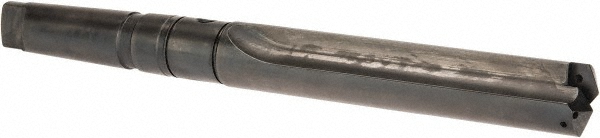

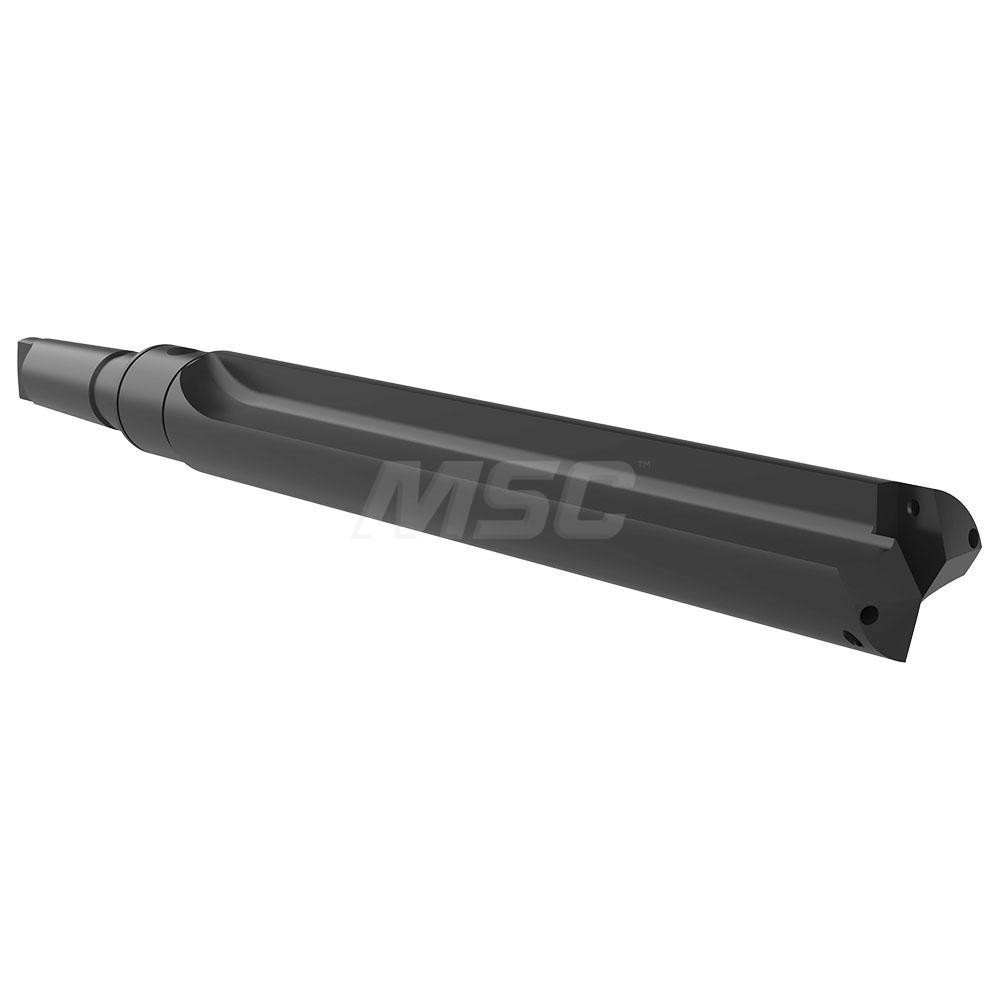

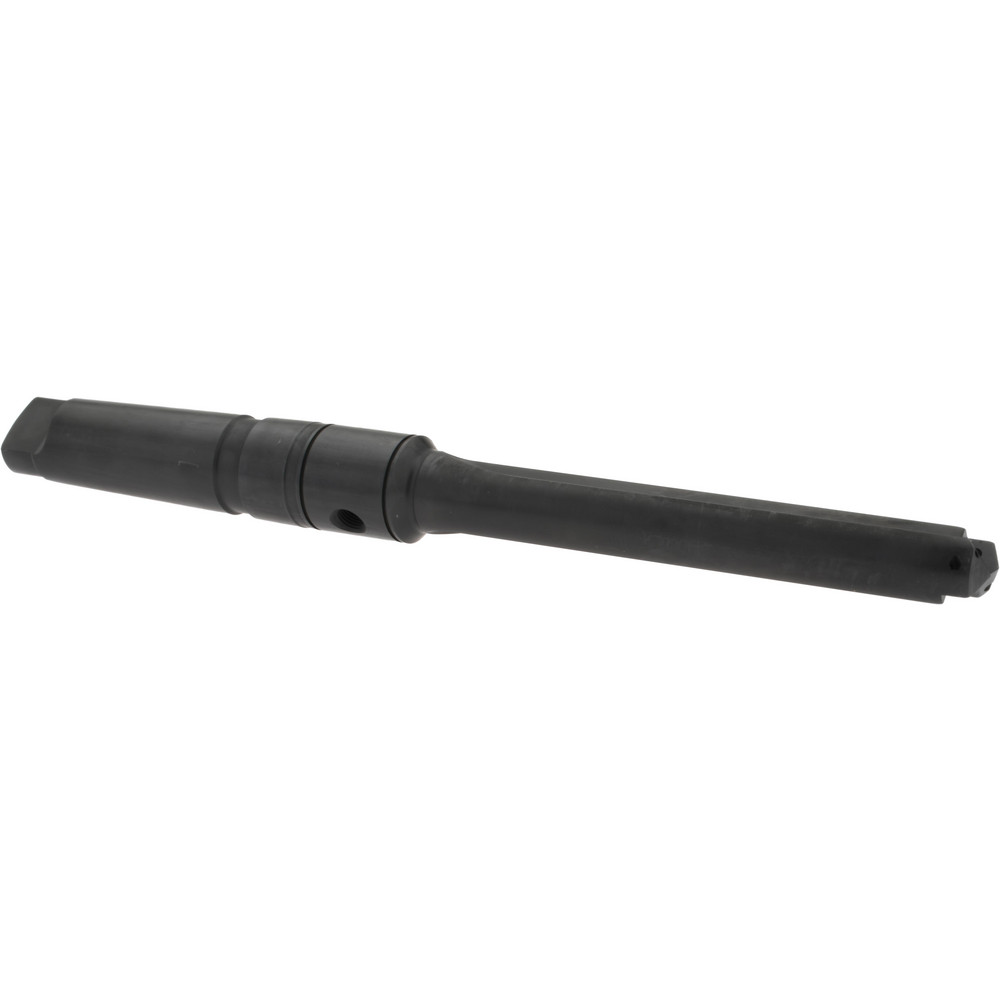

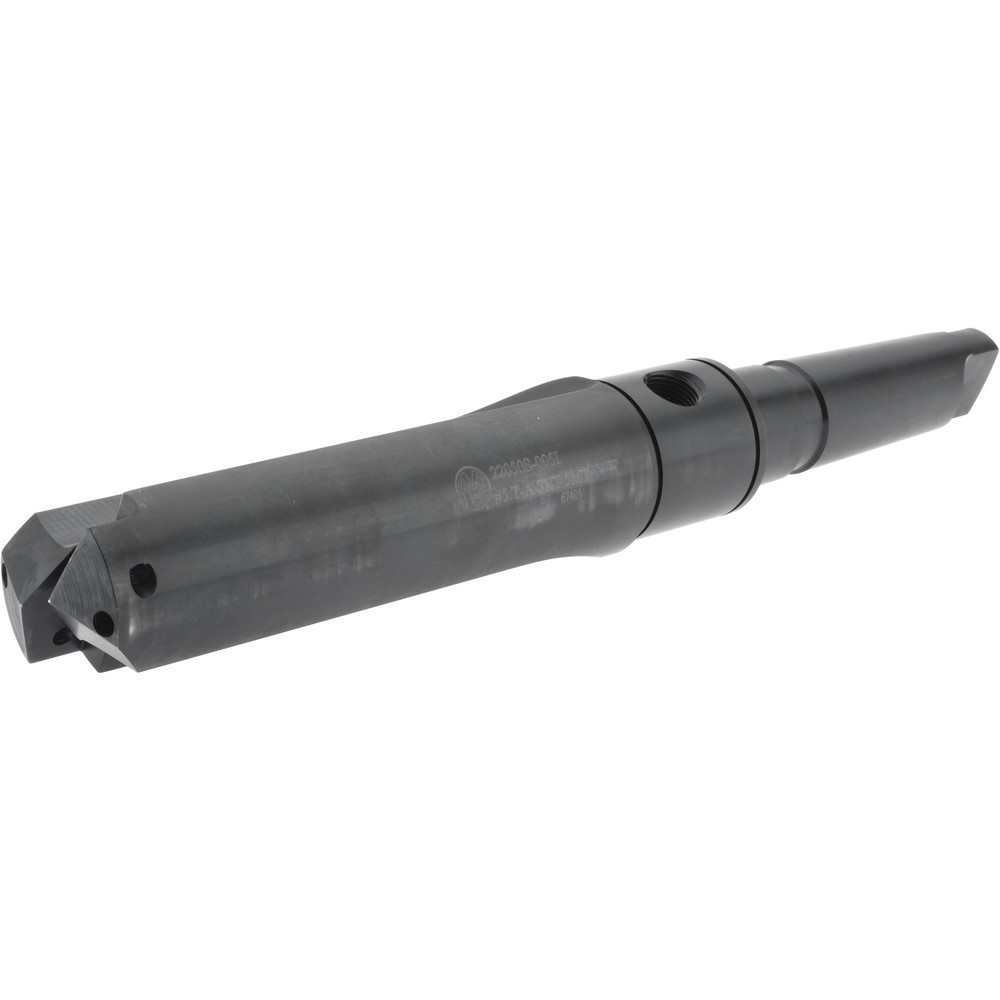

5MT Taper Shank, 23-5/8" Body Length, 20" Flute Length, 28-7/16" OAL, Coolant Through, Series HP-E
| Minimum Drill Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Drill Diameter (Inch) | 3-3/8 |
| Maximum Drill Depth (Inch) | 20 |
| Maximum Drill Depth (Decimal Inch) | 20.0000 |
| Spade Drill Length | Long |
| Shank Type | Taper |
| Shank Taper Size | 5MT |
| Shank Diameter (Decimal Inch) | 1.7480 |
| Length Type | Long |
| Tool Material | Steel |
| Overall Length (Inch) | 28-7/16 |
| Coolant Entry Style Code | 2-Radial Entry |
| Series | HP-E |
| Flute Type | Straight |
| Flute Length (Inch) | 20 |
| Body Length (Inch) | 23-5/8 |
| Shank Length (Inch) | 6-1/8 |
| Tool Performance | High Performance |
| Coolant Hole Thread Size | 1/2 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Rotary Coolant Adapter Compatibility | 2T-6SR |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 79729927 |
