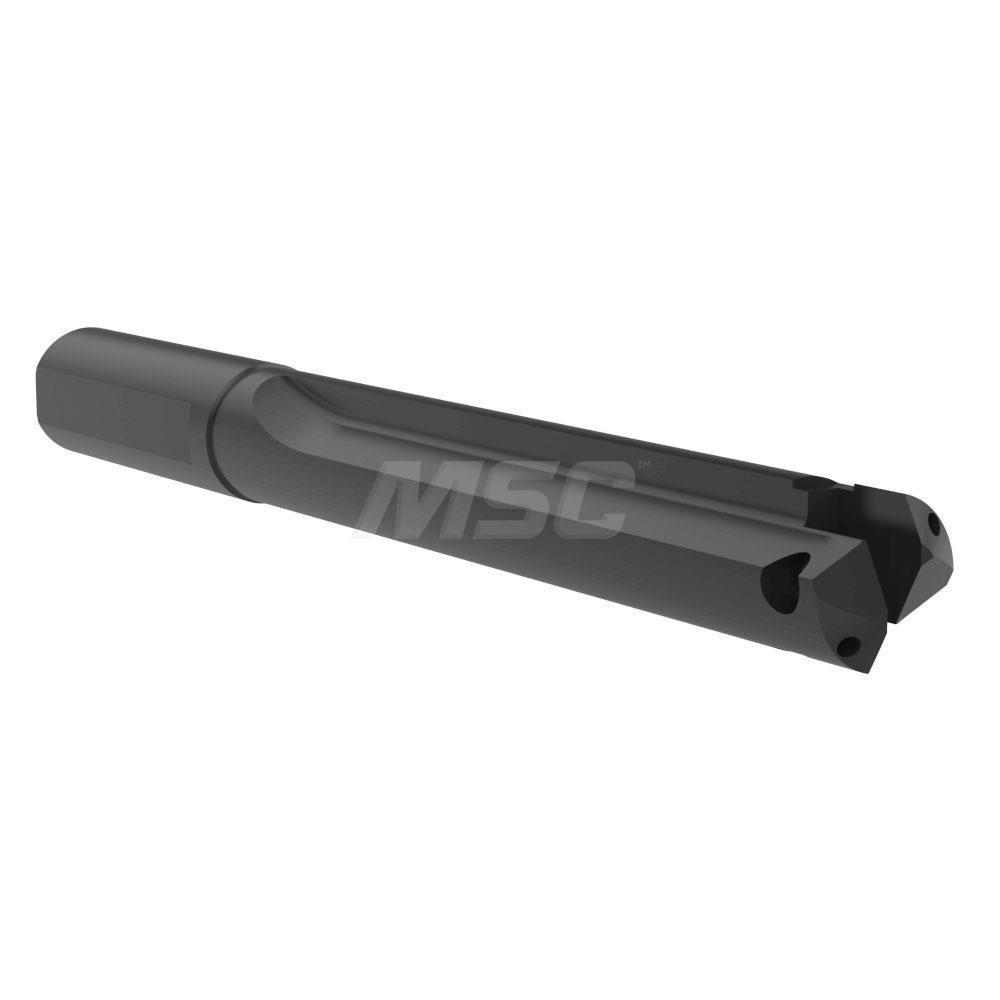

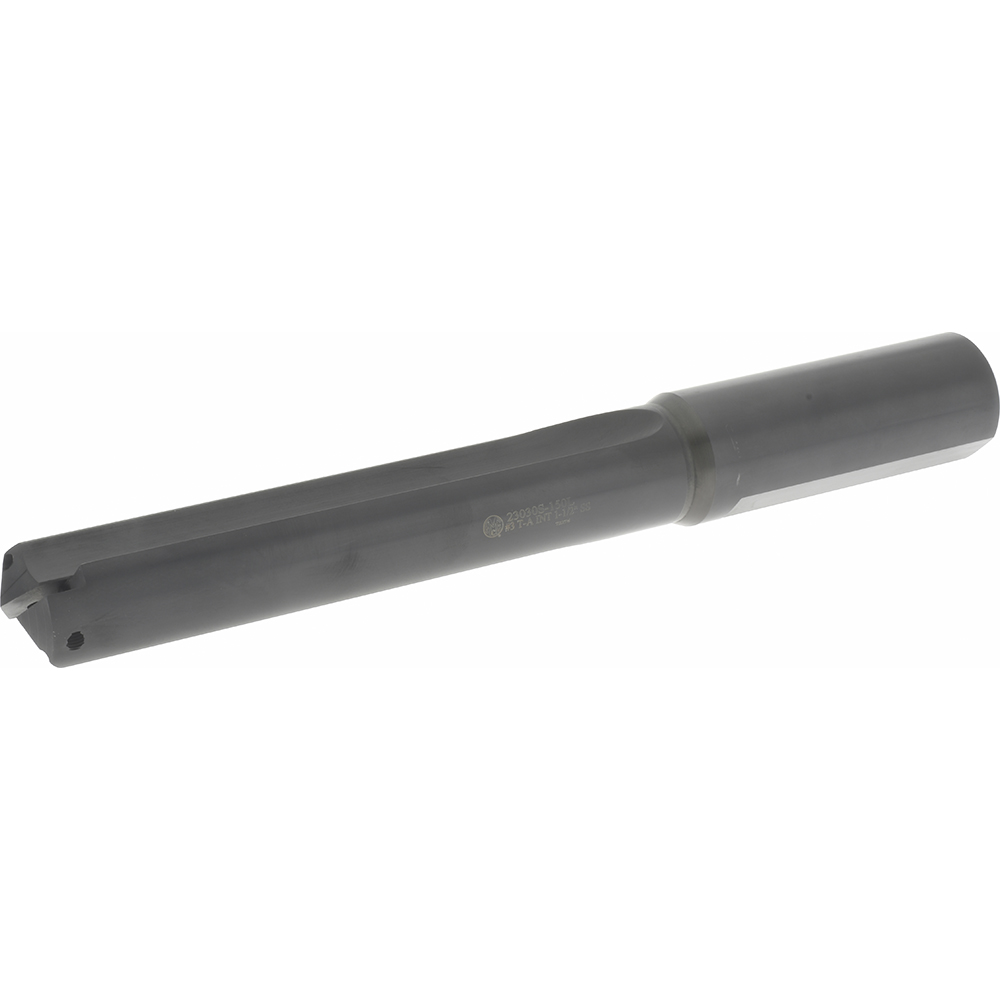

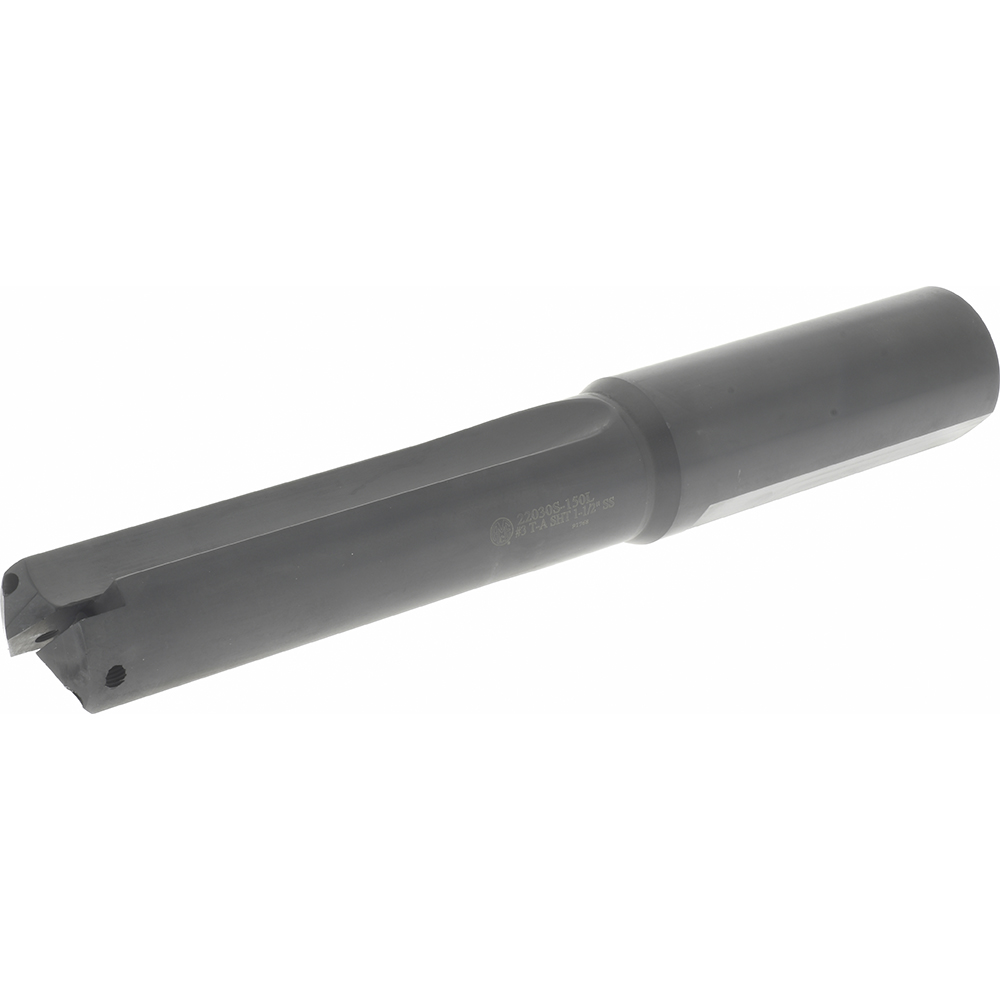

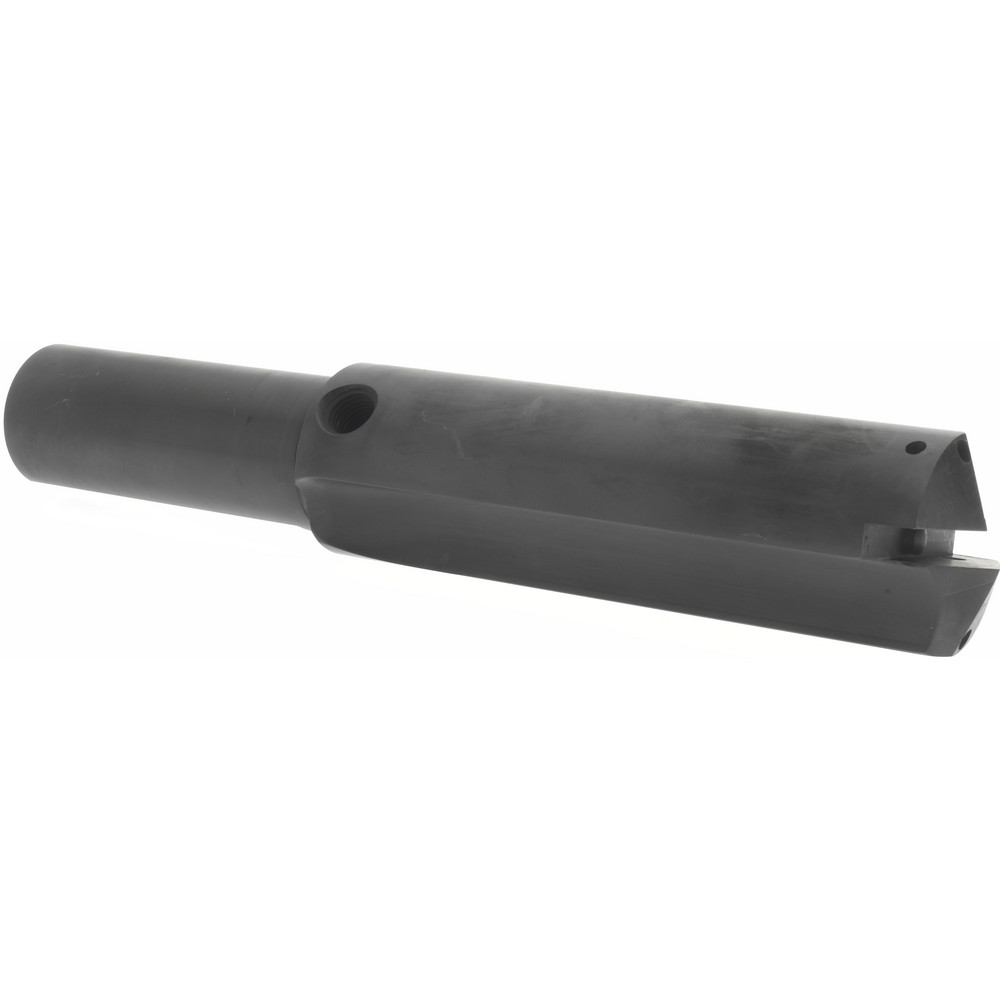

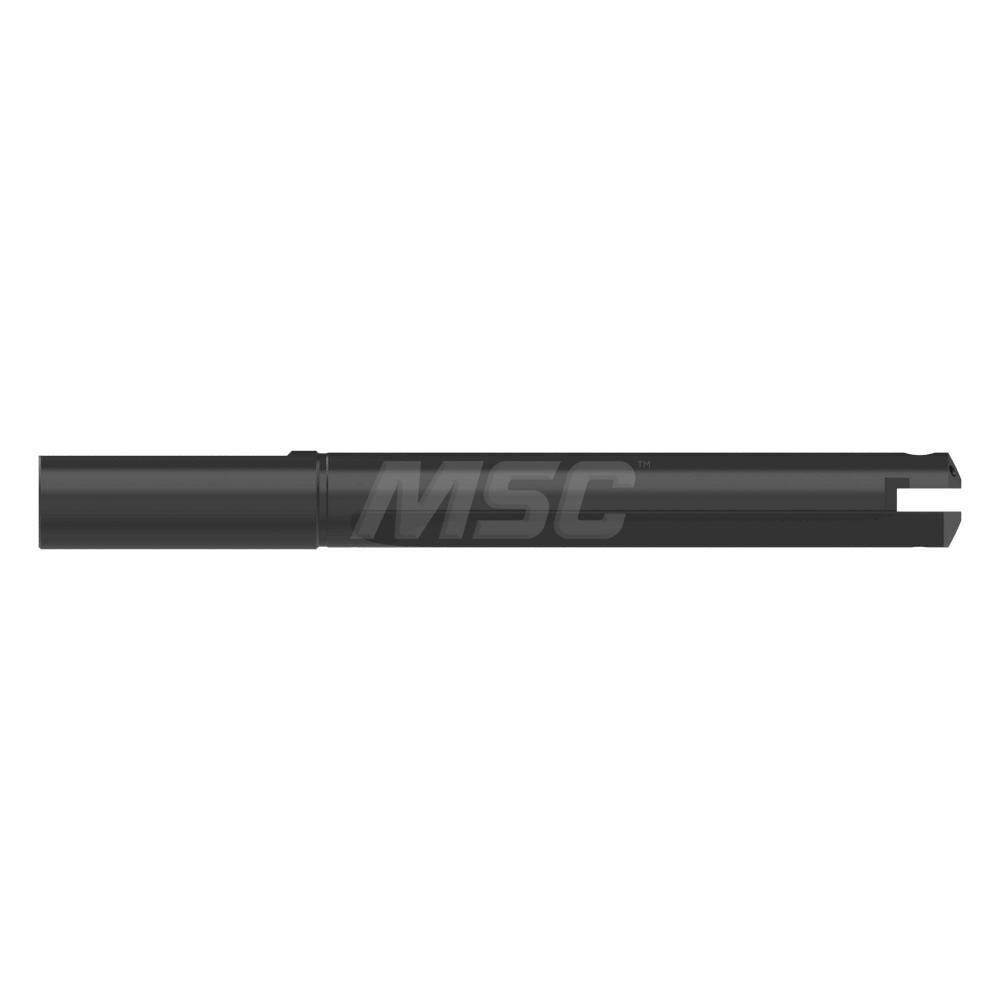

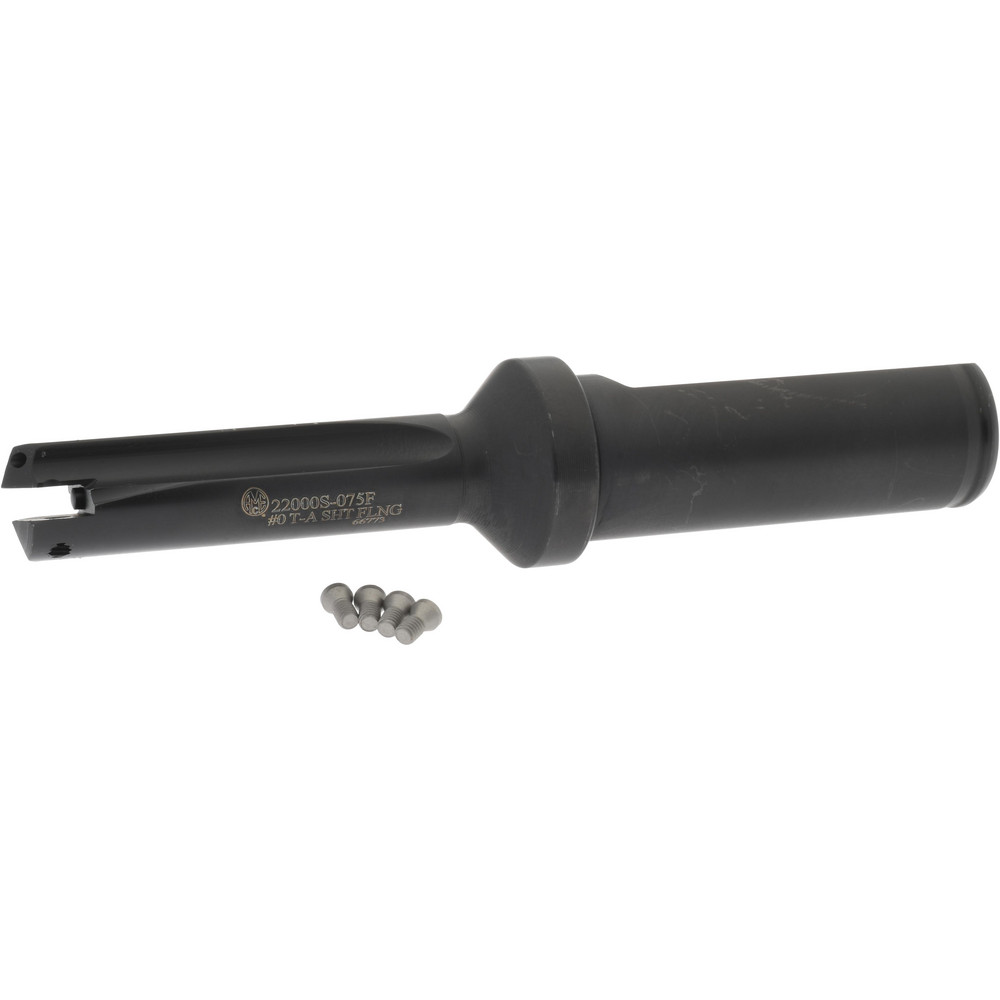

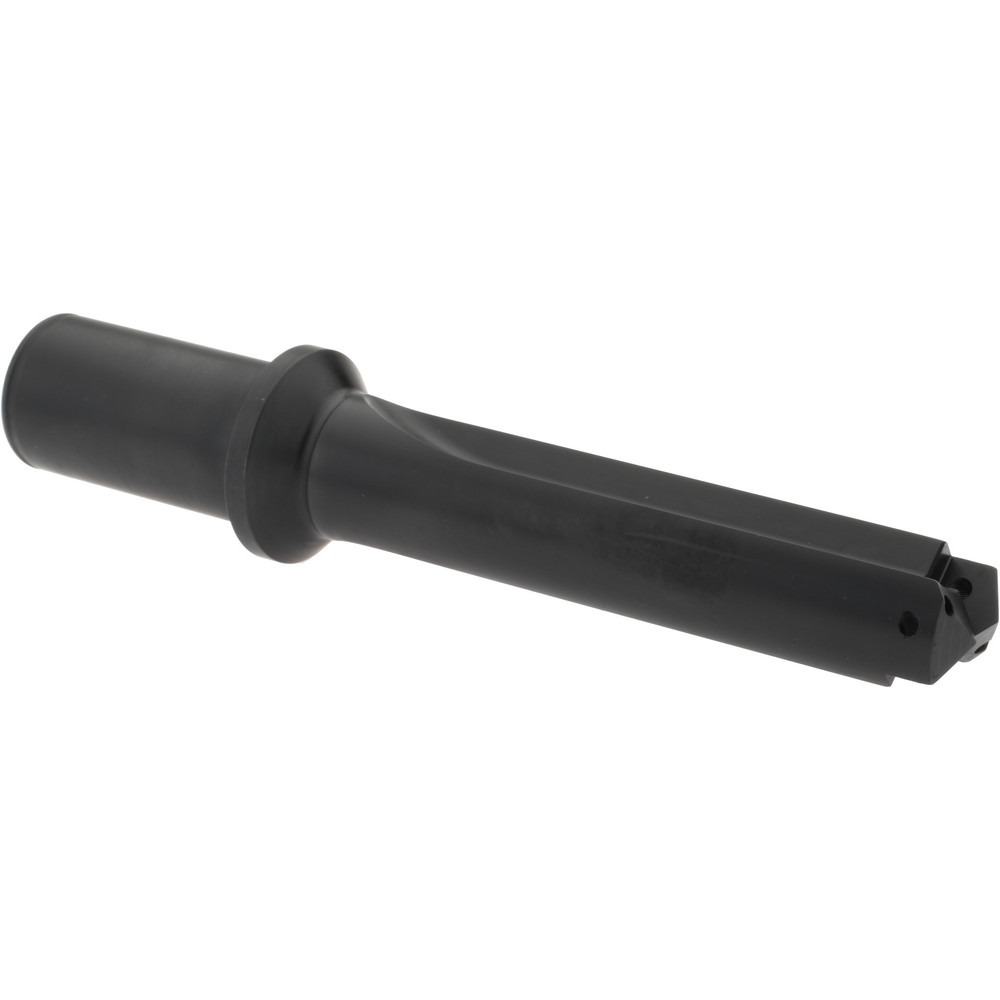

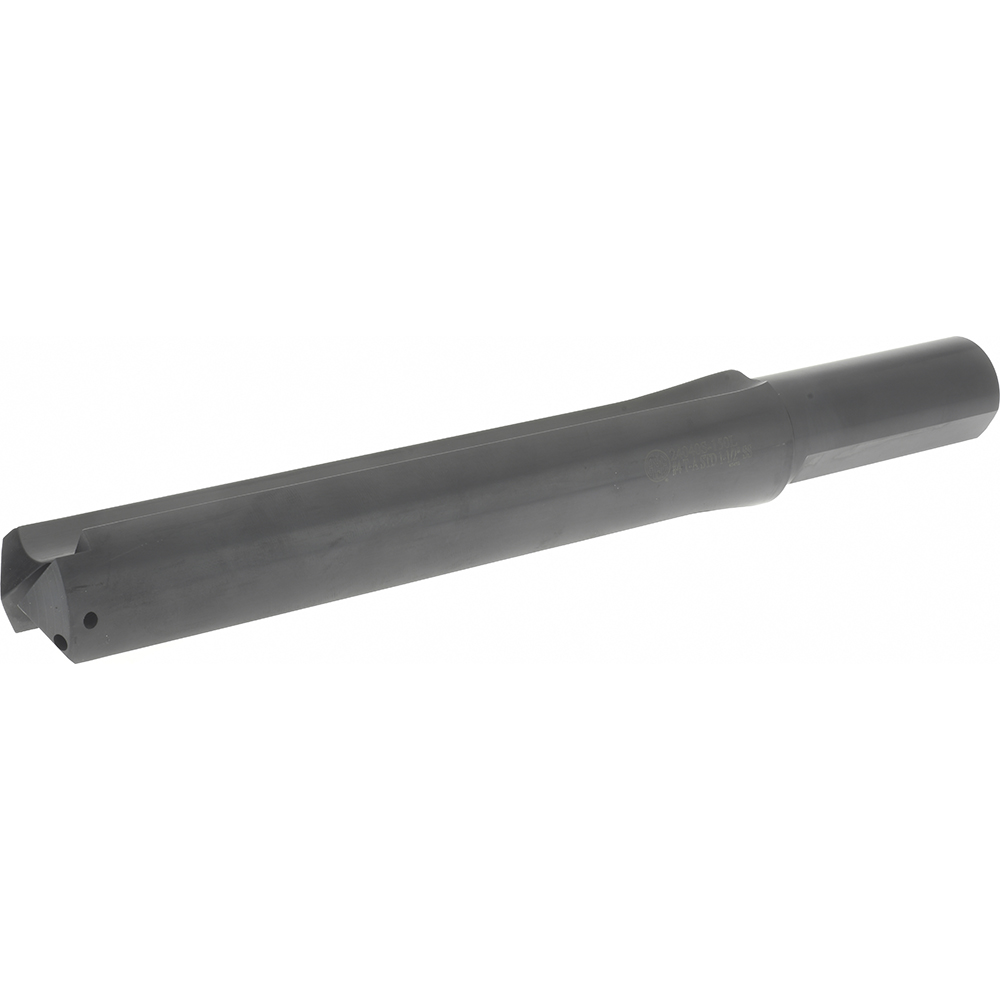

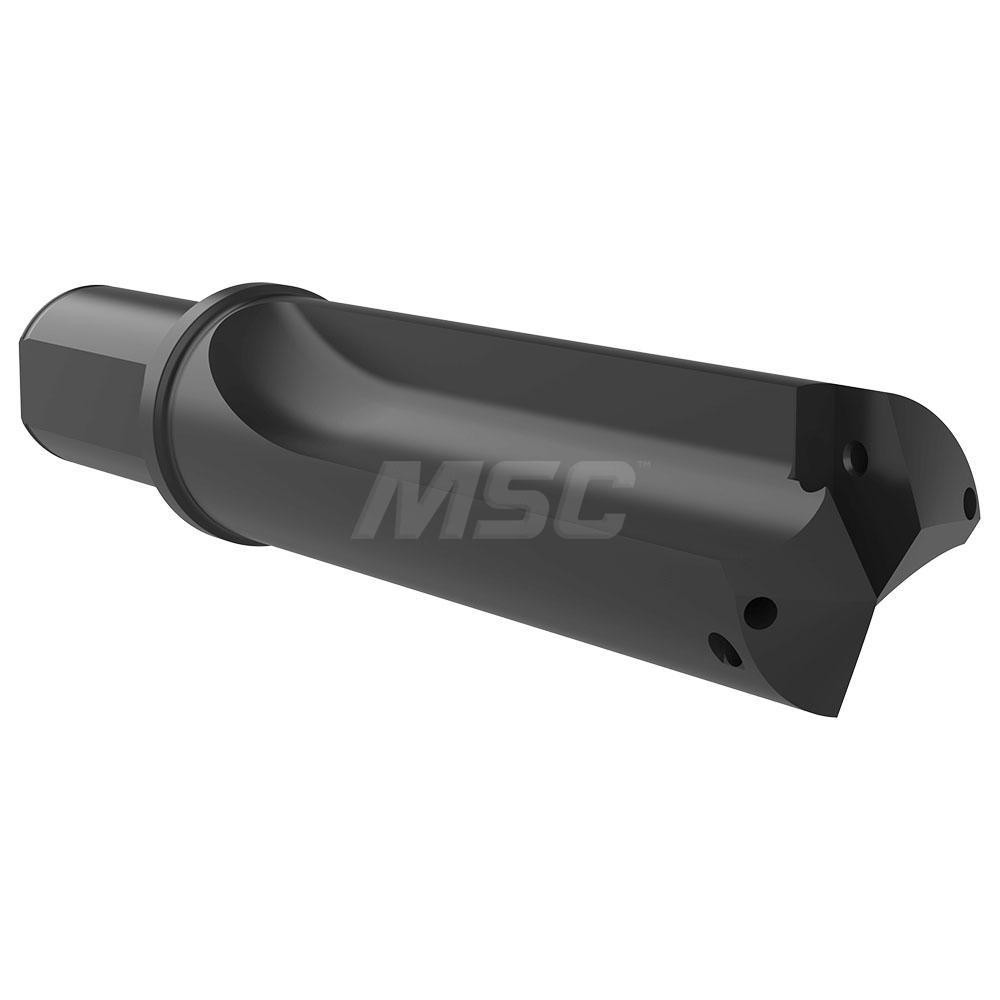

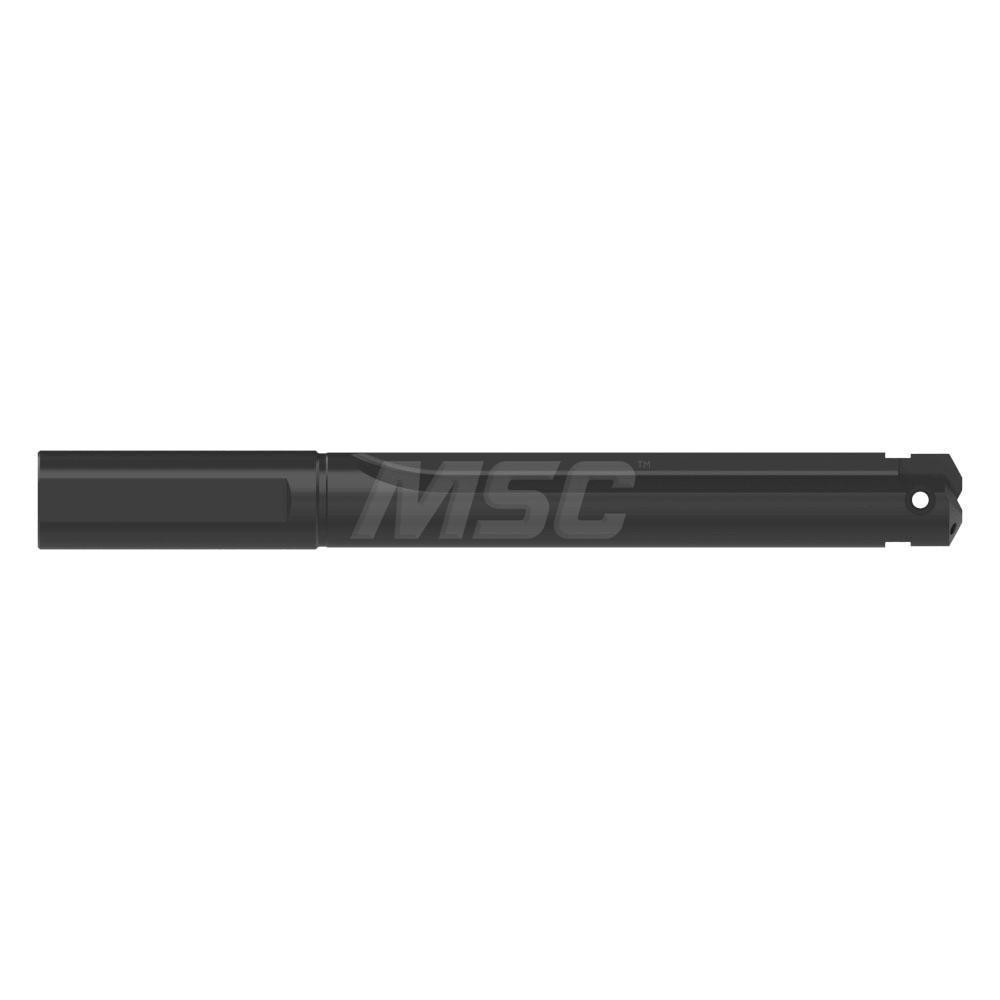

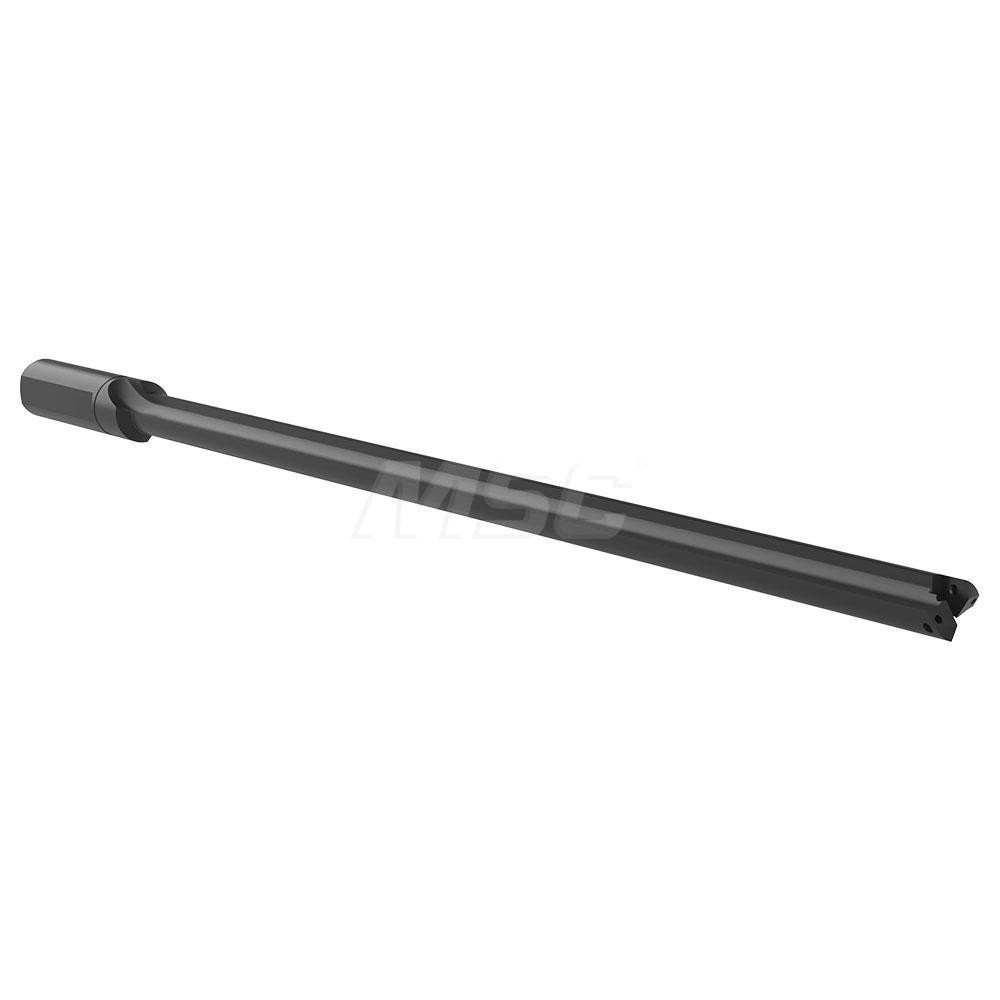

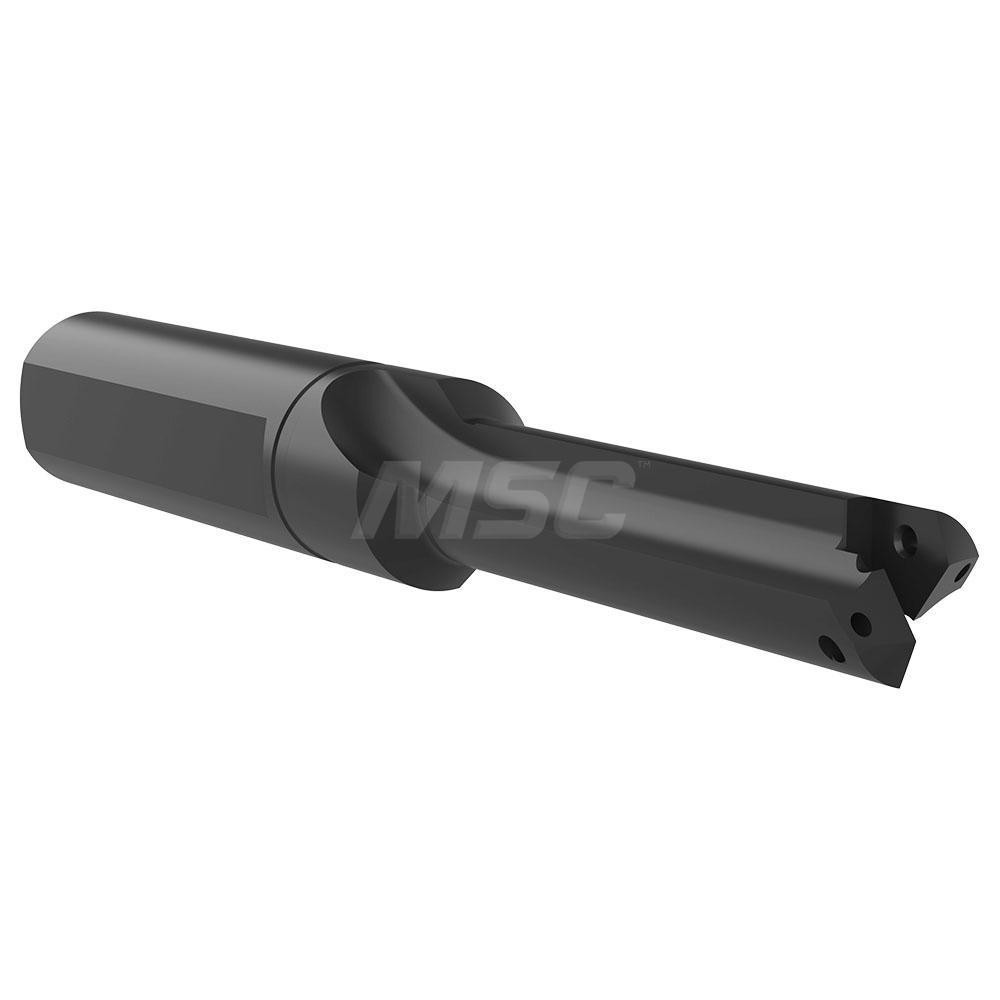

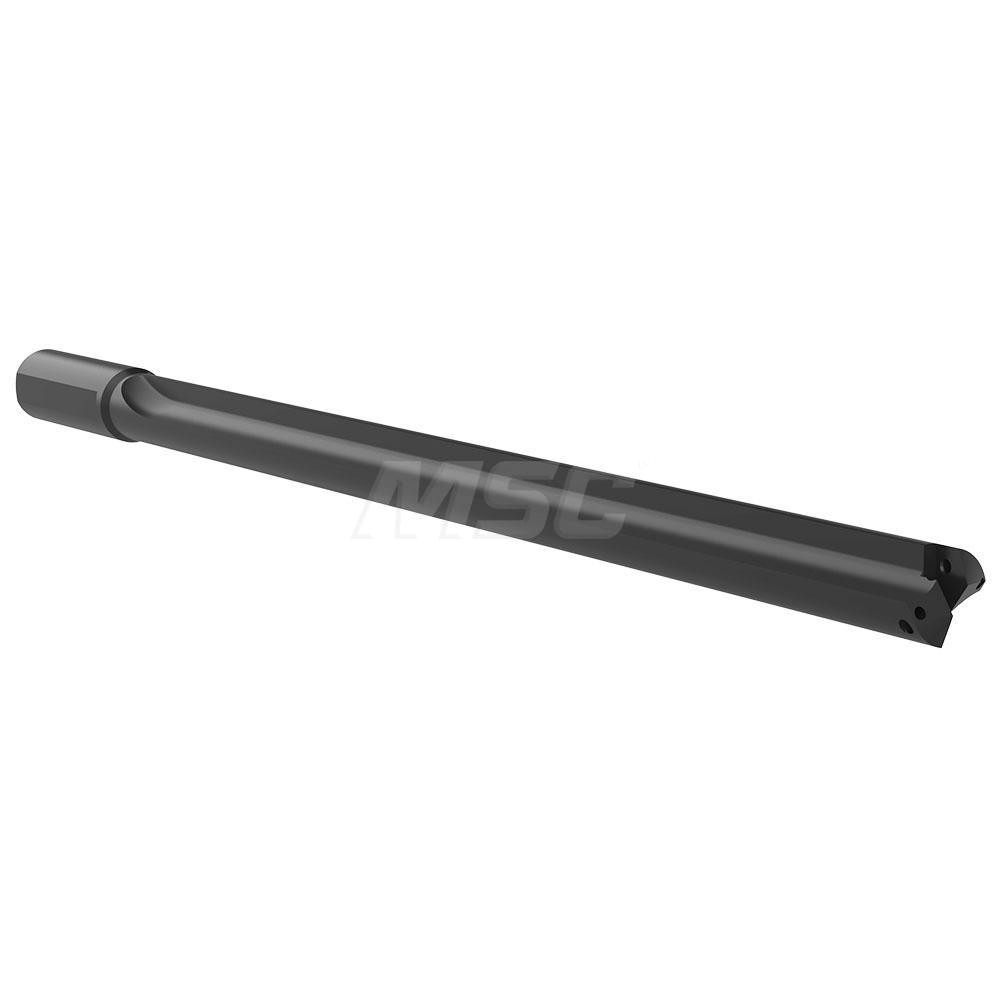

1-1/2" Dia Flatted Shank, 19" Body Length, 18" Flute Length, 22" OAL, Coolant Through, Series HP-D
| Minimum Drill Diameter (Inch) | 2 |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Diameter (Decimal Inch) | 2.8750 |
| Maximum Drill Diameter (Inch) | 2-7/8 |
| Maximum Drill Depth (Inch) | 18 |
| Maximum Drill Depth (Decimal Inch) | 18.0000 |
| Spade Drill Length | Long |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Length Type | Long |
| Tool Material | Steel |
| Overall Length (Inch) | 22 |
| Overall Length (Decimal Inch) | 22.0000 |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | HP-D |
| Flute Type | Straight |
| Flute Length (Decimal Inch) | 18.0000 |
| Flute Length (Inch) | 18 |
| Body Length (Inch) | 19 |
| Body Length (Decimal Inch) | 19.0000 |
| Shank Length (Inch) | 4 |
| Shank Length (Decimal Inch) | 4.0000 |
| Tool Performance | High Performance |
| Coolant Hole Thread Size | 1/4 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 79231486 |
