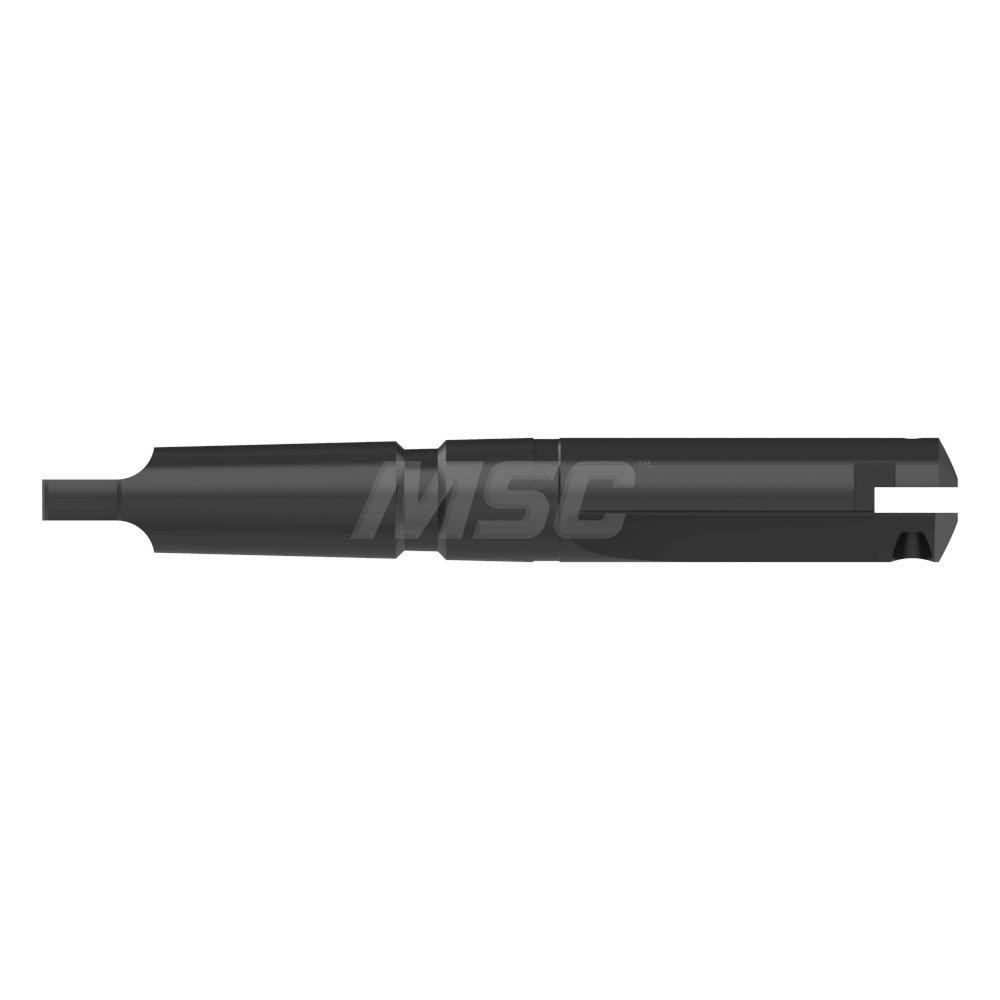

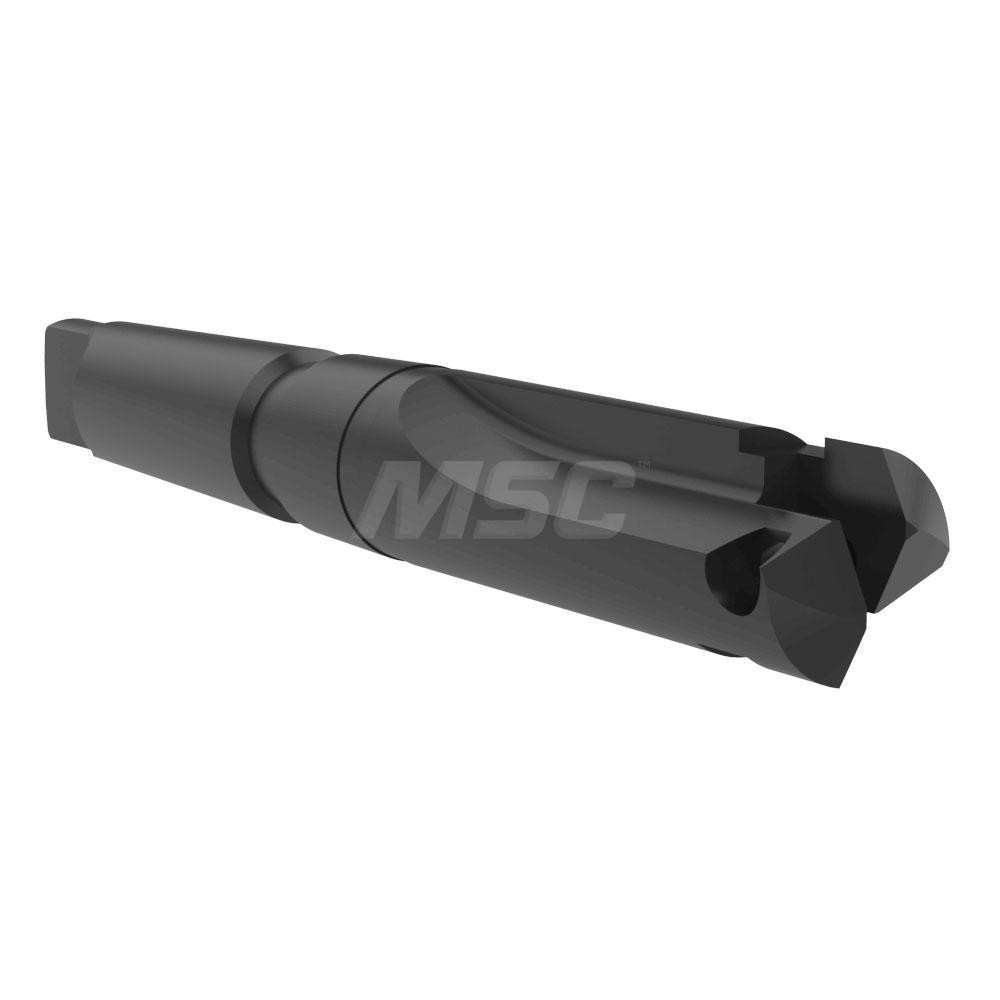

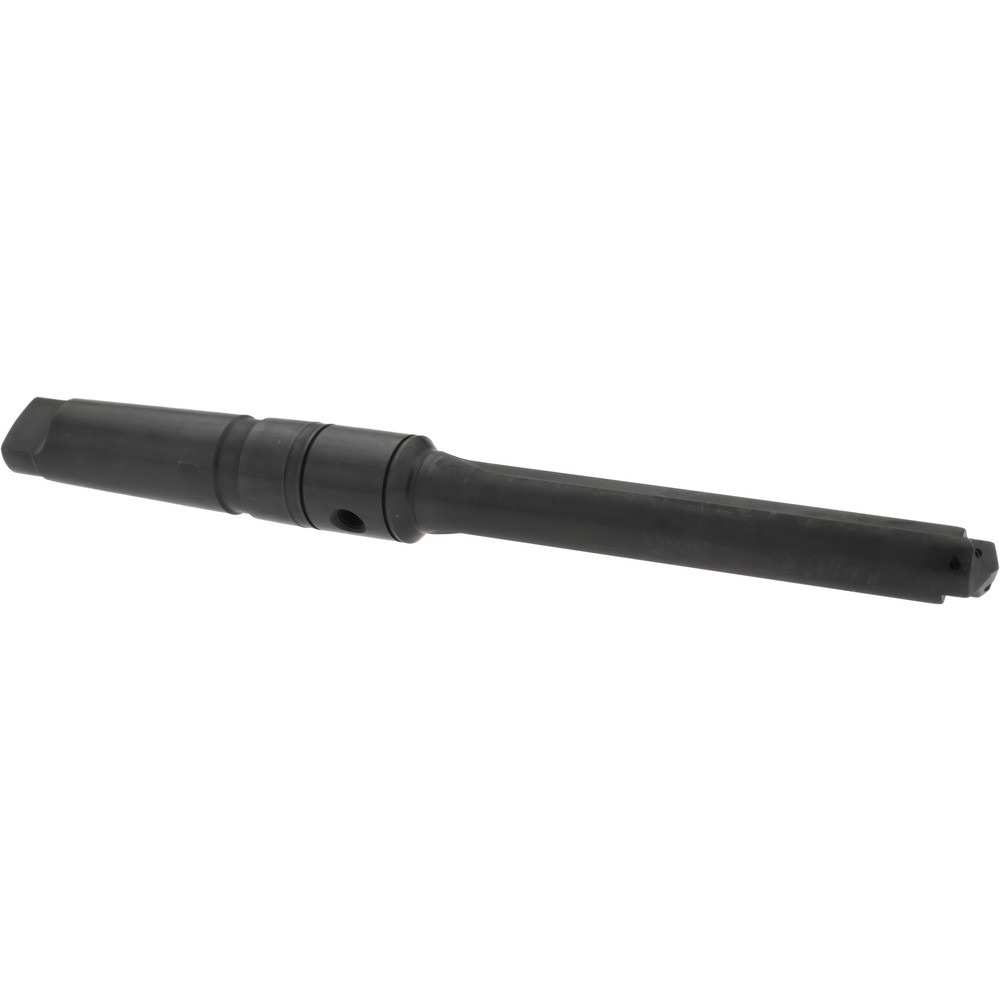

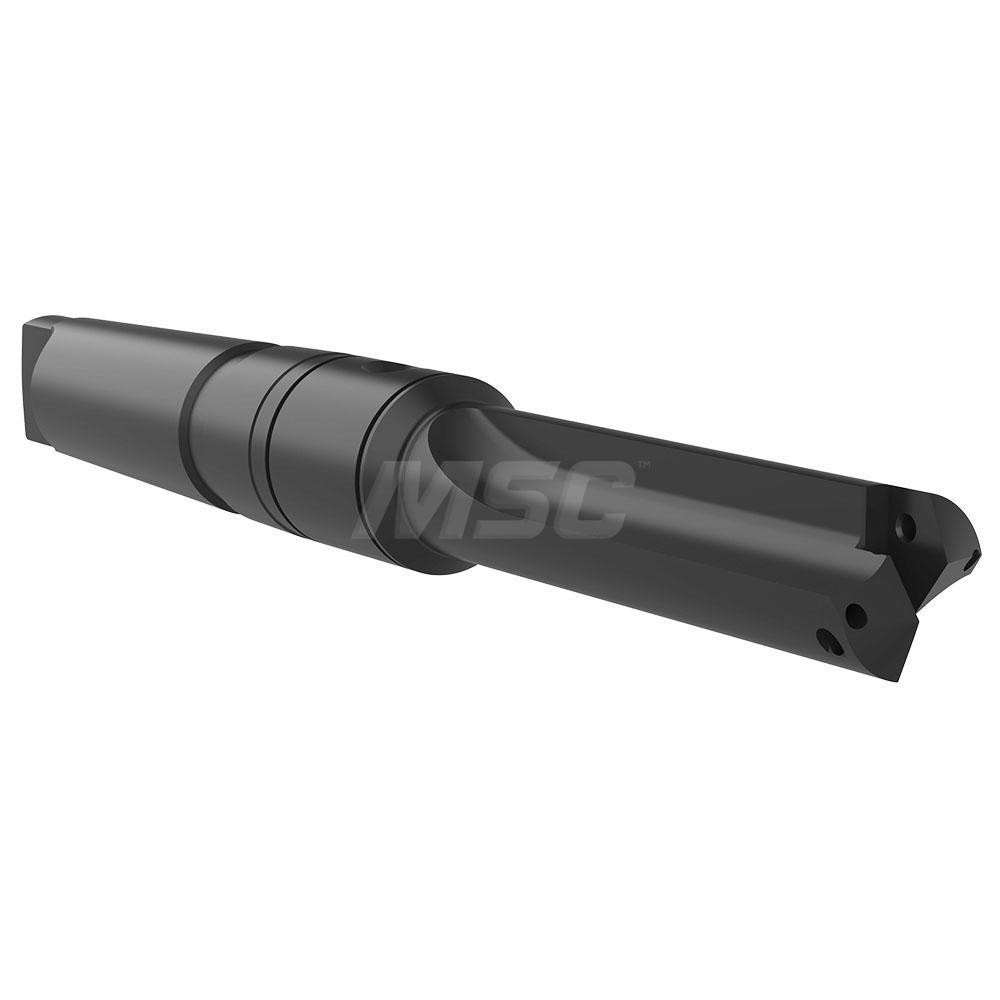

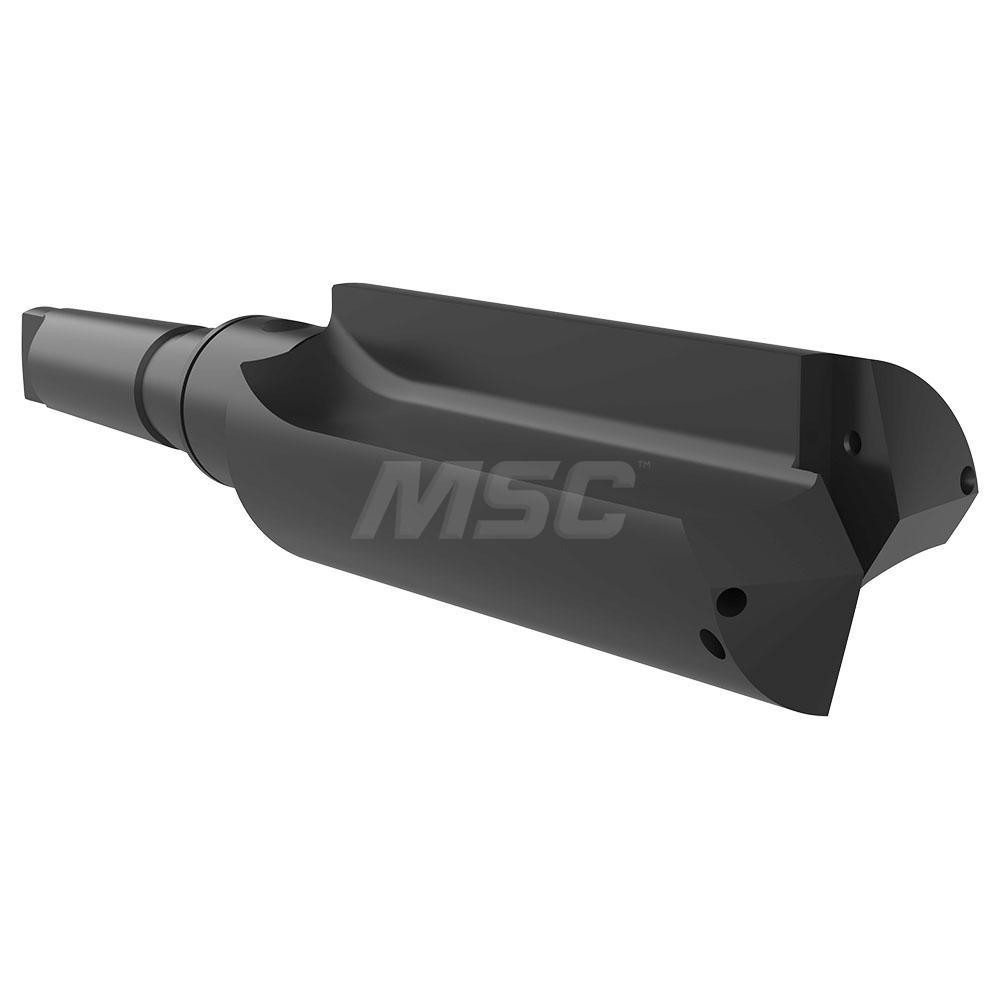

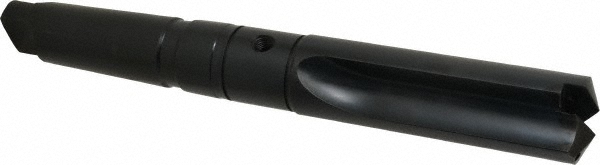

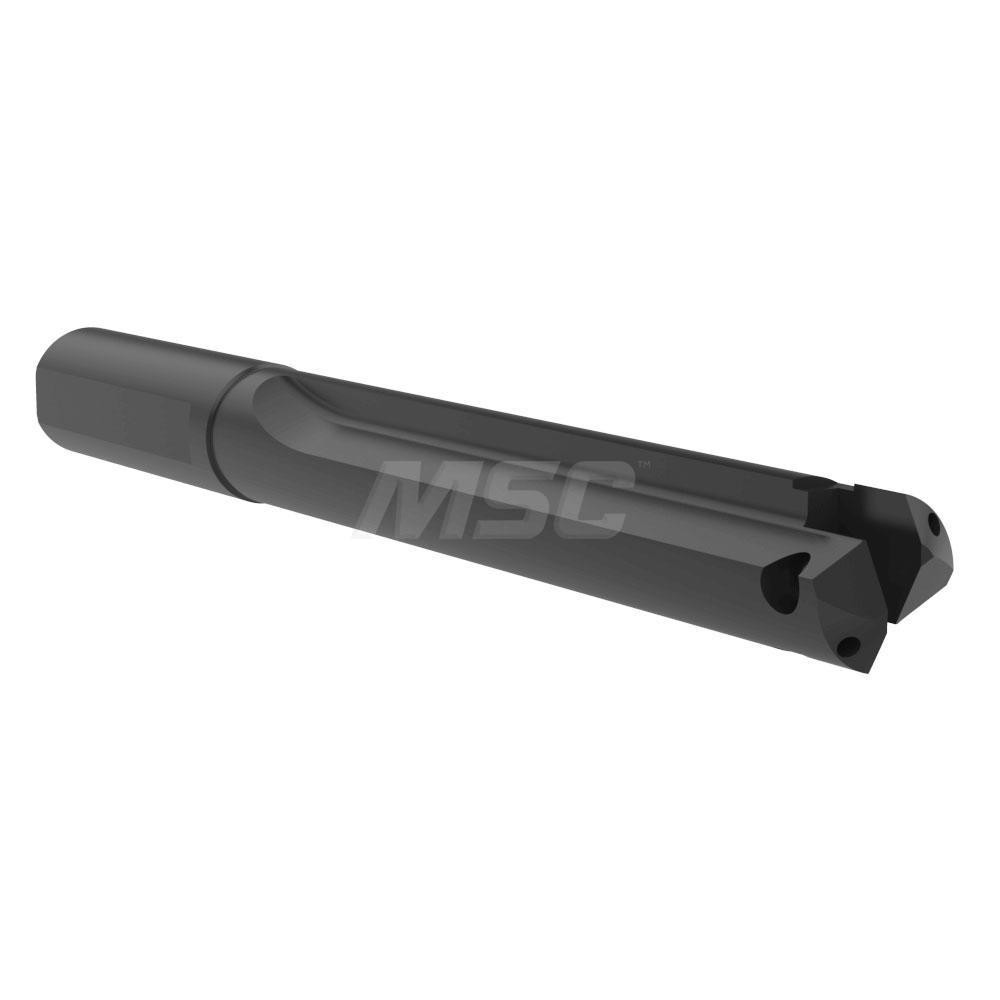

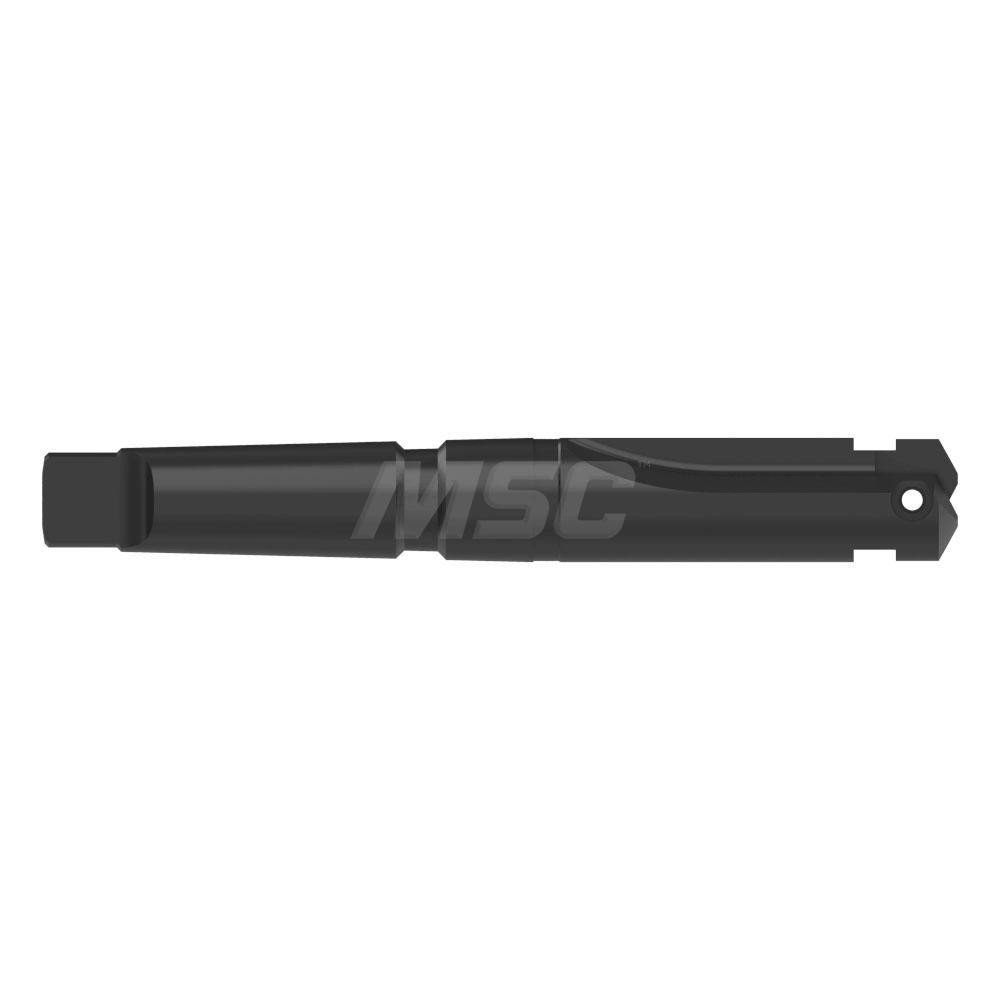

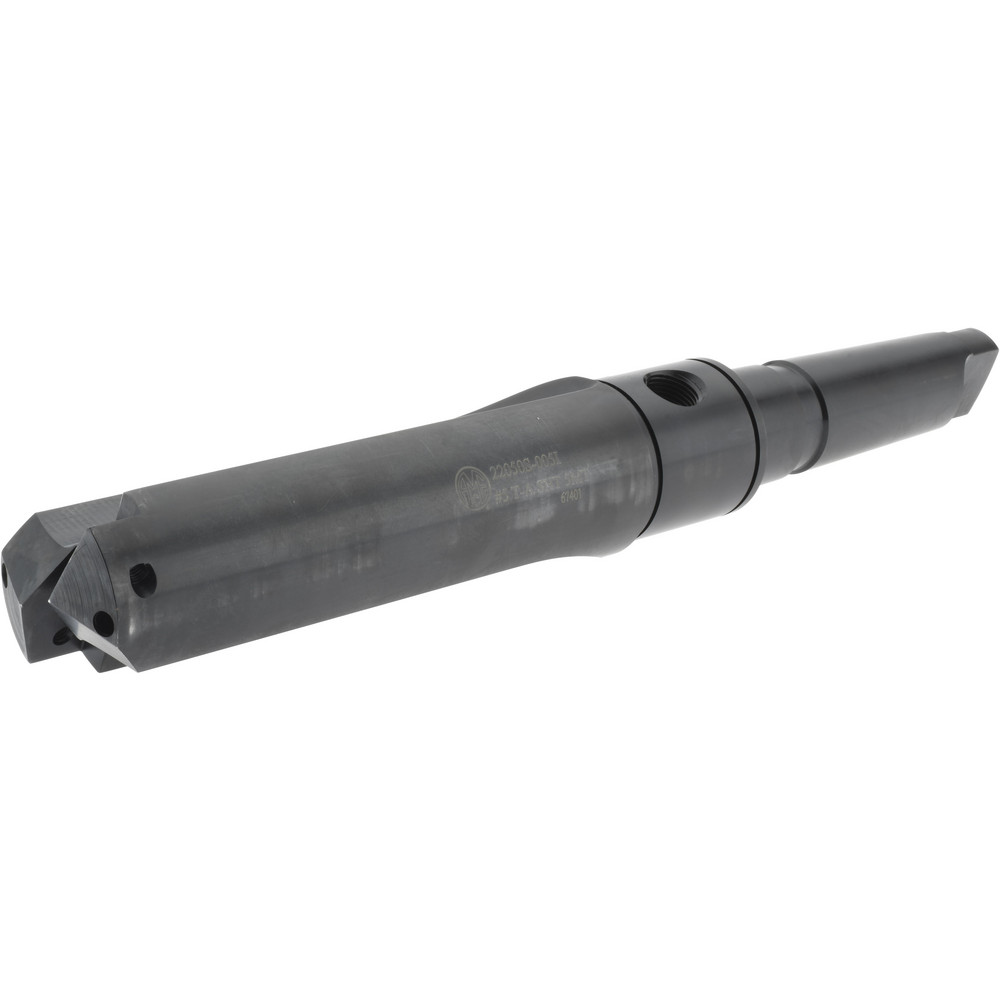

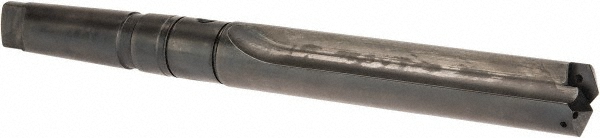

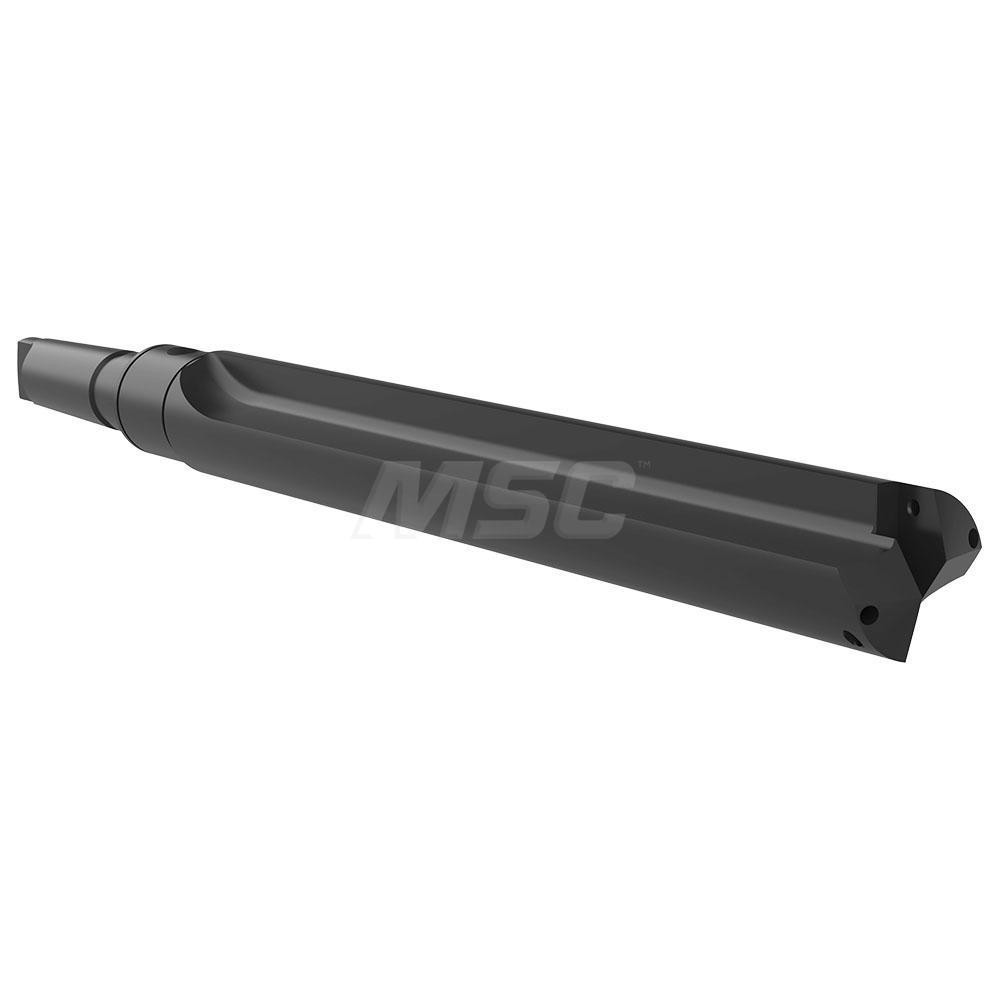

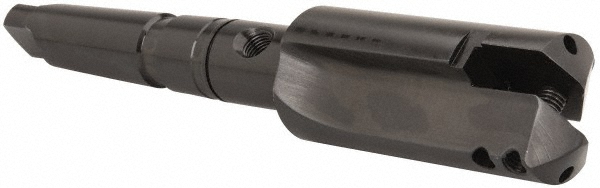

5MT Taper Shank, 11-15/16" Body Length, 9" Flute Length, 16-13/16" OAL, Coolant Through, Series HP-D
| Minimum Drill Diameter (Inch) | 2 |
|---|---|
| Maximum Drill Diameter (Inch) | 2-7/8 |
| Maximum Drill Depth (Inch) | 9 |
| Maximum Drill Depth (Decimal Inch) | 9.0000 |
| Spade Drill Length | Standard |
| Shank Type | Taper |
| Shank Taper Size | 5MT |
| Shank Diameter (Decimal Inch) | 1.7480 |
| Length Type | Standard |
| Tool Material | Steel |
| Overall Length (Inch) | 16-13/16 |
| Coolant Entry Style Code | 2-Radial Entry |
| Series | HP-D |
| Flute Type | Straight |
| Flute Length (Inch) | 9 |
| Body Length (Inch) | 11-15/16 |
| Shank Length (Inch) | 6-1/8 |
| Tool Performance | High Performance |
| Coolant Hole Thread Size | 1/4 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Rotary Coolant Adapter Compatibility | 2T-5SR |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 79729554 |
