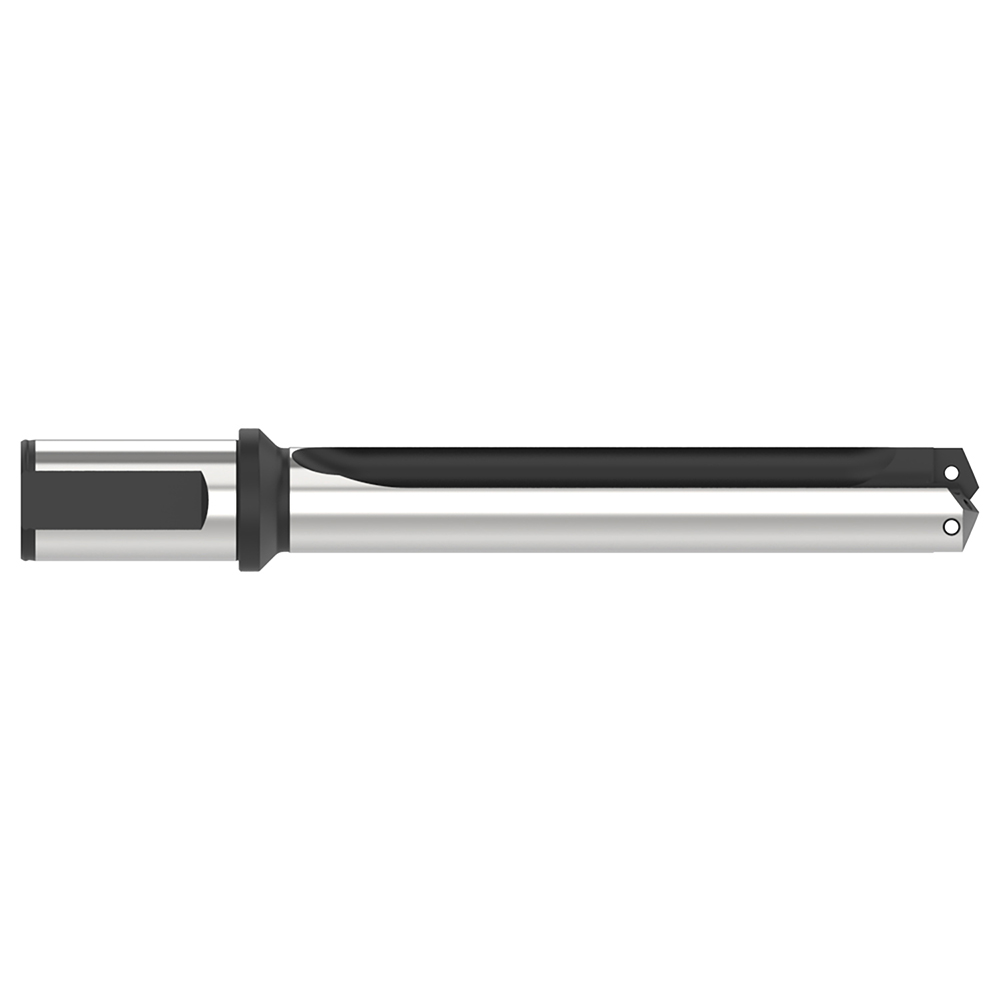

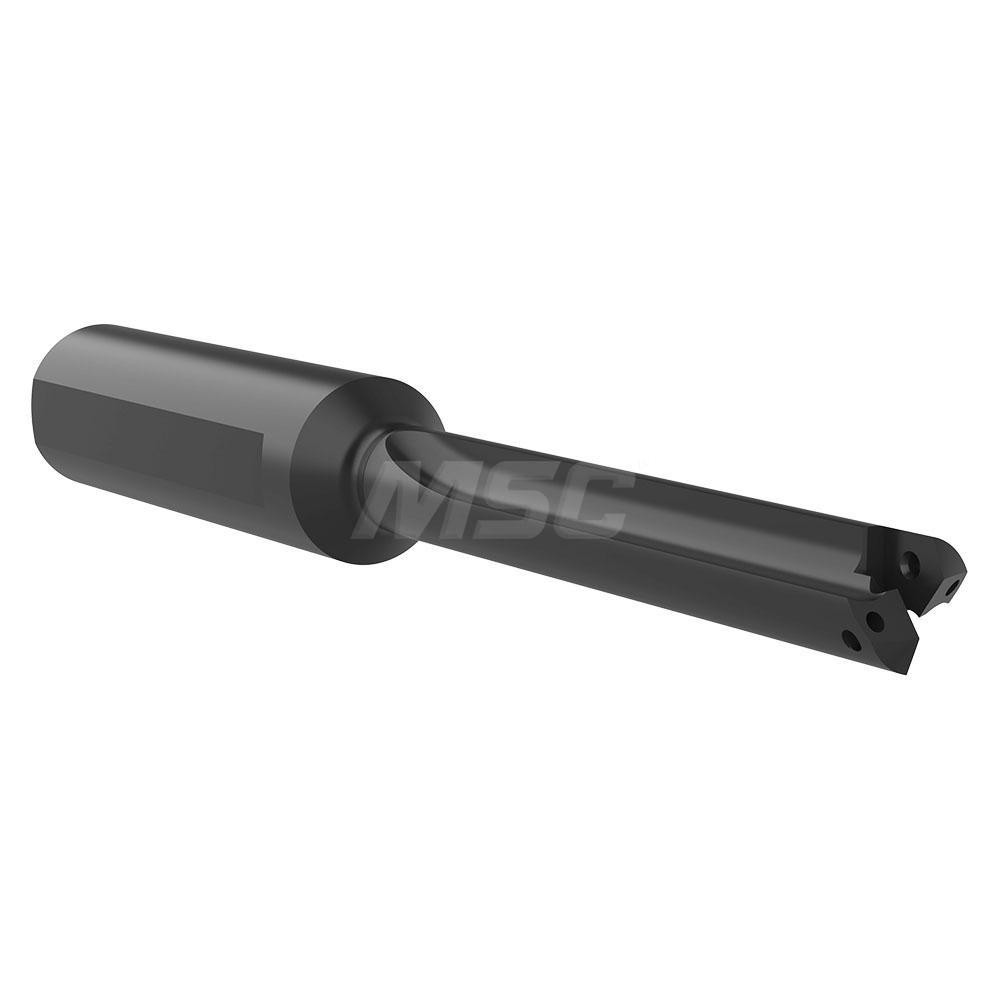

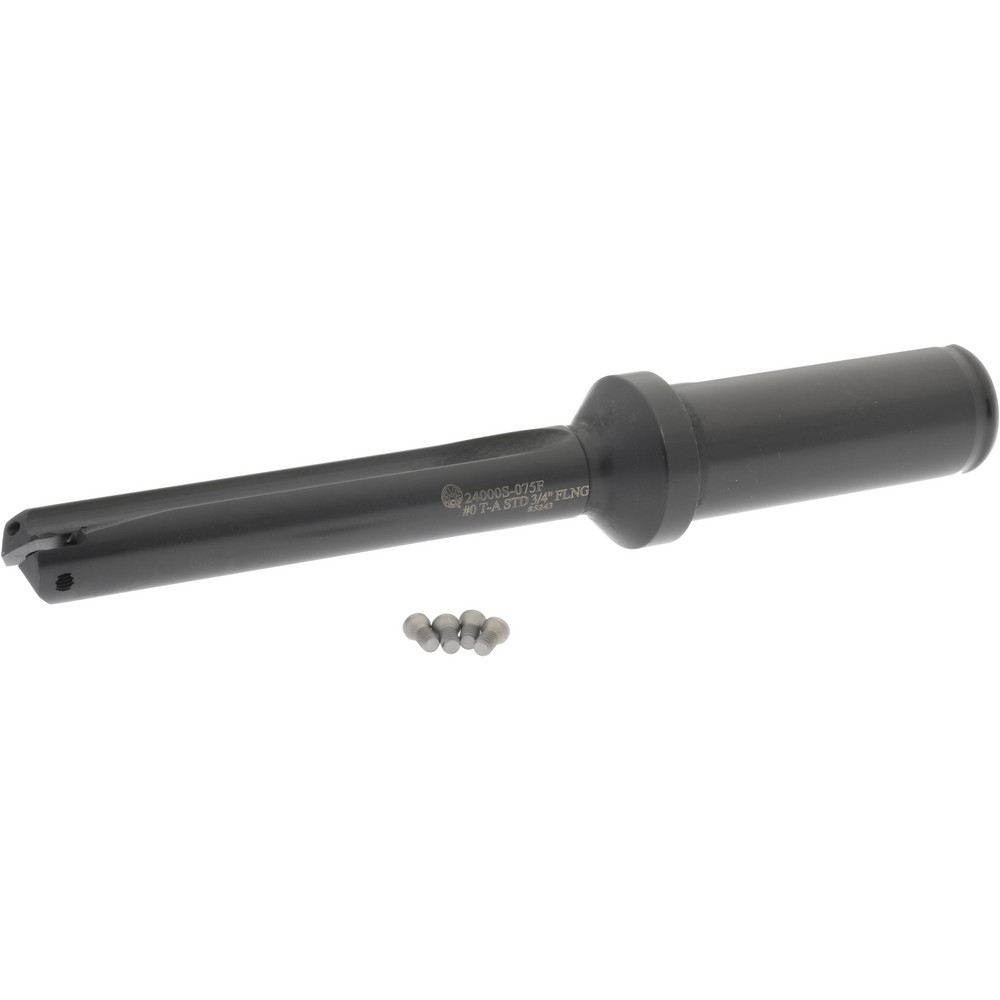

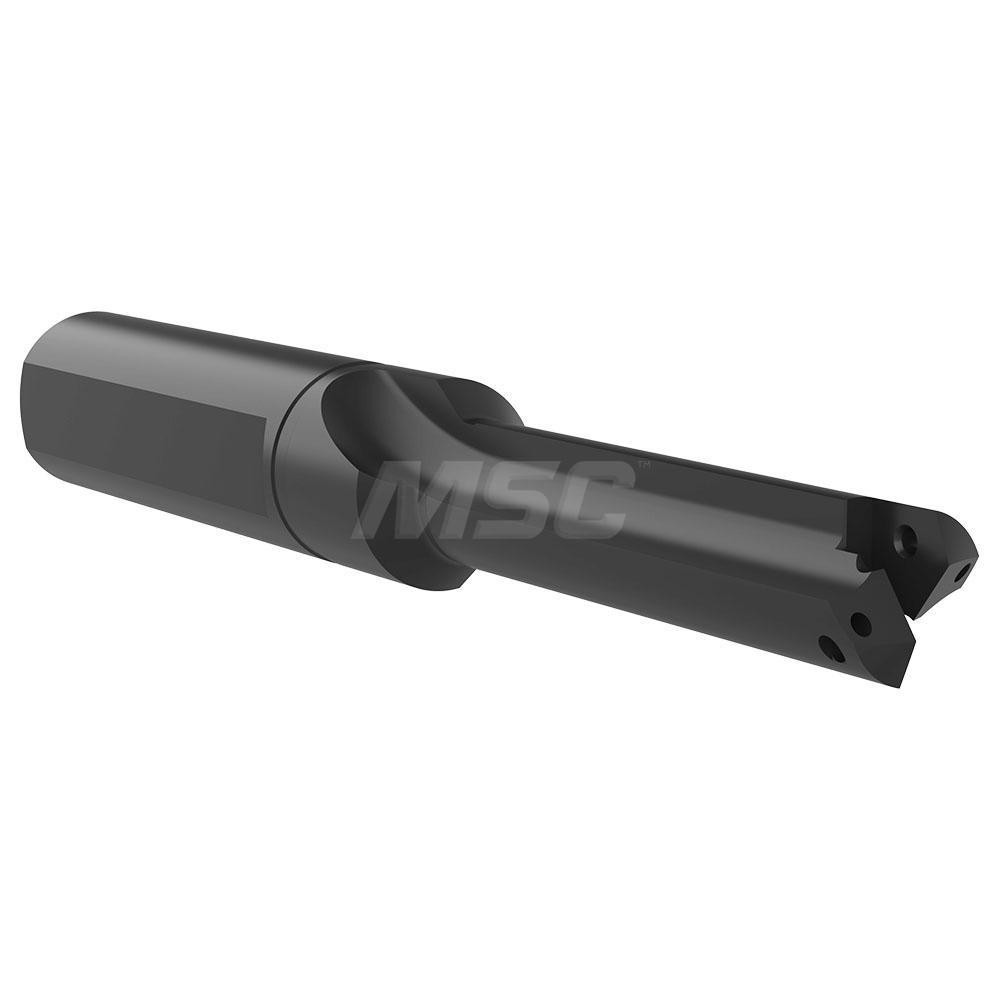

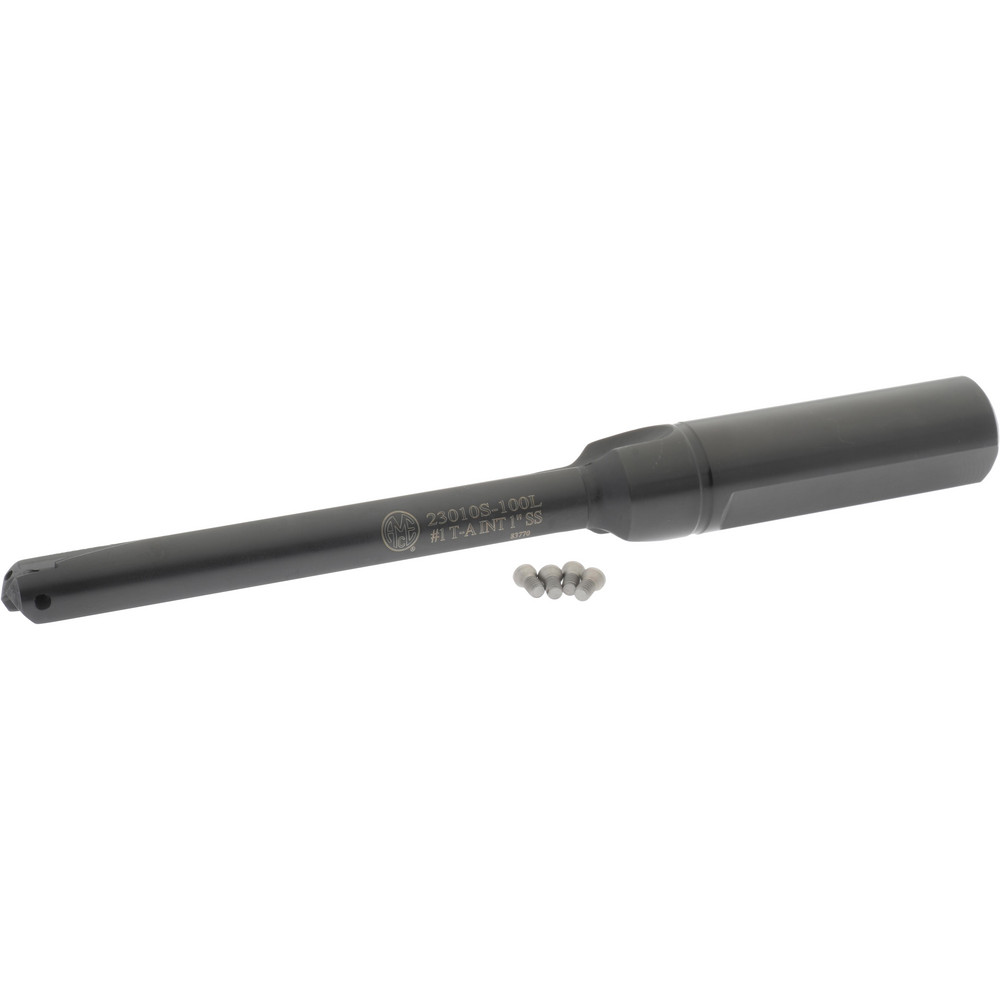

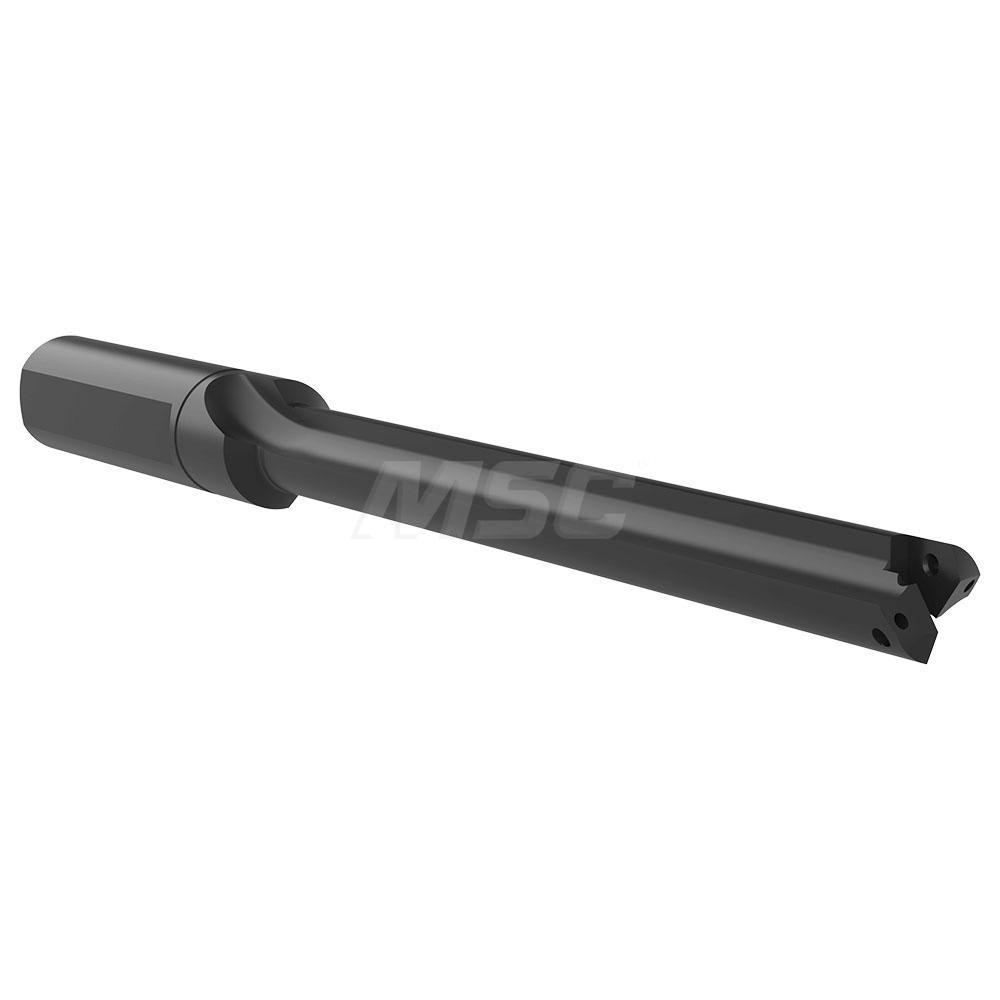

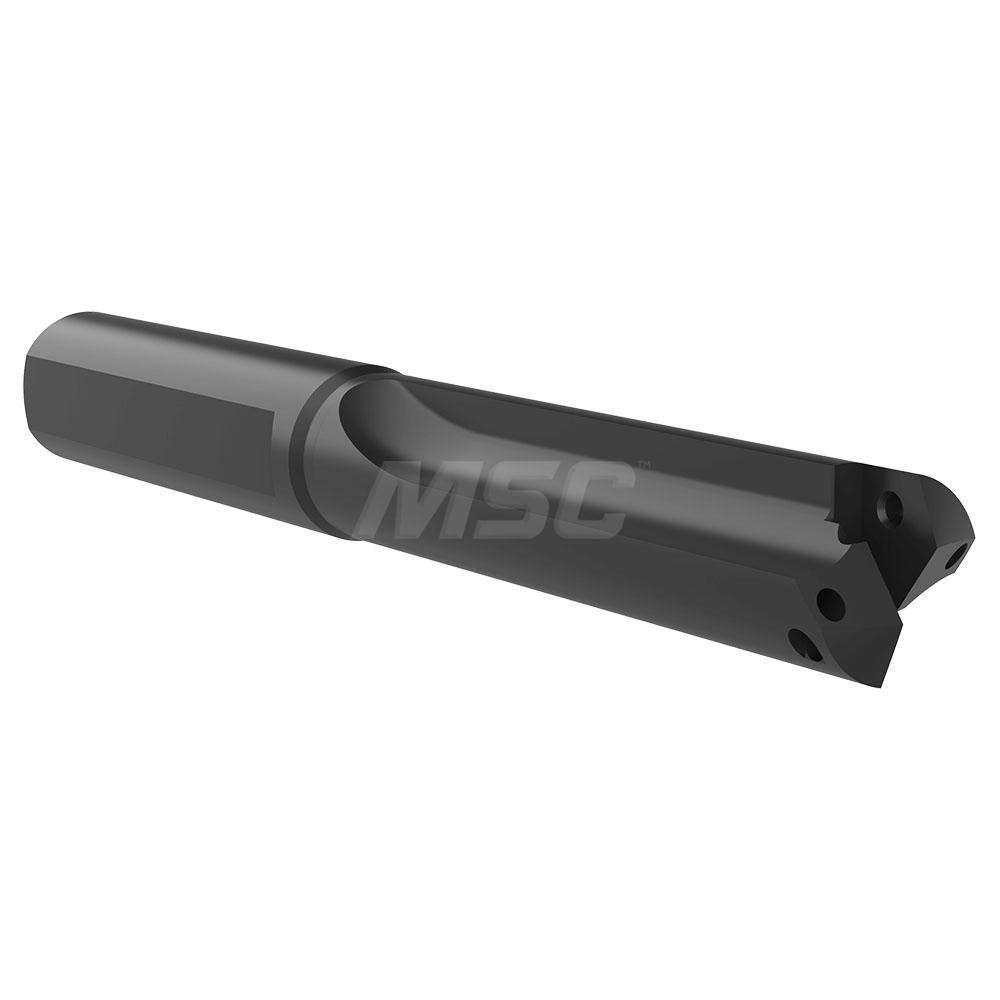

32.00 mm Dia Flatted Shank, 196.93 mm Body Length, 148.72 mm Flute Length, 256.92 mm OAL, Coolant Through, Series T-A Pro 2
| Minimum Drill Diameter (mm) | 28.45 |
|---|---|
| Maximum Drill Diameter (mm) | 35.07 |
| Maximum Drill Depth (mm) | 148.72 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (mm) | 32.00 |
| Length Type | Standard |
| Drill Depth by Diameter Ratio | 5xD |
| Tool Material | Steel |
| Overall Length (mm) | 256.92 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A Pro 2 |
| Flute Type | Straight |
| Flute Length (mm) | 148.72 |
| Body Length (mm) | 196.93 |
| Shank Length (mm) | 59.99 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 16723348 |
