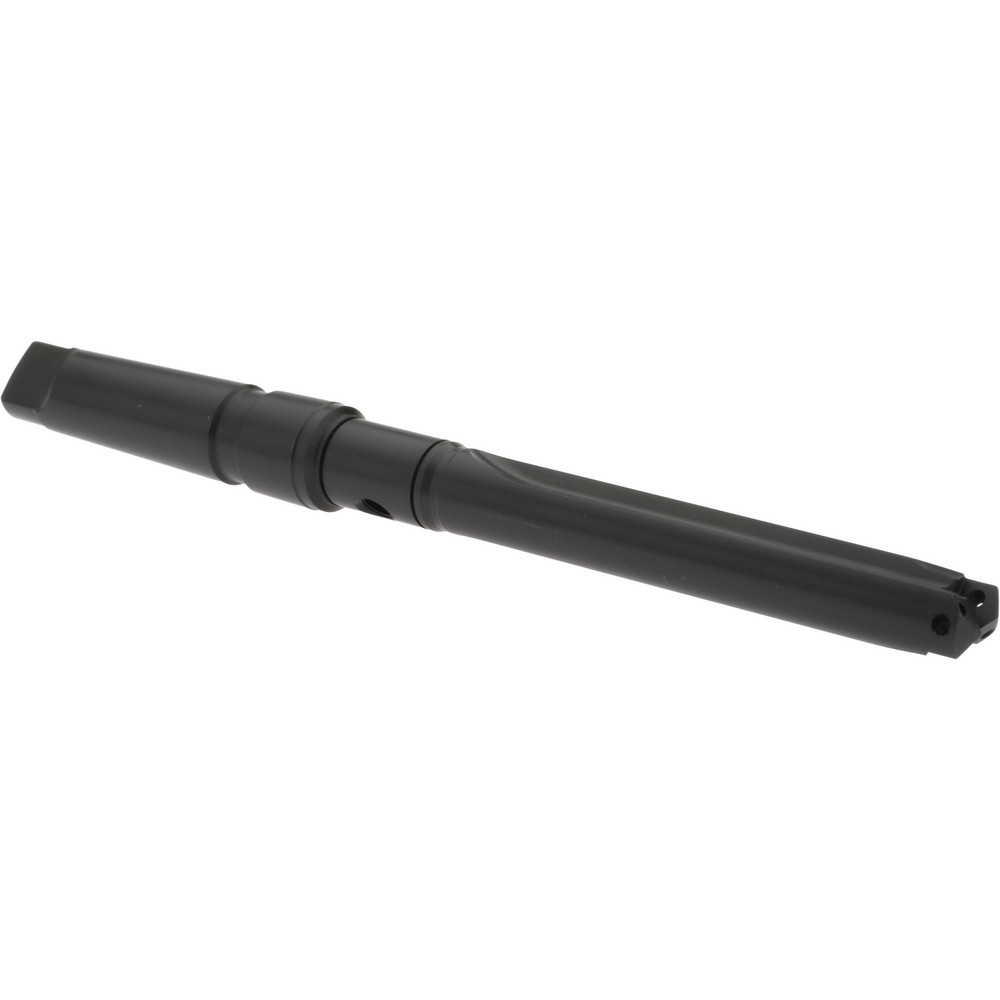

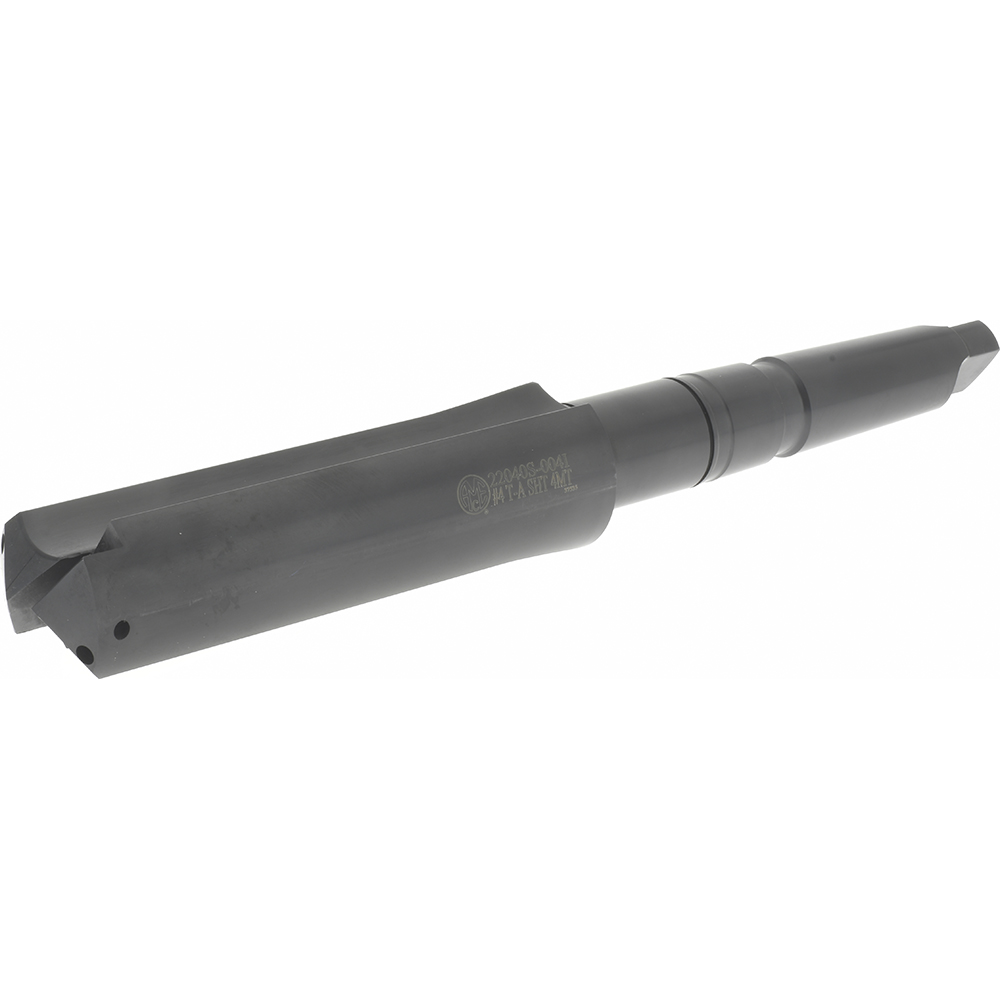

4MT Taper Shank, 4-1/2" Body Length, 3-3/8" Flute Length, 10-25/32" OAL, Coolant Through, Series T-A 2
| Minimum Drill Diameter (Inch) | 31/32 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Depth (Inch) | 3-3/8 |
| Spade Drill Length | Short |
| Shank Type | Taper |
| Shank Taper Size | 4MT |
| Shank Diameter (Decimal Inch) | 1.2310 |
| Length Type | Short |
| Tool Material | Steel |
| Overall Length (Inch) | 10-25/32 |
| Coolant Entry Style Code | 2-Radial Entry |
| Series | T-A 2 |
| Flute Type | Straight |
| Flute Length (Inch) | 3-3/8 |
| Body Length (Inch) | 4-1/2 |
| Shank Length (Inch) | 4-7/8 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Rotary Coolant Adapter Compatibility | 2T-3SR |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| Pros | No Pros |
| Cons | No Cons |
| MSC Number | MSC# 04597795 |
