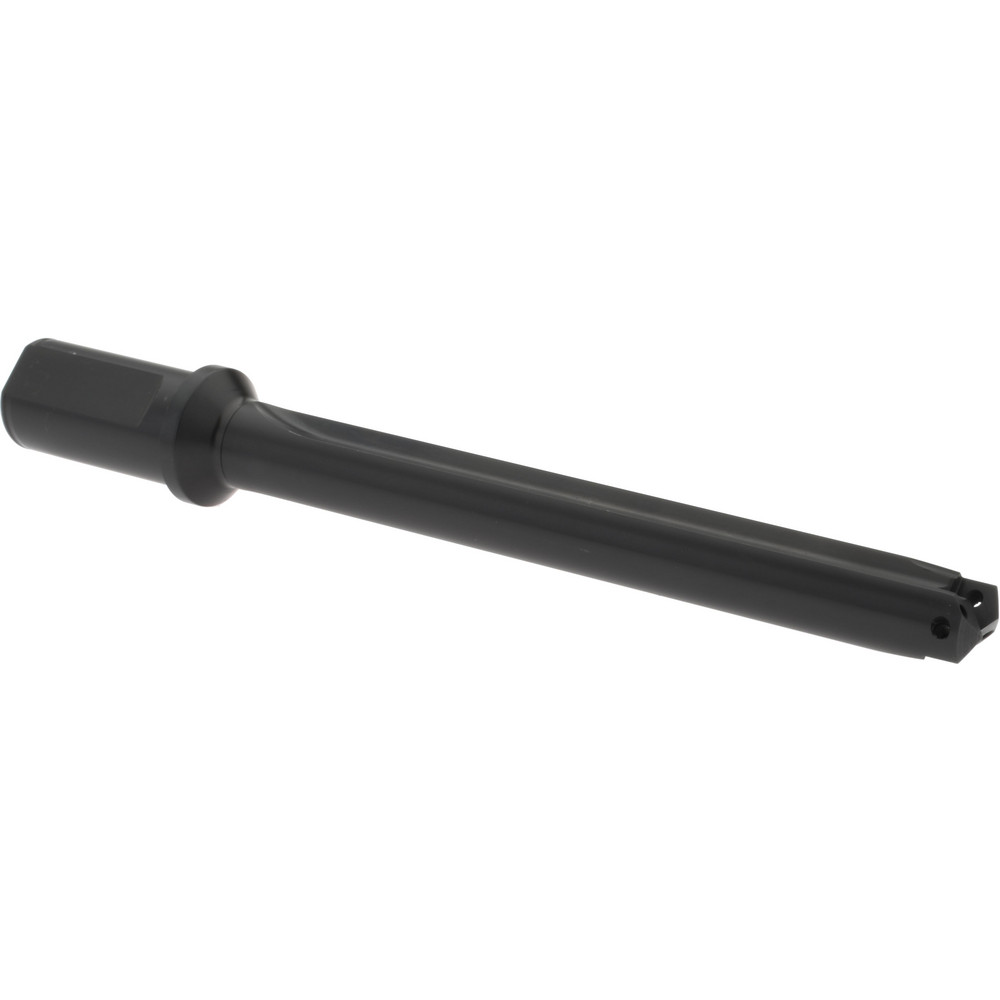

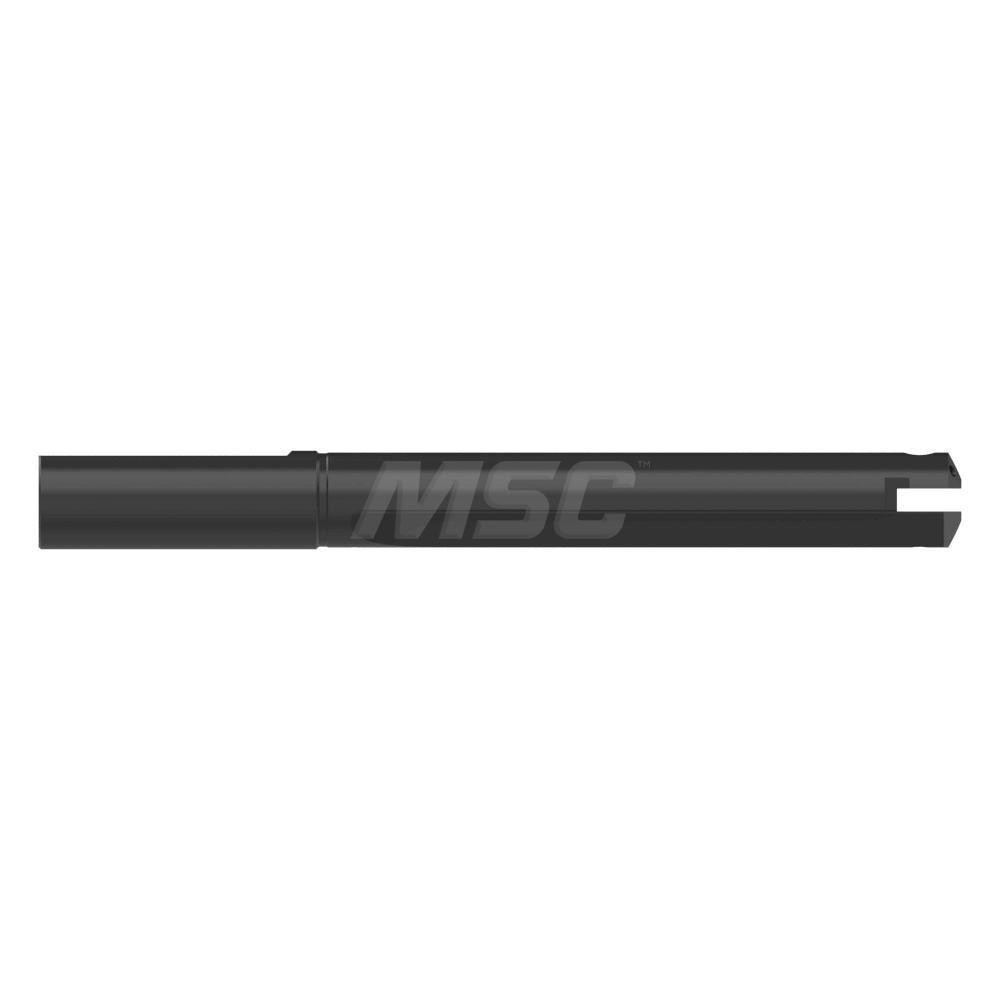

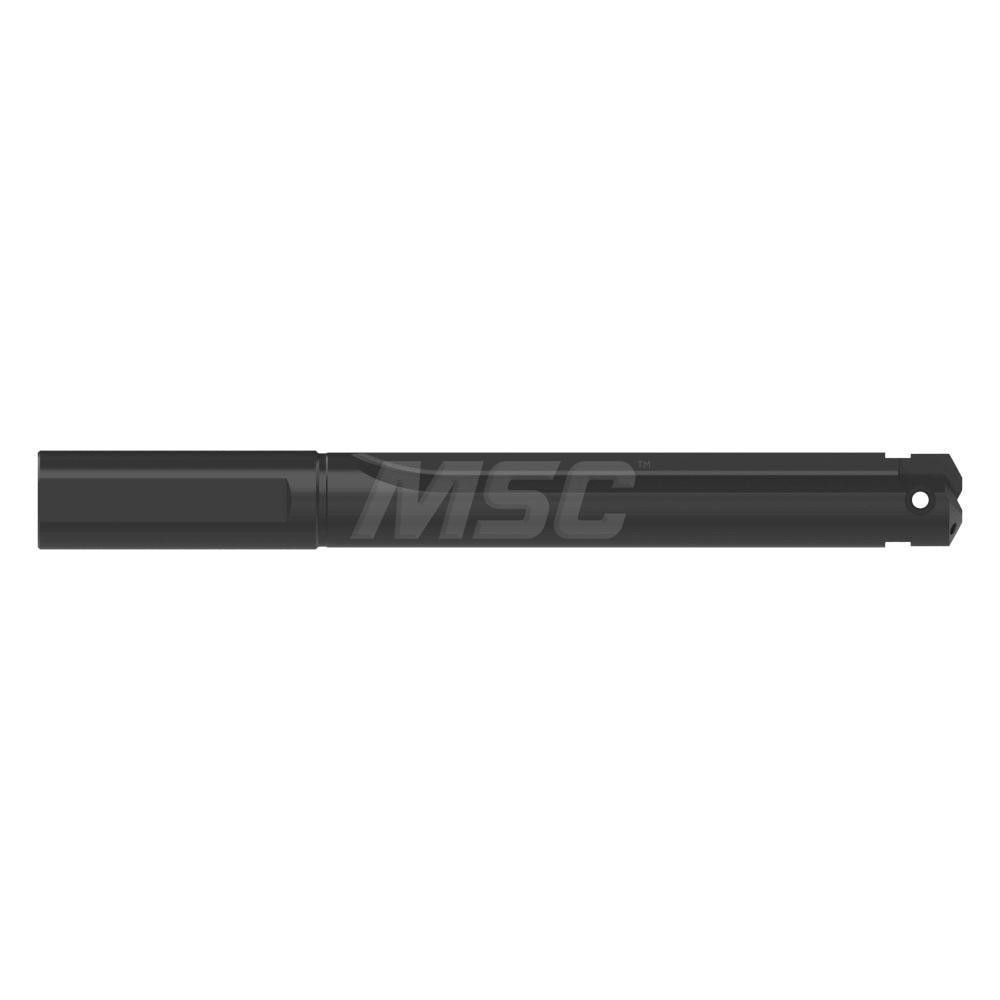

3/4" Dia Flatted Shank, 3-17/32" Body Length, 3" Flute Length, 6-1/2" OAL, , Series HP-A
| Minimum Drill Diameter (Inch) | 31/32 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Depth (Inch) | 3 |
| Maximum Drill Depth (Decimal Inch) | 3.0000 |
| Spade Drill Length | Short |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Length Type | Short |
| Tool Material | Steel |
| Overall Length (Inch) | 6-1/2 |
| Coolant Entry Style Code | 0-Without Coolant |
| Series | HP-A |
| Flute Type | Straight |
| Flute Length (Inch) | 3 |
| Body Length (Inch) | 3-17/32 |
| Shank Length (Inch) | 3-1/2 |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Coolant Through | No |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 79729018 |
