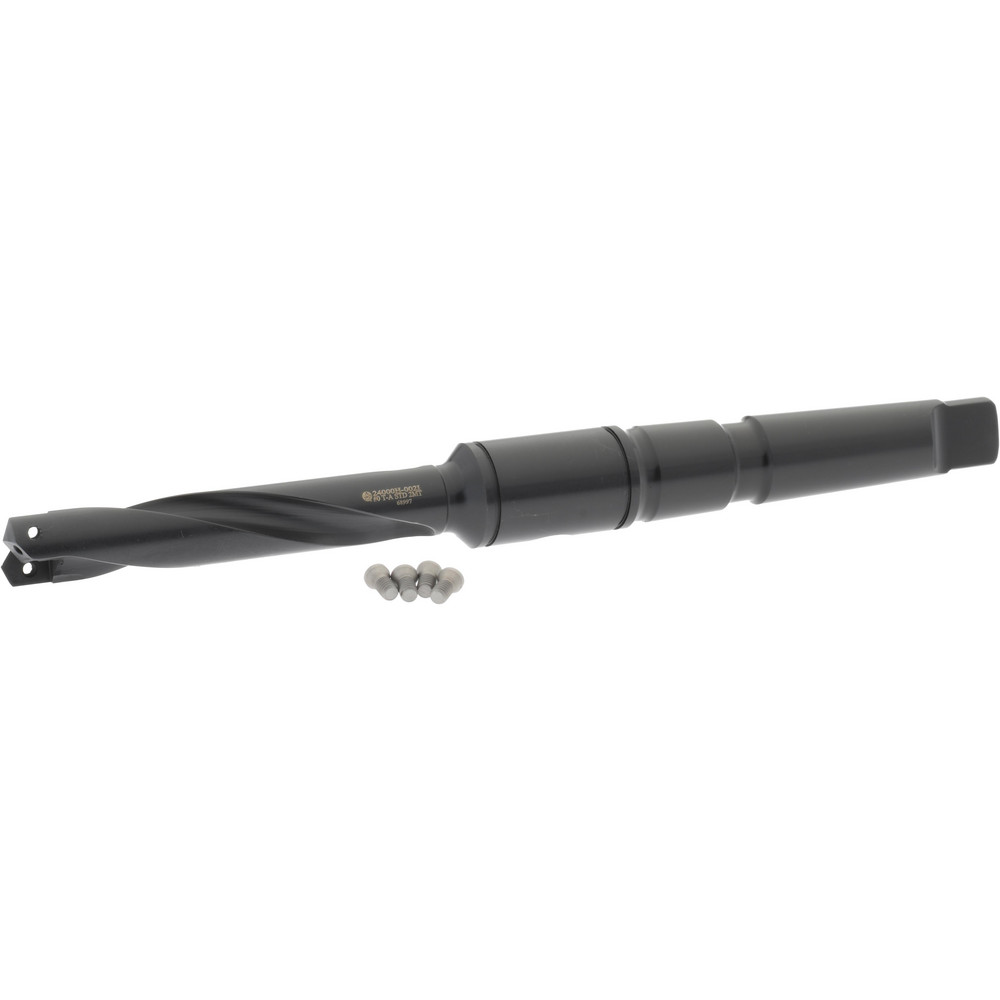

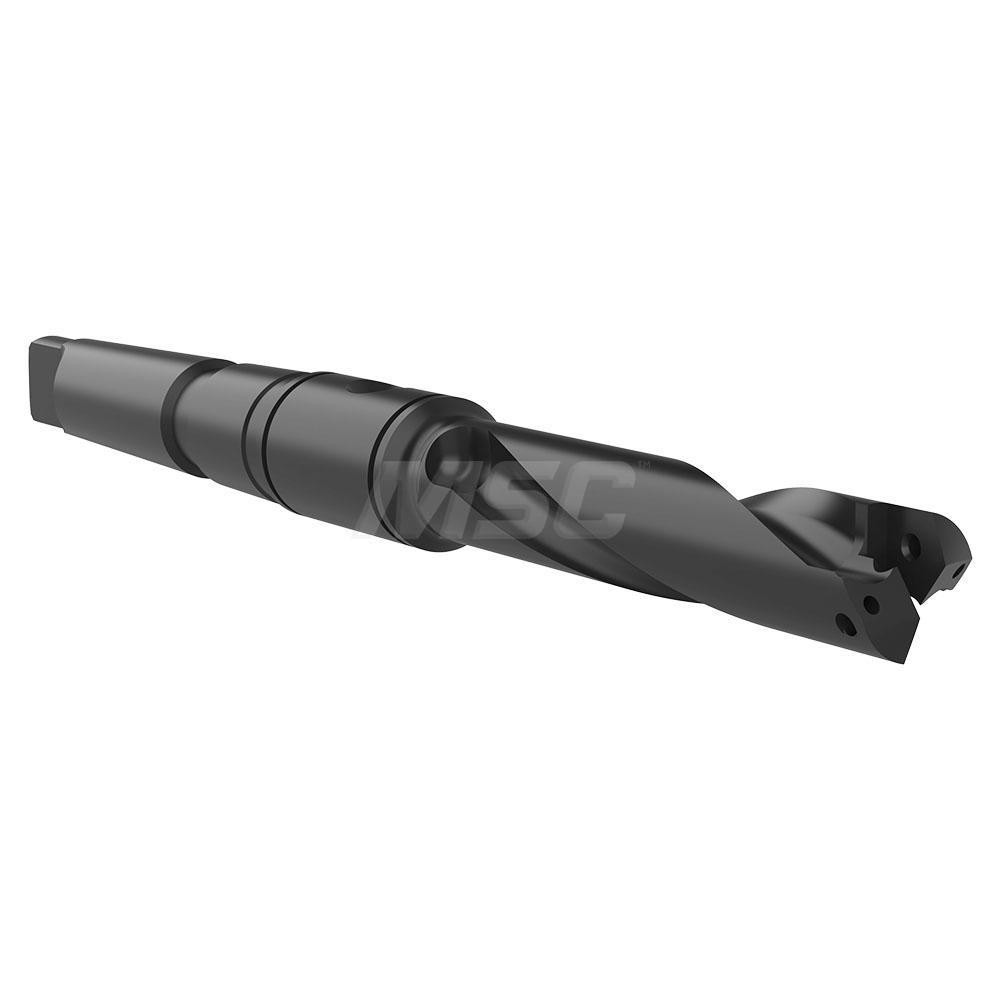

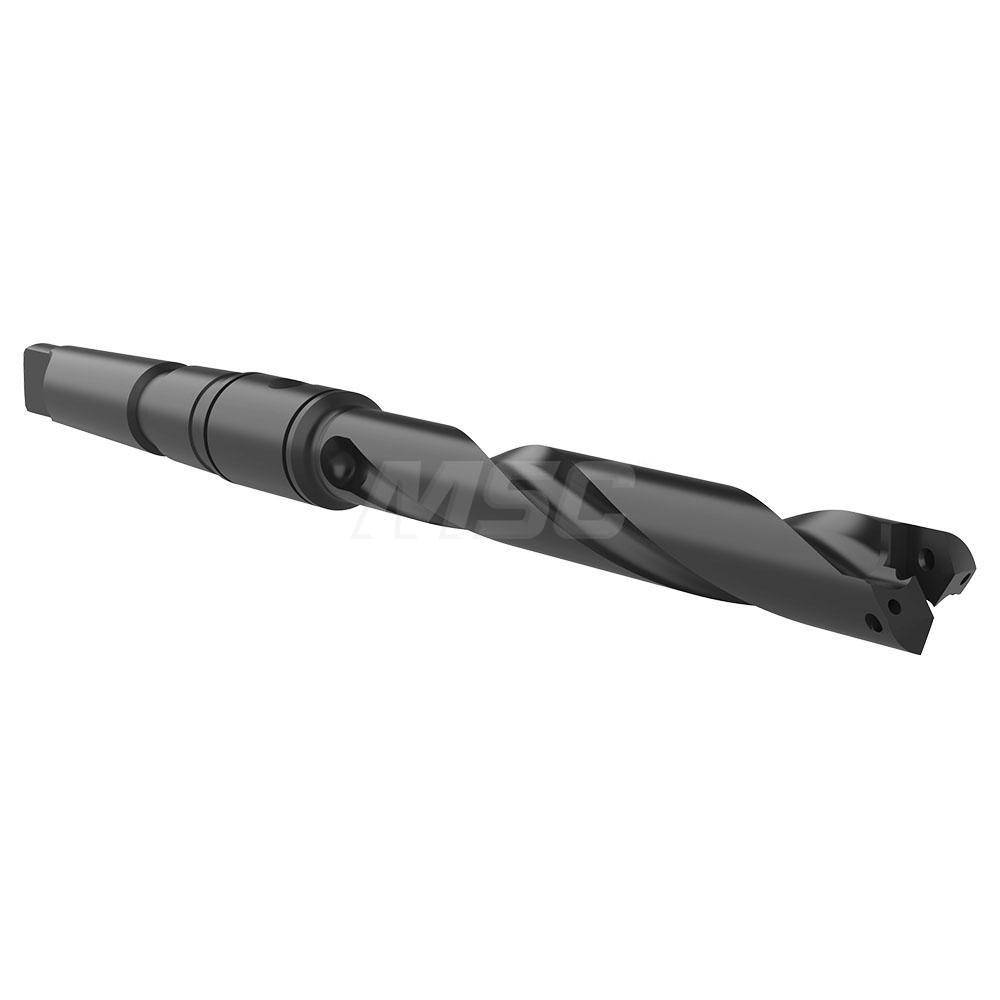

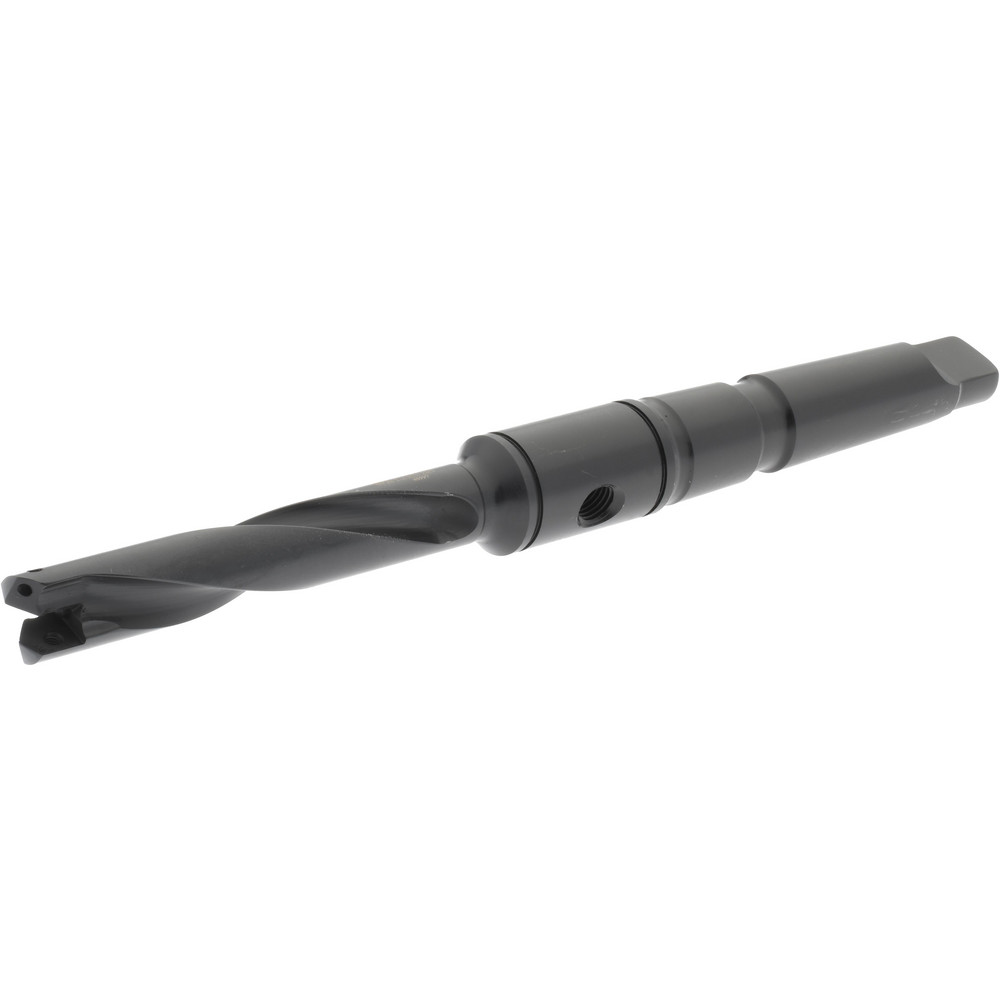

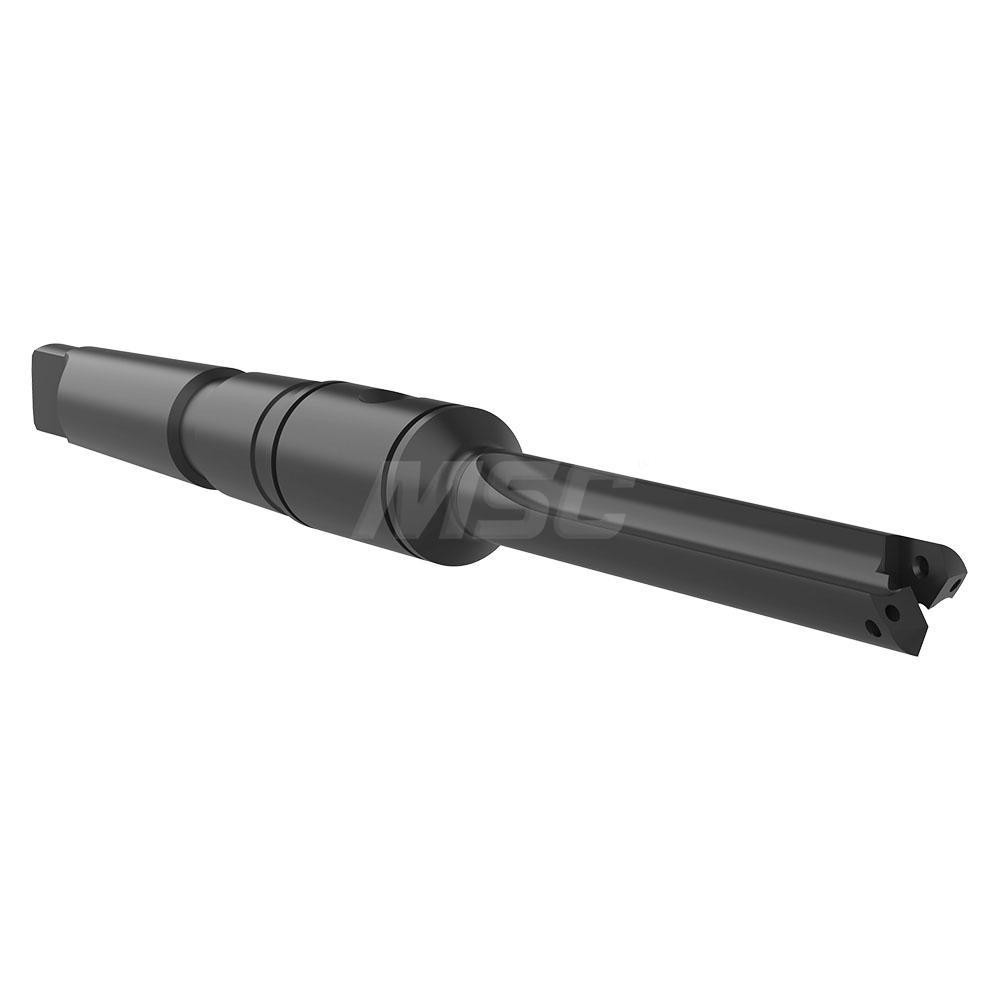

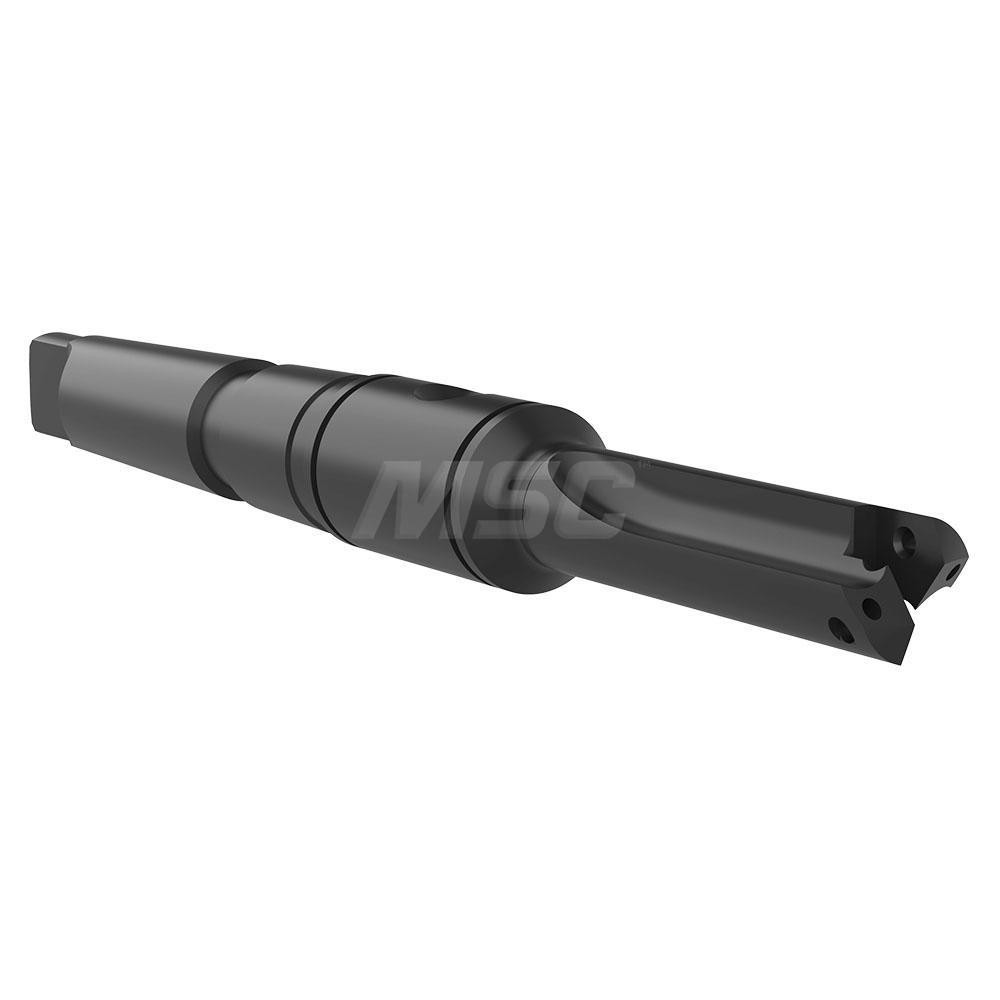

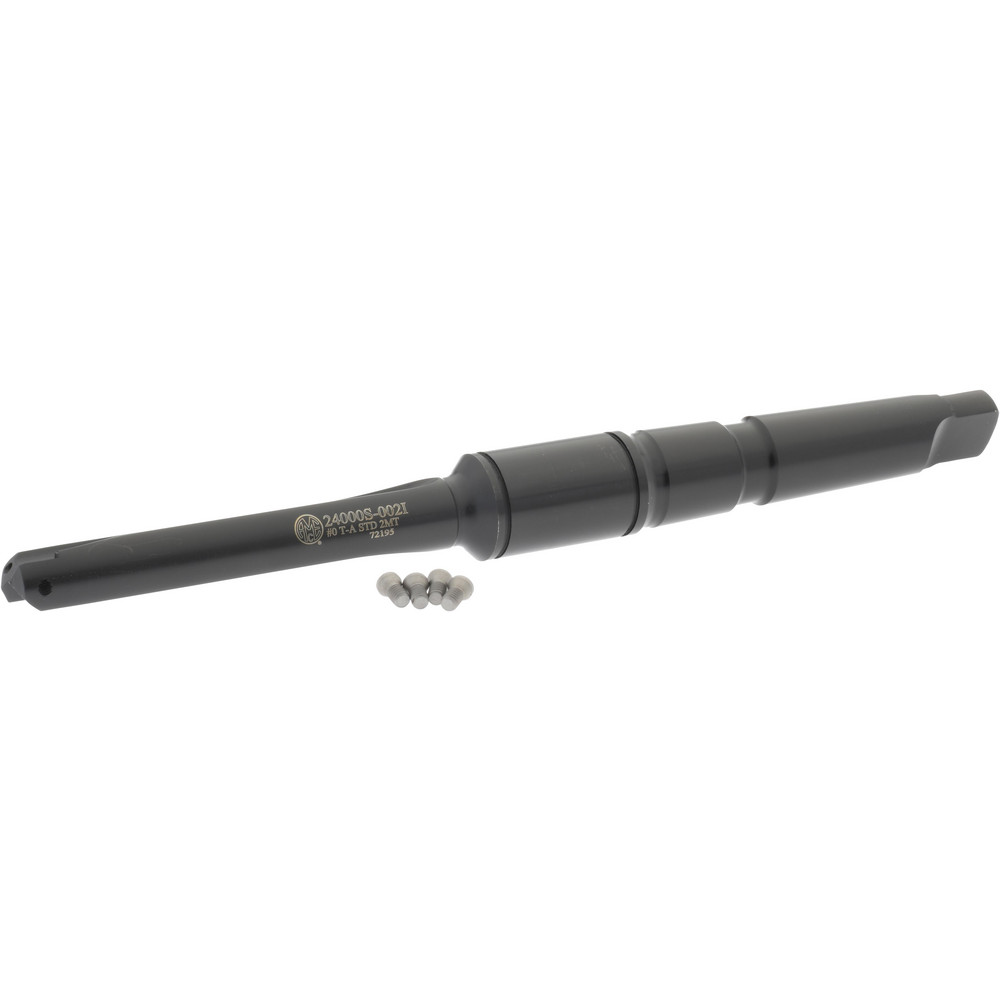

2MT Taper Shank, 3-5/16" Body Length, 2-1/2" Flute Length, 7-19/32" OAL, Coolant Through, Series T-A 0
| Minimum Drill Diameter (Inch) | 33/64 |
|---|---|
| Maximum Drill Diameter (Inch) | 11/16 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Spade Drill Length | Standard |
| Shank Type | Taper |
| Shank Taper Size | 2MT |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Length Type | Standard |
| Tool Material | Steel |
| Overall Length (Inch) | 7-19/32 |
| Coolant Entry Style Code | 2-Radial Entry |
| Series | T-A 0 |
| Flute Type | Helical |
| Flute Length (Inch) | 2-1/2 |
| Body Length (Inch) | 3-5/16 |
| Shank Length (Inch) | 3-9/16 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/16 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Rotary Coolant Adapter Compatibility | 2T-2SR |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 79730644 |
