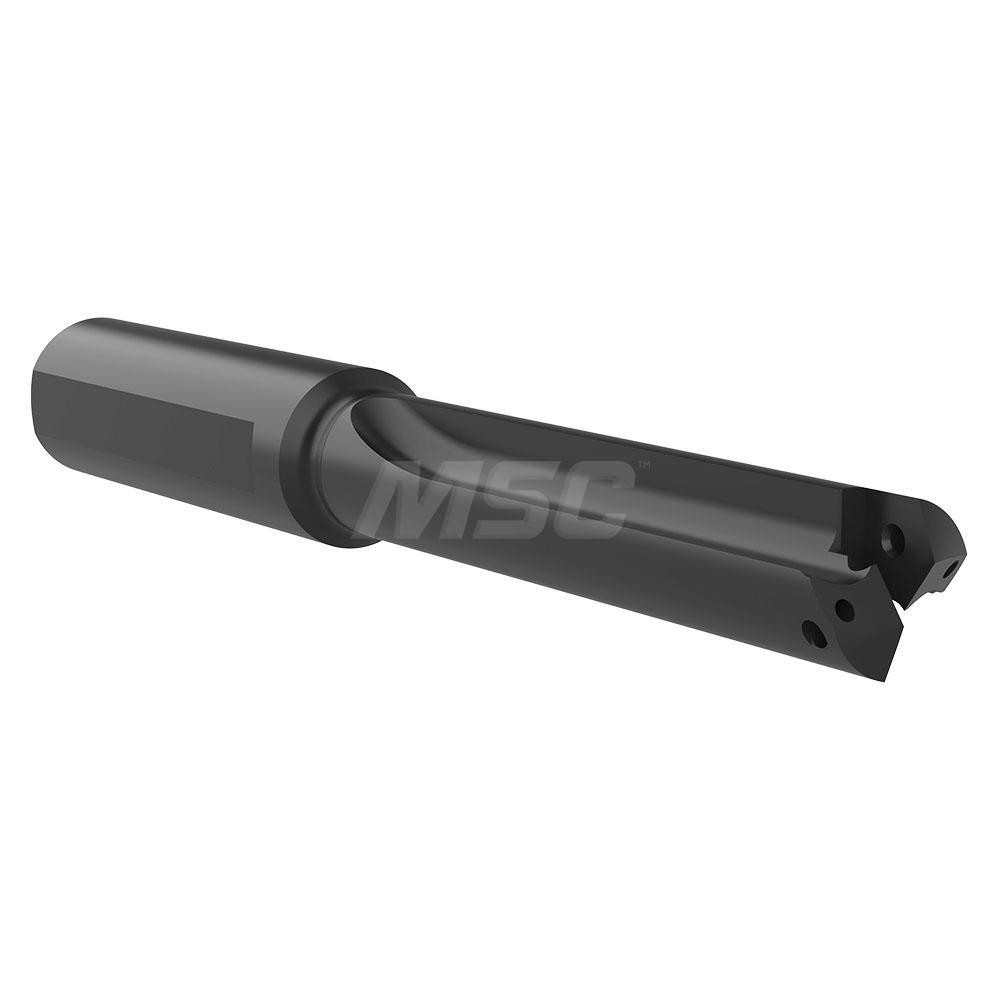

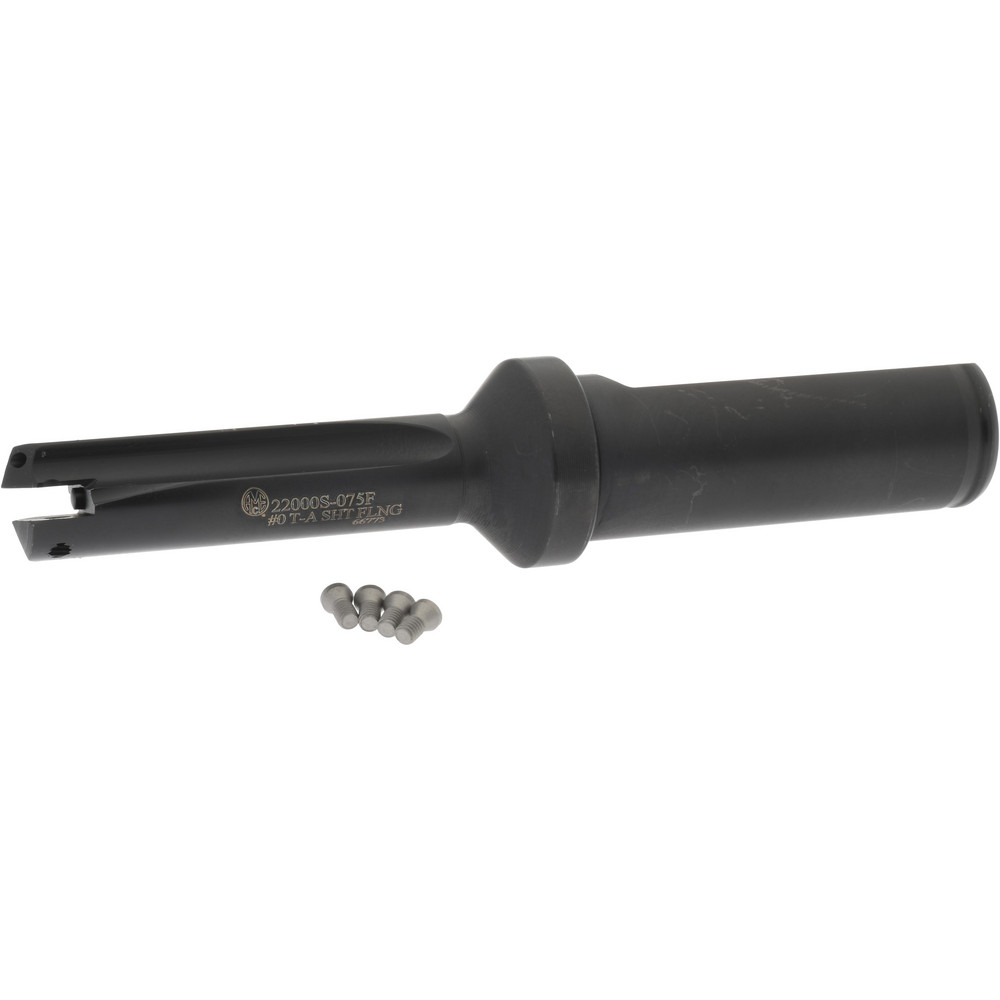

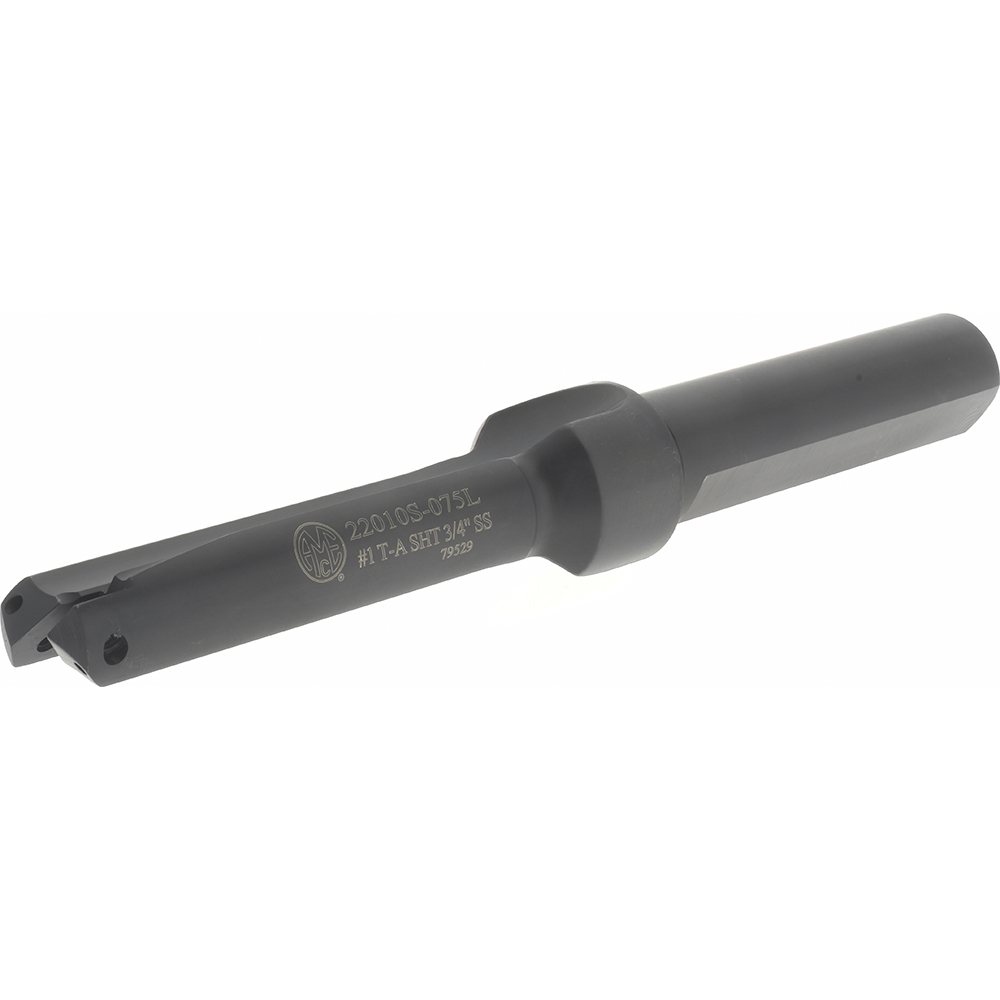

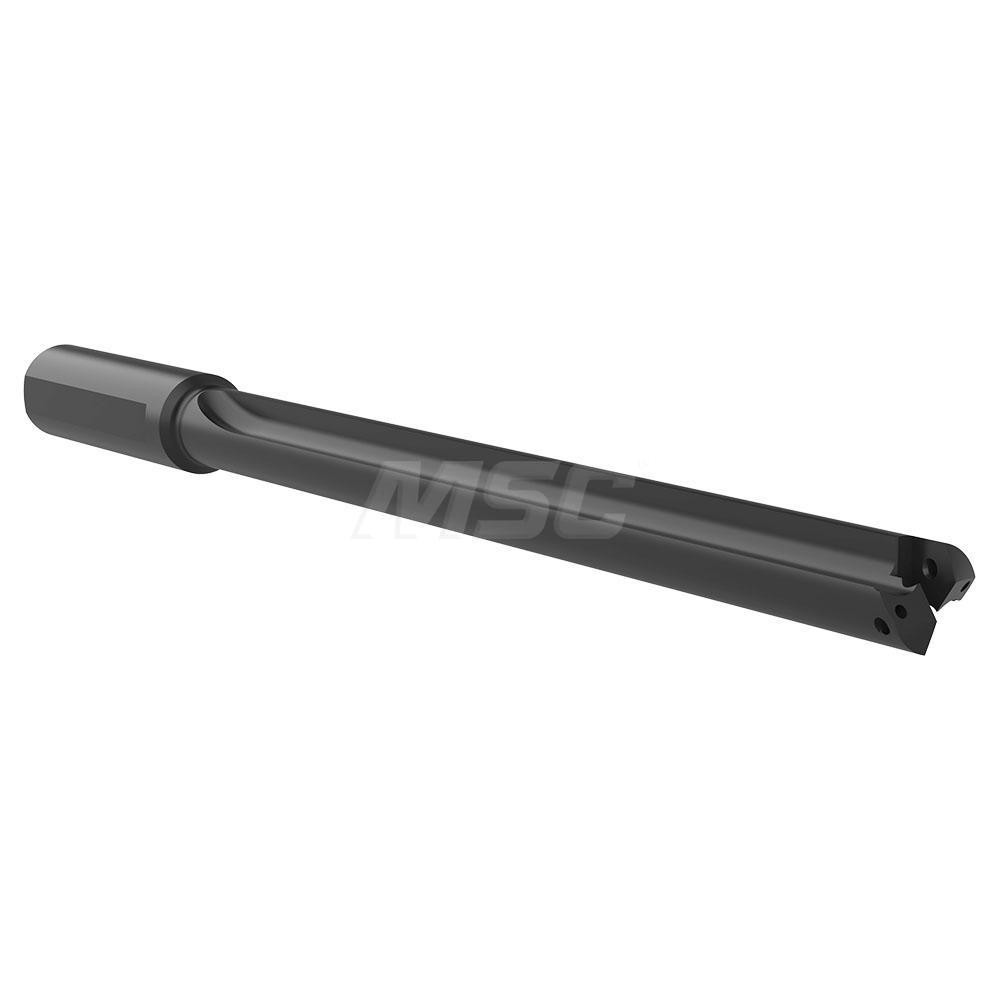

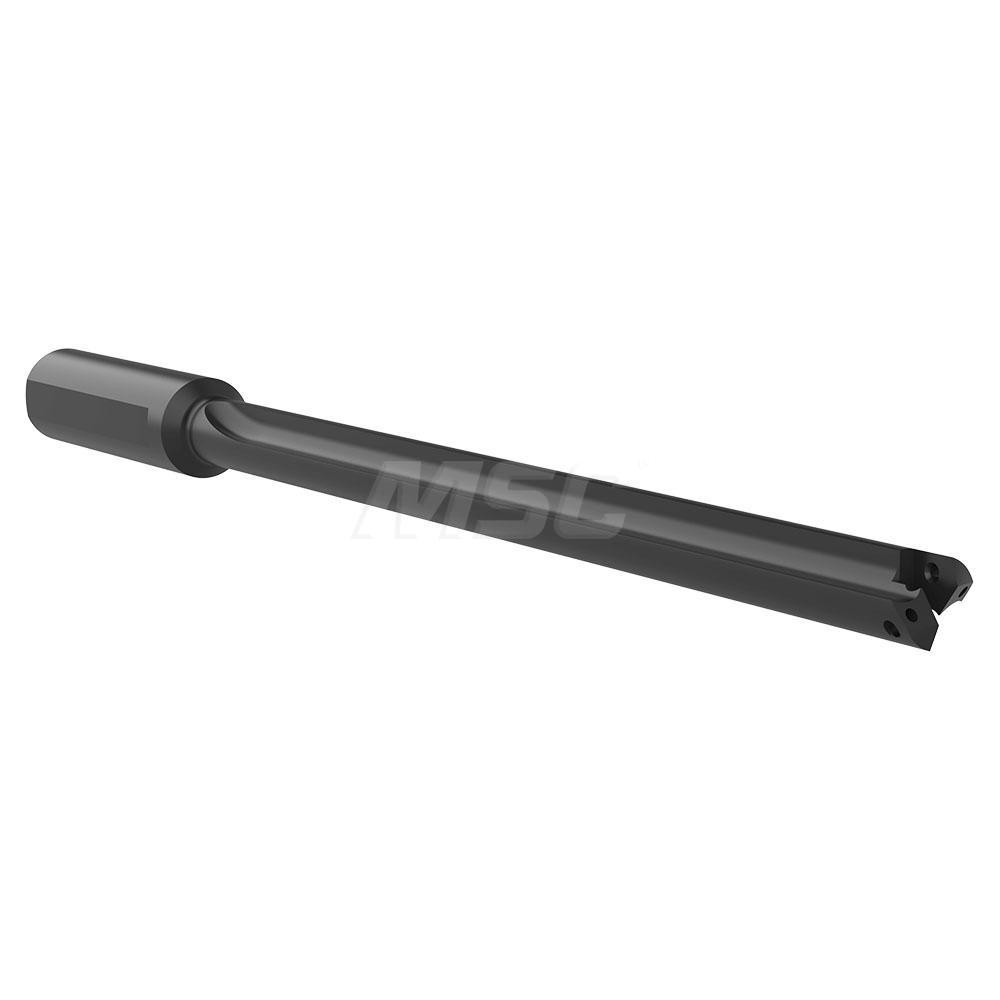

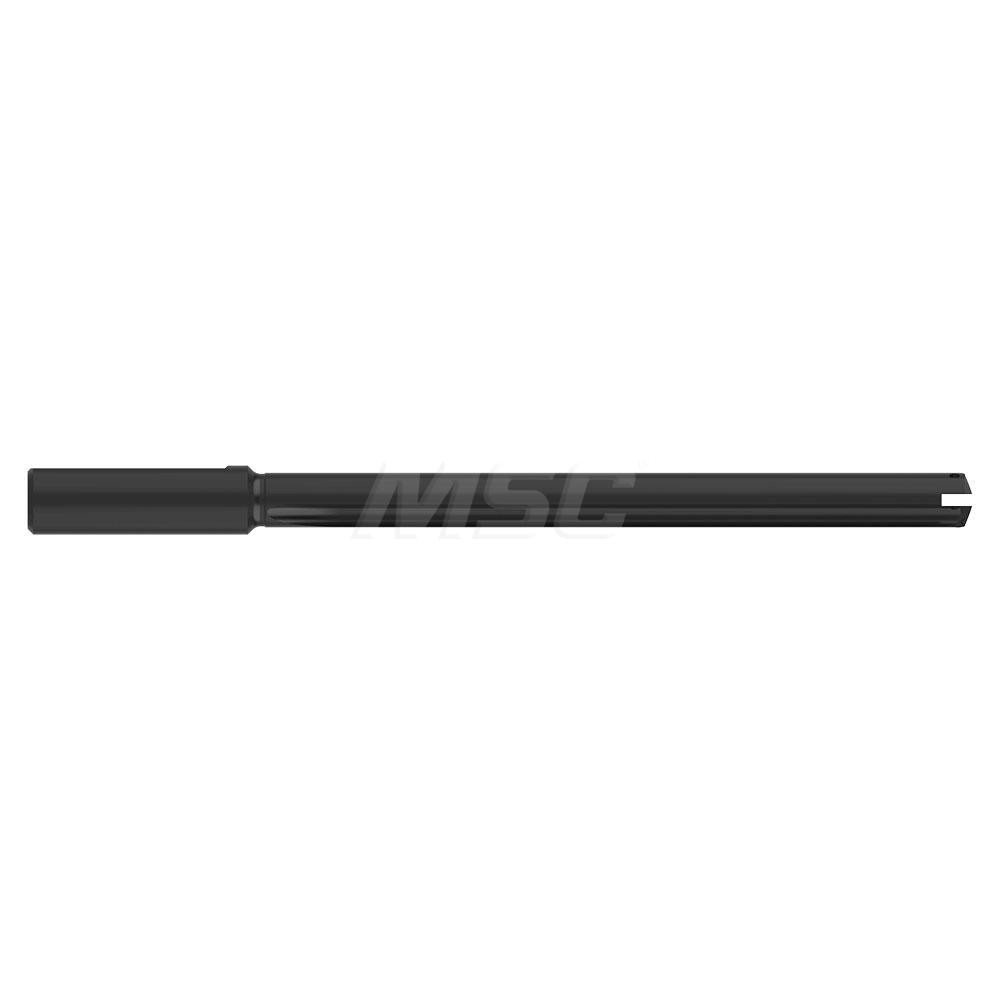

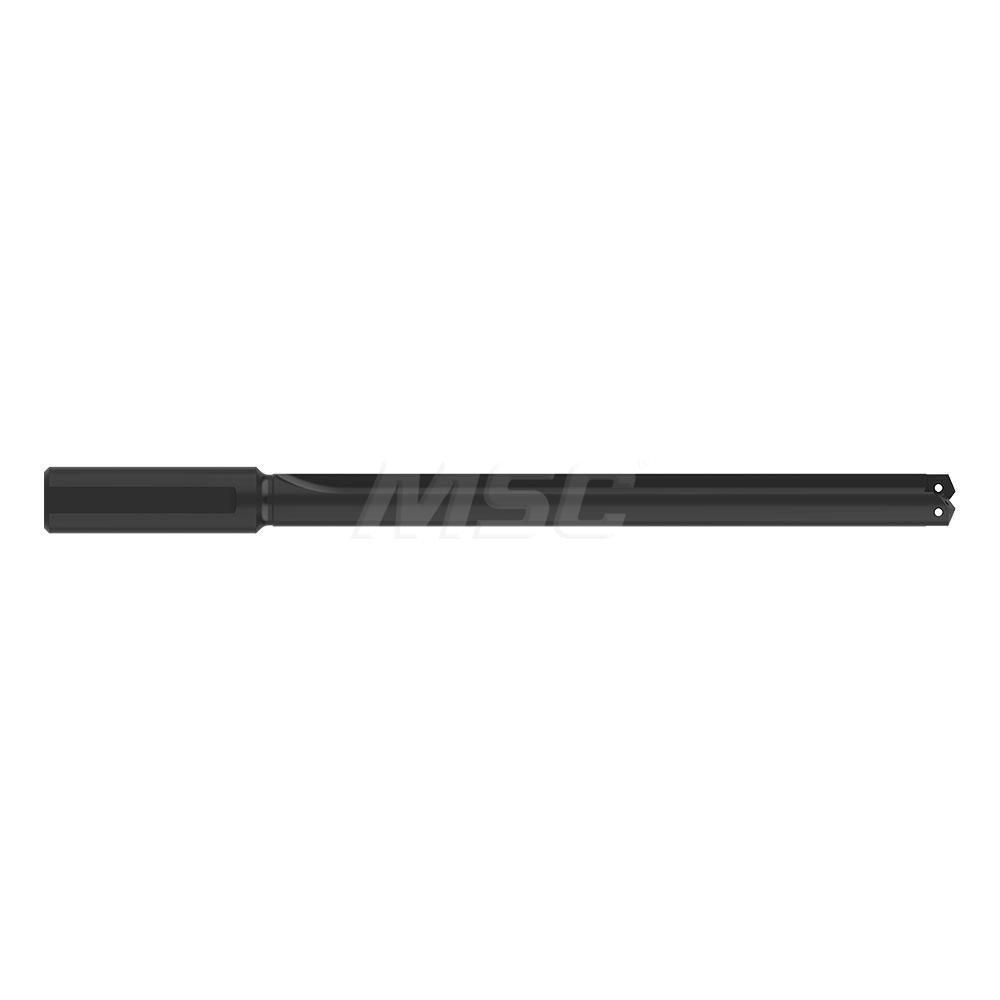

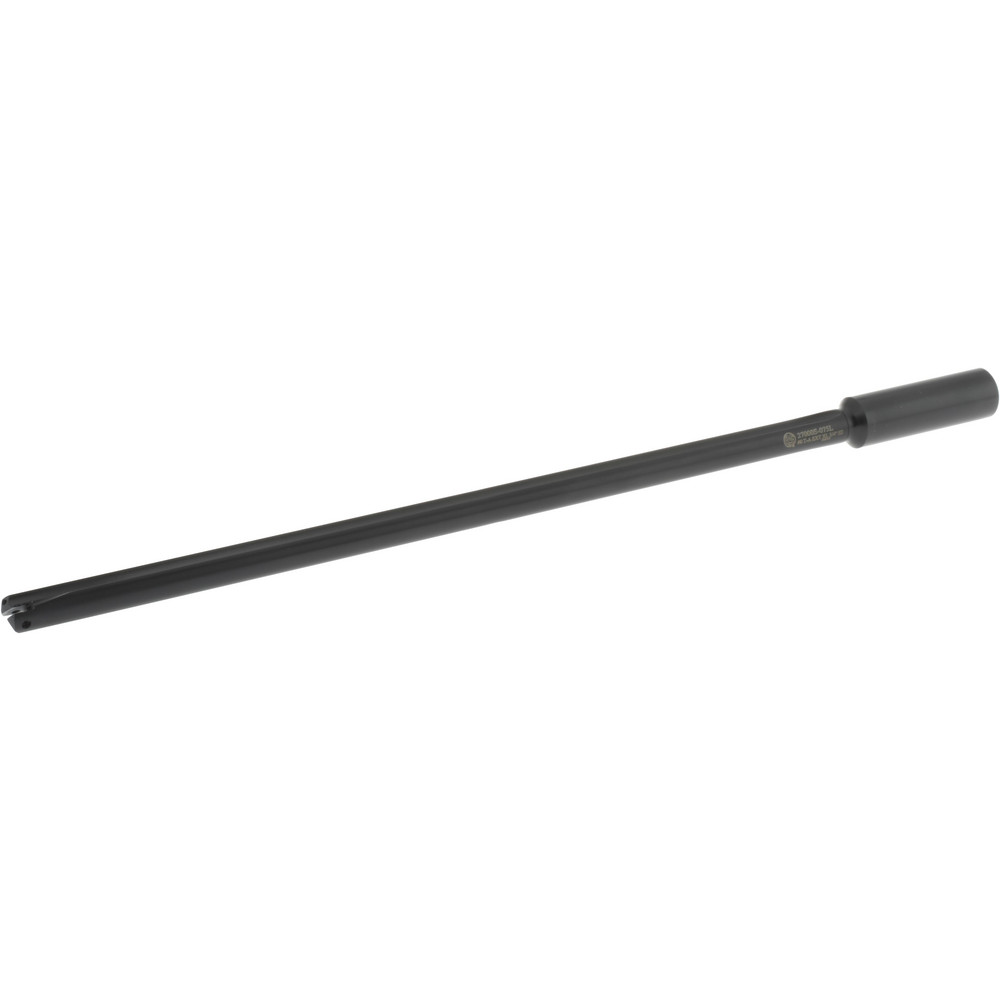

3/4" Dia Flatted Shank, 7-13/16" Body Length, 7" Flute Length, 10-3/16" OAL, Coolant Through, Series T-A 0.5
| Minimum Drill Diameter (Inch) | 39/64 |
|---|---|
| Maximum Drill Diameter (Inch) | 11/16 |
| Maximum Drill Depth (Inch) | 7 |
| Maximum Drill Depth (Decimal Inch) | 7.0000 |
| Spade Drill Length | Long |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Length Type | Long |
| Tool Material | Steel |
| Overall Length (Inch) | 10-3/16 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | T-A 0.5 |
| Flute Type | Straight |
| Flute Length (Inch) | 7 |
| Body Length (Inch) | 7-13/16 |
| Shank Length (Inch) | 2-3/8 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 09619909 |
