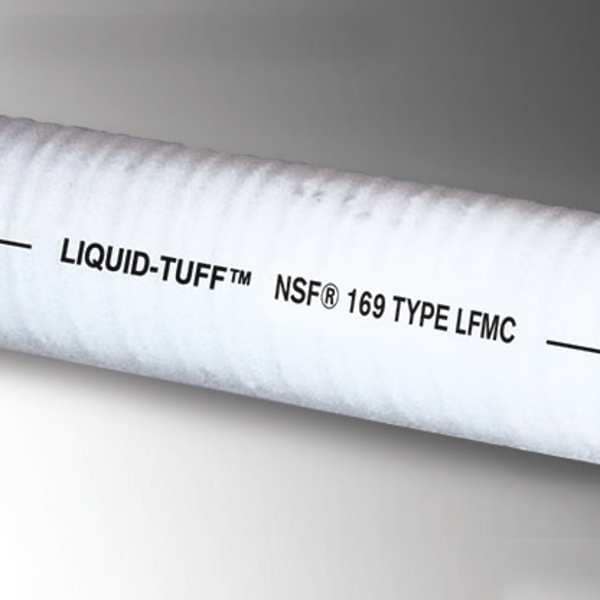

Liquid-Tight Flex Metal Conduit, 1/2 in Trade Size, 100 ft, 3 in Bend, Steel, White
| Item | Liquid-Tight Flex Metal Conduit |
|---|---|
| Trade Size | 1/2 in |
| Nominal Length | 100 ft |
| Bend Radius | 3 in |
| Material | Steel |
| Jacket Material | PVC |
| Finish | Unfinished |
| Jacket Color | White |
| Min. Operating Temp. | -30 deg F |
| Max. Operating Temp. | 176 deg F |
| Series | SZ |
| Flexible Conduit Usable Temp. Range | -30 to 176 deg F |
| Special Features | NSF 169 Component with UL and CSA certificationn per UL 360 and CSA 22.6 |
| Standards | UL 360, CSA 22.2 56-6, NSF 169 Compomnet |
| Outside Dia. | 0.82 in |
| Flammability Rating | UL 360 |
| Resistance Properties | Corrosion Resistant |
| Approval Rating | CSA, FDA, NSF, UL |
| Usable Temperature Range | -30 to 176 deg F |
| Wet Location | Yes |
| Outside Diameter | 0.82 in |
| Inside Diameter | 0.62 in |
| Jacketed | Yes |
| Max Temperature Rating Dry F | 176 |
| Min Temperature RatingF | -40 |
| Outside Diameter (in) | 0.820/0.840 IN |
| Oil Resistant | Yes |
| Surface Finish | PVC |
| Part Length (ft) | 100 |
| Application | Food equipment & other devices associated with food production, NSF 169 Component compliant, For use in "splash zones" contiguous to food production - wash down areas, PVC jacket does not promote the growth of bacteria, Meat packing, restaurants, food processing, poultry packing, pharmaceutical facilities |
| Features | LIQUID-TUFFâ„¢ Component for Splash Zones (SZ) Liquidtight Flexible Metal Conduit UL &CSA; PVC jacket inhibits bacteria growth - color White; Ease of cleaning/sterilization using bleach - no degradation of jacket; Flexible rugged moisture, oil & sunlight resistant PVC jacket; Hot dipped zinc galvanized low carbon steel core; Excellent temperature range |
| Hazardous Location Class es | Class I Div 2 NEC® 501.10(B)(2)(4), Class II Div 1 NEC® 502.10(A)(2)(2), Class II Div 2 NEC® 502.10(B)(2), Class III Div 1 NEC® 503.10(A)(3)(2) and Class III Div 2 NEC® 503.10(B) |
| Trade Size (in) | 0.5 |
| Flexible Conduit Nominal Length | 100 ft |
| Package Quantity | 1 |
