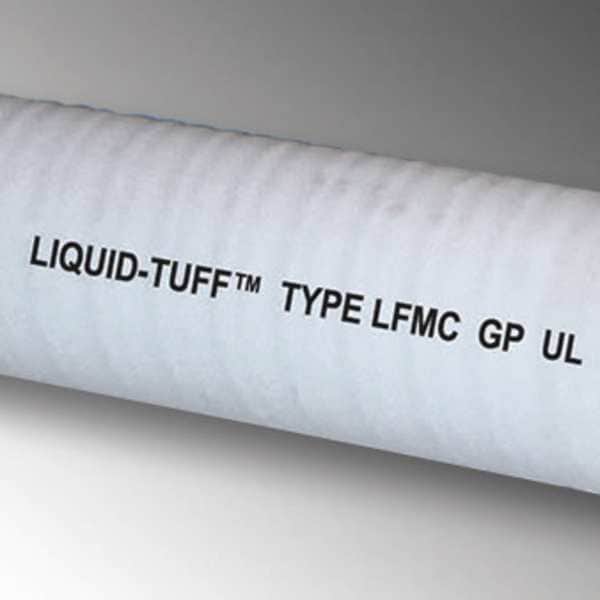

Liquid-Tight Flex Metal Conduit, 1/2 in Trade Size, 500 ft, 3 in Bend, Steel, Gray
| Item | Liquid-Tight Flex Metal Conduit |
|---|---|
| Trade Size | 1/2 in |
| Nominal Length | 500 ft |
| Bend Radius | 3 in |
| Material | Steel |
| Jacket Material | PVC |
| Finish | Galvanized |
| Jacket Color | Gray |
| Min. Operating Temp. | -30 deg F |
| Max. Operating Temp. | 176 deg F |
| Series | 6200 |
| Special Features | The 1-1/2 through 4-inch trade sizes are designed with a fully interlocked strip, The 3/8 through 1-1/4 inch trade sizes are Square Lock formed and include an integral bonding strip of copper that is enclosed within the convolutions throughout their entire length |
| Flexible Conduit Usable Temp. Range | -30 to 176 deg F |
| Standards | UL ANSI |
| Outside Dia. | 0.82 in |
| Usable Temperature Range | -30 to 176 deg F |
| Outside Diameter | 0.82 in |
| Wet Location | Yes |
| Resistance Properties | Oil Resistant, UV Resistant |
| Flammability Rating | UL 360 |
| Inside Diameter | 0.62 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Approval Rating | ANSI, CSA, UL |
| Jacketed | Yes |
| Application | Direct burial in earth, Concrete embedment, Sunlight and weather exposure, Suitable for grounding per NEC® 250.118(6), 3/8" - 1 1/4", Hazardous location per NEC® 501, Raised computer room floors per NEC® 645.5(D), Service entrance wiring up to 6 feet per NEC® 230.43(15), Feeders and services for marina and boat yards |
| Features | LIQUID-TUFFâ„¢ Liquidtight Flexible Steel Conduit UL & CSA; UL bonding strip 3/8 - 1-1/4 for grounding; UL Liquidtight all sizes; Sunlight resistant; Flame retardant PVC jacket; Hot dipped zinc galvanized low carbon steel core |
| Trade Size (in) | 0.5 |
| Hazardous Location Class es | Class I Div 2 NEC® 501.10(B)(2)(4), Class II Div 1 NEC® 502.10(A)(2)(2), Class II Div 2 NEC® 502.10(B)(2), Class III Div 1 NEC® 503.10(A)(3)(2) and Class III Div 2 NEC® 503.10(B). |
| Part Length (ft) | 500 |
| Max Temperature Rating Dry F | 176 |
| Oil Resistant | Yes |
| Min Temperature RatingF | -40 |
| Surface Finish | PVC |
| Outside Diameter (in) | 0.820/0.840 IN |
| Flexible Conduit Nominal Length | 500 ft |
| Package Quantity | 1 |
