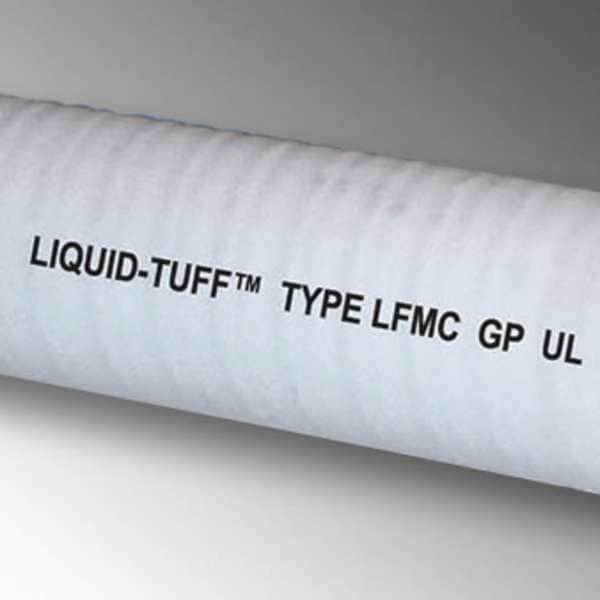

Liquid-Tight Flex Metal Conduit, 3/4 in Trade Size, 100 ft, 3 in Bend, Steel, Yellow
| Item | Liquid-Tight Flex Metal Conduit |
|---|---|
| Trade Size | 3/4 in |
| Nominal Length | 100 ft |
| Bend Radius | 3 in |
| Material | Steel |
| Jacket Material | PVC |
| Finish | Galvanized |
| Jacket Color | Yellow |
| Min. Operating Temp. | -30 deg F |
| Max. Operating Temp. | 176 deg F |
| Series | 6200 |
| Special Features | Specially Colored Conduit |
| Flexible Conduit Usable Temp. Range | -30 to 176 deg F |
| Standards | UL ANSI |
| Outside Dia. | 1.03 in |
| Wet Location | Yes |
| Approval Rating | ANSI, CSA, UL |
| Inside Diameter | 0.82 in |
| Outside Diameter | 1.03 in |
| Resistance Properties | Oil Resistant, UV Resistant |
| Indoor/Outdoor Usage | Outdoor Only |
| Usable Temperature Range | -30 to 176 deg F |
| Flammability Rating | UL 360 |
| Jacketed | Yes |
| Oil Resistant | Yes |
| Min Temperature RatingF | -40 |
| Application | Direct burial in earth, Concrete embedment, Sunlight and weather exposure, Suitable for grounding per NEC® 250.118(6), 3/8" - 1 1/4", Hazardous location per NEC® 501, Raised computer room floors per NEC® 645.5(D), Service entrance wiring up to 6 feet per NEC® 230.43(15), Feeders and services for marina and boat yards |
| Outside Diameter (in) | 1.030/1.050 IN |
| Hazardous Location Class es | Class I Div 2 NEC® 501.10(B)(2)(4), Class II Div 1 NEC® 502.10(A)(2)(2), Class II Div 2 NEC® 502.10(B)(2), Class III Div 1 NEC® 503.10(A)(3)(2) and Class III Div 2 NEC® 503.10(B). |
| Surface Finish | PVC |
| Max Temperature Rating Dry F | 176 |
| Trade Size (in) | 0.75 |
| Part Length (ft) | 100 |
| Features | LIQUID-TUFFâ„¢ Liquidtight Flexible Steel Conduit UL & CSA; UL bonding strip 3/8 - 1-1/4 for grounding; UL Liquidtight all sizes; Sunlight resistant; Flame retardant PVC jacket; Hot dipped zinc galvanized low carbon steel core |
| Flexible Conduit Nominal Length | 100 ft |
| Package Quantity | 1 |
