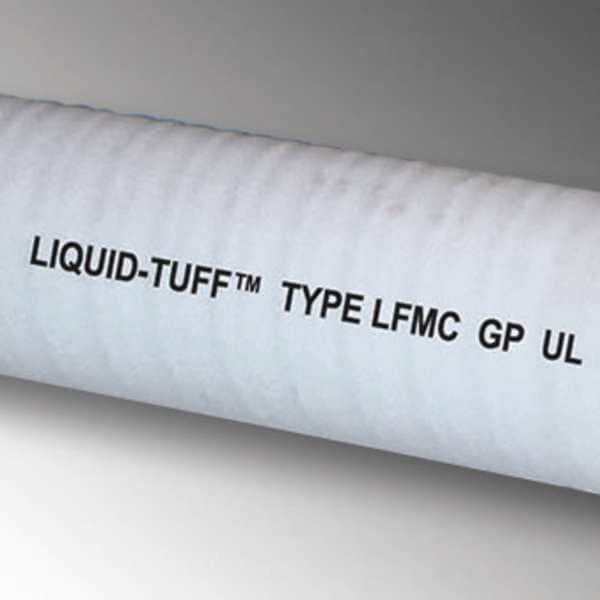

Liquid-Tight Flex Metal Conduit, 3/4 in Trade Size, 50 ft, 3 in Bend, Steel, Gray
| Item | Liquid-Tight Flex Metal Conduit |
|---|---|
| Trade Size | 3/4 in |
| Nominal Length | 50 ft |
| Bend Radius | 3 in |
| Material | Steel |
| Jacket Material | PVC |
| Finish | Galvanized |
| Jacket Color | Gray |
| Min. Operating Temp. | -30 deg F |
| Max. Operating Temp. | 176 deg F |
| Series | 6200 |
| Outside Dia. | 1.03 in |
| Special Features | The 1-1/2 through 4-inch trade sizes are designed with a fully interlocked strip, The 3/8 through 1-1/4 inch trade sizes are Square Lock formed and include an integral bonding strip of copper that is enclosed within the convolutions throughout their entire length |
| Flexible Conduit Usable Temp. Range | -30 to 176 deg F |
| Standards | UL ANSI |
| Wet Location | Yes |
| Outside Diameter | 1.03 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Jacketed | Yes |
| Usable Temperature Range | -30 to 176 deg F |
| Resistance Properties | Oil Resistant, UV Resistant |
| Inside Diameter | 0.82 in |
| Flammability Rating | UL 360 |
| Approval Rating | ANSI, CSA, UL |
| Flexible Conduit Nominal Length | 50 ft |
| Package Quantity | 1 |
