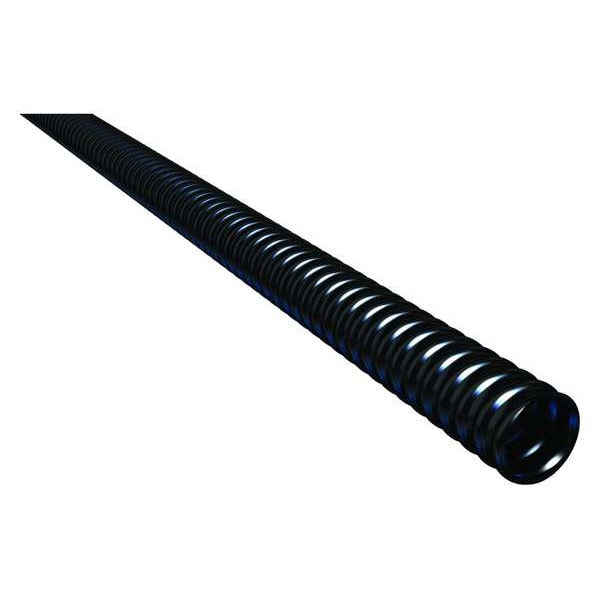

Liquid-Tight Flex Plastic Conduit, 1/2 in Trade Size, 100 ft, 1 in Bend, PVC, Black
| Item | Liquid-Tight Flex Plastic Conduit |
|---|---|
| Trade Size | 1/2 in |
| Nominal Length | 100 ft |
| Bend Radius | 1 in |
| Material | PVC |
| Jacket Material | PVC |
| Finish | Unfinished |
| Jacket Color | Black |
| Min. Operating Temp. | 0 deg F |
| Max. Operating Temp. | 140 deg F |
| Series | 160 |
| Standards | CSA C22.3 No. 227.3, UL 1696 |
| Outside Dia. | 0.835 in |
| Flexible Conduit Usable Temp. Range | 0 to 140 deg F |
| Special Features | For Use In Dry, Wet and Oily Conditions |
| Jacketed | Yes |
| Outside Diameter | 0.84 in |
| Wet Location | Yes |
| Resistance Properties | Oil Resistant, UV Resistant |
| Inside Diameter | 0.62 in |
| Approval Rating | CSA, UL |
| Usable Temperature Range | 0 to 140 deg F |
| Application | Recognized component for use in protection of insulated wire in assemblies or consoles of electrical apparatus. Use is to be determined by Underwriters Laboratories Inc., Non-UL liquidtight raceway |
| Features | LIQUID-TUFFâ„¢ Liquidtight ULTRAFLEXâ„¢; cRUus component, extra-flexible Nonmetallic mechanical protection tubing; Corrugated flame-resistant PVC with integral reinforcing member; Non-conductive raceway - black |
| Oil Resistant | Yes |
| Trade Size (in) | 0.5 |
| Max Temperature Rating Dry F | 140 |
| Part Length (ft) | 100 |
| Outside Diameter (in) | 0.825/0.835 IN |
| Flexible Conduit Nominal Length | 100 ft |
| Package Quantity | 1 |
