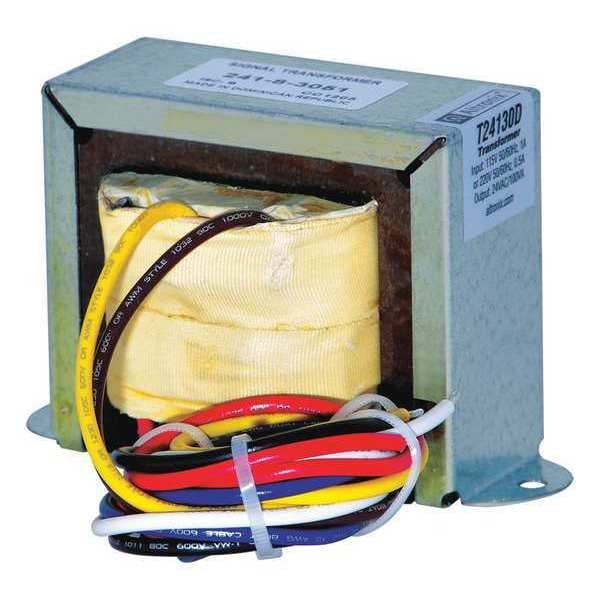

Class 2 Transformer, 100 VA, Not Rated, 49°C, 24V AC, 115/220V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 115/220V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Protective Device | None |
| Temp. Rise | 49 deg C |
| Secondary Connection | Wire Leads |
| Height | 2.57 in |
| Standards | RoHS |
| Enclosure Rating | Not Rated |
| Enclosure Finish | No Finish |
| Enclosure Type | Open |
| Depth | 2-1/4 in |
| Enclosure Style - Transformer | Open |
| Width | 4.13 in |
| Output Voltage - Transformer | 24V AC |
| Phase - Electrical | 1 |
| Primary Connection | Leads |
| VA Rating - Transformer | 100 VA |
| Number of Outputs | 24 V AC |
| Operating Temperature - Maximum | 120 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Lead |
| Package Quantity | 1 |
