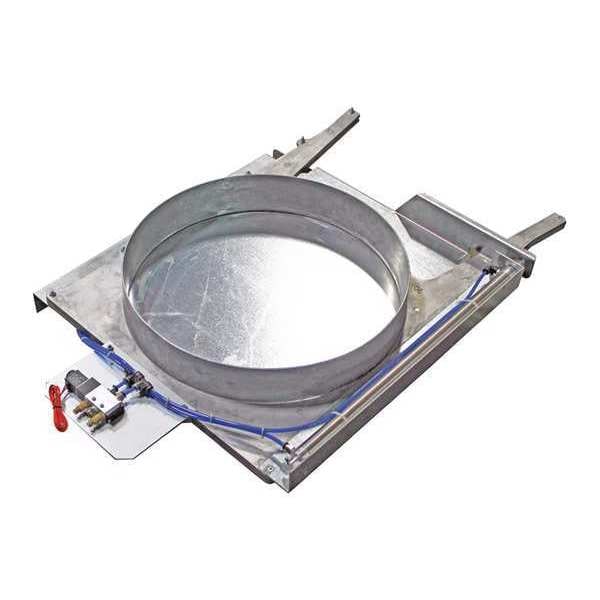

Autómata de compuerta de disparo, Cuerpo de aluminio fundido, Compuerta de acero galvanizado, 11 39/64 pulgadas de ancho, 13 1/2 pulgadas de largo.
| Width | 11-39/64 in |
|---|---|
| Construction Material | Cast Aluminum Body, Galvanized Steel Gate |
| Length | 13-1/2 in |
| Voltage | 110/120V AC |
| Item | Blast Gate |
| Depth | 4 in |
| Duct Size | 8 in |
| Air Input Range (PSI) | 80 to 90 psi |
| Blade Material | Galvanized Steel |
| Product Type | Pneumatic Blast Gate |
| Body Material | Cast Aluminum |
| Number of Air Cylinders | 2 |
| For Nominal Duct Diameter | 8 in |
| Maximum Operating Pressure | -30 in wc |
| Seal Material | Not Applicable |
| Minimum Pressure Rating | 80 psi |
| Weight | 8.4 lb |
| Minimum Operating Pressure | Not Applicable |
| Overall Depth | 4 in |
| Maximum Pressure Rating | 2,434 in wc |
| Nameplate Voltage | 110/120V AC |
| Inside Diameter | 8 in |
| Body Material Fabrication | Cast |
| Maximum Temperature Rating | 300 deg F |
| Package Quantity | 1 |
