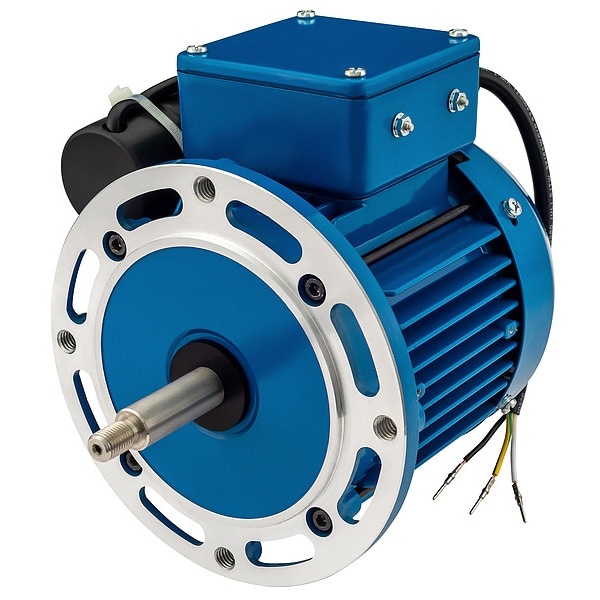

Motor, 1 HP, 3,420 rpm, 56J, 115/230V
| Item | Motor |
|---|---|
| Voltage | 115-230V |
| Height | 7-3/4 in |
| No. of Speeds | 1 |
| Conduit Box Position | F3 |
| Part Winding Start Capable | No |
| Phase | Single |
| Bearing Protection | Water Slingers |
| Standards | CSA C22.2 No. 100, CSA C22.2 No. 77, UL 1004-1, UL 1004-3 |
| Motor Mounting Type | Face |
| Duty Cycle | Continuous |
| Usable @ 200V | No |
| Motor Mounting Position | Horizontal |
| Frame | 56J |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2-5/8 in |
| Usable @ 208V | No |
| Motor Frame Material | Cast Aluminum |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Service Factor | 1.2 |
| Bolt Circle Dia. | 5 7/8 in |
| Number of Wires | 3 |
| For Pump Number | 60PY41, 60PY45 |
| Nameplate RPM | 3,500 |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
| Max. SF Amps | 9.3/4.8 A |
| Max. Ambient Temp. | 40 Degrees C |
| Nominal Efficiency | 74.1 % |
| Motor Design | Permanent Split Capacitor |
| Motor Bearings | Ball |
| RPM Range | 3,001-3,600 |
| Body Dia. | 5.5 in |
| Full Load Amps | 9.6/4.8 A |
| Ins. Class | F |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Length Less Shaft | 6 1/2 in |
| Weight | 17 lb |
| Motor Shaft Rotation | CCW |
| HP | 1 |
| Overall Length | 9-1/16 in |
| Hz | 60 |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Motor Thermal Protection | Auto |
| Finish | Powder Coated |
| Motor Shaft Design | Threaded |
| Conduit Box Location | Exterior |
| Overload Relay Required | No |
| Shaft Material | 303 Stainless Steel |
| Motor Sub Application | Vertical Pump |
| Motor Application | Pump |
| Package Quantity | 1 |
