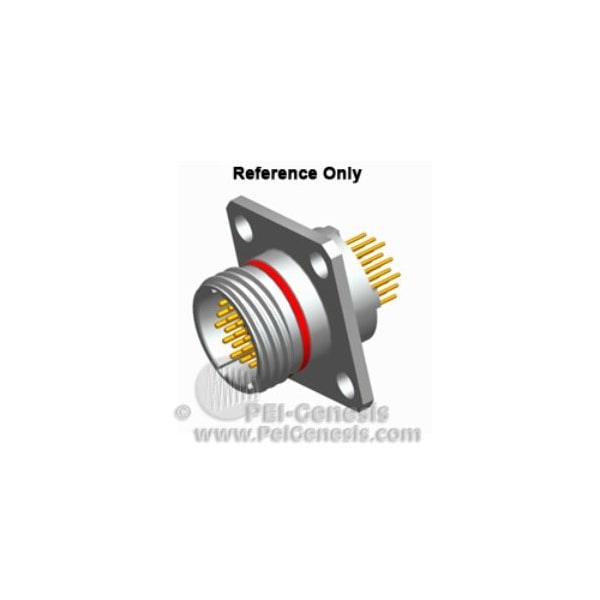

2M801 26C PIN 2623 PCB OD A
| Amperage Rating | 5A |
|---|---|
| Sealing | IP67 |
| Specification | MIL-DTL-38999 style Micro |
| Termination Method | PCB - Straight |
| Insert Arrangement | 45225 |
| Connector Type | Circular |
| Shielding | Yes |
| Insert Rotation/Keying | A |
| Contact Mating Life | 2,000 |
| Insert Material | Polyphenylene Sulfide |
| Operating Voltage AC V RMS Max | 500 |
| Contacts Supplied | Yes |
| Shell Material | Aluminum Alloy |
| Shell Color | Olive Drab |
| Shell Plating | Cadmium |
| Contact Material | Copper Alloy |
| Operating Temperature °F (°C) | -85 to +302 (-65 to +150) |
| Contact Plating | 50 microinches Gold Plate |
| Contact Size | 26#23 |
| Grommet & Seals Material | Fluorosilicone |
| Connector Style | Receptacle |
| No. of Contacts | 26 |
| Mounting Type | Wall - Front Mount - Thru Holes |
| Contact Style | Pin |
| Package Quantity | 1 |
