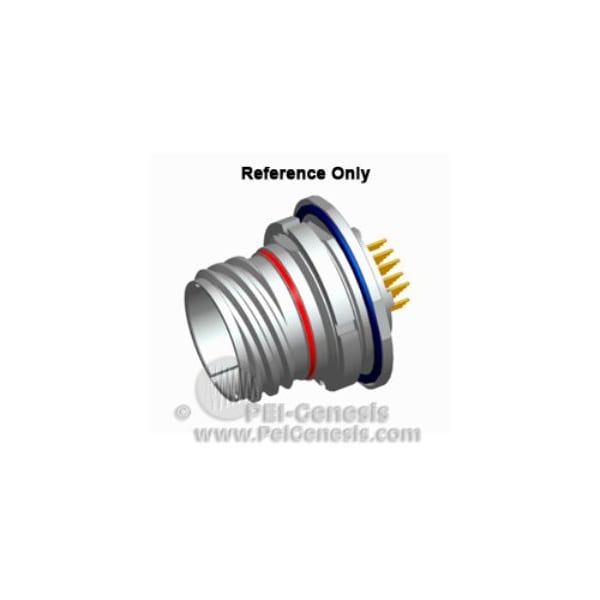

2M805 7C 716 SKT PCB RECP
| Termination Method | PCB - Straight |
|---|---|
| Grommet & Seals Material | Fluorosilicone |
| Shielding | Yes |
| Insert Material | Polyphenylene Sulfide |
| Shell Material | Aluminum Alloy |
| Specification | MIL-DTL-38999 style Micro |
| Contact Style | Socket |
| Contact Plating | 50 microinches Gold Plate |
| Shell Color | Silver |
| Shell Plating | Nickel |
| No. of Contacts | 7 |
| Sealing | IP67 |
| Connector Type | Circular |
| Contact Size | 7#16 |
| Insert Arrangement | 15 to 7 |
| Amperage Rating | 13A |
| Contact Material | Copper Alloy |
| Contact Mating Life | 500 |
| Operating Voltage AC V RMS Max | 1,800 |
| Contacts Supplied | Yes |
| Insert Rotation/Keying | A |
| Operating Temperature °F (°C) | -85 to +302 (-65 to +150) |
| Mounting Type | Jam Nut |
| Connector Style | Receptacle |
| Package Quantity | 1 |
