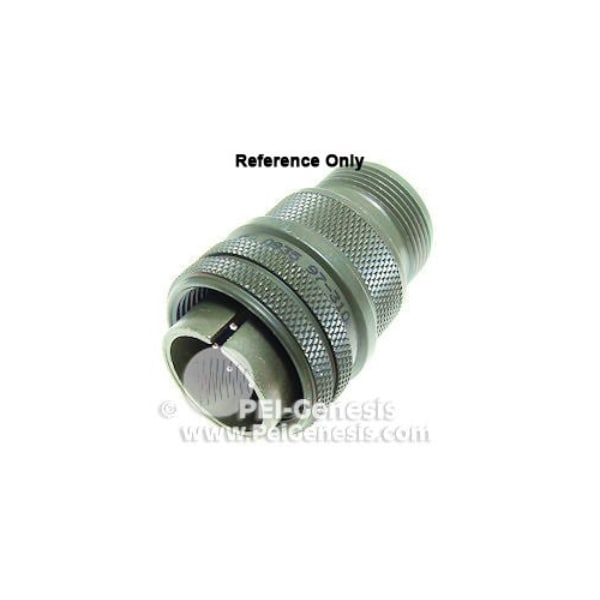

973106A2027SX
| Endbell Type | Threaded - UNEF - Ext |
|---|---|
| Shielding | Yes |
| Contact Mating Life | 100 |
| Contact Size | 14#16 |
| Shell Color | Olive Drab |
| Insert Arrangement | 20 to 27 |
| Amperage Rating | 13A |
| Contact Material | Brass or Copper Alloy |
| Contact Plating | Silver |
| Termination Method | Solder |
| Service Rating | A |
| Connector Style | Plug |
| Contact Style | Socket |
| Operating Voltage DC | 700 |
| Orientation | Straight |
| Contacts Supplied | Yes |
| Connector Type | Circular |
| Insert Rotation/Keying | X |
| Rotation Angle | 110 |
| Specification | MIL-DTL-5015 |
| Operating Voltage AC V RMS Max | 500 |
| Mounting Type | Cable |
| Insert Material | Diallyl Phthalate |
| Operating Temperature °F (°C) | +257 (+125) for 60 hours, +185 (+85) for 1000 hours |
| Shell Material | Aluminum Alloy |
| No. of Contacts | 14 |
| Shell Plating | Olive Drab Cadmium |
| Package Quantity | 1 |
