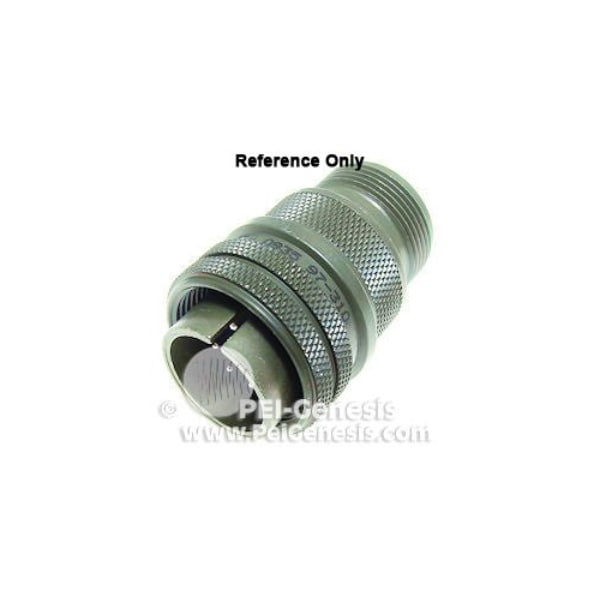

AB 3C 316S SKT STRAIGHT PLUG
| Termination Method | Solder |
|---|---|
| Shell Plating | Black Alloy |
| Shielding | Yes |
| Amperage Rating | 13A |
| Insert Material | Diallyl Phthalate |
| Contact Material | Brass or Copper Alloy |
| Operating Temperature °F (°C) | +257 (+125) for 60 hours, +185 (+85) for 1000 hours |
| Contact Size | 3#16S |
| Insert Arrangement | 14S-7 |
| Contacts Supplied | Yes |
| Specification | MIL-DTL-5015 |
| Contact Plating | Silver |
| Mounting Type | Cable |
| Operating Voltage AC V RMS Max | 500 |
| Endbell Type | Threaded - UNEF - Ext |
| Connector Style | Plug |
| Insert Rotation/Keying | Normal |
| Orientation | Straight |
| Contact Style | Socket |
| No. of Contacts | 3 |
| Connector Type | Circular |
| Operating Voltage DC | 700 |
| Shell Color | Black |
| Contact Mating Life | 100 |
| Shell Material | Aluminum Alloy |
| Service Rating | A |
| Package Quantity | 1 |
