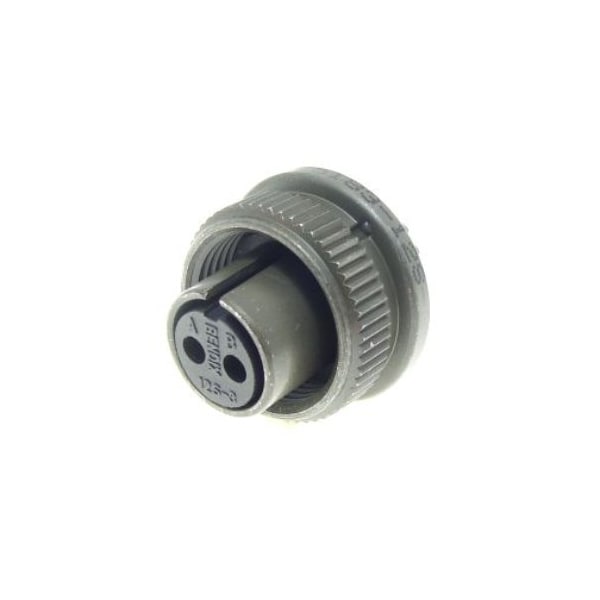

AC 14C 1416 SKT PLUG
| Operating Voltage AC V RMS Max | 500 |
|---|---|
| Insert Arrangement | 20 to 27 |
| Mounting Type | Cable |
| Service Rating | A |
| Grommet & Seals Material | Neoprene |
| Operating Voltage DC | 700 |
| Endbell Type | Gland Sealed - Cable Clamp |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Termination Method | Crimp |
| Contact Plating | Silver |
| Connector Type | Circular |
| Contacts Supplied | Yes |
| Contact Mating Life | 500 |
| Insert Material | Neoprene |
| Shell Material | Aluminum Alloy |
| Insert Rotation/Keying | Normal |
| Shell Plating | Olive Drab Cadmium |
| Contact Size | 14#16 |
| Shell Color | Olive Drab |
| Sealing | IP67 |
| Connector Style | Plug |
| Crimp Wire Gauge | 16, 20, 18 |
| No. of Contacts | 14 |
| Contact Material | Copper Alloy |
| Shielding | Yes |
| Contact Style | Pin, Socket |
| Orientation | Straight |
| Amperage Rating | 13A |
| Package Quantity | 1 |
