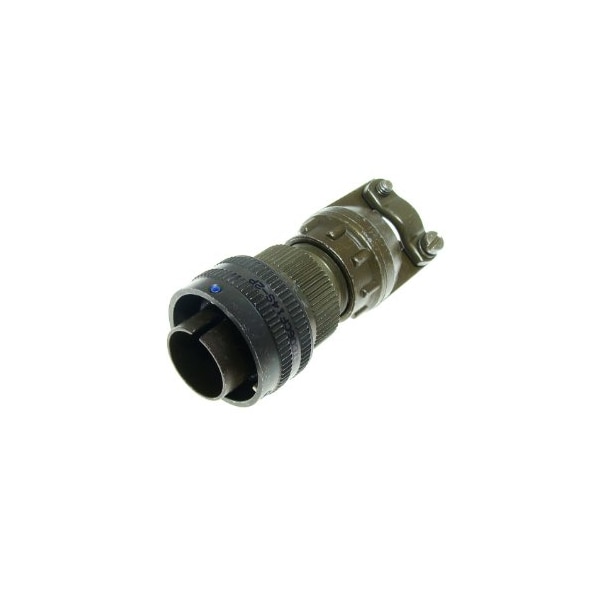

AC 3C 316 SKT PLUG 025
| Connector Style | Plug |
|---|---|
| Operating Voltage DC | 250 |
| Amperage Rating | 13A |
| Operating Voltage AC V RMS Max | 200 |
| Contact Plating | Silver |
| Termination Method | Solder |
| Crimp Wire Gauge | 16, 20, 18 |
| Contacts Supplied | Yes |
| Shell Color | Black |
| Insert Material | Neoprene |
| Shell Material | Aluminum Alloy |
| Endbell Type | Gland Sealed - Cable Clamp |
| Connector Type | Circular |
| Specification | MIL-DTL-5015 Type |
| Contact Style | Socket |
| Sealing | IP67 |
| Service Rating | A |
| Insert Rotation/Keying | Normal |
| No. of Contacts | 3 |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Shell Plating | Black Anodized |
| Shielding | Yes |
| Contact Size | 3#16S |
| Mounting Type | Cable |
| Grommet & Seals Material | Neoprene |
| Contact Mating Life | 500 |
| Orientation | Straight |
| Contact Material | Copper Alloy |
| Insert Arrangement | 14S-1 |
| Package Quantity | 1 |
