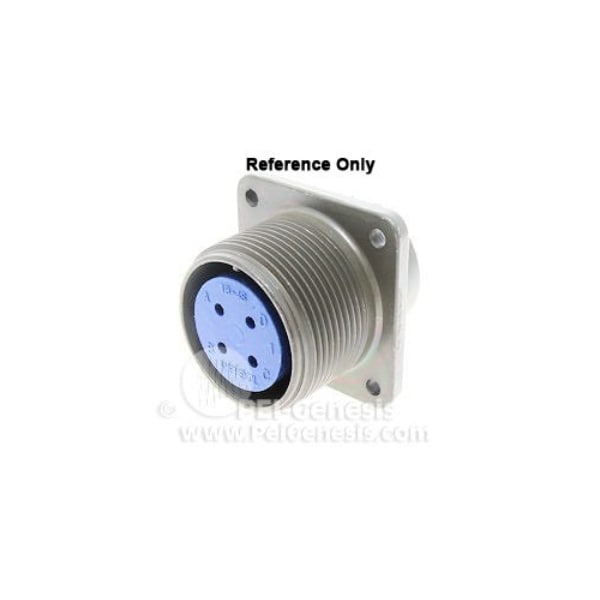

ER 23C 1616 212 38 24 PIN
| Insert Arrangement | 32 to 16 |
|---|---|
| Contact Mating Life | 100 |
| Contacts Supplied | Yes |
| No. of Contacts | 23 |
| Operating Voltage DC | 700 |
| Operating Voltage AC V RMS Max | 500 |
| Insert Material | Neoprene |
| Specification | MIL-DTL-5015 |
| Service Rating | A |
| Operating Temperature °F (°C) | +257 (+125) for 60 hours, +185 (+85) for 1000 hours |
| Insert Rotation/Keying | Normal |
| Connector Type | Circular |
| Shell Material | Aluminum Alloy |
| Shell Plating | Olive Drab Cadmium |
| Orientation | Straight |
| Termination Method | Solder |
| Contact Plating | Silver |
| Shell Color | Olive Drab |
| Contact Material | Brass or Copper Alloy |
| Shielding | Yes |
| Mounting Type | Box - Front Mount - Thru Holes |
| Contact Size | 16#16, 2#12, 3#8, 2#4 |
| Contact Style | Pin |
| Amperage Rating | 13A & 23A & 46A & 80A |
| Connector Style | Receptacle |
| Package Quantity | 1 |
