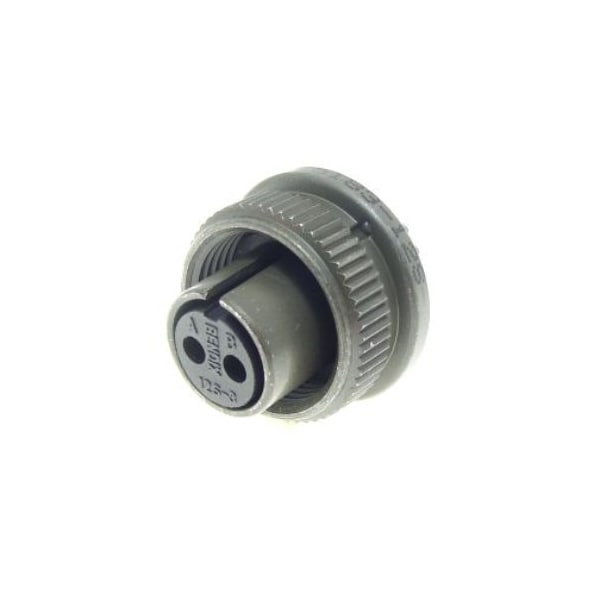

ER 3C 38 SKT PLUG
| Contacts Supplied | No |
|---|---|
| Crimp Wire Gauge | 8 |
| Operating Voltage AC V RMS Max | 500 |
| Insert Rotation/Keying | Normal |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Contact Style | Socket |
| Shell Plating | Olive Drab Cadmium |
| Shielding | Yes |
| Grommet & Seals Material | Neoprene |
| Orientation | Straight |
| Contact Mating Life | 500 |
| Shell Color | Olive Drab |
| Amperage Rating | 13A & 46A |
| Contact Size | 3#8 |
| Termination Method | Crimp |
| Operating Voltage DC | 1,250 |
| Connector Style | Plug |
| Endbell Type | Cable Clamp - Extended |
| Insert Arrangement | 22 to 2 |
| Contact Material | Copper Alloy |
| No. of Contacts | 3 |
| Connector Type | Circular |
| Service Rating | D |
| Shell Material | Aluminum Alloy |
| Sealing | Unsealed |
| Insert Material | Neoprene |
| Contact Plating | Silver |
| Mounting Type | Cable |
| Package Quantity | 1 |
