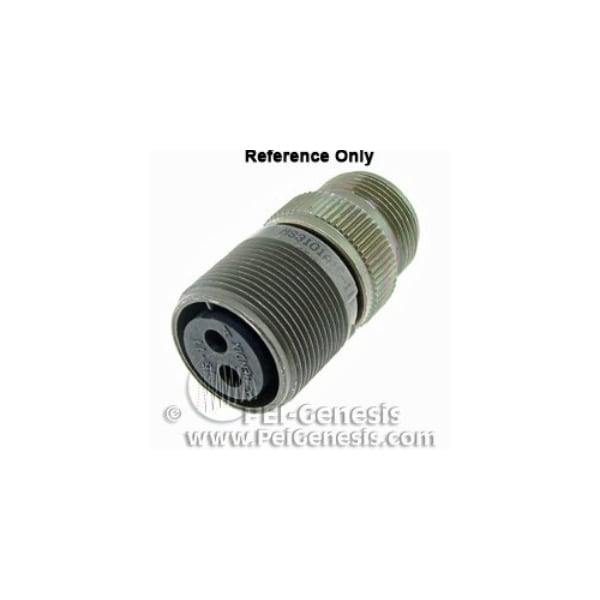

ER 54C 5416 SKT RECP LINE
| Amperage Rating | 13A |
|---|---|
| Shielding | Yes |
| Contact Mating Life | 100 |
| Operating Voltage DC | 250 |
| Contact Plating | Silver |
| Insert Rotation/Keying | Normal |
| Insert Arrangement | 32 to 22 |
| Connector Style | Receptacle |
| Endbell Type | Threaded - UNEF - Ext |
| Sealing | IP65 |
| Specification | MIL-DTL-5015 |
| Mounting Type | Cable |
| Insert Material | Neoprene |
| Contact Size | 54#16 |
| Shell Color | Olive Drab |
| Contact Material | Copper Alloy |
| Shell Material | Aluminum Alloy |
| Contacts Supplied | Yes |
| Service Rating | A |
| Orientation | Straight |
| Termination Method | Crimp |
| No. of Contacts | 54 |
| Operating Voltage AC V RMS Max | 200 |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Contact Style | Pin |
| Connector Type | Circular |
| Shell Plating | Olive Drab Cadmium |
| Package Quantity | 1 |
