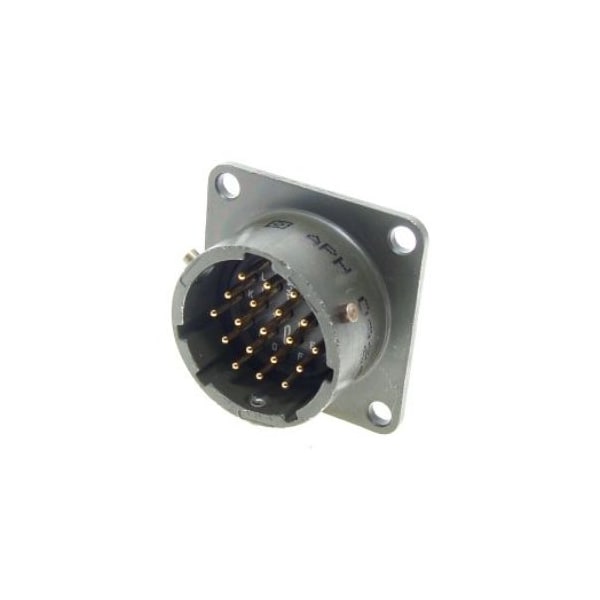

Extreme Exposure Mini-Circular Connectors Pt 19C 19#20 Pin Recp
| Orientation | Straight |
|---|---|
| Endbell Type | Nut |
| Insert Arrangement | 14-19 |
| Amperage Rating | 13 A |
| Shell Color | Olive Drab |
| Shell Material | Aluminum Alloy |
| Contact Style | Pin |
| Operating Voltage AC V RMS Max | 600 |
| Insert Material | Neoprene |
| Grommet & Seals Material | Neoprene |
| Termination Method | Solder |
| Contact Mating Life | 500 |
| Shielding | Yes |
| Contacts Supplied | Yes |
| No. of Contacts | 19 |
| Operating Voltage DC | 850 |
| Connector Style | Receptacle |
| Contact Material | Copper Alloy |
| Contact Size | 19#20 |
| Sealing | Sealed |
| Shell Plating | Olive Drab Cadmium |
| Insert Rotation/Keying | Normal |
| Contact Plating | Gold |
| Connector Type | Circular |
| Operating Temperature °F (°C) | -67 to +257 (-55 to +125) |
| Service Rating | I |
| Mounting Type | Box - Front Mount - Thru Holes |
| Specification | MIL-DTL-26482 |
| Package Quantity | 1 |
