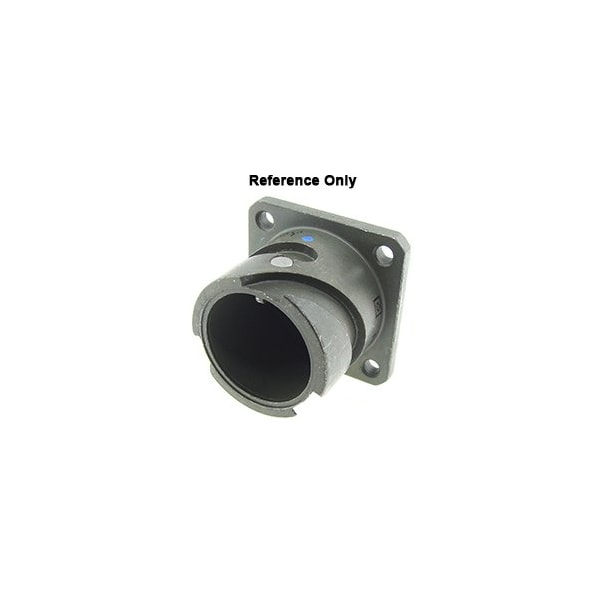

GT 10C 1016 PIN RECP WALL RM
| Service Rating | A I |
|---|---|
| Shell Plating | Olive Drab Cadmium |
| Contact Mating Life | 500 |
| Sealing | Unsealed |
| Insert Rotation/Keying | Normal |
| Orientation | Straight |
| Termination Method | Crimp |
| Amperage Rating | 13 A |
| Contact Material | Copper Alloy |
| Connector Style | Receptacle |
| No. of Contacts | 10 |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Insert Material | Neoprene |
| Grommet & Seals Material | Neoprene |
| Contact Plating | Silver |
| Contacts Supplied | Yes |
| Contact Size | 10#16 |
| Shell Color | Olive Drab |
| Connector Type | Circular |
| Contact Style | Pin |
| Crimp Wire Gauge | 16, 20, 18 |
| Endbell Type | Cable Clamp - Extended |
| Shell Material | Aluminum Alloy |
| Mounting Type | Wall - Rear Mount |
| Shielding | Yes |
| Insert Arrangement | 18-1 |
| Package Quantity | 1 |
