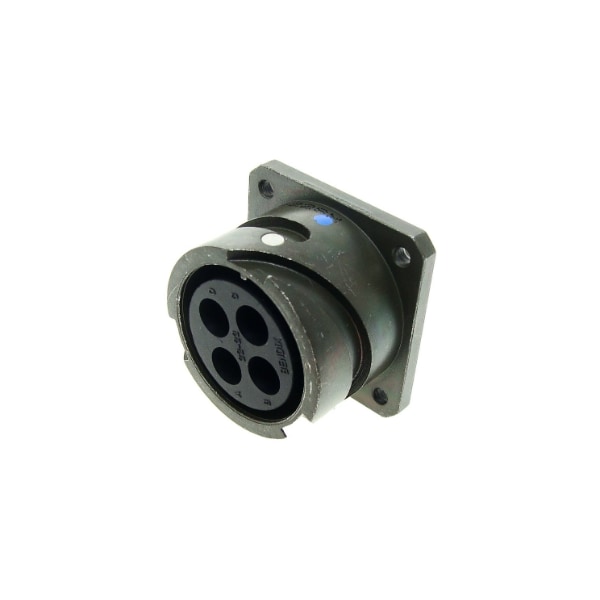

GT 16C 916 48 38 1012 SK
| Insert Rotation/Keying | Normal |
|---|---|
| Contact Plating | Silver |
| Contact Style | Socket |
| Contact Size | 9#16, 7#8 |
| Shell Material | Aluminum Alloy |
| Amperage Rating | 13A & 46A |
| Contact Mating Life | 500 |
| Shell Plating | Olive Drab Cadmium |
| Orientation | Straight |
| Operating Voltage DC | 1250(J) 700(all others) |
| Shielding | Yes |
| Crimp Wire Gauge | 20,18,16,8 |
| Contacts Supplied | Yes |
| Contact Material | Copper Alloy |
| Operating Voltage AC V RMS Max | 500 |
| Shell Color | Olive Drab |
| Insert Material | Neoprene |
| No. of Contacts | 16 |
| Insert Arrangement | 28 to 74 |
| Endbell Type | None |
| Connector Style | Plug |
| Sealing | Unsealed |
| Mounting Type | Wall - Rear Mount |
| Termination Method | Crimp |
| Grommet & Seals Material | Neoprene |
| Service Rating | A |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Connector Type | Circular |
| Package Quantity | 1 |
