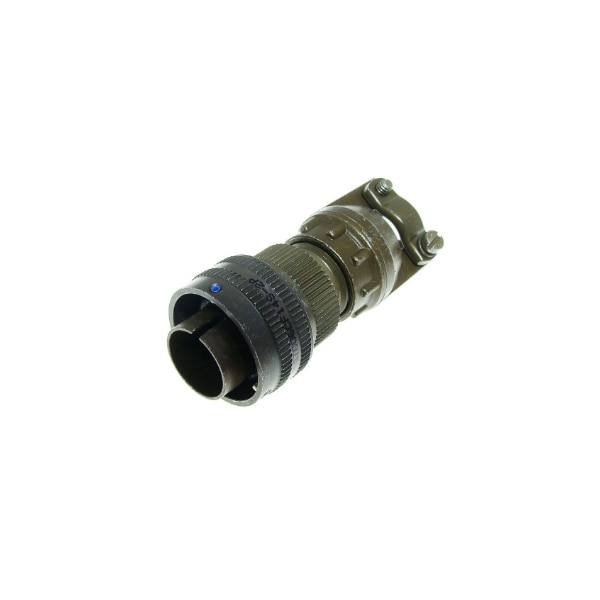

GT 23C 24 38 212 1616 PIN
| Endbell Type | Cable Clamp - Extended |
|---|---|
| Grommet & Seals Material | Neoprene |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Insert Material | Neoprene |
| Mounting Type | Box - Front Mount |
| Contacts Supplied | Yes |
| Sealing | Unsealed |
| No. of Contacts | 23 |
| Insert Rotation/Keying | Normal |
| Operating Voltage AC V RMS Max | 500 |
| Contact Mating Life | 500 |
| Amperage Rating | 13A & 23A & 46A & 80A |
| Contact Material | Copper Alloy |
| Operating Voltage DC | 700 |
| Contact Size | 16#16, 2#12, 3#8, 2#4 |
| Connector Style | Receptacle |
| Shell Color | Olive Drab |
| Crimp Wire Gauge | 20,18,16,14,12,8,4 |
| Insert Arrangement | 32 to 16 |
| Shell Plating | Olive Drab Cadmium |
| Contact Plating | Silver |
| Shell Material | Aluminum Alloy |
| Connector Type | Circular |
| Service Rating | A |
| Contact Style | Pin |
| Shielding | Yes |
| Termination Method | Solder |
| Orientation | Straight |
| Package Quantity | 1 |
