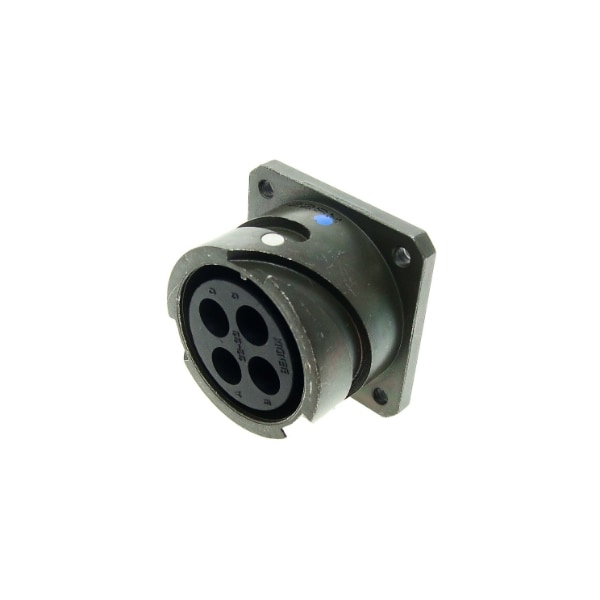

GT 31C 1416, 12, 28 14 SKT RE
| Shell Plating | Olive Drab Cadmium |
|---|---|
| Contact Material | Copper Alloy |
| Shell Color | Olive Drab |
| Shell Material | Aluminum Alloy |
| Mounting Type | Wall - Rear Mount |
| Shielding | Yes |
| Contacts Supplied | Yes |
| Insert Arrangement | 36 to 18 |
| Termination Method | Crimp |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Operating Voltage DC | 1250(J) 700(all others) |
| Contact Plating | Silver |
| Grommet & Seals Material | Neoprene |
| Crimp Wire Gauge | 20,18,16,14,12,8,4 |
| Sealing | Unsealed |
| Orientation | Straight |
| Contact Mating Life | 500 |
| Operating Voltage AC V RMS Max | 500 |
| No. of Contacts | 31 |
| Connector Style | Receptacle |
| Amperage Rating | 13A & 23A & 46A & 80A |
| Endbell Type | None |
| Contact Size | 14#16, 14#12, 2#8, 1#4 |
| Insert Material | Neoprene |
| Contact Style | Socket |
| Insert Rotation/Keying | Normal |
| Connector Type | Circular |
| Service Rating | A |
| Package Quantity | 1 |
