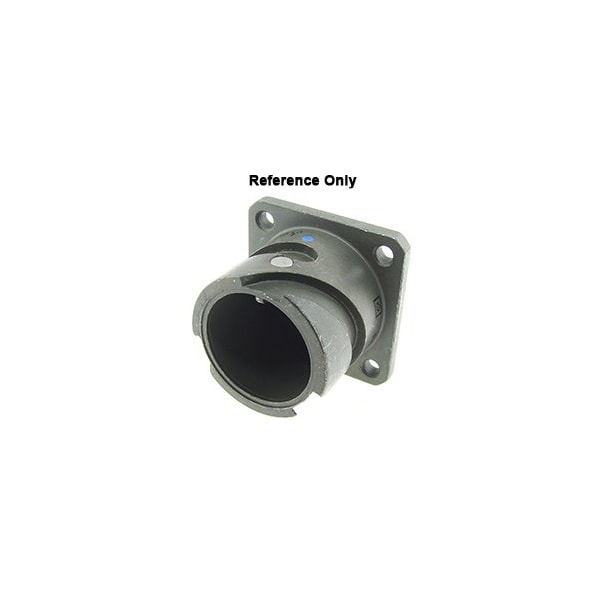

GT 6C 38 316 PIN RECP WALL
| Sealing | Unsealed |
|---|---|
| Contact Mating Life | 500 |
| Insert Rotation/Keying | X |
| Shell Plating | Olive Drab Cadmium |
| Orientation | Straight |
| Connector Style | Receptacle |
| Contact Material | Copper Alloy |
| No. of Contacts | 6 |
| Endbell Type | None |
| Termination Method | Crimp |
| Crimp Wire Gauge | 20,18,16,8 |
| Insert Material | Neoprene |
| Contact Size | 3#16, 3#8 |
| Shell Material | Aluminum Alloy |
| Insert Arrangement | 20-22 |
| Operating Voltage DC | 700 |
| Mounting Type | Wall - Rear Mount |
| Contact Style | Pin |
| Rotation Angle | 110 |
| Amperage Rating | 13A & 46A |
| Service Rating | A |
| Contacts Supplied | Yes |
| Shielding | Yes |
| Operating Voltage AC V RMS Max | 500 |
| Grommet & Seals Material | Neoprene |
| Contact Plating | Silver |
| Shell Color | Olive Drab |
| Operating Temperature °F (°C) | -67 - +257 (-55 to +125) |
| Connector Type | Circular |
| Package Quantity | 1 |
