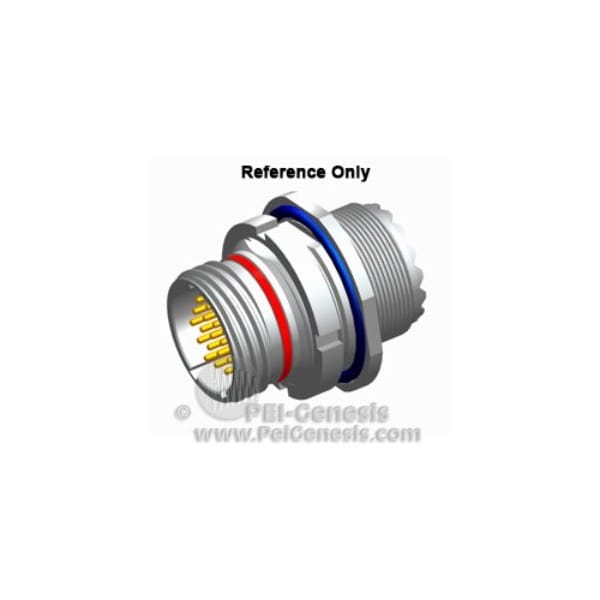

M801 6C 423 216 SKT REC THRD
| Amperage Rating | 5A & 13A |
|---|---|
| Grommet & Seals Material | Fluorosilicone |
| No. of Contacts | 6 |
| Termination Method | Crimp |
| Contact Plating | 50 microinches Gold Plate |
| Insert Rotation/Keying | B |
| Contact Size | 4#23,2#16 |
| Insert Material | Polyphenylene Sulfide |
| Operating Temperature °F (°C) | -85 to +302 (-65 to +150) |
| Contact Material | Copper Alloy |
| Specification | MIL-DTL-38999 style Micro |
| Shell Color | Silver |
| Contacts Supplied | Yes |
| Contact Mating Life | 2,000 |
| Sealing | IP67 |
| Mounting Type | Jam Nut - Front Mount |
| Connector Style | Receptacle |
| Insert Arrangement | 9 to 200 |
| Connector Type | Circular |
| Orientation | Straight |
| Contact Style | Socket |
| Shell Plating | Nickel |
| Crimp Wire Gauge | 30,28,26,24,22,20,18,16 |
| Shielding | Yes |
| Operating Voltage AC V RMS Max | 1800/500 |
| Shell Material | Aluminum Alloy |
| Package Quantity | 1 |
