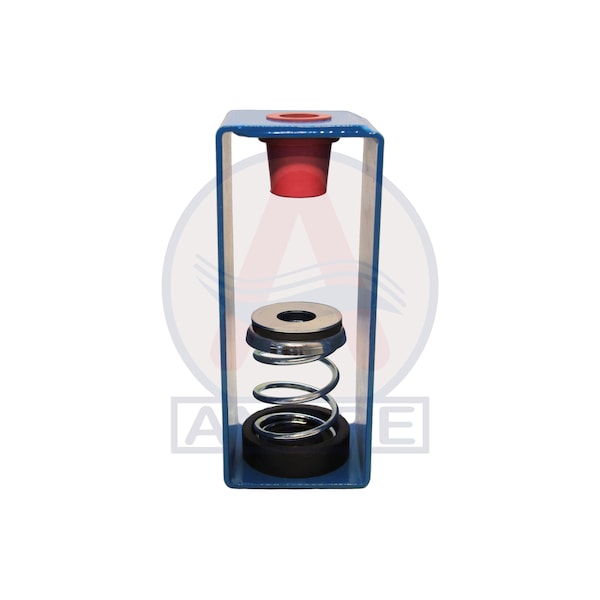

NEOPRENE SPRING, HANGERS 1, LD 130-195LB
| Item | Spring Hanger |
|---|---|
| Height | 8 in |
| Width | 3 in |
| Spring Color | Silver |
| Spring Identifier Color | Black, Red |
| Finish | Spring: Galvanized; Bracket: Powder Coated, Colour Coded Neoprene Element |
| Rated Load | 172LBS |
| Color | Blue |
| Length | 3 in |
| Rated Deflection | 1 in |
| Material | Elastomeric Compounds, Powder Coating, Spring Steel; High Strength Low Carbon Alloy Steel |
| Features | Design allows angular hanger misalignment The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled. Springs have 50% additional travel to max load as per ASHRAE recommendations. |
| Max Load | 260 lb |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Includes | Steel Spring, Steel Bracket, Steel and Elastomer Washers, Neoprene Cup, Neoprene Element |
| For Use With | Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts |
| Capacity | 172 lb |
| Package Quantity | 1 |
