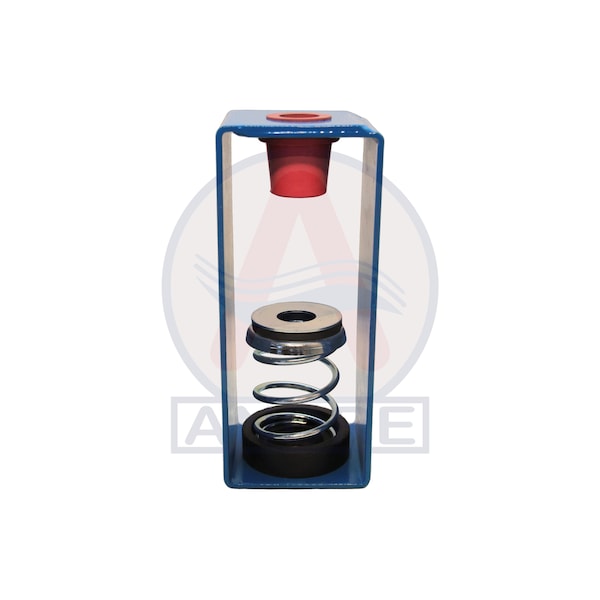

NEOPRENE SPRING, HANGERS 1, LD 225-340LB
| Item | Spring Hanger |
|---|---|
| Width | 3 in |
| Height | 8 in |
| Spring Color | Silver |
| Includes | Steel Spring, Steel Bracket, Steel and Elastomer Washers, Neoprene Cup, Neoprene Element |
| Color | Blue |
| Length | 3 in |
| Material | Elastomeric Compounds, Powder Coating, Spring Steel; High Strength Low Carbon Alloy Steel |
| Finish | Spring: Galvanized; Bracket: Powder Coated, Colour Coded Neoprene Element |
| Spring Identifier Color | Green, Red |
| Max Load | 450 lb |
| Rated Deflection | 1.2 in |
| For Use With | Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts |
| Features | Design allows angular hanger misalignment The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled. Springs have 50% additional travel to max load as per ASHRAE recommendations. |
| Rated Load | 297LBS |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Capacity | 297 lb |
| Package Quantity | 1 |
