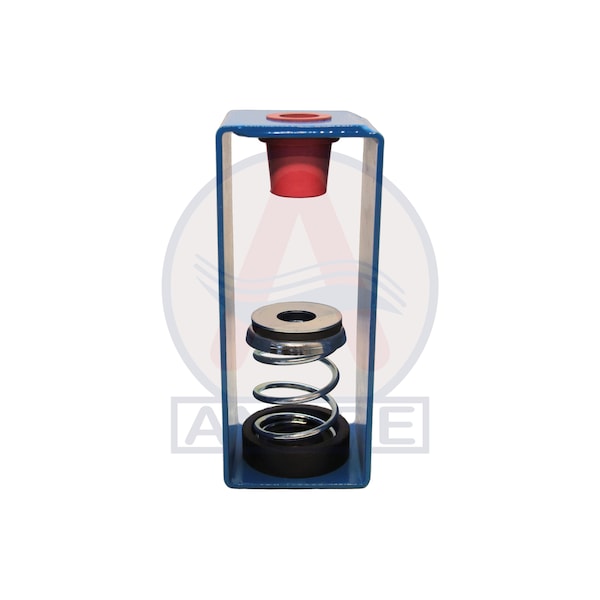

NEOPRENE SPRING, HANGERS 1, LD 350-525LB
| Item | Spring Hanger |
|---|---|
| Width | 3 in |
| Height | 8 in |
| Spring Color | Silver |
| Rated Load | 462LBS |
| Capacity | 462 lb |
| Features | Design allows angular hanger misalignment The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled. Springs have 50% additional travel to max load as per ASHRAE recommendations. |
| Rated Deflection | 1 in |
| Spring Identifier Color | Black, Green |
| Includes | Steel Spring, Steel Bracket, Steel and Elastomer Washers, Neoprene Cup, Neoprene Element |
| Color | Blue |
| Length | 3 in |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Max Load | 700 lb |
| Material | Elastomeric Compounds, Powder Coating, Spring Steel; High Strength Low Carbon Alloy Steel |
| Finish | Spring: Galvanized; Bracket: Powder Coated, Colour Coded Neoprene Element |
| For Use With | Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts |
| Package Quantity | 1 |
