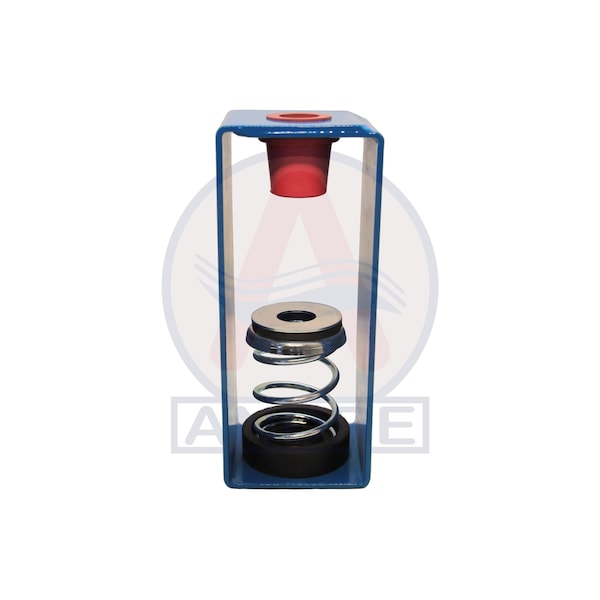

NEOPRENE SPRING, HANGERS 1, LD 85-125LB
| Item | Spring Hanger |
|---|---|
| Spring Color | Silver |
| Width | 3 in |
| Height | 8 in |
| Finish | Spring: Galvanized; Bracket: Powder Coated, Colour Coded Neoprene Element |
| Material | Elastomeric Compounds, Powder Coating, Spring Steel; High Strength Low Carbon Alloy Steel |
| Rated Deflection | 1.3 in |
| Length | 3 in |
| Features | Design allows angular hanger misalignment The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled. Springs have 50% additional travel to max load as per ASHRAE recommendations. |
| Spring Identifier Color | Blue |
| Includes | Steel Spring, Steel Bracket, Steel and Elastomer Washers, Neoprene Cup, Neoprene Element |
| Capacity | 112 lb |
| Rated Load | 112LBS |
| Max Load | 170 lb |
| For Use With | Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Color | Blue |
| Package Quantity | 1 |
