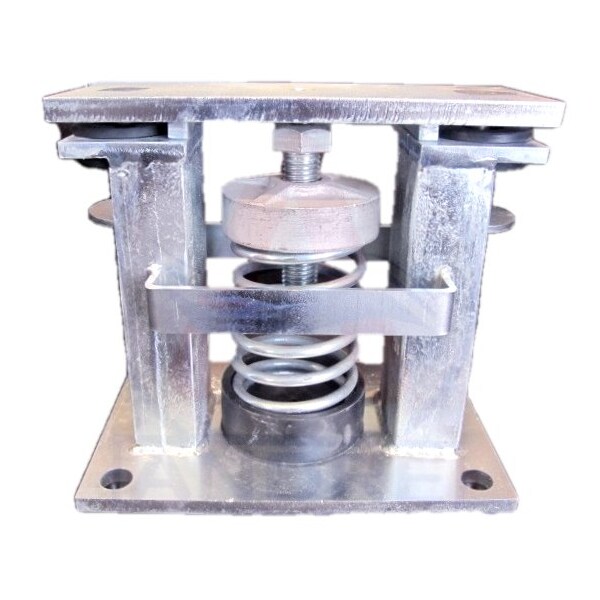

RESTRAINED SPRING ISOLATOR 2, 1400-2100
| Item | Restrained Seismic Spring Mount |
|---|---|
| Height | 8-5/8 in |
| Width | 6-5/16 in |
| Spring Color | Silver |
| Includes | Snubbing Element, Steel Housing, Steel Springs, Steel Nut and Bolt |
| Finish | Housing: Galvanized Steel; Spring: Hot Dip Galvanized Steel |
| Color | Silver |
| Max Load | 2,798 lb |
| Features | Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation |
| Rated Deflection | 2" |
| Length | 10 in |
| Material | Elastomeric Compound, Zinc Plated Steel Hardware, Zinc Plated / Galvanized High Strengh Low Carbon Steel; Spring Steel |
| Capacity | 1,850 lb |
| For Use With | Used for Air Conditioning Equipmnet such as compressors, air handling units, centrifugal fans, pump, cooling towers and chillers |
| Spring Identifier Color | Orange, Yellow, Brown |
| Rated Load | 1875LBS |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Package Quantity | 1 |
