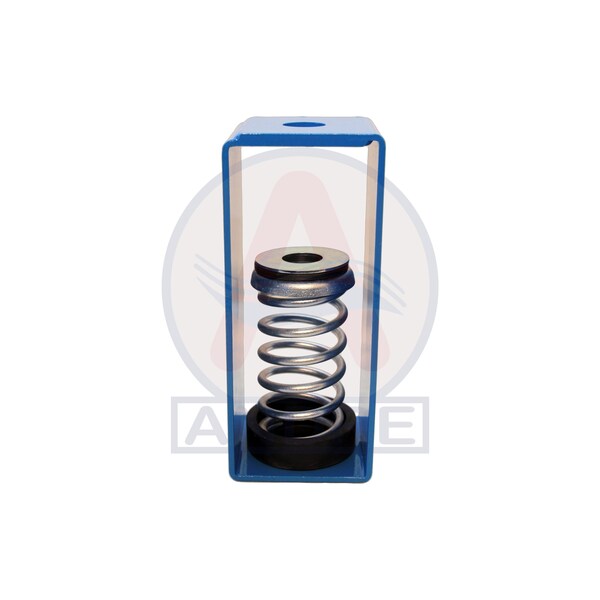

SPRING HANGERS 1, LD RGE 1100-1650LBS
| Item | Spring Hanger |
|---|---|
| Width | 3 in |
| Height | 7-1/2 in |
| Spring Color | Silver |
| Rated Load | 1452LBS |
| Material | Elastomeric Compounds, Powder Coating, Spring Steel; High Strength Low Carbon Alloy Steel |
| Includes | Steel Spring, Steel Bracket, Neoprene Cup, Steel and Elastomer Washers |
| Finish | Spring: Galvanized; Bracket: Powder Coated |
| For Use With | Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts |
| Rated Deflection | 1 in |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Color | Blue |
| Features | Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation |
| Max Load | 2,200 lb |
| Length | 3 in |
| Capacity | 1,452 lb |
| Spring Identifier Color | Nil, Gold |
| Package Quantity | 1 |
